Fein MSf 680C (50/60Hz 230V) / 72204600226 Spare Parts

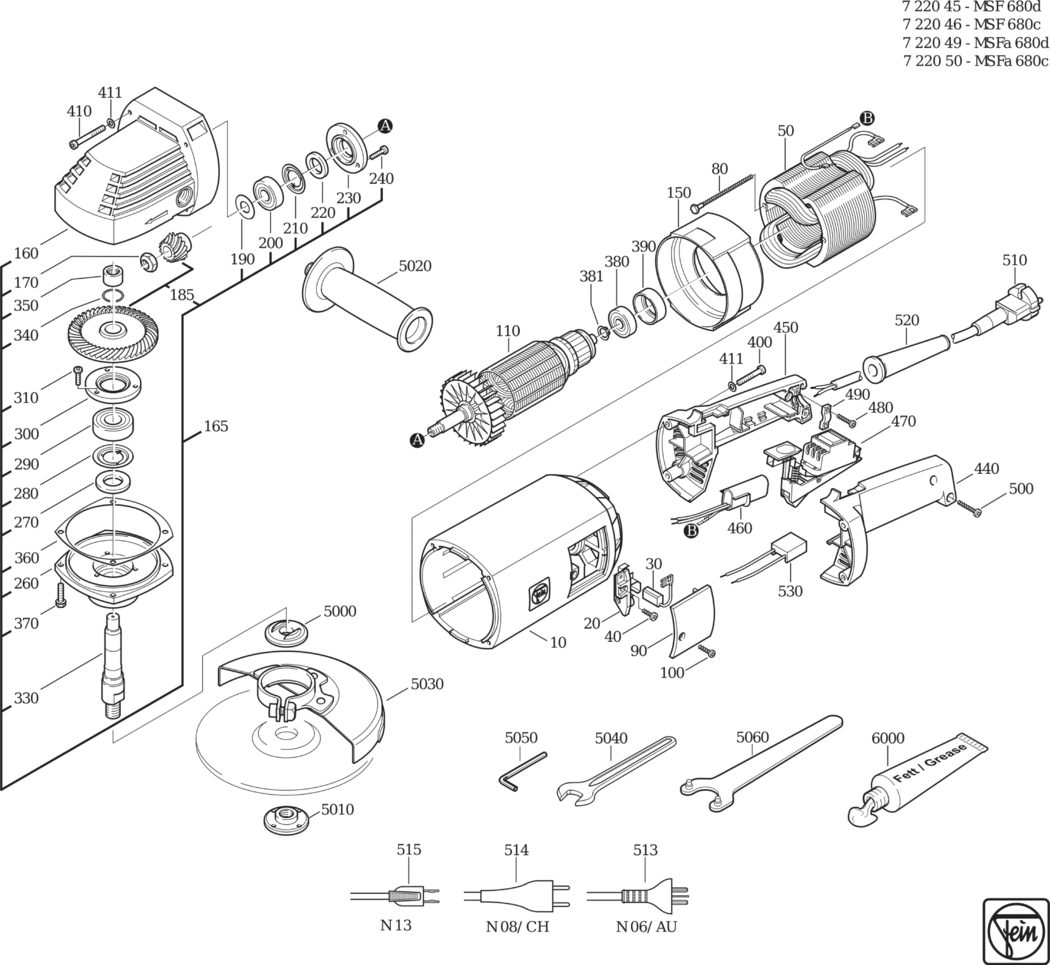

An exploded diagram and spare parts listing for the Fein MSf 680C (50/60Hz 230V) / 72204600226

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31903156012.A5 31903156012	-
20 - BRUSH HOLDER FEI-30712076012.A20 30712076012	-
30 - CARBON BRUSH (SOLD SINGLY) FEI-30711096007.A13 30711096007	£15.12	£18.14
40 - SHEET METAL SCREW FEI-43046001002.A71 43046001002	-
50 - STATOR FEI-51256001221.A1 51256001221	-
80 - SHEET METAL SCREW FEI-43046035008.A3 43046035008	-
90 - COVER FEI-32427066000.A6 32427066000	£5.27	£6.32
100 - SHEET METAL SCREW FEI-43046020001.A31 43046020001	-
110 - ARMATURE FEI-53256001223.A1 53256001223	-
150 - AIR GUIDE RING FEI-31428042004.A5 31428042004	£5.05	£6.06
160 - GEARBOX HOUSING FEI-31206087005.A3 31206087005	£97.43	£116.92
165 - GEARBOX HOUSING FEI-31206087020.A4 31206087020	-
170 - HEX NUT FEI-42004039001.A6 42004039001	-
185 - BEVEL GEAR Z=17/67 FEI-33809166016.A4 33809166016	-
190 - DISC FEI-32408293002.A0 32408293002	-
200 - GROOVED BALL BEARING FEI-41701213096.A0 41701213096	£20.90	£25.08
210 - DISC FEI-32411058001.A9 32411058001	£1.60	£1.92
220 - FELT RING FEI-30601050002.A12 30601050002	£1.60	£1.92
230 - PLATE FEI-32416082005.A10 32416082005	£13.94	£16.73
240 - FILLISTER HEAD SCREW FEI-43064003047.A1 43064003047	£1.75	£2.10
260 - BEARING PLATE FEI-32419089009.A8 32419089009	-
270 - FELT RING FEI-30601098001.A8 30601098001	-
280 - DISC FEI-32411074000.A0 32411074000	£5.74	£6.89
290 - GROOVED BALL BEARING FEI-41701224024.A34 41701224024	£12.19	£14.63
300 - PLATE FEI-32416078007.A8 32416078007	-
310 - FILLISTER HEAD SCREW FEI-43064003047.A0 43064003047	£1.75	£2.10
330 - SHAFT FEI-33406161000.A8 33406161000	-
340 - CIRCLIP FEI-42615108003.A5 42615108003	£1.75	£2.10
350 - NEEDLE BEARING FEI-41706030007.A7 41706030007	£29.44	£35.33
360 - DISC FEI-32624104030.A0 32624104030	£4.42	£5.31
360 - DISC FEI-32624104024.A8 32624104024	-
370 - HEXAGON SOCKET SCREW FEI-43064015054.A12 43064015054	£1.75	£2.10
380 - GROOVED BALL BEARING FEI-41701210021.A30 41701210021	£8.89	£10.67
381 - RING FEI-42628001006.A16 42628001006	£1.60	£1.92
390 - BUSH FEI-30507174003.A3 30507174003	£4.75	£5.70
400 - CYLINDER HEAD SCREW FEI-43033015052.A25 43033015052	£1.60	£1.92
410 - CYLINDER HEAD SCREW FEI-43033017059.A9 43033017059	-
411 - CIRCLIP M5 FEI-42443004057.A230 42443004057	£1.60	£1.92
440 - HANDLE HALF SHELL FEI-31204186000.A12 31204186000	-
450 - HANDLE HALF SHELL FEI-31204185000.A5 31204185000	-
460 - CAPACITOR FEI-30722134011.A0 30722134011	£16.88	£20.26
470 - SWITCH FEI-30701117009.A11 30701117009	£47.92	£57.50
480 - SHEET METAL SCREW FEI-43046016003.A19 43046016003	-
490 - CABLE CLAMPING PIECE FEI-32431021007.A117 32431021007	£1.60	£1.92
500 - SHEET METAL SCREW FEI-43046021000.A10 43046021000	-
510 - CABLE WITH PLUG FEI-30707200019.A10 30707200019	£19.62	£23.54
520 - CABLE GROMMET FEI-31413094007.A45 31413094007	£3.04	£3.65
912 - SEALING RING FEI-40612000007.A134 40612000007	£1.60	£1.92
5000 - INNER FLANGE FEI-63801182010.A134 63801182010	£14.88	£17.86
5010 - THREADED FLANGE FEI-63802052000.A137 63802052000	£14.88	£17.86
5020 - ANTI-VIBRATION HANDLE FEI-32119117015.A24 32119117015	£58.22	£69.87
5030 - WHEEL GUARD FEI-31810071015.A2 31810071015	£64.58	£77.50
5040 - JAW SPANNER SW17 FEI-62903011005.A25 62903011005	£7.22	£8.67
5050 - ALLEN KEY SW6 FEI-62907004005.A26 62907004005	£3.35	£4.02
5060 - BIDIRECTIONAL NUT SPANNER FEI-62910022002.A122 62910022002	£7.22	£8.67
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003135.A9 32160003135	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A312 34130054061	-
