Fein SCW 16-6 (50/60Hz 220/230V) / 72109800230 Spare Parts

Fein SCW 16-6 ⡐/60Hz 220/230V) / 72109800230 Spare Parts

Home Details Reviews Delivery

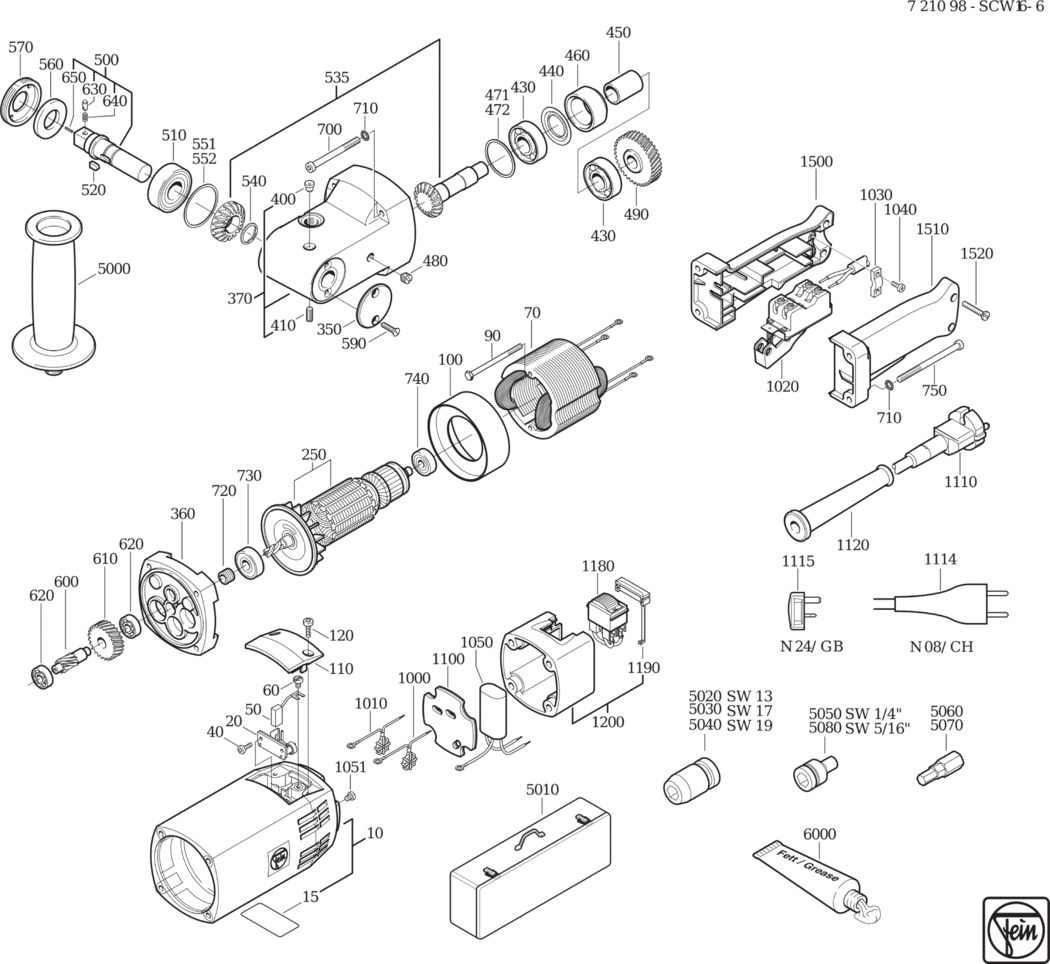

An exploded diagram and spare parts listing for the Fein SCW 16-6 (50/60Hz 220/230V) / 72109800230

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31903099015.A0 31903099015	-
15 - INFORMATION SIGN FEI-32217396063.A0 32217396063	-
20 - BRUSH HOLDER FEI-30712067017.A10 30712067017	£11.92	£14.30
40 - FILLISTER HEAD SCREW M3 5X10 FEI-43041001994.A86 43041001994	£1.60	£1.92
50 - CARBON BRUSH (SOLD SINGLY) FEI-30711067004.A30 30711067004	£7.87	£9.44
60 - FILLISTER HEAD SCREW FEI-43041016042.A34 43041016042	-
70 - STATOR FEI-51213012237.A0 51213012237	-
90 - HEXAGON SOCKET SCREW FEI-43001004042.A22 43001004042	£2.69	£3.23
100 - AIR GUIDE RING FEI-31428010005.A28 31428010005	£7.53	£9.04
110 - COVER FEI-32427040001.A34 32427040001	£3.39	£4.07
120 - SHEET METAL SCREW FEI-43046001002.A59 43046001002	-
250 - ARMATURE Z=4 FEI-53213012239.A0 53213012239	-
350 - DISC FEI-32410070007.A0 32410070007	-
360 - INTERMEDIATE GEAR BOX FEI-31506368003.A0 31506368003	-
370 - GEARBOX HOUSING FEI-31508252005.A0 31508252005	-
400 - NIPPLE FEI-32131001002.A17 32131001002	£2.68	£3.21
410 - SET SCREW FEI-43045023055.A0 43045023055	-
430 - GROOVED BALL BEARING FEI-41701218018.A0 41701218018	-
440 - SEALING RING FEI-42639005000.A3 42639005000	-
450 - SLEEVE FEI-30501228004.A2 30501228004	£7.32	£8.79
460 - SLEEVE FEI-30501227006.A0 30501227006	£12.22	£14.67
471 - DISC FEI-32624024023.A0 32624024023	-
472 - DISC FEI-32624024039.A2 32624024039	-
480 - SET SCREW M8X8 FEI-43009023080.A0 43009023080	-
490 - GEAR-WHEEL FEI-33663030001.A2 33663030001	£46.07	£55.28
500 - TOOL HOLDER FEI-30104128013.A0 30104128013	-
510 - GROOVED BALL BEARING FEI-41701222022.A4 41701222022	£13.42	£16.11
520 - FEATHER KEY FEI-40223018007.A2 40223018007	-
535 - BEVEL GEAR Z=20/23 FEI-33809119017.A0 33809119017	-
540 - CIRCLIP FEI-42643004002.A0 42643004002	-
551 - DISC FEI-32624025027.A0 32624025027	-
552 - DISC FEI-32624025033.A2 32624025033	-
560 - FELT RING FEI-30601010006.A2 30601010006	£3.43	£4.12
570 - THREAD RING FEI-32618022007.A0 32618022007	£17.19	£20.63
590 - COUNTERSUNK SCREW FEI-43069004040.A5 43069004040	-
600 - GEAR-WHEEL FEI-33763012004.A8 33763012004	£48.01	£57.61
610 - GEAR-WHEEL FEI-33663028005.A6 33663028005	£37.58	£45.09
620 - GROOVED BALL BEARING FEI-41701001010.A11 41701001010	£7.35	£8.82
630 - BOLT FEI-30219031003.A3 30219031003	£4.02	£4.82
640 - SPIRAL SPRING FEI-30901074001.A6 30901074001	£1.60	£1.92
650 - CLAMPING SLEEVE FEI-40238004004.A1 40238004004	-
700 - CYLINDER HEAD SCREW FEI-43035023057.A2 43035023057	-
710 - CIRCLIP M5 FEI-42443004057.A81 42443004057	£1.60	£1.92
720 - SEALING RING FEI-32612061008.A1 32612061008	£7.99	£9.59
730 - GROOVED BALL BEARING FEI-41701207096.A0 41701207096	£18.38	£22.06
740 - GROOVED BALL BEARING FEI-41701204131.A33 41701204131	£9.10	£10.92
750 - CYLINDER HEAD SCREW FEI-43035026052.A0 43035026052	£1.60	£1.92
1000 - RING CORE CHOKE FEI-30764129012.A0 30764129012	-
1010 - RING CORE CHOKE FEI-30764130014.A0 30764130014	-
1020 - SWITCH FEI-30701291000.A1 30701291000	£47.12	£56.55
1030 - CABLE CLAMPING PIECE FEI-32431021007.A56 32431021007	£1.60	£1.92
1040 - FILLISTER HEAD SCREW M3 5X10 FEI-43041001994.A85 43041001994	£1.60	£1.92
1050 - CAPACITOR FEI-30722074009.A2 30722074009	£15.62	£18.75
1051 - FILLISTER HEAD SCREW FEI-43041016042.A35 43041016042	-
1100 - PLATE FEI-30605041005.A6 30605041005	£4.80	£5.76
1110 - CABLE WITH PLUG FEI-30707373014.A21 30707373014	£19.11	£22.93
1120 - CABLE GROMMET FEI-31413090003.A69 31413090003	£3.40	£4.08
1180 - TOGGLE SWITCH FEI-30701210019.A14 30701210019	£53.20	£63.84
1190 - SWITCH INSERT FEI-32818032004.A0 32818032004	-
1200 - HOUSING FEI-31207255016.A0 31207255016	-
1500 - HANDLE HALF SHELL FEI-31204081003.A0 31204081003	£23.51	£28.21
1510 - HANDLE HALF SHELL FEI-31204082006.A1 31204082006	£19.80	£23.76
1520 - FILLISTER HEAD SCREW FEI-43041027045.A21 43041027045	£1.60	£1.92
5000 - SIDE HANDLE FEI-32119032002.A11 32119032002	£12.89	£15.47
5010 - TOOL CASE FEI-33901021011.A0 33901021011	£84.92	£101.90
5020 - HEXAGON SOCKET TOOLS FEI-62205007007.A0 62205007007	-
5030 - HEXAGON SOCKET TOOLS FEI-62205011000.A0 62205011000	-
5040 - HEXAGON SOCKET TOOLS FEI-62205013007.A0 62205013007	-
5050 - INTERMEDIATE PIECE FEI-62210010008.A0 62210010008	-
5060 - BIT Â¼ HEXAGON HEAD FEI-62712114009.A0 62712114009	-
5070 - BITS 5/16 HEXAGON HEAD FEI-62713017002.A0 62713017002	-
5080 - INTERMEDIATE PIECE FEI-62210007004.A0 62210007004	-
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A281 32160003014	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A72 34130054061	-

Attribute Name	Value
Brand	Fein
