Fein SCS 6.3-19 X (50/60Hz 220/230V) / 72130900236 Spare Parts

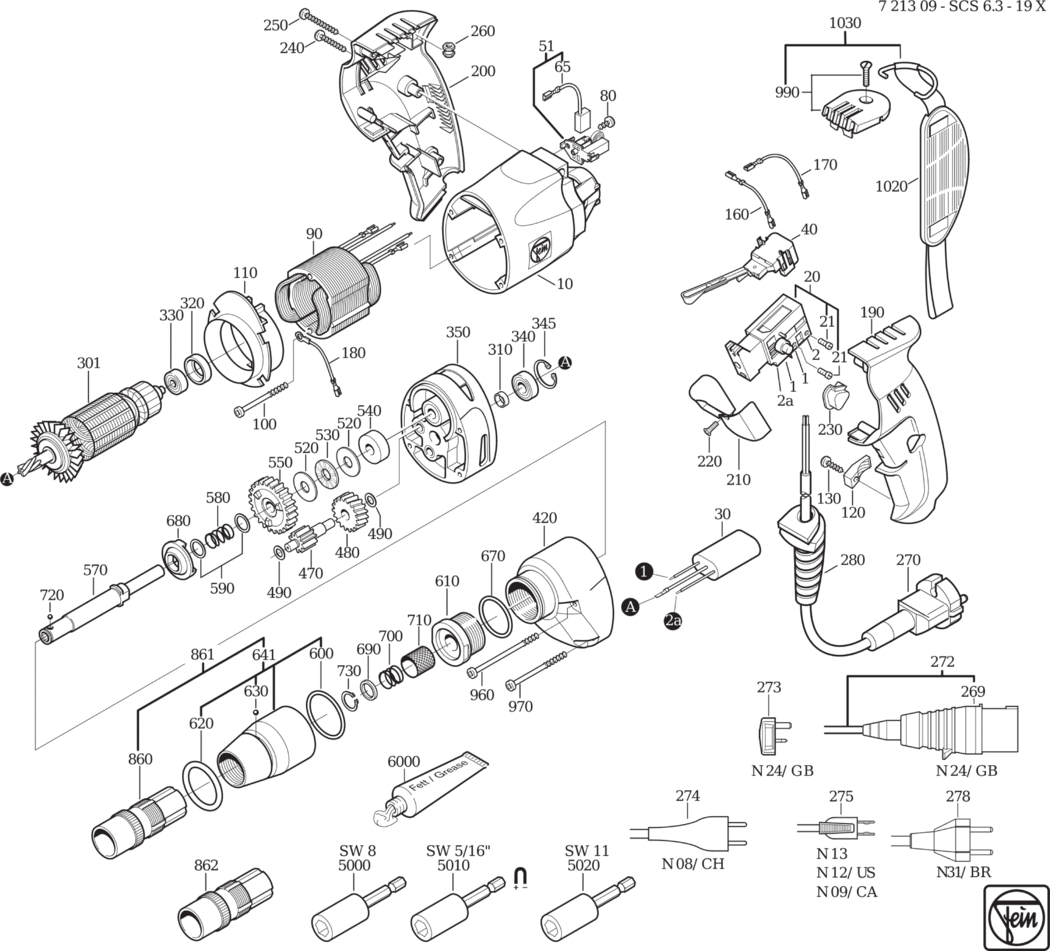

An exploded diagram and spare parts listing for the Fein SCS 6.3-19 X (50/60Hz 220/230V) / 72130900236

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901123015.A3 31901123015	£38.20	£45.84
20 - SWITCH FEI-30701228002.A26 30701228002	£54.05	£64.86
21 - CYLINDER HEAD SCREW FEI-43013052033.A85 43013052033	£1.60	£1.92
30 - CAPACITOR FEI-30722183018.A8 30722183018	£9.12	£10.95
40 - TOGGLE SWITCH FEI-30701227004.A0 30701227004	£21.77	£26.12
51 - BRUSH HOLDER FEI-30712089039.A6 30712089039	£34.06	£40.87
65 - CARBON BRUSH (SOLD SINGLY) 100-240V 50/60HZ FEI-30711165000.A41 30711165000	£12.84	£15.41
80 - SCREW FEI-43070018009.A81 43070018009	£1.60	£1.92
90 - STATOR FEI-51274008232.A0 51274008232	£85.01	£102.01
100 - SCREW FEI-43070014000.A95 43070014000	£1.60	£1.92
110 - AIR GUIDE RING FEI-31428126004.A2 31428126004	£3.87	£4.64
120 - CABLE CLAMPING PIECE FEI-32431046000.A14 32431046000	£1.60	£1.92
130 - SCREW FEI-43070006008.A70 43070006008	£1.60	£1.92
160 - CONNECTING CABLE FEI-30719544014.A4 30719544014	£1.60	£1.92
170 - CONNECTING CABLE FEI-30719545018.A7 30719545018	£1.60	£1.92
180 - CONNECTING CABLE FEI-30719546011.A0 30719546011	£1.60	£1.92
190 - HANDLE HALF SHELL FEI-31201104003.A2 31201104003	£17.00	£20.40
200 - HANDLE HALF SHELL FEI-31201105007.A5 31201105007	£17.00	£20.40
210 - SWITCH PUSHBUTTON FEI-32805171004.A5 32805171004	£6.78	£8.13
220 - COUNTERSUNK SCREW FEI-43066006032.A11 43066006032	£1.60	£1.92
230 - STOP BUTTON FEI-32805168009.A2 32805168009	£3.83	£4.60
240 - SHEET METAL SCREW FEI-43046028004.A11 43046028004	-
250 - SCREW FEI-43070007002.A71 43070007002	£1.60	£1.92
260 - NUT FEI-42018019043.A4 42018019043	£1.60	£1.92
270 - CABLE WITH PLUG FEI-30707343017.A19 30707343017	£20.96	£25.15
280 - CABLE GROMMET FEI-31413219003.A6 31413219003	£1.60	£1.92
301 - ARMATURE FEI-53274002233.A0 53274002233	£144.83	£173.80
310 - SEALING RING FEI-32612087002.A10 32612087002	£3.04	£3.65
320 - BEARING BUSH FEI-30507229007.A11 30507229007	£1.60	£1.92
330 - GROOVED BALL BEARING FEI-41701235033.A10 41701235033	£13.80	£16.56
340 - GROOVED BALL BEARING FEI-41701101031.A0 41701101031	£18.83	£22.60
345 - CIRCLIP FEI-42644002007.A9 42644002007	-
350 - INTERMEDIATE GEAR BOX FEI-31506355024.A4 31506355024	£88.37	£106.04
420 - GEARBOX HOUSING FEI-31508246036.A3 31508246036	-
470 - SHAFT TOOTHED FEI-33713067000.A5 33713067000	£70.03	£84.04
480 - GEAR-WHEEL FEI-33663164001.A4 33663164001	£53.76	£64.51
490 - DISC FEI-32408243007.A2 32408243007	£2.37	£2.84
520 - DISC FEI-41719032007.A3 41719032007	-
530 - NEEDLE CAGE FEI-41715042002.A2 41715042002	-
540 - DISC FEI-32601272002.A5 32601272002	£2.69	£3.23
550 - GEAR-WHEEL Z=38 FEI-33613126000.A3 33613126000	£61.87	£74.24
570 - TOOL HOLDER FEI-30104134004.A0 30104134004	£122.97	£147.56
580 - SPIRAL SPRING FEI-30901345009.A7 30901345009	£1.60	£1.92
590 - DISC FEI-32624119032.A7 32624119032	£1.60	£1.92
600 - SEALING RING FEI-40612165008.A5 40612165008	£1.60	£1.92
610 - SLEEVE FEI-31603046008.A2 31603046008	£71.88	£86.25
620 - SEALING RING FEI-40612163006.A0 40612163006	£1.60	£1.92
630 - BALL FEI-41708017002.A66 41708017002	£1.60	£1.92
641 - STOP SLEEVE FEI-30505068017.A2 30505068017	£54.84	£65.81
670 - SEALING RING FEI-40612093004.A24 40612093004	£1.60	£1.92
680 - CLUTCH RING FEI-30102102007.A3 30102102007	£18.30	£21.96
690 - RING FEI-32601242005.A25 32601242005	£6.76	£8.11
700 - SPIRAL SPRING FEI-30901315002.A32 30901315002	£3.92	£4.70
710 - SLEEVE FEI-30503144002.A13 30503144002	£10.39	£12.47
720 - BALL FEI-41708015005.A2 41708015005	£1.60	£1.92
730 - CIRCLIP FEI-42634002009.A8 42634002009	£1.60	£1.92
860 - STOP SLEEVE FEI-32127021135.A0 32127021135	£31.48	£37.78
861 - DEPTH STOP FEI-32127021141.A2 32127021141	£69.82	£83.79
960 - SCREW FEI-43072004004.A5 43072004004	-
970 - SCREW FEI-43072002002.A11 43072002002	£1.60	£1.92
990 - PRESSURE PIECE FEI-30240233013.A2 30240233013	£4.22	£5.06
1020 - HOLDER FEI-63901011015.A5 63901011015	-
1030 - HOLDER FEI-63901011037.A0 63901011037	-
5000 - BITS 1/4 IN FOR HEXAGON SOCKET SCREWS FEI-60505015001.A0 60505015001	£28.94	£34.73
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A61 32160003014	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A480 34130054061	-
