Fein SCT5-40 UM (50/60Hz 220/230V) / 72130800230 Spare Parts

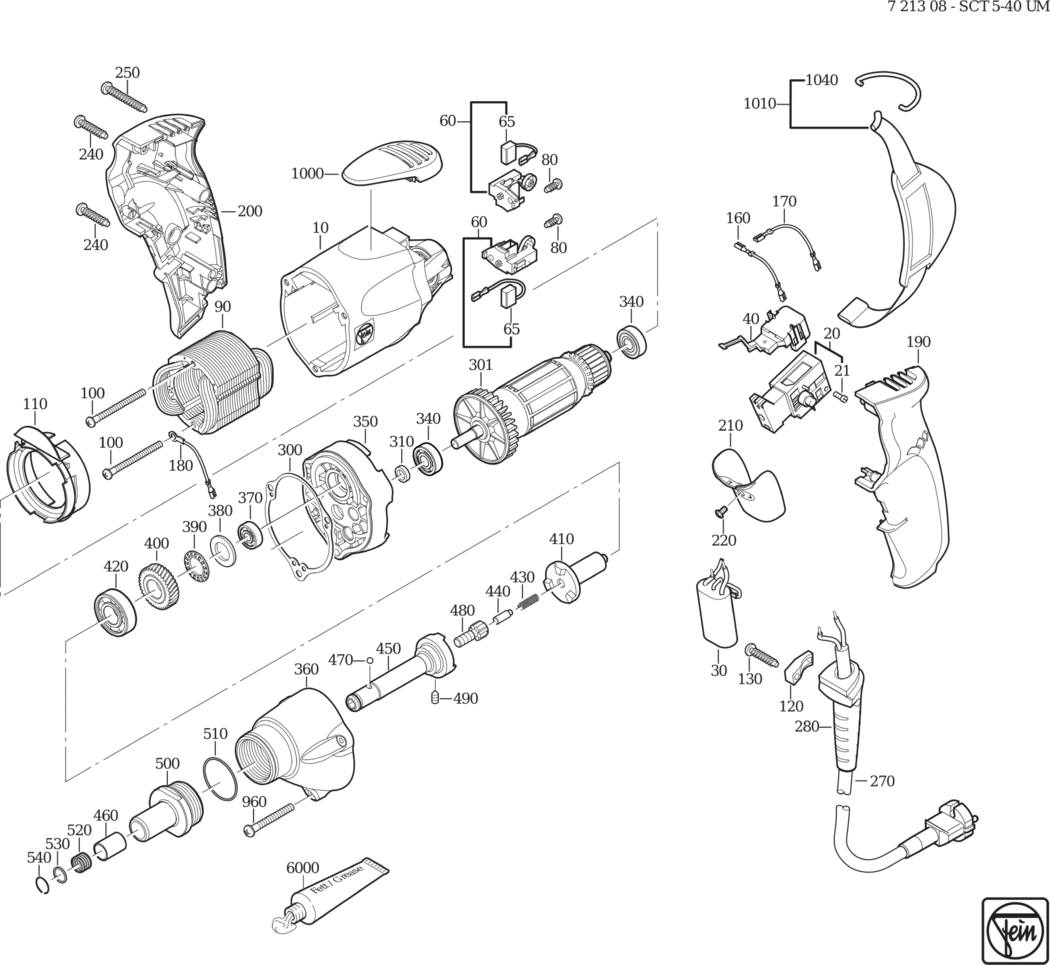

An exploded diagram and spare parts listing for the Fein SCT5-40 UM (50/60Hz 220/230V) / 72130800230

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901138011.A13 31901138011	£39.65	£47.58
20 - SWITCH FEI-30701228002.A28 30701228002	£54.05	£64.86
21 - CYLINDER HEAD SCREW FEI-43013052033.A75 43013052033	£1.60	£1.92
30 - CAPACITOR FEI-30722183018.A13 30722183018	£9.12	£10.95
40 - TOGGLE SWITCH FEI-30701249004.A13 30701249004	£20.57	£24.68
60 - BRUSH HOLDER FEI-30712089039.A4 30712089039	£34.06	£40.87
65 - CARBON BRUSH (SOLD SINGLY) 100-240V 50/60HZ FEI-30711165000.A51 30711165000	£12.84	£15.41
80 - SCREW FEI-43070018009.A91 43070018009	£1.60	£1.92
90 - STATOR FEI-51274014230.A3 51274014230	-
100 - SCREW FEI-43070014000.A87 43070014000	£1.60	£1.92
110 - AIR GUIDE RING FEI-31428149008.A5 31428149008	£8.86	£10.63
120 - CABLE CLAMPING PIECE FEI-32431046000.A8 32431046000	£1.60	£1.92
130 - SCREW FEI-43070006008.A61 43070006008	£1.60	£1.92
160 - CONNECTING CABLE FEI-30719544014.A1 30719544014	£1.60	£1.92
170 - CONNECTING CABLE FEI-30719545018.A10 30719545018	£1.60	£1.92
180 - CONNECTING CABLE FEI-30719630014.A19 30719630014	£1.60	£1.92
190 - HANDLE HALF SHELL FEI-31201136010.A2 31201136010	-
200 - HANDLE HALF SHELL FEI-31201137000.A36 31201137000	£20.52	£24.63
205 - HANDLE REPAIR-SET FEI-31201136030.A0 31201136030	£29.96	£35.95
210 - SWITCH PUSHBUTTON FEI-32805191002.A7 32805191002	£6.67	£8.00
220 - COUNTERSUNK SCREW FEI-43066009038.A42 43066009038	£1.60	£1.92
240 - SHEET METAL SCREW FEI-43046003009.A19 43046003009	£1.60	£1.92
250 - SCREW FEI-43070007002.A79 43070007002	£1.60	£1.92
270 - CABLE WITH PLUG FEI-30707343017.A15 30707343017	£20.96	£25.15
280 - CABLE GROMMET FEI-31413233000.A40 31413233000	£2.60	£3.12
300 - SEAL FEI-30610041000.A6 30610041000	-
301 - ARMATURE Z=5 220-230V 50/60HZ FEI-53274019230.A15 53274019230	£111.40	£133.68
310 - SEALING RING FEI-32612063005.A5 32612063005	£8.12	£9.74
340 - GROOVED BALL BEARING FEI-41701001172.A225 41701001172	£9.63	£11.56
350 - INTERMEDIATE GEAR BOX FEI-31506367005.A0 31506367005	-
360 - GEARBOX HOUSING FEI-31508251002.A13 31508251002	-
370 - GROOVED BALL BEARING FEI-41701202018.A81 41701202018	£6.92	£8.30
380 - DISC FEI-32415042004.A0 32415042004	£10.18	£12.21
390 - NEEDLE CAGE FEI-41715029009.A7 41715029009	£5.91	£7.09
400 - GEAR-WHEEL Z=43 FEI-33657170007.A6 33657170007	-
410 - DOG CLUTCH SHAFT FEI-33408020004.A0 33408020004	£54.66	£65.59
420 - GROOVED BALL BEARING FEI-41701010010.A27 41701010010	£8.58	£10.30
430 - SPIRAL SPRING FEI-30901232008.A1 30901232008	£1.60	£1.92
440 - BOLT FEI-30220028005.A0 30220028005	£4.22	£5.06
450 - TOOL HOLDER FEI-30104136000.A5 30104136000	-
460 - SLEEVE FEI-30503151006.A12 30503151006	£6.65	£7.98
470 - BALL FEI-41708014001.A51 41708014001	£1.60	£1.92
480 - SCREW FEI-33022034001.A4 33022034001	£4.24	£5.09
490 - SET SCREW FEI-43058002044.A7 43058002044	-
500 - BUSH FEI-31603045005.A21 31603045005	£37.70	£45.24
510 - SEALING RING FEI-40612093004.A26 40612093004	£1.60	£1.92
520 - SPIRAL SPRING FEI-30901362001.A16 30901362001	£1.60	£1.92
530 - RING FEI-32601274004.A18 32601274004	£4.96	£5.95
540 - CIRCLIP FEI-42615147001.A11 42615147001	£1.60	£1.92
960 - SCREW FEI-43072010009.A51 43072010009	£1.60	£1.92
1010 - HOLDER FEI-63901011059.A16 63901011059	-
1040 - SUSPENSION DEVICE FEI-30232046008.A20 30232046008	-
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A66 32160003014	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A472 34130054061	-
