Fein SCT 5-40 X (50Hz 110V) / 72131324110 Spare Parts

Fein SCT 5-40 X ⡐Hz 110V) / 72131324110 Spare Parts

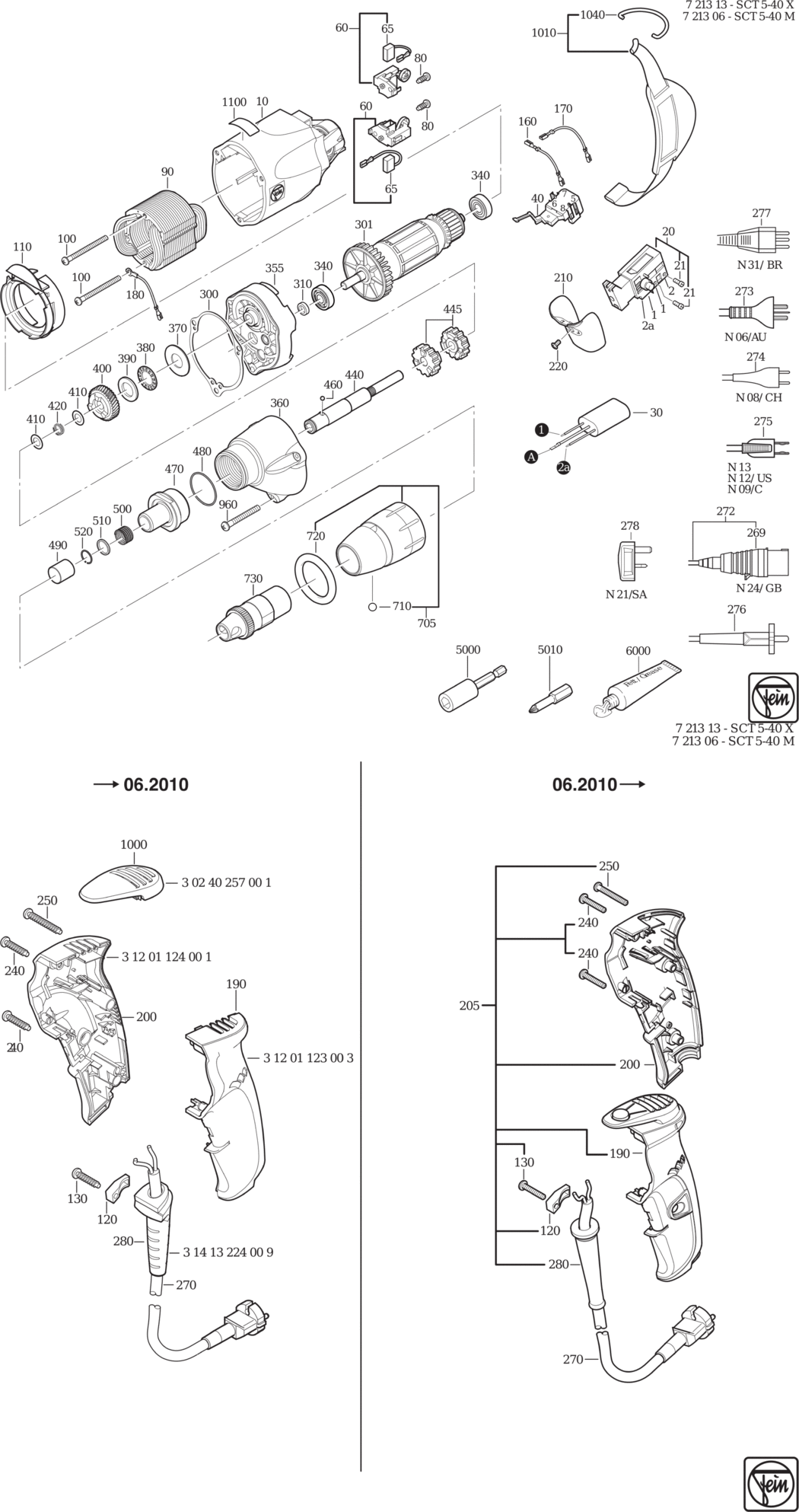

An exploded diagram and spare parts listing for the Fein SCT 5-40 X (50Hz 110V) / 72131324110

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901138011.A27 31901138011	£39.65	£47.58
20 - SPEED SETTING SWITCH FEI-30701234002.A53 30701234002	£69.81	£83.77
21 - CYLINDER HEAD SCREW FEI-43013052033.A34 43013052033	£1.60	£1.92
30 - CAPACITOR FEI-30722183018.A39 30722183018	£9.12	£10.95
40 - TOGGLE SWITCH FEI-30701249004.A29 30701249004	£20.57	£24.68
60 - BRUSH HOLDER FEI-30712089023.A17 30712089023	£29.69	£35.63
65 - CARBON BRUSH (SOLD SINGLY) 100-240V 50/60HZ FEI-30711165000.A17 30711165000	£12.84	£15.41
80 - SCREW FEI-43070018009.A14 43070018009	£1.60	£1.92
90 - STATOR FEI-51274004117.A15 51274004117	£84.31	£101.17
100 - SCREW FEI-43070014000.A26 43070014000	£1.60	£1.92
110 - AIR GUIDE RING FEI-31428149008.A27 31428149008	£8.86	£10.63
120 - CABLE CLAMPING PIECE FEI-32431046000.A44 32431046000	£1.60	£1.92
130 - SCREW FEI-43070006008.A141 43070006008	£1.60	£1.92
160 - CONNECTING CABLE FEI-30719565016.A19 30719565016	£2.32	£2.79
170 - CONNECTING CABLE FEI-30719566019.A4 30719566019	£2.32	£2.79
180 - CONNECTING CABLE FEI-30719630014.A0 30719630014	£1.60	£1.92
190 - HANDLE HALF SHELL FEI-31201136010.A15 31201136010	-
200 - HANDLE HALF SHELL FEI-31201137000.A0 31201137000	£20.52	£24.63
205 - HANDLE REPAIR-SET FEI-31201136030.A25 31201136030	£29.96	£35.95
210 - SWITCH PUSHBUTTON FEI-32805191002.A45 32805191002	£6.67	£8.00
220 - COUNTERSUNK SCREW FEI-43066009038.A2 43066009038	£1.60	£1.92
240 - SHEET METAL SCREW FEI-43046003009.A54 43046003009	£1.60	£1.92
250 - SCREW FEI-43070007002.A12 43070007002	£1.60	£1.92
269 - PLUG CEE 16A/110V FEI-30728288004.A10 30728288004	£14.25	£17.10
272 - CABLE WITH PLUG FEI-30707404015.A1 30707404015	-
280 - CABLE GROMMET FEI-31413233000.A1 31413233000	£2.60	£3.12
300 - SEAL FEI-30610041000.A21 30610041000	-
301 - ARMATURE Z=5 100-120V 50/60HZ FEI-53274019110.A21 53274019110	£117.40	£140.88
310 - SEALING RING FEI-32612063005.A16 32612063005	£8.12	£9.74
340 - GROOVED BALL BEARING FEI-41701001260.A207 41701001260	£7.11	£8.53
355 - INTERMEDIATE GEAR BOX FEI-31506367014.A1 31506367014	£19.38	£23.25
360 - GEARBOX HOUSING FEI-31508251002.A7 31508251002	-
370 - DISC FEI-41719026007.A1 41719026007	£2.82	£3.38
380 - NEEDLE CAGE FEI-41715029009.A22 41715029009	£5.91	£7.09
390 - DISC FEI-32408395000.A17 32408395000	£10.88	£13.05
400 - GEAR-WHEEL FEI-33657161007.A7 33657161007	£58.47	£70.16
410 - DISC FEI-32624094032.A1 32624094032	£1.60	£1.92
420 - SPIRAL SPRING FEI-30901139007.A1 30901139007	£1.60	£1.92
440 - TOOL HOLDER FEI-30104133006.A3 30104133006	£77.17	£92.60
445 - CLUTCH RING Z=13 FEI-30102101013.A7 30102101013	£51.24	£61.49
460 - BALL FEI-41708014001.A20 41708014001	£1.60	£1.92
470 - BUSH FEI-31603045005.A2 31603045005	£37.70	£45.24
480 - SEALING RING FEI-40612093004.A75 40612093004	£1.60	£1.92
490 - SLEEVE FEI-30503151006.A1 30503151006	£6.65	£7.98
500 - SPIRAL SPRING FEI-30901362001.A5 30901362001	£1.60	£1.92
510 - RING FEI-32601274004.A4 32601274004	£4.96	£5.95
520 - CIRCLIP FEI-42615147001.A19 42615147001	£1.60	£1.92
705 - STOP SLEEVE FEI-30505069011.A13 30505069011	£41.28	£49.53
710 - BALL FEI-41708019004.A1 41708019004	£1.60	£1.92
720 - SEALING RING FEI-40612071009.A45 40612071009	£3.89	£4.67
730 - SLEEVE FEI-32127068000.A4 32127068000	£33.28	£39.93
960 - SCREW FEI-43072010009.A2 43072010009	£1.60	£1.92
1010 - HOLDER FEI-63901011059.A14 63901011059	-
1040 - SUSPENSION DEVICE FEI-30232046008.A15 30232046008	-
5000 - TOOL HOLDER Â¼ EXTERNAL HEXAGON FEI-60510215003.A5 60510215003	£40.12	£48.15
5010 - BIT Â¼ HEXAGON HEAD FEI-62712109034.A5 62712109034	£16.55	£19.86
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003217.A6 32160003217	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A78 34130054061	-
