Fein SCT 5-40 X (50/60Hz 220/230V) / 72131300230 Spare Parts

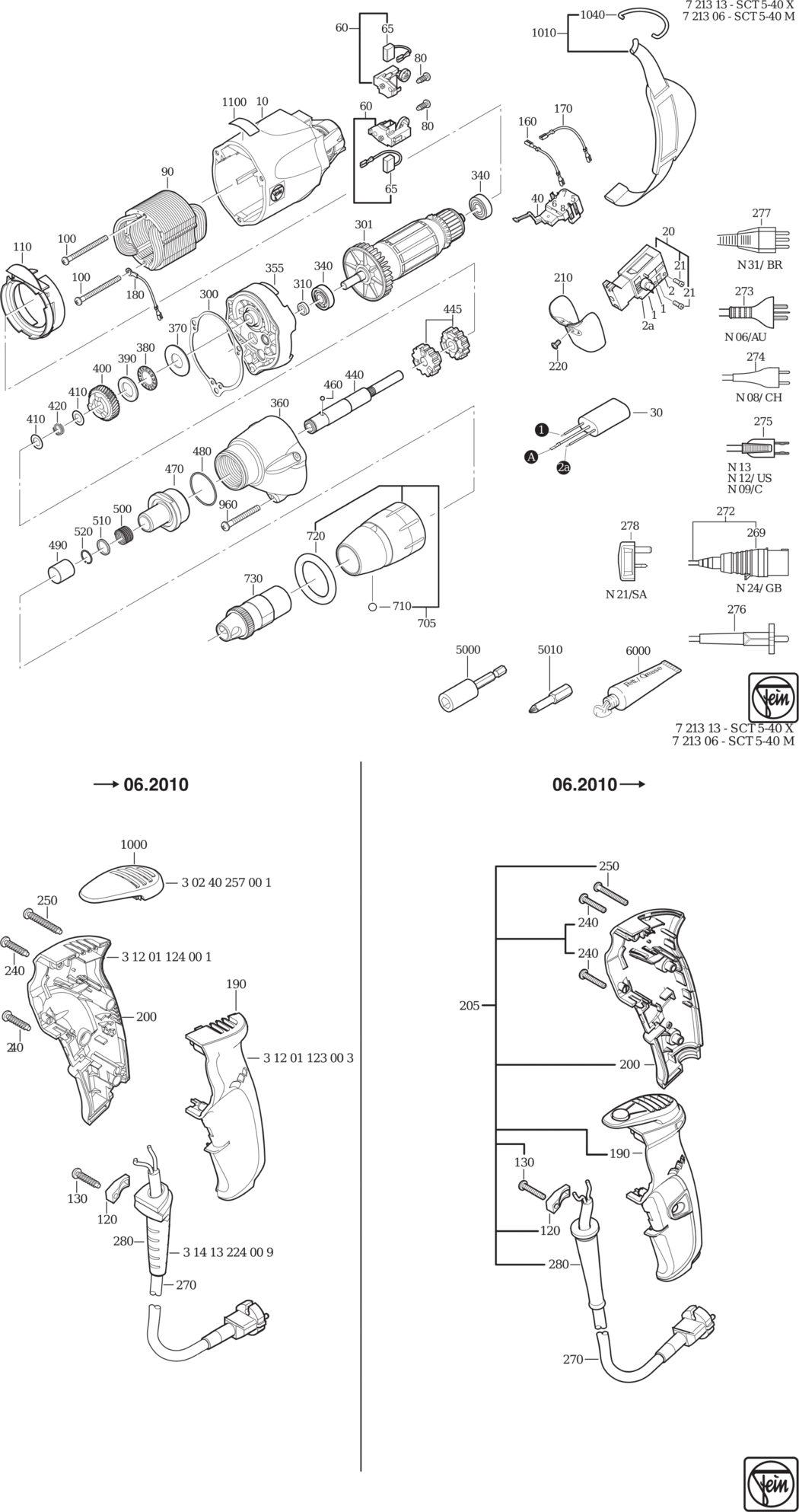

An exploded diagram and spare parts listing for the Fein SCT 5-40 X (50/60Hz 220/230V) / 72131300230

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901138011.A30 31901138011	£39.65	£47.58
20 - SWITCH FEI-30701228002.A10 30701228002	£54.05	£64.86
21 - CYLINDER HEAD SCREW FEI-43013052033.A56 43013052033	£1.60	£1.92
30 - CAPACITOR FEI-30722183018.A28 30722183018	£9.12	£10.95
40 - TOGGLE SWITCH FEI-30701249004.A37 30701249004	£20.57	£24.68
60 - BRUSH HOLDER FEI-30712089039.A18 30712089039	£34.06	£40.87
65 - CARBON BRUSH (SOLD SINGLY) 100-240V 50/60HZ FEI-30711165000.A28 30711165000	£12.84	£15.41
80 - SCREW FEI-43070018009.A21 43070018009	£1.60	£1.92
90 - STATOR FEI-51274014230.A13 51274014230	-
100 - SCREW FEI-43070014000.A19 43070014000	£1.60	£1.92
110 - AIR GUIDE RING FEI-31428149008.A31 31428149008	£8.86	£10.63
120 - CABLE CLAMPING PIECE FEI-32431046000.A50 32431046000	£1.60	£1.92
130 - SCREW FEI-43070006008.A128 43070006008	£1.60	£1.92
160 - CONNECTING CABLE FEI-30719544014.A5 30719544014	£1.60	£1.92
170 - CONNECTING CABLE FEI-30719545018.A6 30719545018	£1.60	£1.92
180 - CONNECTING CABLE FEI-30719630014.A3 30719630014	£1.60	£1.92
190 - HANDLE HALF SHELL FEI-31201136010.A18 31201136010	-
200 - HANDLE HALF SHELL FEI-31201137000.A4 31201137000	£20.52	£24.63
205 - HANDLE REPAIR-SET FEI-31201136030.A26 31201136030	£29.96	£35.95
210 - SWITCH PUSHBUTTON FEI-32805191002.A44 32805191002	£6.67	£8.00
220 - COUNTERSUNK SCREW FEI-43066009038.A1 43066009038	£1.60	£1.92
240 - SHEET METAL SCREW FEI-43046003009.A55 43046003009	£1.60	£1.92
250 - SCREW FEI-43070007002.A13 43070007002	£1.60	£1.92
270 - CABLE WITH PLUG FEI-30707343017.A22 30707343017	£20.96	£25.15
280 - CABLE GROMMET FEI-31413233000.A2 31413233000	£2.60	£3.12
300 - SEAL FEI-30610041000.A20 30610041000	-
301 - ARMATURE Z=5 220-230V 50/60HZ FEI-53274019230.A5 53274019230	£111.40	£133.68
310 - SEALING RING FEI-32612063005.A15 32612063005	£8.12	£9.74
340 - GROOVED BALL BEARING FEI-41701001260.A206 41701001260	£7.11	£8.53
355 - INTERMEDIATE GEAR BOX FEI-31506367014.A2 31506367014	£19.38	£23.25
360 - GEARBOX HOUSING FEI-31508251002.A6 31508251002	-
370 - DISC FEI-41719026007.A2 41719026007	£2.82	£3.38
380 - NEEDLE CAGE FEI-41715029009.A21 41715029009	£5.91	£7.09
390 - DISC FEI-32408395000.A19 32408395000	£10.88	£13.05
400 - GEAR-WHEEL FEI-33657161007.A8 33657161007	£58.47	£70.16
410 - DISC FEI-32624094032.A2 32624094032	£1.60	£1.92
420 - SPIRAL SPRING FEI-30901139007.A0 30901139007	£1.60	£1.92
440 - TOOL HOLDER FEI-30104133006.A4 30104133006	£77.17	£92.60
445 - CLUTCH RING Z=13 FEI-30102101013.A6 30102101013	£51.24	£61.49
460 - BALL FEI-41708014001.A18 41708014001	£1.60	£1.92
470 - BUSH FEI-31603045005.A3 31603045005	£37.70	£45.24
480 - SEALING RING FEI-40612093004.A74 40612093004	£1.60	£1.92
490 - SLEEVE FEI-30503151006.A3 30503151006	£6.65	£7.98
500 - SPIRAL SPRING FEI-30901362001.A6 30901362001	£1.60	£1.92
510 - RING FEI-32601274004.A6 32601274004	£4.96	£5.95
520 - CIRCLIP FEI-42615147001.A17 42615147001	£1.60	£1.92
705 - STOP SLEEVE FEI-30505069011.A11 30505069011	£41.28	£49.53
710 - BALL FEI-41708019004.A3 41708019004	£1.60	£1.92
720 - SEALING RING FEI-40612071009.A46 40612071009	£3.89	£4.67
730 - SLEEVE FEI-32127068000.A5 32127068000	£33.28	£39.93
960 - SCREW FEI-43072010009.A1 43072010009	£1.60	£1.92
1010 - HOLDER FEI-63901011059.A13 63901011059	-
1040 - SUSPENSION DEVICE FEI-30232046008.A14 30232046008	-
5000 - TOOL HOLDER Â¼ EXTERNAL HEXAGON FEI-60510215003.A4 60510215003	£40.12	£48.15
5010 - BIT Â¼ HEXAGON HEAD FEI-62712109034.A6 62712109034	£16.55	£19.86
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003217.A5 32160003217	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A77 34130054061	-
