Fein GWP 10 (50/60Hz 220/230V) / 72093800230 Spare Parts

Fein GWP 10 ⡐/60Hz 220/230V) / 72093800230 Spare Parts

Home Details Reviews Delivery

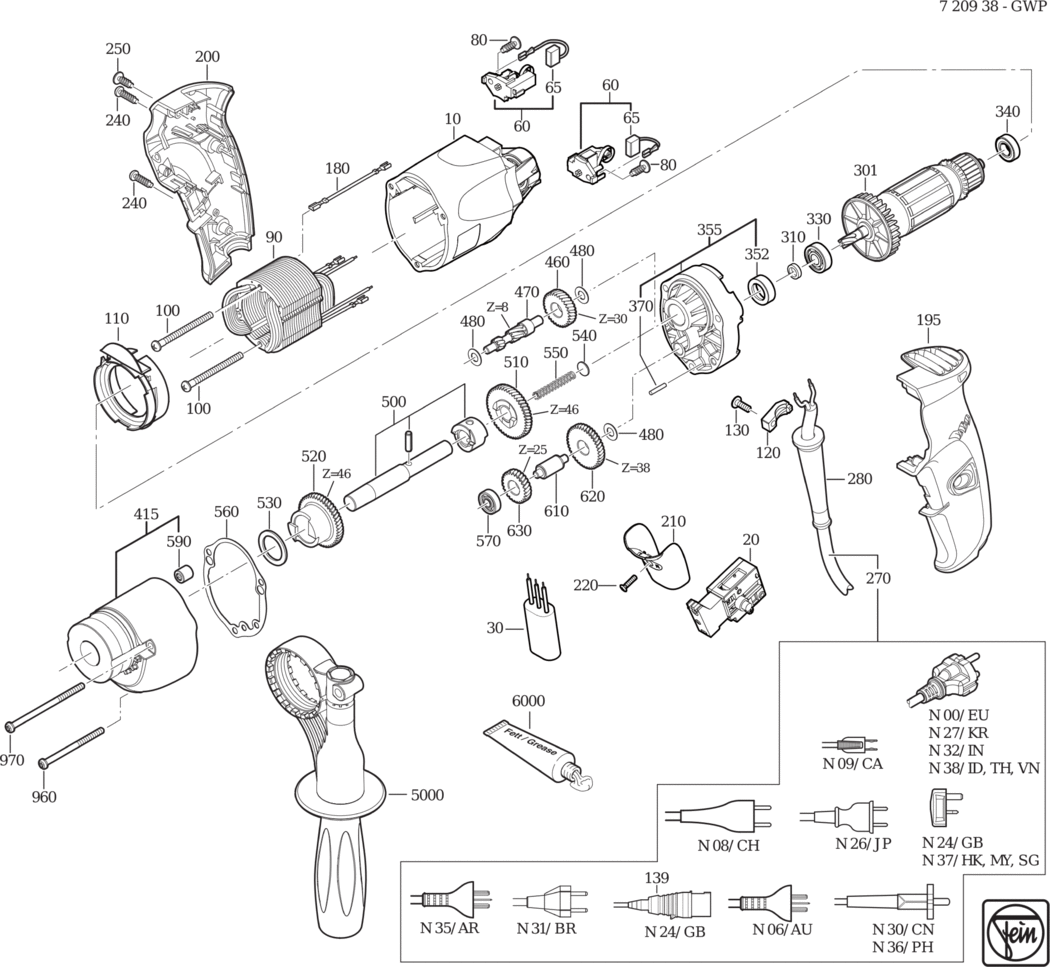

An exploded diagram and spare parts listing for the Fein GWP 10 (50/60Hz 220/230V) / 72093800230

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901138011.A5 31901138011	£39.65	£47.58
20 - SWITCH FEI-30701228002.A27 30701228002	£54.05	£64.86
30 - CAPACITOR FEI-30722183018.A6 30722183018	£9.12	£10.95
60 - BRUSH HOLDER FEI-30712089039.A7 30712089039	£34.06	£40.87
65 - CARBON BRUSH (SOLD SINGLY) 100-240V 50/60HZ FEI-30711165000.A39 30711165000	£12.84	£15.41
80 - SCREW FEI-43070018009.A83 43070018009	£1.60	£1.92
90 - STATOR FEI-51274014230.A0 51274014230	-
100 - SCREW FEI-43070014000.A94 43070014000	£1.60	£1.92
110 - AIR GUIDE RING FEI-31428149008.A0 31428149008	£8.86	£10.63
120 - CABLE CLAMPING PIECE FEI-32431046000.A13 32431046000	£1.60	£1.92
130 - SCREW FEI-43070006008.A69 43070006008	£1.60	£1.92
180 - CONNECTING CABLE FEI-30719630014.A15 30719630014	£1.60	£1.92
195 - HANDLE HALF SHELL FEI-31201136020.A15 31201136020	£22.05	£26.46
200 - HANDLE HALF SHELL FEI-31201137000.A37 31201137000	£20.52	£24.63
210 - SWITCH PUSHBUTTON FEI-32805191002.A2 32805191002	£6.67	£8.00
220 - COUNTERSUNK SCREW FEI-43066009038.A46 43066009038	£1.60	£1.92
240 - SHEET METAL SCREW FEI-43046003009.A21 43046003009	£1.60	£1.92
250 - SCREW FEI-43070007002.A72 43070007002	£1.60	£1.92
270 - CABLE WITH PLUG FEI-30707343017.A18 30707343017	£20.96	£25.15
280 - CABLE GROMMET FEI-31413233000.A43 31413233000	£2.60	£3.12
301 - ARMATURE Z=5 220-230V 50/60HZ FEI-53274019230.A16 53274019230	£111.40	£133.68
310 - SEALING RING FEI-32612063005.A3 32612063005	£8.12	£9.74
330 - GROOVED BALL BEARING FEI-41701117170.A8 41701117170	£11.30	£13.56
340 - GROOVED BALL BEARING FEI-41701001260.A365 41701001260	£7.11	£8.53
352 - BUSH FEI-30507238000.A8 30507238000	-
355 - INTERMEDIATE GEAR BOX FEI-31506408030.A0 31506408030	-
370 - PIN FEI-40242051000.A24 40242051000	-
415 - GEARBOX HOUSING FEI-31508303040.A0 31508303040	-
460 - GEAR-WHEEL Z=30 FEI-33657172009.A14 33657172009	£42.74	£51.29
470 - SHAFT FEI-33757084000.A1 33757084000	-
480 - DISC FEI-32408243007.A1 32408243007	£2.37	£2.84
500 - SHAFT FEI-33401057019.A1 33401057019	£154.55	£185.46
510 - GEAR-WHEEL FEI-33801036004.A0 33801036004	£76.48	£91.78
520 - GEAR-WHEEL FEI-33801037008.A3 33801037008	£88.10	£105.72
530 - DISC FEI-32408028001.A0 32408028001	£13.62	£16.35
540 - DISC FEI-32407025009.A3 32407025009	£3.83	£4.60
550 - SPIRAL SPRING FEI-30901009001.A0 30901009001	£1.60	£1.92
560 - SEAL FEI-30610050000.A9 30610050000	£2.51	£3.01
570 - GROOVED BALL BEARING FEI-41701202018.A144 41701202018	£6.92	£8.30
610 - SHAFT FEI-33416004001.A7 33416004001	£27.79	£33.35
620 - GEAR-WHEEL FEI-33657186000.A1 33657186000	-
630 - GEAR-WHEEL FEI-33657187000.A0 33657187000	-
960 - SCREW FEI-43072003006.A8 43072003006	-
970 - SCREW FEI-43072012001.A0 43072012001	-
5000 - HANDLE FEI-32119152010.A9 32119152010	£19.60	£23.52
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A314 32160003014	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A47 34130054061	-

Attribute Name	Value
Brand	Fein
