Fein BOP 6 (50/60Hz 220/230V) / 72054300230 Spare Parts

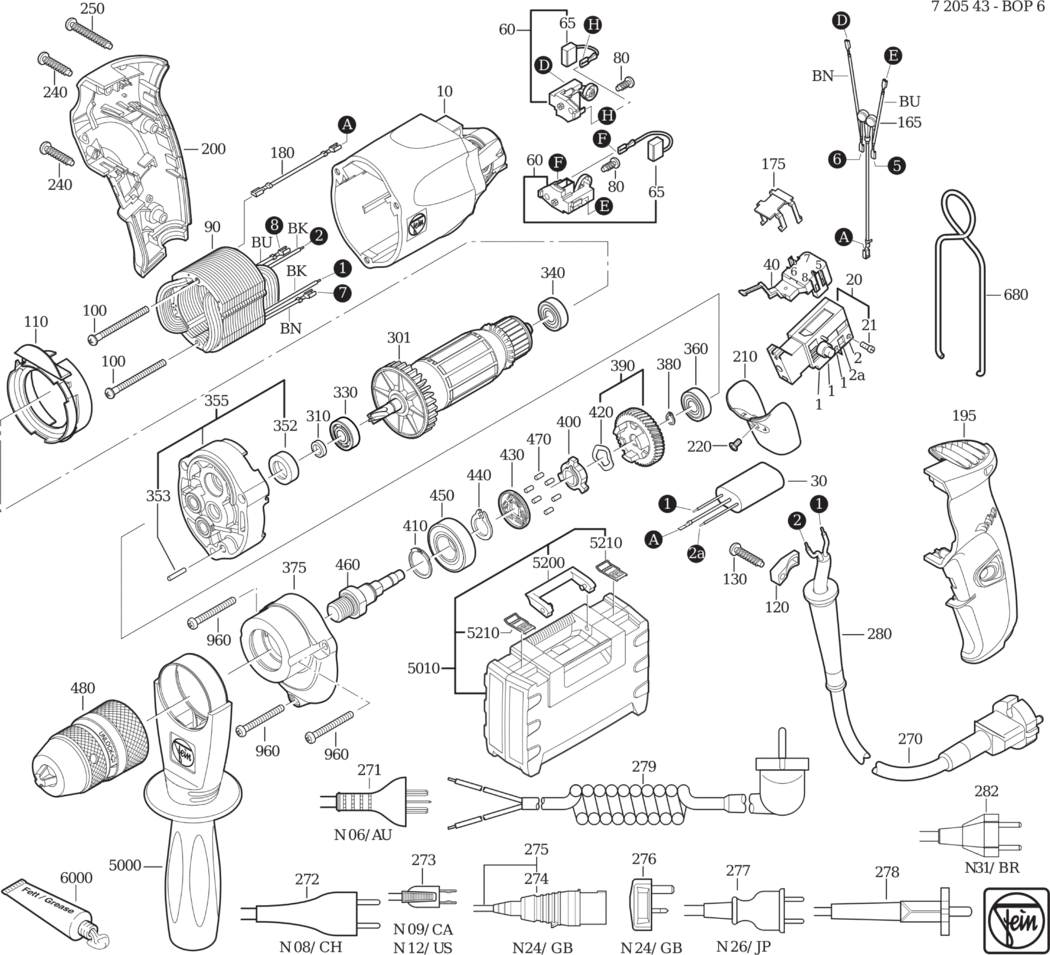

An exploded diagram and spare parts listing for the Fein BOP 6 (50/60Hz 220/230V) / 72054300230

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901138011.A36 31901138011	£39.65	£47.58
20 - SWITCH FEI-30701228002.A6 30701228002	£54.05	£64.86
21 - CYLINDER HEAD SCREW FEI-43013052033.A45 43013052033	£1.60	£1.92
30 - CAPACITOR FEI-30722183018.A31 30722183018	£9.12	£10.95
40 - TOGGLE SWITCH FEI-30701249004.A32 30701249004	£20.57	£24.68
60 - BRUSH HOLDER FEI-30712089039.A20 30712089039	£34.06	£40.87
65 - CARBON BRUSH (SOLD SINGLY) 100-240V 50/60HZ FEI-30711165000.A24 30711165000	£12.84	£15.41
80 - SCREW FEI-43070018009.A26 43070018009	£1.60	£1.92
90 - STATOR FEI-51274014230.A15 51274014230	-
100 - SCREW FEI-43070014000.A13 43070014000	£1.60	£1.92
110 - AIR GUIDE RING FEI-31428149008.A37 31428149008	£8.86	£10.63
120 - CABLE CLAMPING PIECE FEI-32431046000.A53 32431046000	£1.60	£1.92
130 - SCREW FEI-43070006008.A122 43070006008	£1.60	£1.92
165 - RADIO SHIELDING FEI-30722188010.A25 30722188010	£8.98	£10.77
175 - HOLDER FEI-30240283000.A8 30240283000	-
180 - CONNECTING CABLE FEI-30719729010.A15 30719729010	-
195 - HANDLE HALF SHELL FEI-31201136020.A2 31201136020	£22.05	£26.46
200 - HANDLE HALF SHELL FEI-31201137000.A8 31201137000	£20.52	£24.63
210 - SWITCH PUSHBUTTON FEI-32805191002.A49 32805191002	£6.67	£8.00
220 - COUNTERSUNK SCREW FEI-43066009038.A10 43066009038	£1.60	£1.92
240 - SHEET METAL SCREW FEI-43046003009.A47 43046003009	£1.60	£1.92
250 - SCREW FEI-43070007002.A27 43070007002	£1.60	£1.92
270 - CABLE WITH PLUG FEI-30707343017.A24 30707343017	£20.96	£25.15
280 - CABLE GROMMET FEI-31413233000.A5 31413233000	£2.60	£3.12
301 - ARMATURE Z=5 220-230V 50/60HZ FEI-53274019230.A9 53274019230	£111.40	£133.68
310 - SEALING RING FEI-32612063005.A25 32612063005	£8.12	£9.74
330 - GROOVED BALL BEARING FEI-41701117170.A16 41701117170	£11.30	£13.56
340 - GROOVED BALL BEARING FEI-41701001172.A89 41701001172	£9.63	£11.56
352 - BUSH FEI-30507238000.A24 30507238000	-
353 - PIN FEI-40242051000.A33 40242051000	-
355 - INTERMEDIATE GEAR BOX FEI-31506378030.A18 31506378030	-
360 - GROOVED BALL BEARING FEI-41701118160.A10 41701118160	-
375 - GEARBOX HOUSING FEI-31508266010.A6 31508266010	-
380 - CIRCLIP FEI-42616047007.A15 42616047007	-
390 - GEAR-WHEEL Z=43 FEI-33657183010.A8 33657183010	£37.08	£44.50
400 - CLUTCH RING FEI-30103053000.A24 30103053000	£15.92	£19.10
410 - CIRCLIP FEI-42644018007.A3 42644018007	-
420 - SPRING WASHER FEI-42446023000.A21 42446023000	£1.60	£1.92
430 - DISC FEI-30109191000.A27 30109191000	£6.45	£7.74
440 - CIRCLIP FEI-42616006007.A43 42616006007	£1.60	£1.92
450 - GROOVED BALL BEARING FEI-41701010054.A242 41701010054	£8.25	£9.90
460 - SHAFT FEI-33403115000.A7 33403115000	-
470 - ROLLER FEI-41709005007.A12 41709005007	£1.60	£1.92
480 - QUICK-ACTION CHUCKS FEI-63205036010.A1 63205036010	£108.76	£130.51
960 - SCREW FEI-43072010009.A7 43072010009	£1.60	£1.92
5000 - HANDLE FEI-32119123020.A19 32119123020	£39.94	£47.93
5010 - TOOL CASE FEI-33901118480.A6 33901118480	£75.90	£91.08
5200 - HANDLE FEI-32119122000.A14 32119122000	-
5210 - WIRE CLAMP FEI-30232050000.A46 30232050000	£10.78	£12.94
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A313 32160003014	-
