Fein BOP 13-2 (A) (50/60Hz 220/230V) / 72055500230 Spare Parts

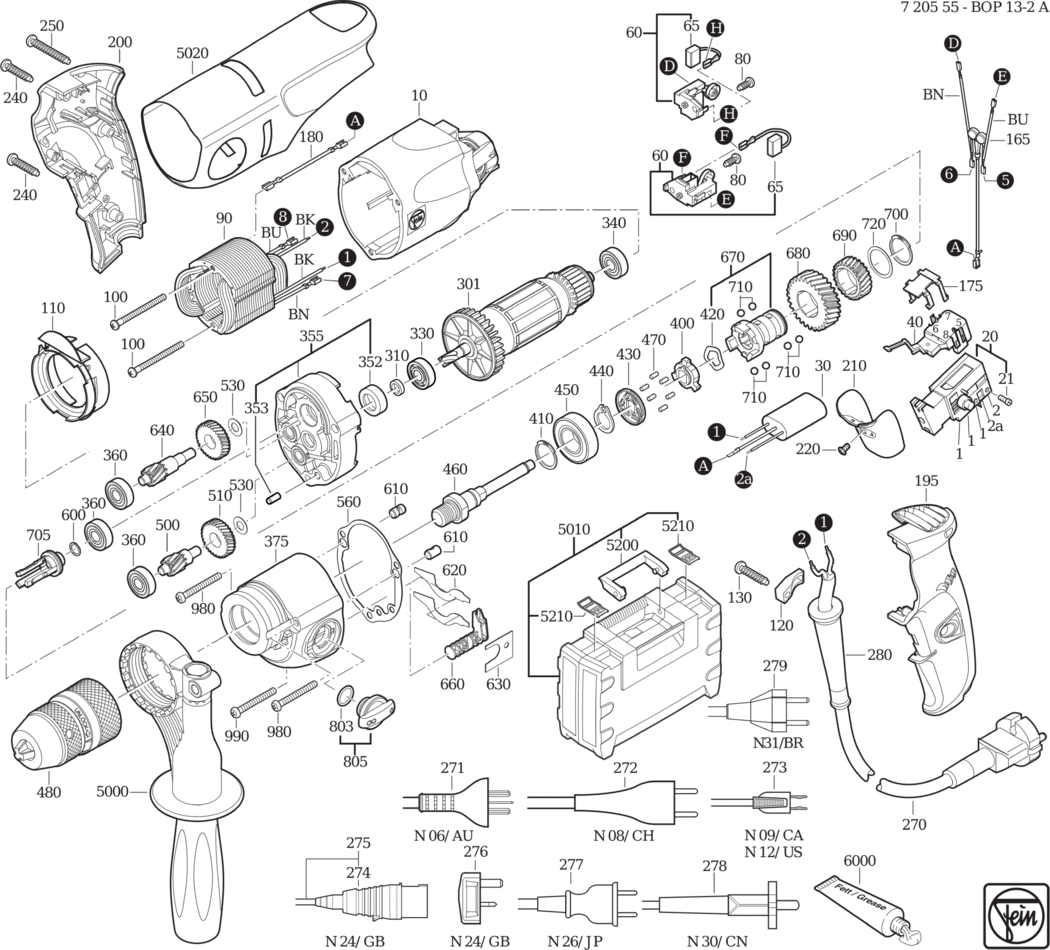

An exploded diagram and spare parts listing for the Fein BOP 13-2 (A) (50/60Hz 220/230V) / 72055500230

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901138011.A51 31901138011	£39.65	£47.58
20 - SWITCH FEI-30701228002.A23 30701228002	£54.05	£64.86
21 - CYLINDER HEAD SCREW FEI-43013052033.A26 43013052033	£1.60	£1.92
30 - CAPACITOR FEI-30722183018.A47 30722183018	£9.12	£10.95
40 - TOGGLE SWITCH FEI-30701249004.A57 30701249004	£20.57	£24.68
60 - BRUSH HOLDER FEI-30712089039.A23 30712089039	£34.06	£40.87
65 - CARBON BRUSH (SOLD SINGLY) 100-240V 50/60HZ FEI-30711165000.A12 30711165000	£12.84	£15.41
80 - SCREW FEI-43070018009.A61 43070018009	£1.60	£1.92
90 - STATOR FEI-51274014230.A23 51274014230	-
100 - SCREW FEI-43070014000.A40 43070014000	£1.60	£1.92
110 - AIR GUIDE RING FEI-31428149008.A54 31428149008	£8.86	£10.63
120 - CABLE CLAMPING PIECE FEI-32431046000.A31 32431046000	£1.60	£1.92
130 - SCREW FEI-43070006008.A85 43070006008	£1.60	£1.92
165 - RADIO SHIELDING FEI-30722188010.A16 30722188010	£8.98	£10.77
175 - HOLDER FEI-30240283000.A12 30240283000	-
180 - CONNECTING CABLE FEI-30719729010.A23 30719729010	-
195 - HANDLE HALF SHELL FEI-31201136020.A12 31201136020	£22.05	£26.46
200 - HANDLE HALF SHELL FEI-31201137000.A25 31201137000	£20.52	£24.63
210 - SWITCH PUSHBUTTON FEI-32805191002.A41 32805191002	£6.67	£8.00
220 - COUNTERSUNK SCREW FEI-43066009038.A29 43066009038	£1.60	£1.92
240 - SHEET METAL SCREW FEI-43046003009.A32 43046003009	£1.60	£1.92
250 - SCREW FEI-43070007002.A62 43070007002	£1.60	£1.92
270 - CABLE WITH PLUG FEI-30707343017.A29 30707343017	£20.96	£25.15
280 - CABLE GROMMET FEI-31413233000.A28 31413233000	£2.60	£3.12
301 - ARMATURE Z=5 220-230V 50/60HZ FEI-53274019230.A2 53274019230	£111.40	£133.68
310 - SEALING RING FEI-32612063005.A32 32612063005	£8.12	£9.74
330 - GROOVED BALL BEARING FEI-41701117170.A26 41701117170	£11.30	£13.56
340 - GROOVED BALL BEARING FEI-41701001260.A89 41701001260	£7.11	£8.53
352 - BUSH FEI-30507238000.A16 30507238000	-
353 - PIN FEI-40242051000.A40 40242051000	-
355 - INTERMEDIATE GEAR BOX FEI-31506378030.A15 31506378030	-
360 - GROOVED BALL BEARING FEI-41701118160.A2 41701118160	-
375 - GEARBOX HOUSING FEI-31508305010.A0 31508305010	-
400 - CLUTCH RING FEI-30103053000.A23 30103053000	£15.92	£19.10
410 - CIRCLIP FEI-42644018007.A9 42644018007	-
420 - DISC FEI-42442000000.A6 42442000000	-
430 - DISC FEI-30109191000.A32 30109191000	£6.45	£7.74
440 - CIRCLIP FEI-42616006007.A16 42616006007	£1.60	£1.92
450 - GROOVED BALL BEARING FEI-41701010054.A192 41701010054	£8.25	£9.90
460 - SHAFT FEI-33403117000.A9 33403117000	-
470 - ROLLER FEI-41709005007.A4 41709005007	£1.60	£1.92
480 - QUICK-ACTION CHUCKS FEI-63205035010.A20 63205035010	£104.18	£125.02
500 - SHAFT TOOTHED Z=9 FEI-33763063000.A19 33763063000	-
510 - GEAR-WHEEL Z=30 FEI-33657172009.A3 33657172009	£42.74	£51.29
530 - DISC FEI-32408243007.A20 32408243007	£2.37	£2.84
560 - SEAL FEI-30610050000.A13 30610050000	£2.51	£3.01
600 - CIRCLIP FEI-42615090002.A21 42615090002	£1.60	£1.92
610 - BOLT FEI-30217356000.A7 30217356000	-
620 - LEAF SPRING FEI-30904045000.A1 30904045000	£1.60	£1.92
630 - PLATE FEI-30235024000.A3 30235024000	£1.60	£1.92
640 - SHAFT TOOTHED Z=8 FEI-33765021000.A7 33765021000	-
650 - GEAR-WHEEL Z=21 FEI-33663172000.A10 33663172000	-
660 - BOLT FEI-30217357000.A5 30217357000	£10.07	£12.08
670 - CLUTCH PART FEI-30103057020.A8 30103057020	£55.14	£66.17
680 - GEAR-WHEEL Z=28 FEI-33665057000.A1 33665057000	£35.07	£42.08
690 - GEAR-WHEEL Z=24 FEI-33663173000.A3 33663173000	£29.30	£35.16
700 - CIRCLIP FEI-42616026005.A0 42616026005	£1.60	£1.92
705 - DRAW KEY FEI-30109192010.A0 30109192010	£38.37	£46.04
710 - BALL FEI-41708017002.A37 41708017002	£1.60	£1.92
720 - DISC FEI-32408435000.A5 32408435000	£1.60	£1.92
803 - SEALING RING FEI-40612125002.A41 40612125002	-
805 - SWITCH PUSHBUTTON FEI-32805233010.A11 32805233010	£12.62	£15.14
980 - SCREW FEI-43072012001.A13 43072012001	-
990 - SCREW FEI-43072013005.A44 43072013005	£1.60	£1.92
5000 - HANDLE FEI-32119152010.A10 32119152010	£19.60	£23.52
5010 - TOOL CASE FEI-33901118480.A1 33901118480	£75.90	£91.08
5020 - PROTECTIVE COVER FEI-31420132010.A0 31420132010	£25.32	£30.39
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A318 32160003014	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A44 34130054061	-
