Fein BOP 10 (50/60Hz 110/120V) / 72054424110 Spare Parts

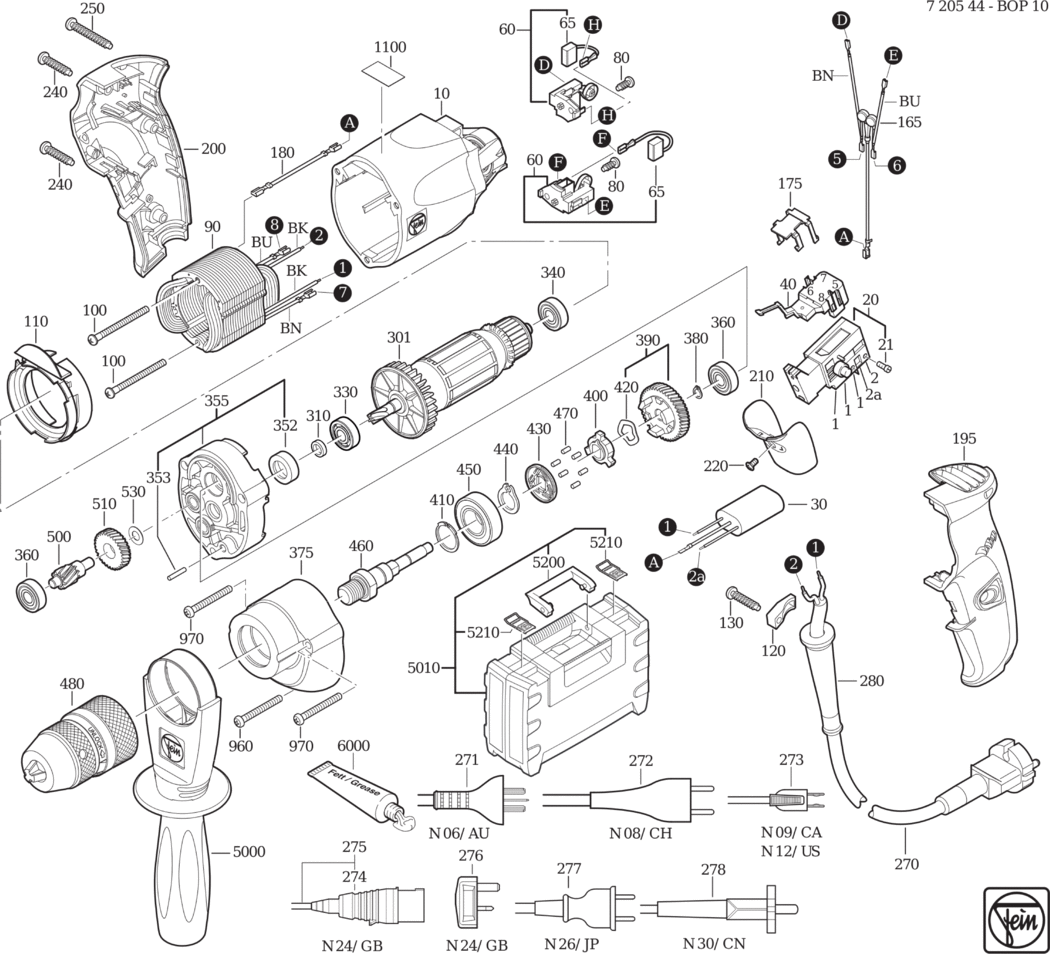

An exploded diagram and spare parts listing for the Fein BOP 10 (50/60Hz 110/120V) / 72054424110

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901138011.A40 31901138011	£39.65	£47.58
20 - SPEED SETTING SWITCH FEI-30701234002.A51 30701234002	£69.81	£83.77
21 - CYLINDER HEAD SCREW FEI-43013052033.A35 43013052033	£1.60	£1.92
30 - CAPACITOR FEI-30722183018.A34 30722183018	£9.12	£10.95
40 - TOGGLE SWITCH FEI-30701249004.A39 30701249004	£20.57	£24.68
60 - BRUSH HOLDER FEI-30712089023.A13 30712089023	£29.69	£35.63
65 - CARBON BRUSH (SOLD SINGLY) 100-240V 50/60HZ FEI-30711165000.A30 30711165000	£12.84	£15.41
80 - SCREW FEI-43070018009.A16 43070018009	£1.60	£1.92
90 - STATOR FEI-51274004117.A21 51274004117	£84.31	£101.17
100 - SCREW FEI-43070014000.A24 43070014000	£1.60	£1.92
110 - AIR GUIDE RING FEI-31428149008.A38 31428149008	£8.86	£10.63
120 - CABLE CLAMPING PIECE FEI-32431046000.A57 32431046000	£1.60	£1.92
130 - SCREW FEI-43070006008.A134 43070006008	£1.60	£1.92
165 - RADIO SHIELDING FEI-30722188010.A22 30722188010	£8.98	£10.77
175 - HOLDER FEI-30240283000.A3 30240283000	-
180 - CONNECTING CABLE FEI-30719729010.A19 30719729010	-
195 - HANDLE HALF SHELL FEI-31201136020.A7 31201136020	£22.05	£26.46
200 - HANDLE HALF SHELL FEI-31201137000.A12 31201137000	£20.52	£24.63
210 - SWITCH PUSHBUTTON FEI-32805191002.A55 32805191002	£6.67	£8.00
220 - COUNTERSUNK SCREW FEI-43066009038.A11 43066009038	£1.60	£1.92
240 - SHEET METAL SCREW FEI-43046003009.A50 43046003009	£1.60	£1.92
250 - SCREW FEI-43070007002.A16 43070007002	£1.60	£1.92
274 - PLUG CEE 16A/110V FEI-30728288004.A8 30728288004	£14.25	£17.10
275 - CABLE WITH PLUG FEI-30707396017.A9 30707396017	£41.68	£50.01
280 - CABLE GROMMET FEI-31413233000.A11 31413233000	£2.60	£3.12
301 - ARMATURE Z=5 100-120V 50/60HZ FEI-53274019110.A19 53274019110	£117.40	£140.88
310 - SEALING RING FEI-32612084001.A39 32612084001	£3.44	£4.13
330 - GROOVED BALL BEARING FEI-41701117170.A19 41701117170	£11.30	£13.56
340 - GROOVED BALL BEARING FEI-41701001172.A99 41701001172	£9.63	£11.56
352 - BUSH FEI-30507238000.A20 30507238000	-
353 - PIN FEI-40242051000.A29 40242051000	-
355 - INTERMEDIATE GEAR BOX FEI-31506378030.A23 31506378030	-
360 - GROOVED BALL BEARING FEI-41701118160.A8 41701118160	-
375 - GEARBOX HOUSING FEI-31508267010.A1 31508267010	-
380 - CIRCLIP FEI-42616047007.A13 42616047007	-
390 - GEAR-WHEEL FEI-33663176010.A1 33663176010	-
400 - CLUTCH RING FEI-30103053000.A29 30103053000	£15.92	£19.10
410 - CIRCLIP FEI-42644018007.A5 42644018007	-
420 - SPRING WASHER FEI-42446023000.A27 42446023000	£1.60	£1.92
430 - DISC FEI-30109191000.A22 30109191000	£6.45	£7.74
440 - CIRCLIP FEI-42616006007.A50 42616006007	£1.60	£1.92
450 - GROOVED BALL BEARING FEI-41701010054.A240 41701010054	£8.25	£9.90
460 - SHAFT FEI-33403116000.A0 33403116000	-
470 - ROLLER FEI-41709005007.A9 41709005007	£1.60	£1.92
480 - QUICK-ACTION CHUCKS FEI-63205035010.A15 63205035010	£104.18	£125.02
500 - SHAFT TOOTHED Z=9 FEI-33763063000.A20 33763063000	-
510 - GEAR-WHEEL Z=30 FEI-33657172009.A10 33657172009	£42.74	£51.29
530 - DISC FEI-32408243007.A28 32408243007	£2.37	£2.84
960 - SCREW FEI-43072010009.A3 43072010009	£1.60	£1.92
970 - SCREW FEI-43072003006.A10 43072003006	-
5000 - HANDLE FEI-32119123020.A16 32119123020	£39.94	£47.93
5010 - TOOL CASE FEI-33901118480.A2 33901118480	£75.90	£91.08
5200 - HANDLE FEI-32119122000.A17 32119122000	-
5210 - WIRE CLAMP FEI-30232050000.A59 30232050000	£10.78	£12.94
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A319 32160003014	-

Attribute Name	Value
Brand	Fein
