Fein BOP 10-2 (A) (50/60Hz 220/230V) / 72055400230 Spare Parts

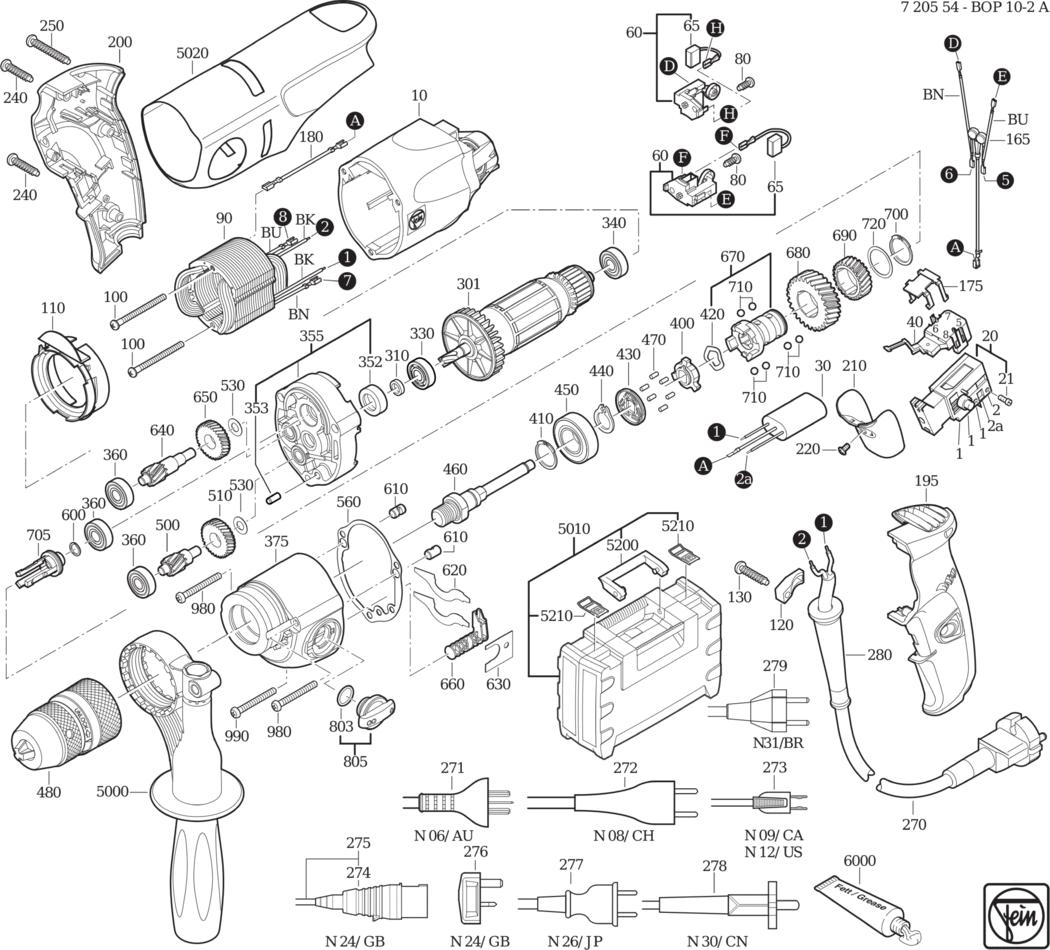

An exploded diagram and spare parts listing for the Fein BOP 10-2 (A) (50/60Hz 220/230V) / 72055400230

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901138011.A2 31901138011	£39.65	£47.58
20 - SWITCH FEI-30701228002.A44 30701228002	£54.05	£64.86
21 - CYLINDER HEAD SCREW FEI-43013052033.A69 43013052033	£1.60	£1.92
30 - CAPACITOR FEI-30722183018.A1 30722183018	£9.12	£10.95
40 - TOGGLE SWITCH FEI-30701249004.A2 30701249004	£20.57	£24.68
60 - BRUSH HOLDER FEI-30712089039.A1 30712089039	£34.06	£40.87
65 - CARBON BRUSH (SOLD SINGLY) 100-240V 50/60HZ FEI-30711165000.A61 30711165000	£12.84	£15.41
80 - SCREW FEI-43070018009.A114 43070018009	£1.60	£1.92
90 - STATOR FEI-51274014230.A12 51274014230	-
100 - SCREW FEI-43070014000.A117 43070014000	£1.60	£1.92
110 - AIR GUIDE RING FEI-31428149008.A25 31428149008	£8.86	£10.63
120 - CABLE CLAMPING PIECE FEI-32431046000.A24 32431046000	£1.60	£1.92
130 - SCREW FEI-43070006008.A34 43070006008	£1.60	£1.92
165 - RADIO SHIELDING FEI-30722188010.A3 30722188010	£8.98	£10.77
175 - HOLDER FEI-30240283000.A27 30240283000	-
180 - CONNECTING CABLE FEI-30719729010.A9 30719729010	-
195 - HANDLE HALF SHELL FEI-31201136020.A28 31201136020	£22.05	£26.46
200 - HANDLE HALF SHELL FEI-31201137000.A46 31201137000	£20.52	£24.63
210 - SWITCH PUSHBUTTON FEI-32805191002.A25 32805191002	£6.67	£8.00
220 - COUNTERSUNK SCREW FEI-43066009038.A58 43066009038	£1.60	£1.92
240 - SHEET METAL SCREW FEI-43046003009.A0 43046003009	£1.60	£1.92
250 - SCREW FEI-43070007002.A116 43070007002	£1.60	£1.92
270 - CABLE WITH PLUG FEI-30707343017.A0 30707343017	£20.96	£25.15
280 - CABLE GROMMET FEI-31413233000.A76 31413233000	£2.60	£3.12
301 - ARMATURE Z=5 220-230V 50/60HZ FEI-53274019230.A11 53274019230	£111.40	£133.68
310 - SEALING RING FEI-32612063005.A13 32612063005	£8.12	£9.74
330 - GROOVED BALL BEARING FEI-41701117170.A13 41701117170	£11.30	£13.56
340 - GROOVED BALL BEARING FEI-41701001260.A319 41701001260	£7.11	£8.53
352 - BUSH FEI-30507238000.A9 30507238000	-
353 - PIN FEI-40242051000.A2 40242051000	-
355 - INTERMEDIATE GEAR BOX FEI-31506378030.A9 31506378030	-
360 - GROOVED BALL BEARING FEI-41701118160.A14 41701118160	-
375 - GEARBOX HOUSING FEI-31508305010.A4 31508305010	-
400 - CLUTCH RING FEI-30103053000.A8 30103053000	£15.92	£19.10
410 - CIRCLIP FEI-42644018007.A25 42644018007	-
420 - DISC FEI-42442000000.A4 42442000000	-
430 - DISC FEI-30109191000.A8 30109191000	£6.45	£7.74
440 - CIRCLIP FEI-42616006007.A118 42616006007	£1.60	£1.92
450 - GROOVED BALL BEARING FEI-41701010054.A87 41701010054	£8.25	£9.90
460 - SHAFT FEI-33403117000.A3 33403117000	-
470 - ROLLER FEI-41709005007.A27 41709005007	£1.60	£1.92
480 - QUICK-ACTION CHUCKS FEI-63205035010.A4 63205035010	£104.18	£125.02
500 - SHAFT TOOTHED Z=9 FEI-33763063000.A7 33763063000	-
510 - GEAR-WHEEL Z=30 FEI-33657172009.A34 33657172009	£42.74	£51.29
530 - DISC FEI-32408243007.A25 32408243007	£2.37	£2.84
560 - SEAL FEI-30610050000.A11 30610050000	£2.51	£3.01
600 - CIRCLIP FEI-42615090002.A18 42615090002	£1.60	£1.92
610 - BOLT FEI-30217356000.A12 30217356000	-
620 - LEAF SPRING FEI-30904045000.A6 30904045000	£1.60	£1.92
630 - PLATE FEI-30235024000.A2 30235024000	£1.60	£1.92
640 - SHAFT TOOTHED Z=8 FEI-33765021000.A12 33765021000	-
650 - GEAR-WHEEL Z=21 FEI-33663172000.A7 33663172000	-
660 - BOLT FEI-30217357000.A2 30217357000	£10.07	£12.08
670 - CLUTCH PART FEI-30103057020.A13 30103057020	£55.14	£66.17
680 - GEAR-WHEEL Z=28 FEI-33665057000.A6 33665057000	£35.07	£42.08
690 - GEAR-WHEEL Z=24 FEI-33663173000.A6 33663173000	£29.30	£35.16
700 - CIRCLIP FEI-42616026005.A5 42616026005	£1.60	£1.92
705 - DRAW KEY FEI-30109192010.A5 30109192010	£38.37	£46.04
710 - BALL FEI-41708017002.A42 41708017002	£1.60	£1.92
720 - DISC FEI-32408435000.A1 32408435000	£1.60	£1.92
803 - SEALING RING FEI-40612125002.A45 40612125002	-
805 - SWITCH PUSHBUTTON FEI-32805233010.A13 32805233010	£12.62	£15.14
980 - SCREW FEI-43072012001.A17 43072012001	-
990 - SCREW FEI-43072013005.A40 43072013005	£1.60	£1.92
5000 - HANDLE FEI-32119152010.A11 32119152010	£19.60	£23.52
5010 - TOOL CASE FEI-33901118480.A12 33901118480	£75.90	£91.08
5020 - PROTECTIVE COVER FEI-31420132010.A3 31420132010	£25.32	£30.39
5200 - HANDLE FEI-32119122000.A67 32119122000	-
5210 - WIRE CLAMP FEI-30232050000.A40 30232050000	£10.78	£12.94
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A446 32160003014	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A207 34130054061	-
