Fein ASye 636 (60Hz 220V) / 72016300620 Spare Parts

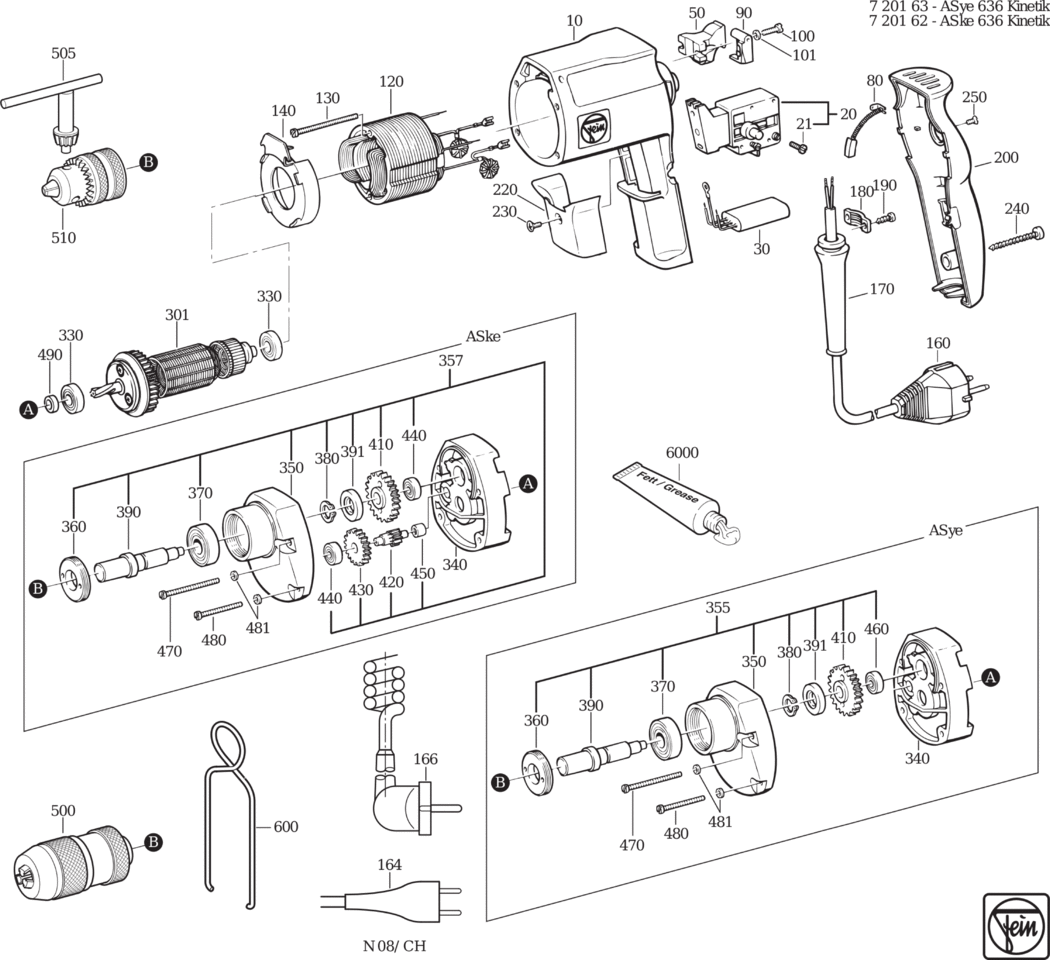

An exploded diagram and spare parts listing for the Fein ASye 636 (60Hz 220V) / 72016300620

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901117021.A5 31901117021	-
20 - SWITCH FEI-30701228002.A21 30701228002	£54.05	£64.86
21 - CYLINDER HEAD SCREW FEI-43013052033.A23 43013052033	£1.60	£1.92
30 - CAPACITOR FEI-30722161013.A22 30722161013	£17.85	£21.42
50 - BRUSH HOLDER FEI-30712043001.A4 30712043001	£8.32	£9.98
80 - CARBON BRUSH (SOLD SINGLY) FEI-30711059007.A3 30711059007	£7.74	£9.29
90 - CAP FEI-30713010009.A22 30713010009	£1.60	£1.92
100 - CYLINDER HEAD SCREW FEI-43002014998.A15 43002014998	-
101 - CIRCLIP FEI-42443002992.A35 42443002992	£1.60	£1.92
120 - STATOR 50HZ220V FEI-51203002223.A0 51203002223	-
130 - CYLINDER HEAD SCREW FEI-43002025991.A7 43002025991	£1.60	£1.92
140 - INSULATING RING FEI-31428004000.A18 31428004000	£3.67	£4.40
160 - CABLE WITH PLUG FEI-30707101012.A0 30707101012	£14.02	£16.82
170 - CABLE GROMMET FEI-31413142009.A21 31413142009	£1.60	£1.92
180 - CABLE CLAMPING PIECE FEI-32431021007.A98 32431021007	£1.60	£1.92
190 - SHEET METAL SCREW 3 5X13 FEI-43046002005.A21 43046002005	-
200 - COVER FEI-31201066005.A38 31201066005	£11.06	£13.27
220 - SWITCH PUSHBUTTON FEI-32805119008.A10 32805119008	£2.38	£2.86
230 - COUNTERSUNK SCREW FEI-43066006032.A24 43066006032	£1.60	£1.92
240 - SHEET METAL SCREW FEI-43046024005.A29 43046024005	£1.60	£1.92
250 - COUNTERSUNK SCREW FEI-43066002992.A32 43066002992	£1.60	£1.92
301 - ARMATURE 50HZ220V FEI-53203001222.A1 53203001222	£134.97	£161.96
330 - GROOVED BALL BEARING FEI-41701001172.A11 41701001172	£9.63	£11.56
340 - INTERMEDIATE GEAR BOX FEI-31506139008.A1 31506139008	£46.98	£56.38
350 - GEARBOX HOUSING FEI-31508099001.A3 31508099001	£53.68	£64.41
355 - GEARBOX HOUSING FEI-31508099032.A2 31508099032	-
360 - THREAD RING FEI-32618041002.A9 32618041002	£7.90	£9.48
370 - GROOVED BALL BEARING FEI-41701007038.A28 41701007038	£10.17	£12.20
380 - CIRCLIP FEI-42616013001.A62 42616013001	£1.60	£1.92
390 - SHAFT FEI-33401056006.A1 33401056006	£44.46	£53.35
391 - SEALING RING FEI-30602005009.A1 30602005009	£5.91	£7.09
410 - GEAR-WHEEL FEI-33657009002.A5 33657009002	£34.69	£41.63
460 - GROOVED BALL BEARING FEI-41701202018.A93 41701202018	£6.92	£8.30
470 - CYLINDER HEAD SCREW FEI-43002024997.A34 43002024997	£1.60	£1.92
480 - CYLINDER HEAD SCREW FEI-43002021992.A12 43002021992	£1.60	£1.92
481 - CIRCLIP FEI-42443002992.A34 42443002992	£1.60	£1.92
490 - SEALING RING FEI-32612055008.A8 32612055008	£2.59	£3.11
505 - CHUCK KEY FEI-62914001002.A0 62914001002	£8.67	£10.40
510 - KEY-TYPE DRILL CHUCKS FEI-63202031014.A0 63202031014	-
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A444 32160003014	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A206 34130054061	-

Attribute Name	Value
Brand	Fein
