Fein ASye 636 (50Hz 230V) / 72016398238 Spare Parts

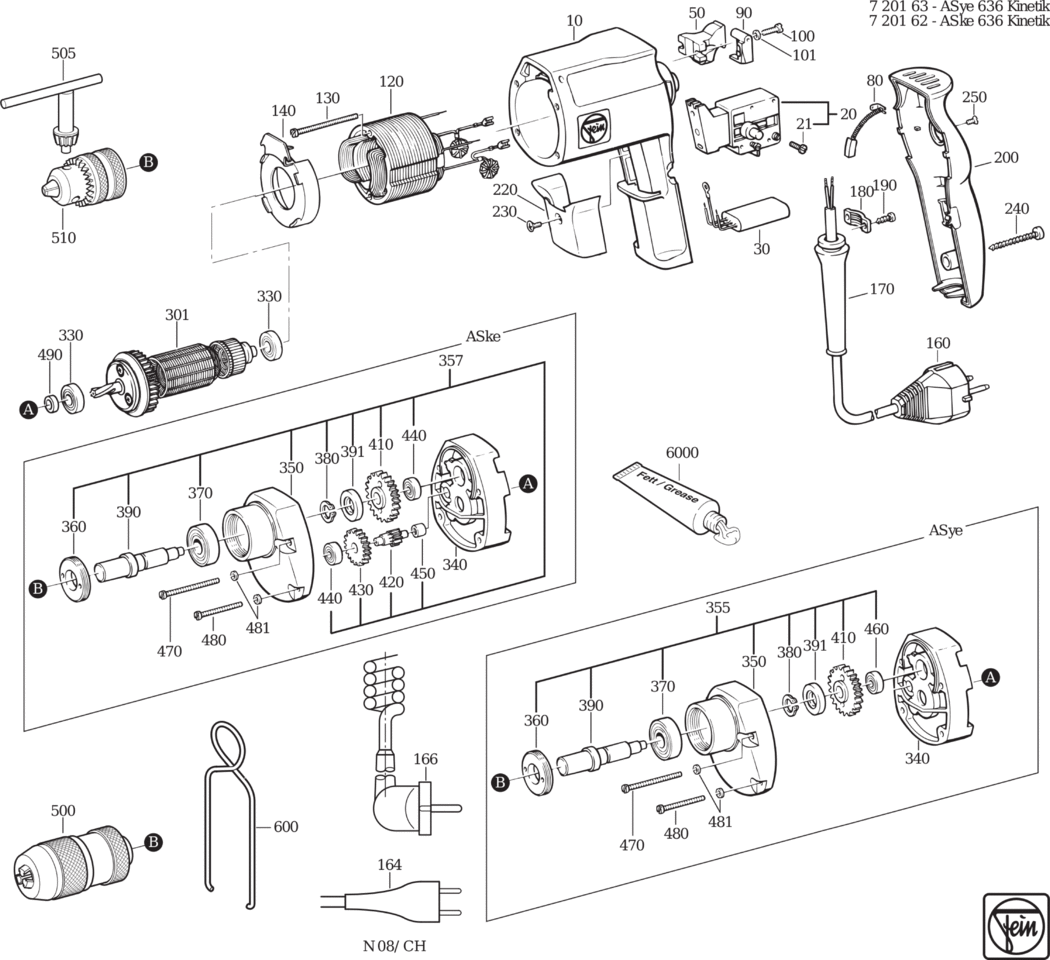

An exploded diagram and spare parts listing for the Fein ASye 636 (50Hz 230V) / 72016398238

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901117021.A4 31901117021	-
20 - SWITCH FEI-30701228002.A19 30701228002	£54.05	£64.86
21 - CYLINDER HEAD SCREW FEI-43013052033.A19 43013052033	£1.60	£1.92
30 - CAPACITOR FEI-30722161013.A20 30722161013	£17.85	£21.42
50 - BRUSH HOLDER FEI-30712043001.A6 30712043001	£8.32	£9.98
80 - CARBON BRUSH (SOLD SINGLY) FEI-30711059007.A5 30711059007	£7.74	£9.29
90 - CAP FEI-30713010009.A20 30713010009	£1.60	£1.92
100 - CYLINDER HEAD SCREW FEI-43002014998.A12 43002014998	-
101 - CIRCLIP FEI-42443002992.A33 42443002992	£1.60	£1.92
120 - STATOR 50HZ220V FEI-51203002223.A2 51203002223	-
130 - CYLINDER HEAD SCREW FEI-43002025991.A8 43002025991	£1.60	£1.92
140 - INSULATING RING FEI-31428004000.A17 31428004000	£3.67	£4.40
166 - SPIRAL CORDSET FEI-30707157035.A2 30707157035	-
170 - CABLE GROMMET FEI-31413142009.A26 31413142009	£1.60	£1.92
180 - CABLE CLAMPING PIECE FEI-32431021007.A96 32431021007	£1.60	£1.92
190 - SHEET METAL SCREW 3 5X13 FEI-43046002005.A20 43046002005	-
200 - COVER FEI-31201066005.A40 31201066005	£11.06	£13.27
220 - SWITCH PUSHBUTTON FEI-32805119008.A9 32805119008	£2.38	£2.86
230 - COUNTERSUNK SCREW FEI-43066006032.A26 43066006032	£1.60	£1.92
240 - SHEET METAL SCREW FEI-43046024005.A28 43046024005	£1.60	£1.92
250 - COUNTERSUNK SCREW FEI-43066002992.A33 43066002992	£1.60	£1.92
301 - ARMATURE 50HZ220V FEI-53203001222.A0 53203001222	£134.97	£161.96
330 - GROOVED BALL BEARING FEI-41701001172.A13 41701001172	£9.63	£11.56
340 - INTERMEDIATE GEAR BOX FEI-31506139008.A2 31506139008	£46.98	£56.38
350 - GEARBOX HOUSING FEI-31508099001.A5 31508099001	£53.68	£64.41
355 - GEARBOX HOUSING FEI-31508099032.A0 31508099032	-
360 - THREAD RING FEI-32618041002.A10 32618041002	£7.90	£9.48
370 - GROOVED BALL BEARING FEI-41701007038.A26 41701007038	£10.17	£12.20
380 - CIRCLIP FEI-42616013001.A64 42616013001	£1.60	£1.92
390 - SHAFT FEI-33401056006.A2 33401056006	£44.46	£53.35
391 - SEALING RING FEI-30602005009.A2 30602005009	£5.91	£7.09
410 - GEAR-WHEEL FEI-33657009002.A7 33657009002	£34.69	£41.63
460 - GROOVED BALL BEARING FEI-41701202018.A95 41701202018	£6.92	£8.30
470 - CYLINDER HEAD SCREW FEI-43002024997.A35 43002024997	£1.60	£1.92
480 - CYLINDER HEAD SCREW FEI-43002021992.A11 43002021992	£1.60	£1.92
481 - CIRCLIP FEI-42443002992.A36 42443002992	£1.60	£1.92
490 - SEALING RING FEI-32612055008.A7 32612055008	£2.59	£3.11
500 - QUICK-ACTION CHUCKS FEI-63204021004.A0 63204021004	-
600 - SUSPENSION DEVICE FEI-32125050007.A1 32125050007	£20.12	£24.14
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A442 32160003014	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A204 34130054061	-
9020 - OPERATING INSTRUCTIONS FEI-34110144064.A0 34110144064	-

Attribute Name	Value
Brand	Fein
