Fein ASq 672-1 (50Hz 110V) / 72050300110 Spare Parts

Fein ASq 672-1 ⡐Hz 110V) / 72050300110 Spare Parts

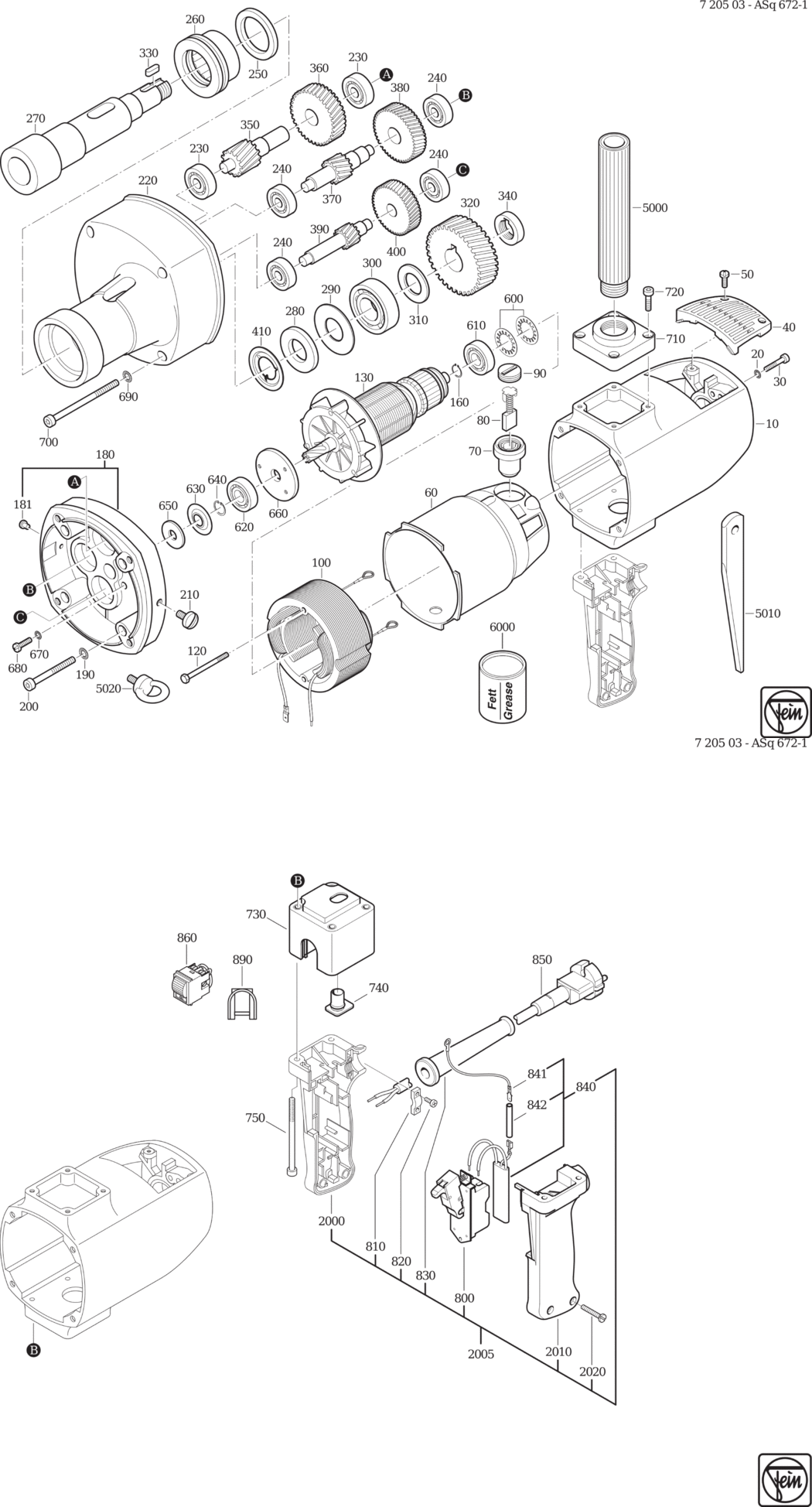

An exploded diagram and spare parts listing for the Fein ASq 672-1 (50Hz 110V) / 72050300110

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31903095007.A9 31903095007	£285.77	£342.92
20 - CIRCLIP M5 FEI-42443004057.A324 42443004057	£1.60	£1.92
30 - CYLINDER HEAD SCREW M5X25 FEI-43033014058.A47 43033014058	£1.60	£1.92
40 - COVER FEI-32427031001.A9 32427031001	£6.73	£8.08
50 - CYLINDER HEAD SCREW M4X10 FEI-43002033045.A24 43002033045	£1.60	£1.92
60 - HOUSING FEI-31913018009.A6 31913018009	£59.20	£71.04
70 - BRUSH HOLDER FEI-30712047047.A5 30712047047	£18.16	£21.79
80 - CARBON BRUSH (SOLD SINGLY) FEI-30711097001.A5 30711097001	£20.10	£24.12
90 - CAP FEI-30713009007.A8 30713009007	£2.55	£3.06
100 - STATOR 50HZ110V FEI-51232003112.A1 51232003112	£152.44	£182.93
120 - HEXAGON SOCKET SCREW M5X55 FEI-43001007059.A6 43001007059	-
130 - ARMATURE 50HZ110V FEI-53232001117.A1 53232001117	£325.47	£390.56
160 - RING FEI-42628001006.A3 42628001006	£1.60	£1.92
180 - INTERMEDIATE GEAR BOX FEI-31506180006.A3 31506180006	£346.14	£415.37
181 - NIPPLE FEI-32131001002.A10 32131001002	£2.68	£3.21
190 - CIRCLIP M6 FEI-42443005064.A24 42443005064	£1.60	£1.92
200 - CYLINDER HEAD SCREW FEI-43033037060.A2 43033037060	-
210 - FLAT HEADED SCREW M8X10 FEI-43003069085.A3 43003069085	-
220 - GEARBOX HOUSING FEI-31509059006.A3 31509059006	£585.44	£702.53
230 - GROOVED BALL BEARING FEI-41701213011.A57 41701213011	£8.92	£10.70
240 - GROOVED BALL BEARING FEI-41701210015.A10 41701210015	£8.55	£10.26
250 - FELT RING FEI-30601065009.A2 30601065009	£8.38	£10.05
260 - NEEDLE BEARING FEI-41720002022.A2 41720002022	-
270 - SHAFT FEI-33402039008.A2 33402039008	£296.21	£355.45
280 - FELT RING FEI-30601066002.A2 30601066002	£6.34	£7.61
290 - DISC FEI-32411061006.A2 32411061006	£13.69	£16.43
300 - GROOVED BALL BEARING FEI-41701229027.A4 41701229027	-
310 - DISC FEI-32408178005.A3 32408178005	£17.07	£20.48
320 - GEAR-WHEEL FEI-33669001005.A3 33669001005	-
330 - FEATHER KEY FEI-40221041005.A2 40221041005	-
340 - NUT FEI-42011028005.A3 42011028005	-
350 - GEAR-WHEEL FEI-33769001004.A2 33769001004	-
360 - GEAR-WHEEL FEI-33667008001.A1 33667008001	£89.55	£107.46
370 - GEAR-WHEEL FEI-33767006008.A2 33767006008	-
380 - GEAR-WHEEL FEI-33665015009.A2 33665015009	£73.08	£87.70
390 - SHAFT TOOTHED FEI-33765006002.A2 33765006002	-
400 - GEAR-WHEEL FEI-33663019000.A3 33663019000	£60.58	£72.70
410 - DISC FEI-32408199007.A1 32408199007	£8.26	£9.91
600 - CUP SPRING FEI-30905019003.A3 30905019003	£1.60	£1.92
610 - GROOVED BALL BEARING FEI-41701210021.A2 41701210021	£8.89	£10.67
620 - GROOVED BALL BEARING FEI-41701213027.A2 41701213027	£9.82	£11.79
630 - DISC FEI-32411052000.A3 32411052000	£3.93	£4.72
640 - CIRCLIP FEI-42643001007.A21 42643001007	£1.60	£1.92
650 - FELT RING FEI-30601055000.A9 30601055000	£1.60	£1.92
660 - PLATE FEI-32410048003.A2 32410048003	£40.53	£48.64
670 - CIRCLIP M4 FEI-42443003043.A97 42443003043	£1.60	£1.92
680 - CYLINDER HEAD SCREW FEI-43002035047.A4 43002035047	-
690 - CIRCLIP M6 FEI-42443005064.A26 42443005064	£1.60	£1.92
700 - CYLINDER HEAD SCREW FEI-43033040064.A2 43033040064	-
710 - FLANGE FEI-32420020005.A14 32420020005	£40.01	£48.01
720 - CYLINDER HEAD SCREW M5X20 FEI-43033012056.A16 43033012056	£1.60	£1.92
730 - HOUSING FEI-31207204008.A7 31207204008	£61.58	£73.89
740 - SLEEVE FEI-31406031002.A4 31406031002	£5.10	£6.12
750 - CYLINDER HEAD SCREW M5X80 FEI-43035027056.A9 43035027056	£2.82	£3.38
800 - SWITCH FEI-30701073005.A22 30701073005	£36.31	£43.57
810 - CABLE CLAMPING PIECE FEI-32431021007.A203 32431021007	£1.60	£1.92
820 - FILLISTER HEAD SCREW M3 5X10 FEI-43041001994.A16 43041001994	£1.60	£1.92
830 - CABLE GROMMET FEI-31413090003.A34 31413090003	£3.40	£4.08
840 - CAPACITOR FEI-30722122026.A6 30722122026	£25.42	£30.51
841 - CONNECTING CABLE FEI-30719164018.A15 30719164018	£3.92	£4.70
842 - INSULATING HOSE FEI-31413188006.A7 31413188006	£1.60	£1.92
850 - CABLE WITH PLUG FEI-30707105011.A3 30707105011	£26.49	£31.79
860 - TOGGLE SWITCH FEI-30701210019.A2 30701210019	£53.20	£63.84
890 - SWITCH INSERT FEI-32414105002.A4 32414105002	£11.35	£13.62
2000 - HANDLE HALF SHELL FEI-31204161004.A7 31204161004	£38.65	£46.38
2010 - HANDLE HALF SHELL FEI-31204163001.A21 31204163001	£40.17	£48.20
2020 - FILLISTER HEAD SCREW FEI-43041027045.A30 43041027045	£1.60	£1.92
5000 - HANDLE FEI-32119153010.A11 32119153010	£67.33	£80.80
5010 - DRIFT KEYS FEI-63305004001.A13 63305004001	£12.32	£14.78
5020 - RING BOLT FEI-43027006081.A4 43027006081	-
6000 - LUBRICANT CAN 0.850 kg FEI-32132007033.A9 32132007033	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A705 34130054061	-
