Fein ASke 636 Kinetik (50/60Hz 220/230V) / 72016200222 Spare Parts

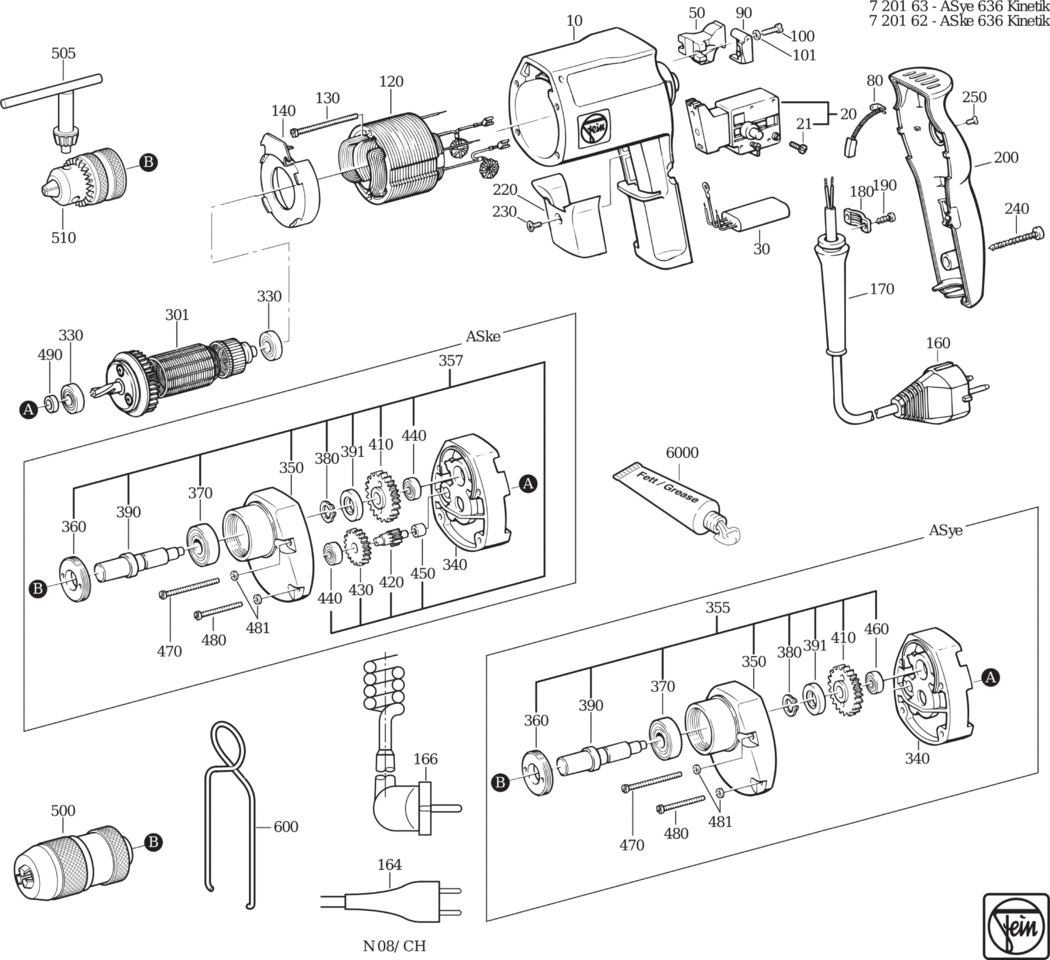

An exploded diagram and spare parts listing for the Fein ASke 636 Kinetik (50/60Hz 220/230V) / 72016200222

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901117021.A31 31901117021	-
20 - SWITCH FEI-30701228002.A40 30701228002	£54.05	£64.86
21 - CYLINDER HEAD SCREW FEI-43013052033.A100 43013052033	£1.60	£1.92
30 - CAPACITOR FEI-30722161013.A5 30722161013	£17.85	£21.42
50 - BRUSH HOLDER FEI-30712043001.A27 30712043001	£8.32	£9.98
80 - CARBON BRUSH (SOLD SINGLY) FEI-30711059007.A41 30711059007	£7.74	£9.29
90 - CAP FEI-30713010009.A5 30713010009	£1.60	£1.92
100 - CYLINDER HEAD SCREW FEI-43002014998.A27 43002014998	-
101 - CIRCLIP FEI-42443002992.A89 42443002992	£1.60	£1.92
120 - STATOR 50HZ220V FEI-51203002223.A4 51203002223	-
130 - CYLINDER HEAD SCREW FEI-43002025991.A33 43002025991	£1.60	£1.92
140 - INSULATING RING FEI-31428004000.A10 31428004000	£3.67	£4.40
160 - CABLE WITH PLUG FEI-30707101012.A6 30707101012	£14.02	£16.82
170 - CABLE GROMMET FEI-31413142009.A56 31413142009	£1.60	£1.92
180 - CABLE CLAMPING PIECE FEI-32431021007.A141 32431021007	£1.60	£1.92
190 - SHEET METAL SCREW 3 5X13 FEI-43046002005.A37 43046002005	-
200 - COVER FEI-31201066005.A0 31201066005	£11.06	£13.27
220 - SWITCH PUSHBUTTON FEI-32805119008.A7 32805119008	£2.38	£2.86
230 - COUNTERSUNK SCREW FEI-43066006032.A23 43066006032	£1.60	£1.92
240 - SHEET METAL SCREW FEI-43046024005.A19 43046024005	£1.60	£1.92
250 - COUNTERSUNK SCREW FEI-43066002992.A23 43066002992	£1.60	£1.92
301 - ARMATURE 50HZ220V FEI-53203002225.A0 53203002225	£133.39	£160.07
330 - GROOVED BALL BEARING FEI-41701001172.A231 41701001172	£9.63	£11.56
340 - INTERMEDIATE GEAR BOX FEI-31506139008.A4 31506139008	£46.98	£56.38
350 - GEARBOX HOUSING FEI-31508099001.A0 31508099001	£53.68	£64.41
357 - GEARBOX HOUSING FEI-31508099054.A1 31508099054	-
360 - THREAD RING FEI-32618041002.A2 32618041002	£7.90	£9.48
370 - GROOVED BALL BEARING FEI-41701007038.A66 41701007038	£10.17	£12.20
380 - CIRCLIP FEI-42616013001.A32 42616013001	£1.60	£1.92
390 - SHAFT FEI-33401060004.A0 33401060004	£36.31	£43.57
391 - SEALING RING FEI-30602005009.A7 30602005009	£5.91	£7.09
410 - GEAR-WHEEL Z=42 FEI-33607042005.A2 33607042005	£33.98	£40.77
420 - GEAR-WHEEL Z=11 FEI-33707015003.A1 33707015003	-
430 - GEAR-WHEEL Z=30 FEI-33657011003.A9 33657011003	£35.00	£42.00
440 - GROOVED BALL BEARING FEI-41701202018.A79 41701202018	£6.92	£8.30
450 - BUSH FEI-41705005003.A14 41705005003	£5.62	£6.74
470 - CYLINDER HEAD SCREW FEI-43002024997.A7 43002024997	£1.60	£1.92
480 - CYLINDER HEAD SCREW FEI-43002021992.A24 43002021992	£1.60	£1.92
481 - CIRCLIP FEI-42443002992.A88 42443002992	£1.60	£1.92
490 - SEALING RING FEI-32612056001.A6 32612056001	£2.69	£3.23
500 - QUICK-ACTION CHUCKS FEI-63204021004.A1 63204021004	-
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A56 32160003014	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A445 34130054061	-
