Fein WBP 10 (50/60Hz 220/230V) / 72055100230 Spare Parts

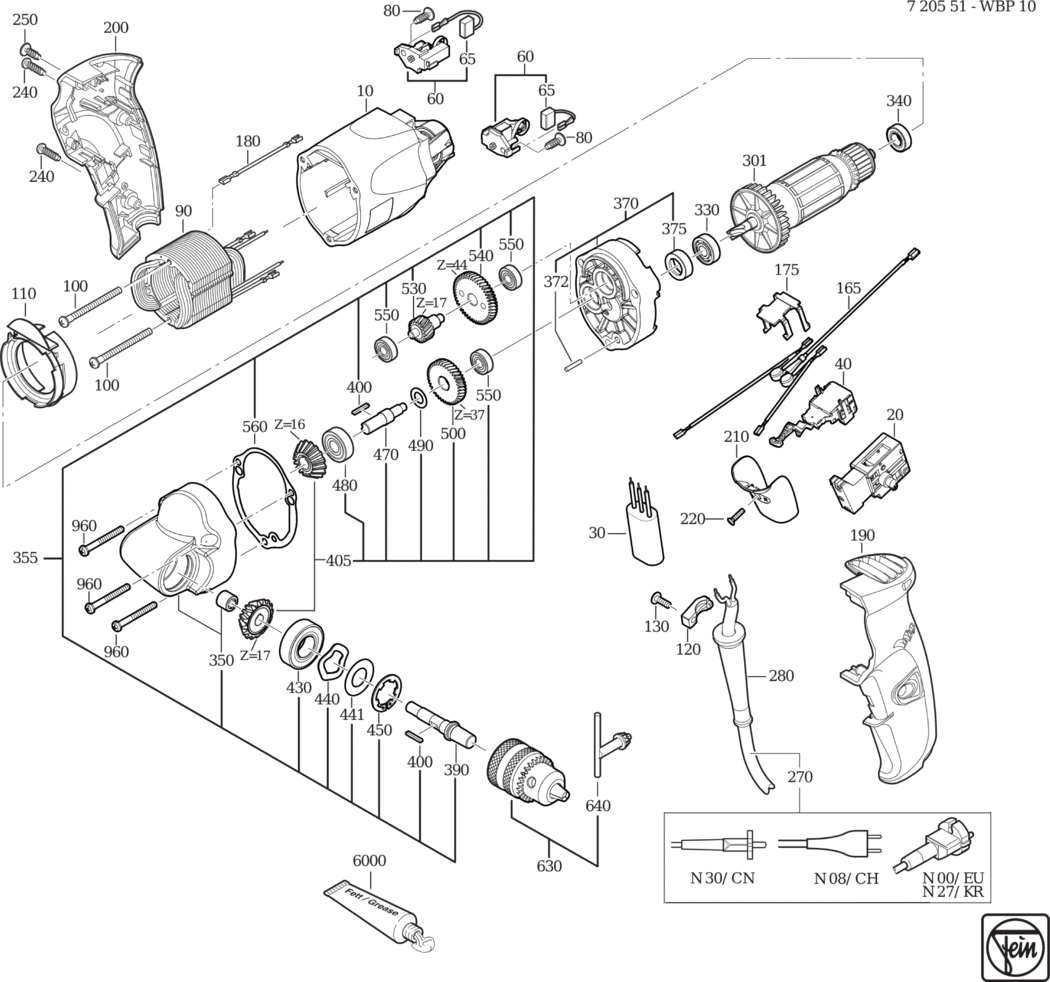

An exploded diagram and spare parts listing for the Fein WBP 10 (50/60Hz 220/230V) / 72055100230

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901138011.A54 31901138011	£39.65	£47.58
20 - SWITCH FEI-30701228002.A18 30701228002	£54.05	£64.86
30 - CAPACITOR FEI-30722183018.A42 30722183018	£9.12	£10.95
40 - TOGGLE SWITCH FEI-30701249004.A50 30701249004	£20.57	£24.68
60 - BRUSH HOLDER FEI-30712089039.A26 30712089039	£34.06	£40.87
65 - CARBON BRUSH (SOLD SINGLY) 100-240V 50/60HZ FEI-30711165000.A9 30711165000	£12.84	£15.41
80 - SCREW FEI-43070018009.A62 43070018009	£1.60	£1.92
90 - STATOR FEI-51274014230.A26 51274014230	-
100 - SCREW FEI-43070014000.A39 43070014000	£1.60	£1.92
110 - AIR GUIDE RING FEI-31428149008.A49 31428149008	£8.86	£10.63
120 - CABLE CLAMPING PIECE FEI-32431046000.A30 32431046000	£1.60	£1.92
130 - SCREW FEI-43070006008.A84 43070006008	£1.60	£1.92
165 - RADIO SHIELDING FEI-30722188010.A13 30722188010	£8.98	£10.77
175 - HOLDER FEI-30240283000.A9 30240283000	-
180 - CONNECTING CABLE FEI-30719729010.A22 30719729010	-
190 - HANDLE HALF SHELL FEI-31201136020.A9 31201136020	£22.05	£26.46
200 - HANDLE HALF SHELL FEI-31201137000.A22 31201137000	£20.52	£24.63
210 - SWITCH PUSHBUTTON FEI-32805191002.A36 32805191002	£6.67	£8.00
220 - COUNTERSUNK SCREW FEI-43066009038.A22 43066009038	£1.60	£1.92
240 - SHEET METAL SCREW FEI-43046003009.A27 43046003009	£1.60	£1.92
250 - SCREW FEI-43070007002.A63 43070007002	£1.60	£1.92
270 - CABLE WITH PLUG FEI-30707343017.A27 30707343017	£20.96	£25.15
280 - CABLE GROMMET FEI-31413233000.A25 31413233000	£2.60	£3.12
301 - ARMATURE Z=5 220-230V 50/60HZ FEI-53274020230.A6 53274020230	-
330 - GROOVED BALL BEARING FEI-41701117170.A23 41701117170	£11.30	£13.56
340 - GROOVED BALL BEARING FEI-41701001260.A94 41701001260	£7.11	£8.53
350 - BEARING FEI-31508297010.A0 31508297010	-
355 - BEARING FEI-31508297020.A1 31508297020	-
370 - INTERMEDIATE GEAR BOX FEI-31506401020.A0 31506401020	-
372 - PIN FEI-40242051000.A45 40242051000	-
375 - BUSH FEI-30507238000.A19 30507238000	-
390 - SHAFT FEI-33401085000.A0 33401085000	£46.92	£56.30
400 - FEATHER KEY FEI-40221003006.A18 40221003006	£1.60	£1.92
405 - BEVEL GEAR Z=16/17 FEI-33809072017.A4 33809072017	-
430 - GROOVED BALL BEARING FEI-41701207033.A33 41701207033	£10.15	£12.18
440 - DISC FEI-42446015000.A22 42446015000	£1.60	£1.92
441 - DISC FEI-32408346008.A8 32408346008	£4.26	£5.11
450 - CIRCLIP FEI-42635003004.A2 42635003004	£1.60	£1.92
470 - SHAFT FEI-33406078004.A3 33406078004	£30.84	£37.01
480 - GROOVED BALL BEARING FEI-41701004015.A19 41701004015	£6.83	£8.20
490 - DISC FEI-32408152006.A2 32408152006	£1.60	£1.92
500 - GEAR-WHEEL FEI-33657012006.A4 33657012006	£27.85	£33.42
530 - GEAR-WHEEL FEI-33757008007.A0 33757008007	-
540 - GEAR-WHEEL FEI-33657009002.A1 33657009002	£34.69	£41.63
550 - GROOVED BALL BEARING FEI-41701202018.A101 41701202018	£6.92	£8.30
560 - SEAL FEI-30610050000.A14 30610050000	£2.51	£3.01
630 - KEY-TYPE DRILL CHUCKS FEI-63202044018.A4 63202044018	£56.92	£68.31
640 - CHUCK KEY FEI-62914002005.A0 62914002005	£4.30	£5.16
960 - SCREW FEI-43072010009.A25 43072010009	£1.60	£1.92
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A447 32160003014	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A218 34130054061	-
