Fein ASzxeu 636-1 (50Hz 110V) / 72053400110 Spare Parts

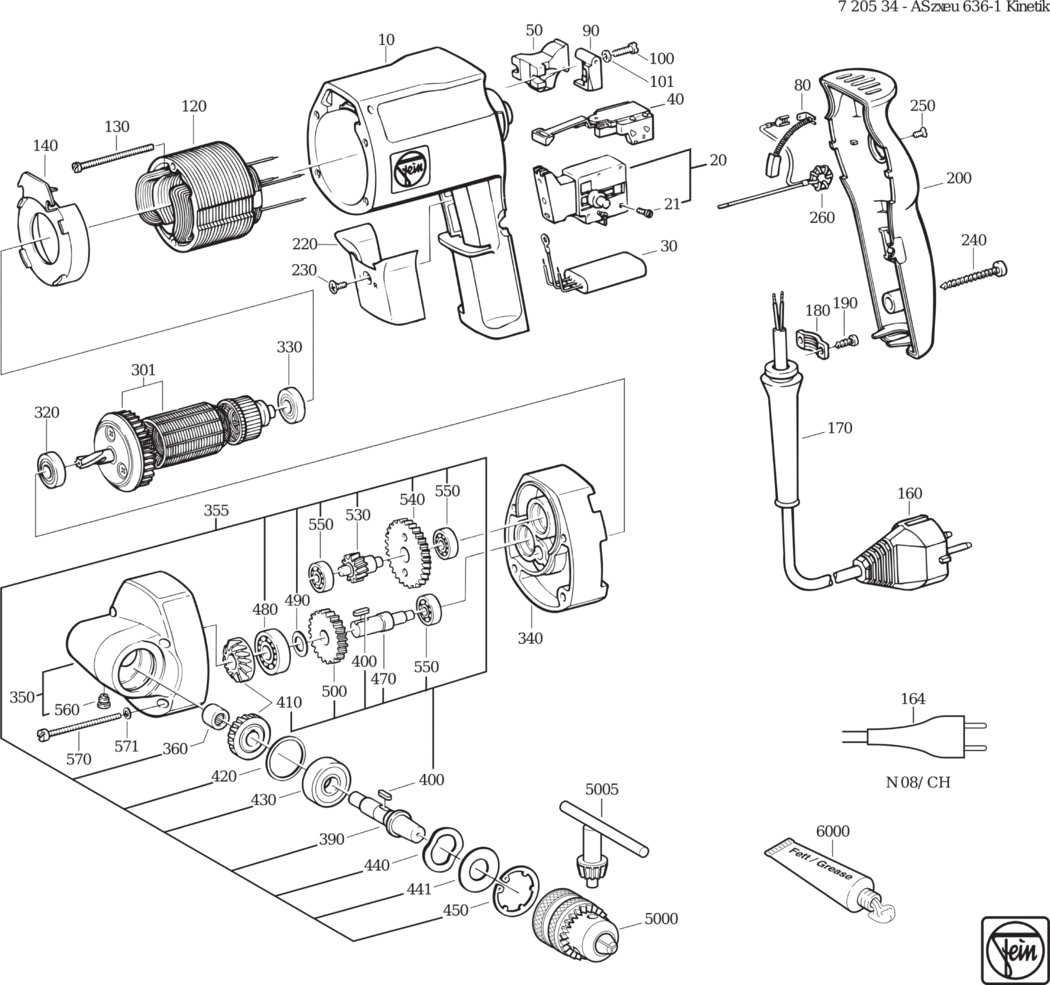

An exploded diagram and spare parts listing for the Fein ASzxeu 636-1 (50Hz 110V) / 72053400110

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901117021.A0 31901117021	-
20 - SPEED SETTING SWITCH FEI-30701234002.A30 30701234002	£69.81	£83.77
21 - CYLINDER HEAD SCREW FEI-43013052033.A16 43013052033	£1.60	£1.92
30 - CAPACITOR FEI-30722161013.A24 30722161013	£17.85	£21.42
40 - TOGGLE SWITCH FEI-30701238001.A31 30701238001	£16.72	£20.06
50 - BRUSH HOLDER FEI-30712043001.A7 30712043001	£8.32	£9.98
80 - CARBON BRUSH (SOLD SINGLY) FEI-30711059007.A2 30711059007	£7.74	£9.29
90 - CAP FEI-30713010009.A25 30713010009	£1.60	£1.92
100 - CYLINDER HEAD SCREW FEI-43002014998.A18 43002014998	-
101 - CIRCLIP FEI-42443002992.A42 42443002992	£1.60	£1.92
120 - STATOR 50HZ110V FEI-51203003117.A1 51203003117	£74.00	£88.80
130 - CYLINDER HEAD SCREW FEI-43002025991.A0 43002025991	£1.60	£1.92
140 - INSULATING RING FEI-31428004000.A21 31428004000	£3.67	£4.40
161 - CABLE FEI-30706322014.A3 30706322014	-
170 - CABLE GROMMET FEI-31413142009.A19 31413142009	£1.60	£1.92
180 - CABLE CLAMPING PIECE FEI-32431021007.A83 32431021007	£1.60	£1.92
190 - SHEET METAL SCREW 3 5X13 FEI-43046002005.A26 43046002005	-
200 - COVER FEI-31201066005.A37 31201066005	£11.06	£13.27
220 - SWITCH PUSHBUTTON FEI-32805120000.A1 32805120000	£3.67	£4.40
230 - COUNTERSUNK SCREW FEI-43066006032.A29 43066006032	£1.60	£1.92
240 - SHEET METAL SCREW FEI-43046024005.A24 43046024005	£1.60	£1.92
250 - COUNTERSUNK SCREW FEI-43066002992.A36 43066002992	£1.60	£1.92
260 - CONNECTING CABLE FEI-30719117014.A2 30719117014	£3.78	£4.54
270 - CONNECTING CABLE FEI-30719118012.A13 30719118012	£3.78	£4.54
301 - ARMATURE 50HZ110V FEI-53203009110.A2 53203009110	£185.49	£222.59
320 - GROOVED BALL BEARING FEI-41701001032.A65 41701001032	£10.89	£13.07
330 - GROOVED BALL BEARING FEI-41701001172.A0 41701001172	£9.63	£11.56
340 - INTERMEDIATE GEAR BOX FEI-31506145008.A1 31506145008	£46.47	£55.76
350 - GEARBOX HOUSING FEI-31508185002.A2 31508185002	£70.42	£84.51
355 - GEARBOX HOUSING FEI-31508185011.A0 31508185011	-
360 - NEEDLE SLEEVE FEI-41705006006.A12 41705006006	£7.31	£8.77
390 - SHAFT FEI-33401085000.A2 33401085000	£46.92	£56.30
400 - FEATHER KEY FEI-40221003006.A16 40221003006	£1.60	£1.92
410 - BEVEL GEAR Z=16/17 FEI-33809072017.A2 33809072017	-
420 - DISC FEI-32624056027.A2 32624056027	£3.48	£4.18
430 - GROOVED BALL BEARING FEI-41701207033.A31 41701207033	£10.15	£12.18
440 - DISC FEI-42446015000.A23 42446015000	£1.60	£1.92
441 - DISC FEI-32408346008.A6 32408346008	£4.26	£5.11
450 - CIRCLIP FEI-42635003004.A1 42635003004	£1.60	£1.92
470 - SHAFT FEI-33406078004.A1 33406078004	£30.84	£37.01
480 - GROOVED BALL BEARING FEI-41701004015.A20 41701004015	£6.83	£8.20
490 - DISC FEI-32408152006.A4 32408152006	£1.60	£1.92
500 - GEAR-WHEEL FEI-33657012006.A2 33657012006	£27.85	£33.42
530 - GEAR-WHEEL FEI-33757008007.A3 33757008007	-
540 - GEAR-WHEEL FEI-33657009002.A3 33657009002	£34.69	£41.63
550 - GROOVED BALL BEARING FEI-41701202018.A97 41701202018	£6.92	£8.30
560 - NIPPLE FEI-32131028004.A6 32131028004	-
570 - CYLINDER HEAD SCREW FEI-43002025991.A2 43002025991	£1.60	£1.92
571 - CIRCLIP FEI-42443002992.A43 42443002992	£1.60	£1.92
5000 - KEY-TYPE DRILL CHUCKS FEI-63202044018.A2 63202044018	£56.92	£68.31
5005 - CHUCK KEY FEI-62914002005.A2 62914002005	£4.30	£5.16
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003061.A6 32160003061	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A224 34130054061	-

Attribute Name	Value
Brand	Fein
