Fein ASzxeu 636-1 (50/60Hz 220/230V) / 72053400220 Spare Parts

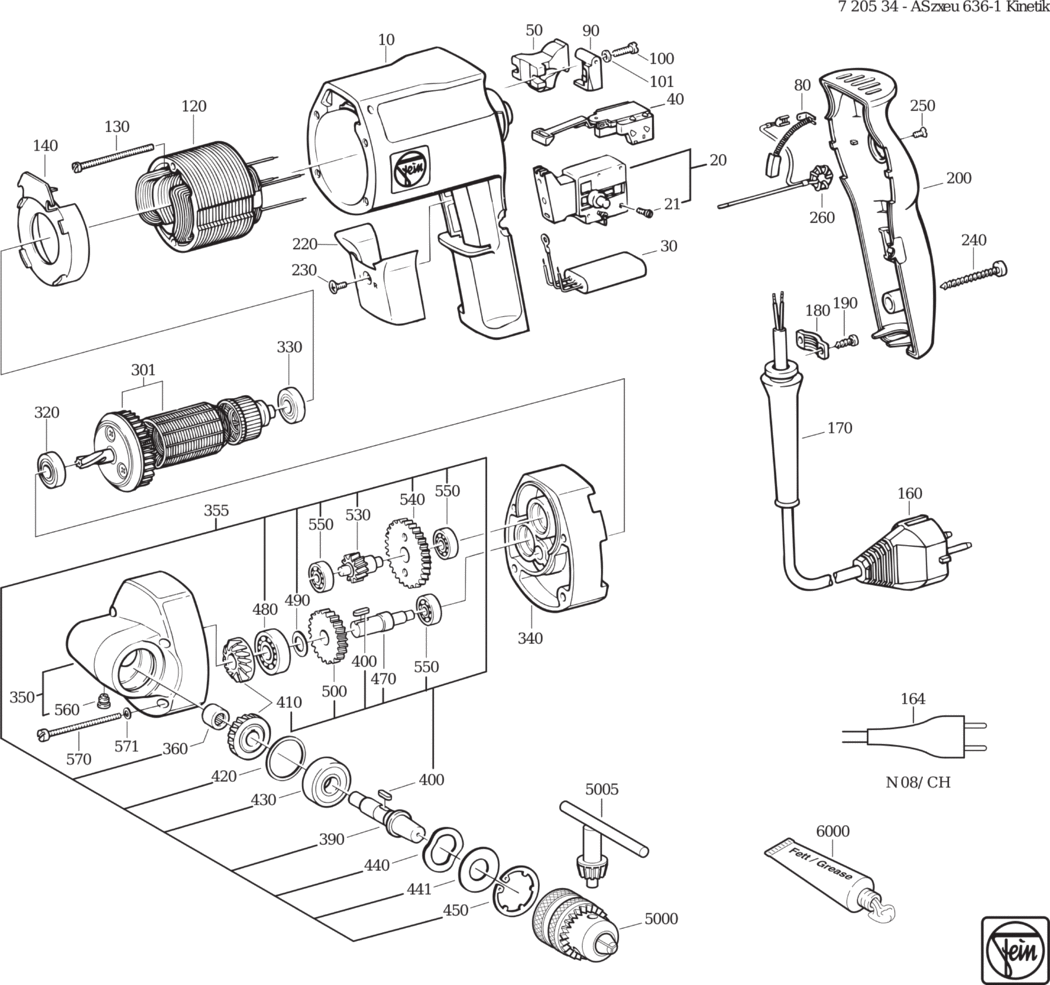

An exploded diagram and spare parts listing for the Fein ASzxeu 636-1 (50/60Hz 220/230V) / 72053400220

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901117021.A2 31901117021	-
20 - SWITCH FEI-30701228002.A17 30701228002	£54.05	£64.86
21 - CYLINDER HEAD SCREW FEI-43013052033.A14 43013052033	£1.60	£1.92
30 - CAPACITOR FEI-30722161013.A23 30722161013	£17.85	£21.42
40 - TOGGLE SWITCH FEI-30701238001.A32 30701238001	£16.72	£20.06
50 - BRUSH HOLDER FEI-30712043001.A9 30712043001	£8.32	£9.98
80 - CARBON BRUSH (SOLD SINGLY) FEI-30711059007.A0 30711059007	£7.74	£9.29
90 - CAP FEI-30713010009.A26 30713010009	£1.60	£1.92
100 - CYLINDER HEAD SCREW FEI-43002014998.A16 43002014998	-
101 - CIRCLIP FEI-42443002992.A41 42443002992	£1.60	£1.92
120 - STATOR 50HZ220V FEI-51203003227.A6 51203003227	£67.36	£80.83
130 - CYLINDER HEAD SCREW FEI-43002025991.A4 43002025991	£1.60	£1.92
140 - INSULATING RING FEI-31428004000.A22 31428004000	£3.67	£4.40
160 - CABLE WITH PLUG FEI-30707263019.A15 30707263019	£19.80	£23.76
170 - CABLE GROMMET FEI-31413142009.A18 31413142009	£1.60	£1.92
180 - CABLE CLAMPING PIECE FEI-32431021007.A81 32431021007	£1.60	£1.92
190 - SHEET METAL SCREW 3 5X13 FEI-43046002005.A25 43046002005	-
200 - COVER FEI-31201066005.A35 31201066005	£11.06	£13.27
220 - SWITCH PUSHBUTTON FEI-32805120000.A0 32805120000	£3.67	£4.40
230 - COUNTERSUNK SCREW FEI-43066006032.A30 43066006032	£1.60	£1.92
240 - SHEET METAL SCREW FEI-43046024005.A25 43046024005	£1.60	£1.92
250 - COUNTERSUNK SCREW FEI-43066002992.A35 43066002992	£1.60	£1.92
260 - RING CORE CHOKE FEI-30764065010.A0 30764065010	£3.54	£4.25
301 - ARMATURE 50HZ220V FEI-53203009220.A6 53203009220	£147.18	£176.62
320 - GROOVED BALL BEARING FEI-41701001032.A63 41701001032	£10.89	£13.07
330 - GROOVED BALL BEARING FEI-41701001172.A2 41701001172	£9.63	£11.56
340 - INTERMEDIATE GEAR BOX FEI-31506145008.A2 31506145008	£46.47	£55.76
350 - GEARBOX HOUSING FEI-31508185002.A0 31508185002	£70.42	£84.51
355 - GEARBOX HOUSING FEI-31508185011.A2 31508185011	-
360 - NEEDLE SLEEVE FEI-41705006006.A13 41705006006	£7.31	£8.77
390 - SHAFT FEI-33401085000.A3 33401085000	£46.92	£56.30
400 - FEATHER KEY FEI-40221003006.A15 40221003006	£1.60	£1.92
410 - BEVEL GEAR Z=16/17 FEI-33809072017.A1 33809072017	-
420 - DISC FEI-32624056027.A0 32624056027	£3.48	£4.18
430 - GROOVED BALL BEARING FEI-41701207033.A30 41701207033	£10.15	£12.18
440 - DISC FEI-42446015000.A20 42446015000	£1.60	£1.92
441 - DISC FEI-32408346008.A5 32408346008	£4.26	£5.11
450 - CIRCLIP FEI-42635003004.A0 42635003004	£1.60	£1.92
470 - SHAFT FEI-33406078004.A0 33406078004	£30.84	£37.01
480 - GROOVED BALL BEARING FEI-41701004015.A17 41701004015	£6.83	£8.20
490 - DISC FEI-32408152006.A5 32408152006	£1.60	£1.92
500 - GEAR-WHEEL FEI-33657012006.A1 33657012006	£27.85	£33.42
530 - GEAR-WHEEL FEI-33757008007.A1 33757008007	-
540 - GEAR-WHEEL FEI-33657009002.A4 33657009002	£34.69	£41.63
550 - GROOVED BALL BEARING FEI-41701202018.A98 41701202018	£6.92	£8.30
560 - NIPPLE FEI-32131028004.A4 32131028004	-
570 - CYLINDER HEAD SCREW FEI-43002025991.A5 43002025991	£1.60	£1.92
571 - CIRCLIP FEI-42443002992.A40 42443002992	£1.60	£1.92
5000 - KEY-TYPE DRILL CHUCKS FEI-63202044018.A1 63202044018	£56.92	£68.31
5005 - CHUCK KEY FEI-62914002005.A3 62914002005	£4.30	£5.16
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003061.A4 32160003061	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A221 34130054061	-
