Fein ASzx 648 (50Hz 230V) / 72030300228 Spare Parts

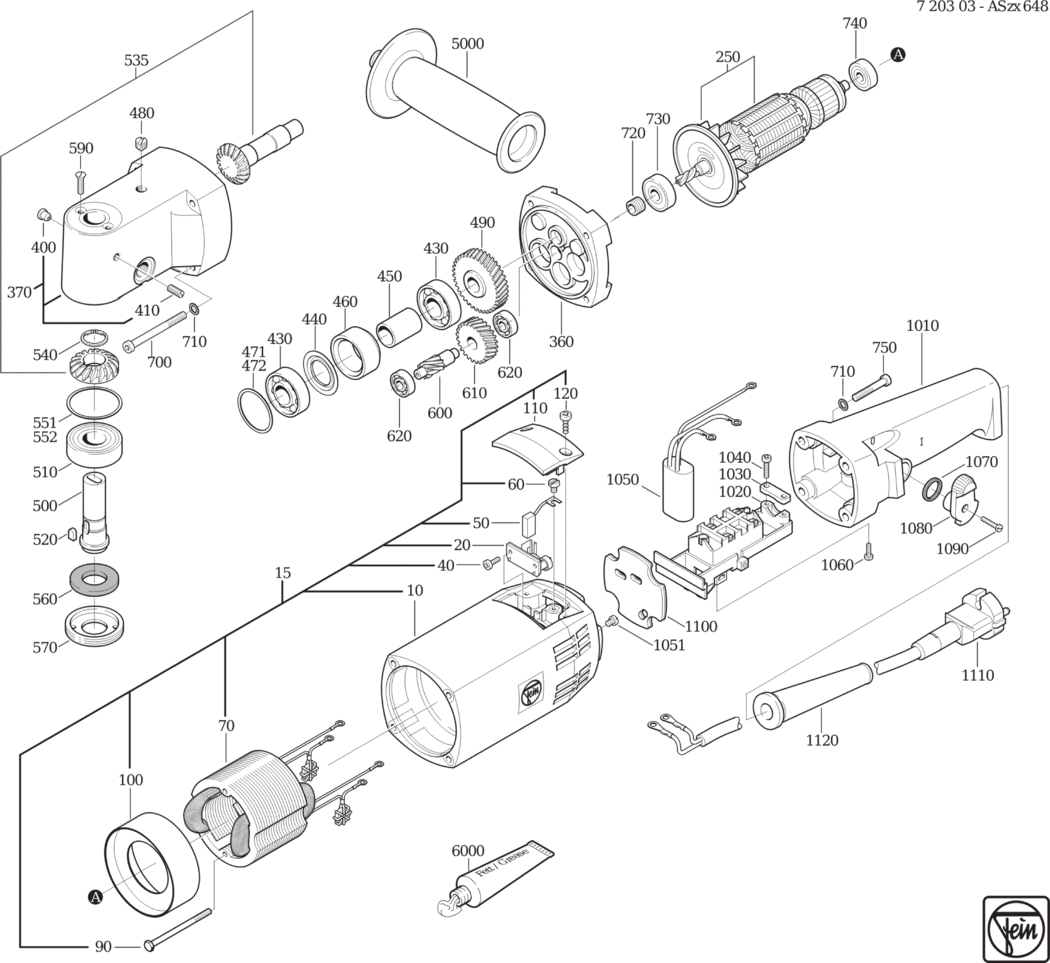

An exploded diagram and spare parts listing for the Fein ASzx 648 (50Hz 230V) / 72030300228

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31903099006.A8 31903099006	£150.31	£180.37
15 - MOTOR HOUSING WITH STAT 50HZ220V FEI-52213015223.A0 52213015223	-
20 - BRUSH HOLDER FEI-30712067017.A45 30712067017	£11.92	£14.30
40 - FILLISTER HEAD SCREW M3 5X10 FEI-43041001994.A36 43041001994	£1.60	£1.92
50 - CARBON BRUSH (SOLD SINGLY) FEI-30711067004.A21 30711067004	£7.87	£9.44
60 - FLAT HEADED SCREW FEI-43003029048.A40 43003029048	-
70 - STATOR 50HZ220V FEI-51213003226.A0 51213003226	-
90 - HEXAGON SOCKET SCREW FEI-43001004042.A55 43001004042	£2.69	£3.23
100 - AIR GUIDE RING FEI-31428010005.A11 31428010005	£7.53	£9.04
110 - COVER FEI-32427040001.A0 32427040001	£3.39	£4.07
120 - SHEET METAL SCREW FEI-43046001002.A27 43046001002	-
250 - ARMATURE 50HZ220V FEI-53213003228.A2 53213003228	£195.17	£234.20
360 - INTERMEDIATE GEAR BOX FEI-31506178000.A6 31506178000	£47.46	£56.95
370 - GEARBOX HOUSING FEI-31508128003.A0 31508128003	-
400 - NIPPLE FEI-32131001002.A3 32131001002	£2.68	£3.21
410 - SET SCREW FEI-43045025057.A1 43045025057	£1.59	£1.91
430 - GROOVED BALL BEARING FEI-41701218018.A1 41701218018	-
440 - SEALING RING FEI-42639005000.A14 42639005000	-
450 - SLEEVE FEI-30501228004.A0 30501228004	£7.32	£8.79
460 - SLEEVE FEI-30501227006.A2 30501227006	£12.22	£14.67
471 - DISC FEI-32624024023.A1 32624024023	-
472 - DISC FEI-32624024039.A1 32624024039	-
480 - SET SCREW M8X8 FEI-43009023080.A1 43009023080	-
490 - GEAR-WHEEL FEI-33663030001.A0 33663030001	£46.07	£55.28
500 - SHAFT FEI-33403002007.A0 33403002007	-
510 - GROOVED BALL BEARING FEI-41701222022.A12 41701222022	£13.42	£16.11
520 - FEATHER KEY FEI-40223018007.A0 40223018007	-
535 - BEVEL GEAR Z=20/23 FEI-33809119017.A1 33809119017	-
540 - CIRCLIP FEI-42643004002.A2 42643004002	-
551 - DISC FEI-32624025027.A2 32624025027	-
552 - DISC FEI-32624025033.A0 32624025033	-
560 - FELT RING FEI-30601010006.A1 30601010006	£3.43	£4.12
570 - THREAD RING FEI-32618022007.A1 32618022007	£17.19	£20.63
590 - COUNTERSUNK SCREW FEI-43059009040.A1 43059009040	-
600 - GEAR-WHEEL FEI-33763012004.A1 33763012004	£48.01	£57.61
610 - GEAR-WHEEL FEI-33663028005.A8 33663028005	£37.58	£45.09
620 - GROOVED BALL BEARING FEI-41701001010.A27 41701001010	£7.35	£8.82
700 - CYLINDER HEAD SCREW FEI-43035023057.A0 43035023057	-
710 - CIRCLIP M5 FEI-42443004057.A396 42443004057	£1.60	£1.92
720 - SEALING RING FEI-32612058003.A6 32612058003	£9.47	£11.37
730 - GROOVED BALL BEARING FEI-41701207096.A9 41701207096	£18.38	£22.06
740 - GROOVED BALL BEARING FEI-41701204131.A15 41701204131	£9.10	£10.92
750 - CYLINDER HEAD SCREW FEI-43033015052.A17 43033015052	£1.60	£1.92
1010 - HANDLE FEI-31204067001.A1 31204067001	£38.45	£46.14
1020 - SWITCH FEI-30701061009.A1 30701061009	£34.02	£40.83
1030 - CABLE CLAMPING PIECE FEI-32431033003.A3 32431033003	£3.43	£4.12
1040 - FILLISTER HEAD SCREW FEI-43041024997.A7 43041024997	£1.60	£1.92
1050 - CAPACITOR FEI-30722036000.A0 30722036000	£17.74	£21.29
1051 - CYLINDER HEAD SCREW FEI-43002103047.A1 43002103047	-
1060 - CYLINDER HEAD SCREW FEI-43002013990.A0 43002013990	£1.60	£1.92
1070 - FELT RING FEI-30601052004.A0 30601052004	£1.60	£1.92
1080 - LEVER FEI-32805047004.A0 32805047004	£4.79	£5.75
1090 - CYLINDER HEAD SCREW FEI-43002117039.A1 43002117039	£1.60	£1.92
1100 - PLATE FEI-30605041005.A12 30605041005	£4.80	£5.76
1110 - CABLE WITH PLUG FEI-30707111011.A0 30707111011	-
1120 - CABLE GROMMET FEI-31413094007.A125 31413094007	£3.04	£3.65
5000 - SIDE HANDLE FEI-32119032002.A49 32119032002	£12.89	£15.47
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003061.A22 32160003061	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A460 34130054061	-
