Fein ASzx 648-1 (50/60Hz 220/230V) / 72030400230 Spare Parts

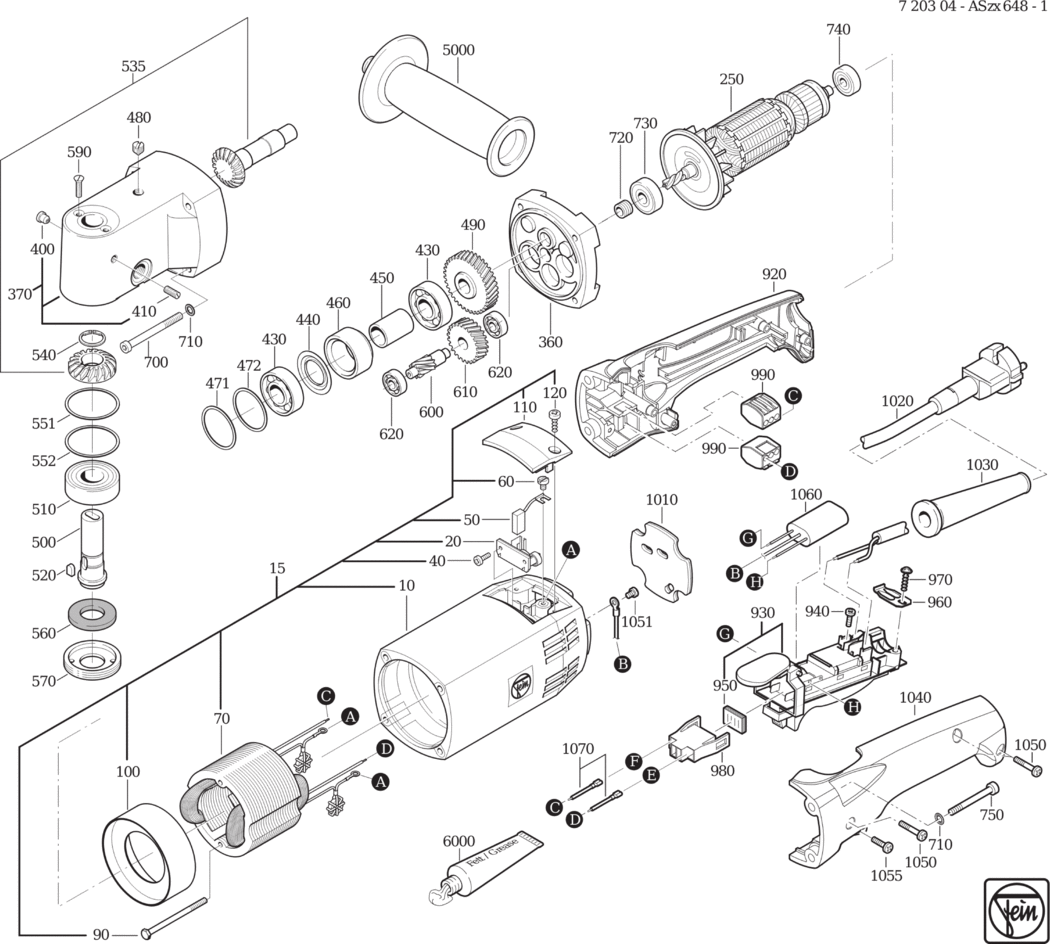

An exploded diagram and spare parts listing for the Fein ASzx 648-1 (50/60Hz 220/230V) / 72030400230

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31903099006.A9 31903099006	£150.31	£180.37
15 - MOTOR HOUSING SET FEI-52213042230.A0 52213042230	-
20 - BRUSH HOLDER FEI-30712067017.A46 30712067017	£11.92	£14.30
40 - FILLISTER HEAD SCREW M3 5X10 FEI-43041001994.A33 43041001994	£1.60	£1.92
50 - CARBON BRUSH (SOLD SINGLY) FEI-30711067004.A22 30711067004	£7.87	£9.44
60 - FILLISTER HEAD SCREW FEI-43041016042.A84 43041016042	-
70 - STATOR FEI-51213042230.A0 51213042230	-
90 - HEXAGON SOCKET SCREW FEI-43001004042.A54 43001004042	£2.69	£3.23
100 - AIR GUIDE RING FEI-31428010005.A12 31428010005	£7.53	£9.04
110 - COVER FEI-32427040001.A1 32427040001	£3.39	£4.07
120 - SHEET METAL SCREW FEI-43046001002.A26 43046001002	-
250 - ARMATURE 50HZ220V FEI-53213003228.A3 53213003228	£195.17	£234.20
360 - INTERMEDIATE GEAR BOX FEI-31506178000.A7 31506178000	£47.46	£56.95
370 - GEARBOX HOUSING FEI-31508128003.A1 31508128003	-
400 - NIPPLE FEI-32131001002.A4 32131001002	£2.68	£3.21
410 - SET SCREW FEI-43045025057.A0 43045025057	£1.59	£1.91
430 - GROOVED BALL BEARING FEI-41701218018.A2 41701218018	-
440 - SEALING RING FEI-42639005000.A15 42639005000	-
450 - SLEEVE FEI-30501228004.A1 30501228004	£7.32	£8.79
460 - SLEEVE FEI-30501227006.A1 30501227006	£12.22	£14.67
471 - DISC FEI-32624024023.A2 32624024023	-
472 - DISC FEI-32624024039.A0 32624024039	-
480 - SET SCREW M8X8 FEI-43009023080.A2 43009023080	-
490 - GEAR-WHEEL FEI-33663030001.A1 33663030001	£46.07	£55.28
500 - SHAFT FEI-33403002007.A1 33403002007	-
510 - GROOVED BALL BEARING FEI-41701222022.A11 41701222022	£13.42	£16.11
520 - FEATHER KEY FEI-40223018007.A1 40223018007	-
535 - BEVEL GEAR Z=20/23 FEI-33809119017.A2 33809119017	-
540 - CIRCLIP FEI-42643004002.A1 42643004002	-
551 - DISC FEI-32624025027.A1 32624025027	-
552 - DISC FEI-32624025033.A1 32624025033	-
560 - FELT RING FEI-30601010006.A0 30601010006	£3.43	£4.12
570 - THREAD RING FEI-32618022007.A2 32618022007	£17.19	£20.63
590 - COUNTERSUNK SCREW FEI-43059009040.A0 43059009040	-
600 - GEAR-WHEEL FEI-33763012004.A0 33763012004	£48.01	£57.61
610 - GEAR-WHEEL FEI-33663028005.A7 33663028005	£37.58	£45.09
620 - GROOVED BALL BEARING FEI-41701001010.A26 41701001010	£7.35	£8.82
700 - CYLINDER HEAD SCREW FEI-43035023057.A1 43035023057	-
710 - CIRCLIP M5 FEI-42443004057.A395 42443004057	£1.60	£1.92
720 - SEALING RING FEI-32612058003.A5 32612058003	£9.47	£11.37
730 - GROOVED BALL BEARING FEI-41701207096.A8 41701207096	£18.38	£22.06
740 - GROOVED BALL BEARING FEI-41701204131.A16 41701204131	£9.10	£10.92
750 - CYLINDER HEAD SCREW FEI-43033015052.A16 43033015052	£1.60	£1.92
920 - HANDLE HALF SHELL FEI-31204179000.A9 31204179000	£22.62	£27.15
930 - SWITCH FEI-30701316010.A27 30701316010	£83.94	£100.73
940 - FILLISTER HEAD SCREW FEI-43041035047.A35 43041035047	£1.60	£1.92
960 - CABLE CLAMPING PIECE FEI-32431042008.A0 32431042008	£1.60	£1.92
970 - SCREW FEI-43070035002.A57 43070035002	£1.60	£1.92
980 - HOUSING FEI-31324123000.A73 31324123000	£7.50	£9.00
990 - TERMINAL FEI-31412063000.A49 31412063000	£3.93	£4.72
1010 - PLATE FEI-30605041005.A5 30605041005	£4.80	£5.76
1020 - CABLE WITH PLUG FEI-30707133016.A0 30707133016	£15.55	£18.66
1030 - CABLE GROMMET FEI-31413094007.A44 31413094007	£3.04	£3.65
1040 - HANDLE HALF SHELL FEI-31204180000.A56 31204180000	£22.83	£27.40
1050 - SCREW FEI-43070031003.A64 43070031003	£1.60	£1.92
1051 - FILLISTER HEAD SCREW FEI-43041016042.A0 43041016042	-
1055 - SCREW FEI-43070038007.A97 43070038007	£1.60	£1.92
1060 - CAPACITOR FEI-30722186010.A1 30722186010	-
1070 - CONNECTING CABLE FEI-30719655010.A13 30719655010	£2.74	£3.29
5000 - SIDE HANDLE FEI-32119032002.A26 32119032002	£12.89	£15.47
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003061.A5 32160003061	-
9000 - OPERATING INSTRUCTIONS FEI-34101089060.A0 34101089060	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A220 34130054061	-
