Fein AFSC 18 (18V) / 71360100940 Spare Parts

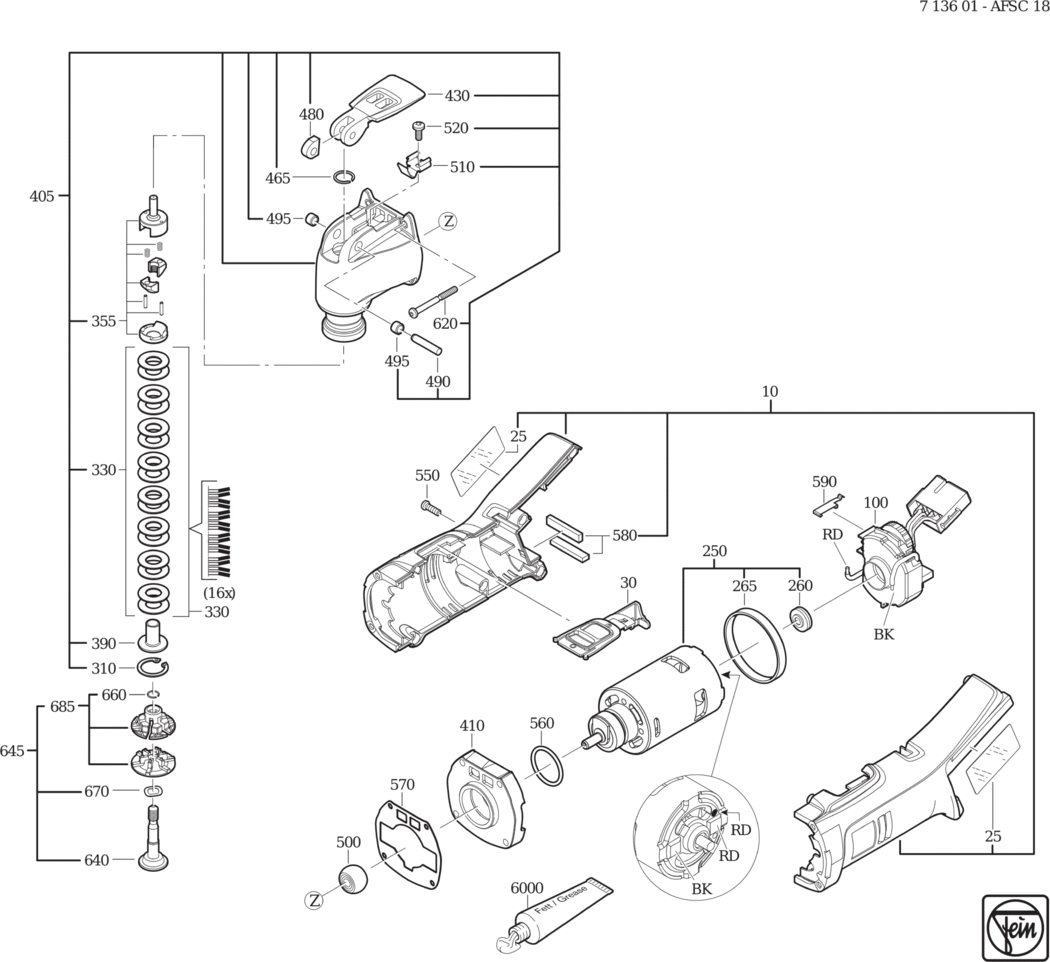

An exploded diagram and spare parts listing for the Fein AFSC 18 (18V) / 71360100940

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31912091020.A0 31912091020	£57.22	£68.66
25 - PROTECTIVE MARKER VE2 FEI-32223634010.A0 32223634010	£10.58	£12.70
30 - SLIDE SWITCH FEI-32805235000.A0 32805235000	£4.96	£5.95
100 - SPEED SETTING SWITCH FEI-30762399990.A0 30762399990	£139.84	£167.81
250 - MOTOR FEI-54111002800.A0 54111002800	£160.12	£192.14
260 - RING MAGNET FEI-32172012000.A0 32172012000	£23.91	£28.69
265 - MOTOR BEARING RING FEI-30610038010.A5 30610038010	£9.92	£11.91
310 - CIRCLIP 20X1 FEI-42616077000.A0 42616077000	£1.60	£1.92
330 - CUP SPRING PACKAGE FEI-30905077010.A1 30905077010	£15.98	£19.17
355 - PRESSURE PIECE FEI-30220067010.A12 30220067010	£35.42	£42.50
390 - SLEEVE FEI-30503158000.A4 30503158000	£7.24	£8.69
405 - TOOL HEAD QUICK IN FEI-31508264040.A2 31508264040	£194.08	£232.89
410 - INTERMEDIATE GEAR BOX FEI-31506380000.A0 31506380000	-
430 - LEVER FEI-32805229000.A0 32805229000	£30.18	£36.22
465 - CIRCLIP FEI-42615110009.A33 42615110009	£1.60	£1.92
480 - ECCENTRIC RING FEI-32636042000.A4 32636042000	£3.54	£4.25
490 - STRAIGHT PIN FEI-40242064000.A10 40242064000	£1.60	£1.92
495 - BUSH FEI-30507220000.A63 30507220000	£2.60	£3.12
500 - NEEDLE BEARING FEI-41706041005.A23 41706041005	£28.72	£34.46
510 - LOCKING SPRING FEI-30907069000.A5 30907069000	£8.55	£10.26
520 - FILLISTER HEAD SCREW FEI-43064023045.A23 43064023045	£1.60	£1.92
550 - SCREW FEI-43074010000.A122 43074010000	£1.60	£1.92
560 - SEALING RING FEI-40612093004.A73 40612093004	£1.60	£1.92
570 - SEAL FEI-30610035002.A23 30610035002	£2.65	£3.18
580 - PRESSURE PIECE FEI-31415140000.A0 31415140000	£1.60	£1.92
620 - SCREW FEI-43074012000.A3 43074012000	£1.60	£1.92
640 - CLAMPING UNIT FEI-30240277000.A0 30240277000	£16.51	£19.81
645 - CLAMPING UNIT SET FEI-30240277010.A12 30240277010	£53.94	£64.73
660 - CIRCLIP FEI-42615092004.A6 42615092004	£1.60	£1.92
670 - SPRING WASHER FEI-42446023000.A26 42446023000	£1.60	£1.92
685 - SEAL FEI-30610036010.A5 30610036010	£40.58	£48.70
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A330 32160003014	-

Attribute Name	Value
Brand	Fein
