Fein AFSC 1.7 Q (18V) / 71291800940 Spare Parts

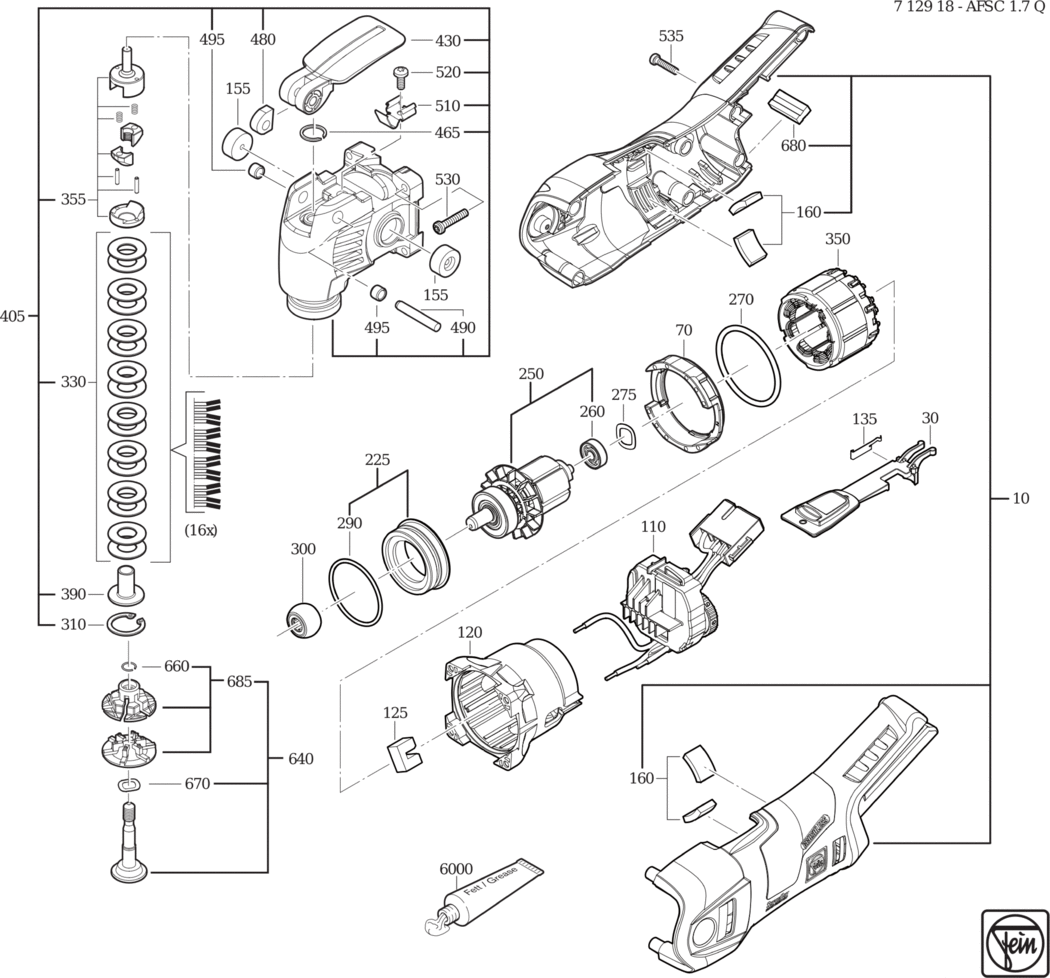

An exploded diagram and spare parts listing for the Fein AFSC 1.7 Q (18V) / 71291800940

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901195020.A0 31901195020	£44.09	£52.91
30 - SLIDE SWITCH FEI-32805324000.A0 32805324000	£4.78	£5.73
70 - AIR GUIDE RING FEI-31428193000.A0 31428193000	-
110 - SPEED SETTING SWITCH FEI-30762515990.A1 30762515990	£126.67	£152.00
120 - HOUSING FEI-31428192000.A0 31428192000	£19.97	£23.96
125 - PRESSURE PIECE FEI-31415181000.A0 31415181000	£3.17	£3.80
155 - PRESSURE PIECE FEI-31415110000.A22 31415110000	£2.69	£3.23
160 - PRESSURE PIECE FEI-31415160000.A0 31415160000	£2.74	£3.29
225 - BEARING BUSH FEI-31603052010.A1 31603052010	£10.62	£12.75
250 - ROTOR FEI-33102010030.A0 33102010030	£155.48	£186.57
260 - GROOVED BALL BEARING 625-ZZ FEI-41701235033.A34 41701235033	£13.80	£16.56
270 - SEALING RING FEI-40612000005.A1 40612000005	-
275 - DISC FEI-42446008006.A5 42446008006	£1.60	£1.92
290 - SEALING RING FEI-40612000004.A0 40612000004	£1.60	£1.92
300 - NEEDLE BEARING FEI-41706000001.A13 41706000001	£43.50	£52.20
310 - CIRCLIP 20X1 FEI-42616077000.A1 42616077000	£1.60	£1.92
330 - CUP SPRING PACKAGE FEI-30905077010.A0 30905077010	£15.98	£19.17
350 - STATOR FEI-51113013940.A0 51113013940	£84.52	£101.42
355 - PRESSURE PIECE FEI-30220067010.A11 30220067010	£35.42	£42.50
390 - SLEEVE FEI-30503158000.A5 30503158000	£7.24	£8.69
405 - TOOL HEAD QUICK IN FEI-31508299010.A0 31508299010	£187.06	£224.47
430 - LEVER FEI-32805316000.A2 32805316000	£17.23	£20.68
465 - CIRCLIP FEI-42615110009.A32 42615110009	£1.60	£1.92
480 - ECCENTRIC RING FEI-32636042000.A5 32636042000	£3.54	£4.25
490 - PIN FEI-40242043008.A8 40242043008	£2.52	£3.02
495 - BUSH FEI-30507220000.A62 30507220000	£2.60	£3.12
510 - LOCKING SPRING FEI-30907069000.A6 30907069000	£8.55	£10.26
520 - FILLISTER HEAD SCREW FEI-43064023045.A22 43064023045	£1.60	£1.92
530 - SCREW FEI-43074000004.A0 43074000004	-
535 - SCREW FEI-43074010000.A121 43074010000	£1.60	£1.92
640 - CLAMPING UNIT FEI-30240277000.A1 30240277000	£16.51	£19.81
640 - CLAMPING UNIT SET FEI-30240277010.A11 30240277010	£53.94	£64.73
660 - CIRCLIP FEI-42615092004.A7 42615092004	£1.60	£1.92
670 - SPRING WASHER FEI-42446023000.A25 42446023000	£1.60	£1.92
680 - PRESSURE PIECE FEI-31415171000.A2 31415171000	£1.60	£1.92
685 - SEAL FEI-30610036010.A6 30610036010	£40.58	£48.70
5200 - HANDLE FEI-32119122000.A26 32119122000	-
5210 - WIRE CLAMP FEI-30232050000.A51 30232050000	£10.78	£12.94
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A329 32160003014	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A29 34130054061	-
