Fein ABH 18 / 71400200940 Spare Parts

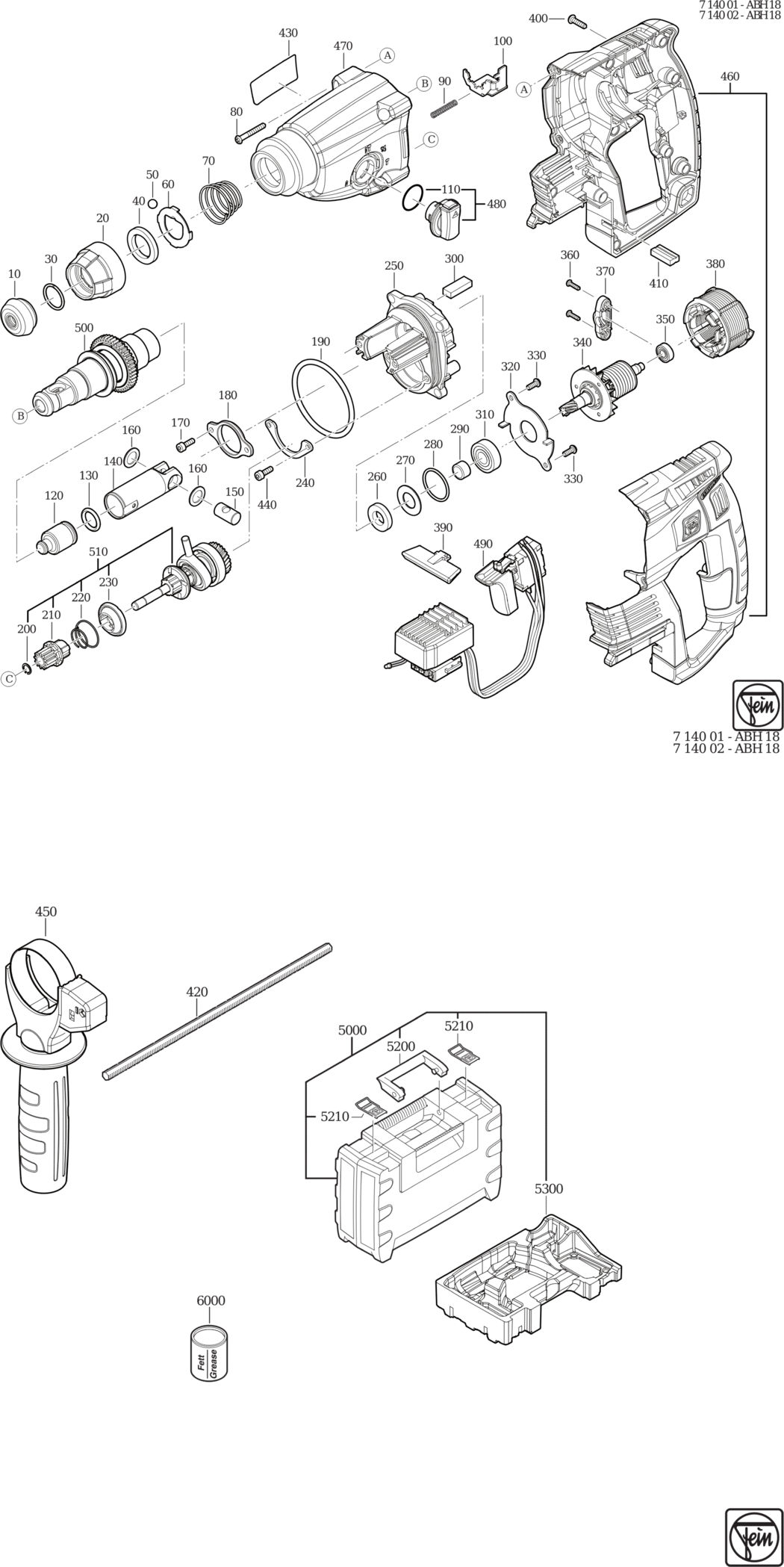

An exploded diagram and spare parts listing for the Fein ABH 18 / 71400200940

	Ex VAT	Inc VAT
10 - PROTECTIVE CAP FEI-31348000001.A0 31348000001	-
20 - COVER FEI-31348000002.A1 31348000002	-
30 - CIRCLIP FEI-31348000003.A0 31348000003	-
40 - DISC FEI-31348000004.A1 31348000004	-
50 - BALL FEI-31348000005.A0 31348000005	-
60 - COVERING PLATE FEI-31348000006.A1 31348000006	-
70 - SPRING FEI-31348000007.A0 31348000007	-
80 - SCREW FEI-31348000008.A1 31348000008	-
90 - SPRING FEI-31348000009.A0 31348000009	-
100 - PLATE FEI-31348000010.A1 31348000010	-
110 - SEALING RING FEI-31348000011.A0 31348000011	-
120 - STRIKING BODY FEI-31348000012.A1 31348000012	-
130 - SEALING RING FEI-31348000013.A0 31348000013	-
140 - PISTON FEI-31348000014.A1 31348000014	-
150 - BOLT FEI-31348000015.A0 31348000015	-
160 - DISC FEI-31348000016.A1 31348000016	-
170 - SCREW FEI-31348000017.A0 31348000017	-
180 - PLATE FEI-31348000018.A1 31348000018	-
190 - SEALING RING FEI-31348000019.A0 31348000019	-
200 - CIRCLIP FEI-31348000020.A1 31348000020	-
210 - PINION FEI-31348000021.A0 31348000021	-
220 - SPRING FEI-31348000022.A1 31348000022	-
230 - DISC FEI-31348000023.A0 31348000023	-
240 - COVER FEI-31348000024.A1 31348000024	-
250 - HOUSING FEI-31348000025.A0 31348000025	-
260 - BEARING FEI-31348000026.A1 31348000026	-
270 - FELT RING FEI-31348000027.A0 31348000027	-
280 - SEALING RING FEI-31348000028.A1 31348000028	-
290 - BUSH FEI-31348000029.A0 31348000029	-
300 - PRESSURE PIECE FEI-31348000030.A1 31348000030	-
310 - GROOVED BALL BEARING FEI-31348000031.A0 31348000031	-
320 - PLATE FEI-31348000032.A1 31348000032	-
330 - SCREW FEI-31348000033.A0 31348000033	-
340 - ROTOR FEI-31348000034.A1 31348000034	-
350 - GROOVED BALL BEARING FEI-31348000035.A0 31348000035	-
360 - SCREW FEI-31348000036.A1 31348000036	-
370 - HOLDER FEI-31348000037.A0 31348000037	-
380 - STATOR FEI-31348000038.A1 31348000038	-
390 - TOGGLE SWITCH FEI-31348000039.A0 31348000039	-
400 - SCREW FEI-31348000041.A0 31348000041	-
410 - STOP FEI-31348000042.A1 31348000042	£10.64	£12.77
430 - INFORMATION SIGN FEI-31348000043.A0 31348000043	-
440 - SCREW FEI-31348000044.A1 31348000044	-
450 - HANDLE FEI-31348000045.A0 31348000045	£26.45	£31.74
460 - MOTOR HOUSING FEI-31348000046.A1 31348000046	-
470 - GEARBOX HOUSING SET FEI-31348000047.A0 31348000047	-
480 - SWITCH PUSHBUTTON FEI-31348000048.A1 31348000048	-
490 - ELECTRONICS WITH SWITCH FEI-31348000049.A0 31348000049	-
500 - CLUTCH SET FEI-31348000050.A1 31348000050	-
510 - STRIKING BODY FEI-31348000051.A0 31348000051	-
5000 - N.A. FEI-31348000040.A1 31348000040	-
5200 - HANDLE FEI-32119122000.A65 32119122000	-
5210 - WIRE CLAMP FEI-30232050000.A43 30232050000	£10.78	£12.94
5300 - CASE INSERT FEI-33904593000.A1 33904593000	-
6000 - LUBRICANT CAN 0.1 KG FEI-31348000052.A1 31348000052	-
