Fein ASCS 6.3 (18V) / 71131100940 Spare Parts

Fein ASCS 6.3 ⠘V) / 71131100940 Spare Parts

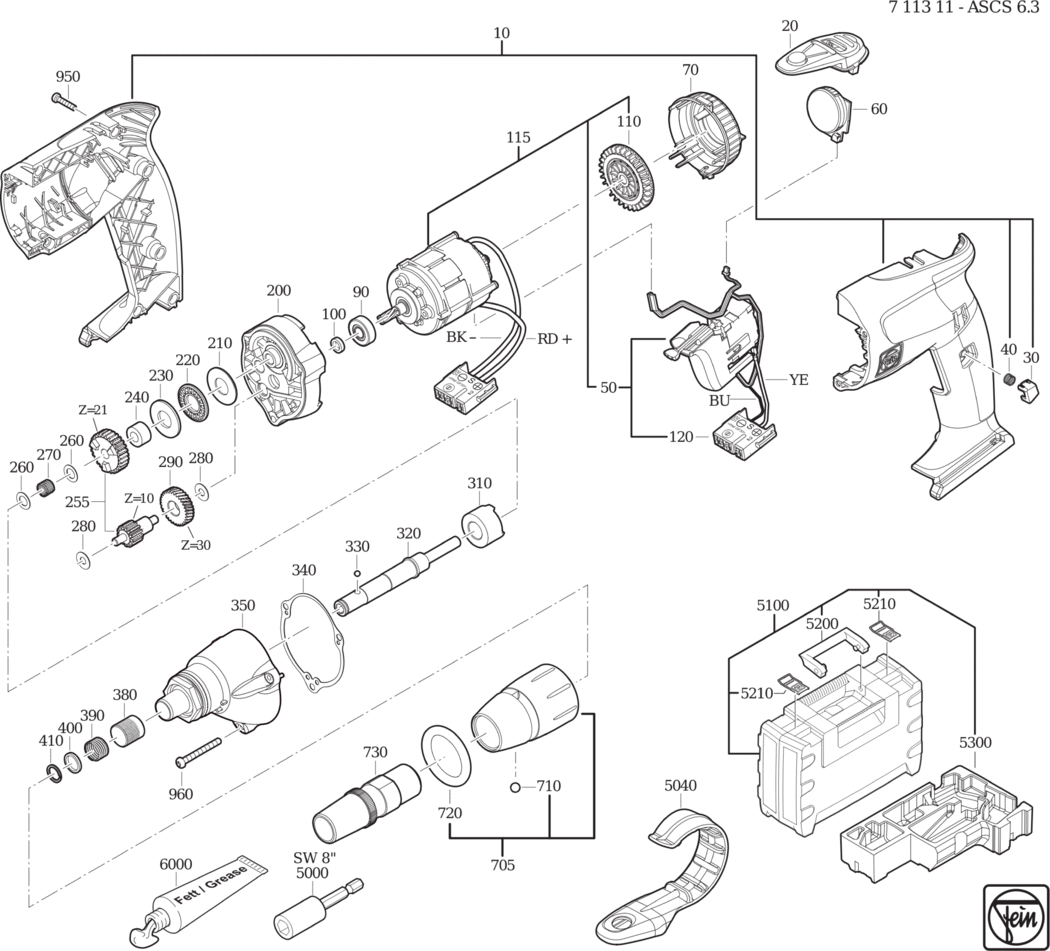

An exploded diagram and spare parts listing for the Fein ASCS 6.3 (18V) / 71131100940

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31912104020.A6 31912104020	£45.22	£54.27
20 - PRESSURE PIECE FEI-30240297000.A1 30240297000	£7.60	£9.12
30 - STOP BUTTON FEI-32816063000.A13 32816063000	£3.01	£3.61
40 - SPIRAL SPRING FEI-30901387000.A0 30901387000	-
50 - SWITCH 18V FEI-30701318990.A0 30701318990	-
60 - SPEED SETTING SWITCH FEI-30762428020.A1 30762428020	£45.65	£54.78
70 - AIR GUIDE RING FEI-31428172000.A6 31428172000	-
90 - GROOVED BALL BEARING FEI-41701027250.A0 41701027250	£8.08	£9.69
100 - SEALING RING FEI-32612084001.A18 32612084001	£3.44	£4.13
110 - FAN WHEEL FEI-31004051000.A4 31004051000	-
115 - MOTOR FEI-54113027800.A0 54113027800	-
120 - PLUG 18V FEI-30703054000.A9 30703054000	£5.78	£6.94
200 - INTERMEDIATE GEAR BOX FEI-31506367020.A0 31506367020	£22.20	£26.64
210 - DISC FEI-41719026007.A15 41719026007	£2.82	£3.38
220 - NEEDLE CAGE FEI-41715029009.A1 41715029009	£5.91	£7.09
230 - DISC FEI-32408395000.A1 32408395000	£10.88	£13.05
240 - DISC FEI-32402039000.A0 32402039000	£6.76	£8.11
255 - GEAR-WHEEL SET Z=10/21 FEI-33715002010.A0 33715002010	£55.98	£67.18
260 - DISC FEI-32624094032.A12 32624094032	£1.60	£1.92
270 - SPIRAL SPRING FEI-30901139007.A13 30901139007	£1.60	£1.92
280 - DISC FEI-32408185009.A7 32408185009	£2.94	£3.53
290 - GEAR-WHEEL Z=30 FEI-33657172009.A26 33657172009	£42.74	£51.29
310 - CLUTCH RING FEI-30103056000.A1 30103056000	£20.30	£24.36
320 - TOOL HOLDER FEI-30104140000.A0 30104140000	£44.09	£52.91
330 - BALL FEI-41708015005.A12 41708015005	£1.60	£1.92
340 - SEAL FEI-30610041000.A15 30610041000	-
350 - GEARBOX HOUSING FEI-31508293020.A0 31508293020	£26.64	£31.97
380 - SLEEVE FEI-30503144002.A10 30503144002	£10.39	£12.47
390 - SPIRAL SPRING FEI-30901315002.A26 30901315002	£3.92	£4.70
400 - RING FEI-32601242005.A38 32601242005	£6.76	£8.11
410 - CIRCLIP FEI-42615081002.A38 42615081002	£1.60	£1.92
705 - STOP SLEEVE FEI-30505069011.A31 30505069011	£41.28	£49.53
710 - BALL FEI-41708019004.A28 41708019004	£1.60	£1.92
720 - SEALING RING FEI-40612071009.A22 40612071009	£3.89	£4.67
730 - STOP SLEEVE FEI-32127043000.A0 32127043000	£32.65	£39.18
950 - SCREW FEI-43074010000.A23 43074010000	£1.60	£1.92
960 - SCREW FEI-43072010009.A35 43072010009	£1.60	£1.92
5000 - BITS 1/4 IN FOR HEXAGON SOCKET SCREWS FEI-60505015001.A3 60505015001	£28.94	£34.73
5040 - HOLDER FEI-64203001000.A6 64203001000	£9.37	£11.24
5100 - TOOL CASE FEI-33901131030.A1 33901131030	£78.68	£94.41
5200 - HANDLE FEI-32119122000.A148 32119122000	-
5210 - WIRE CLAMP FEI-30232050000.A217 30232050000	£10.78	£12.94
5300 - CASE INSERT FEI-33904430000.A0 33904430000	-
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A133 32160003014	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A632 34130054061	-

Attribute Name	Value
Brand	Fein
