Fein CCG 18-115 BL (18V) / 71200100940 Spare Parts

Fein CCG 18-115 BL ⠘V) / 71200100940 Spare Parts

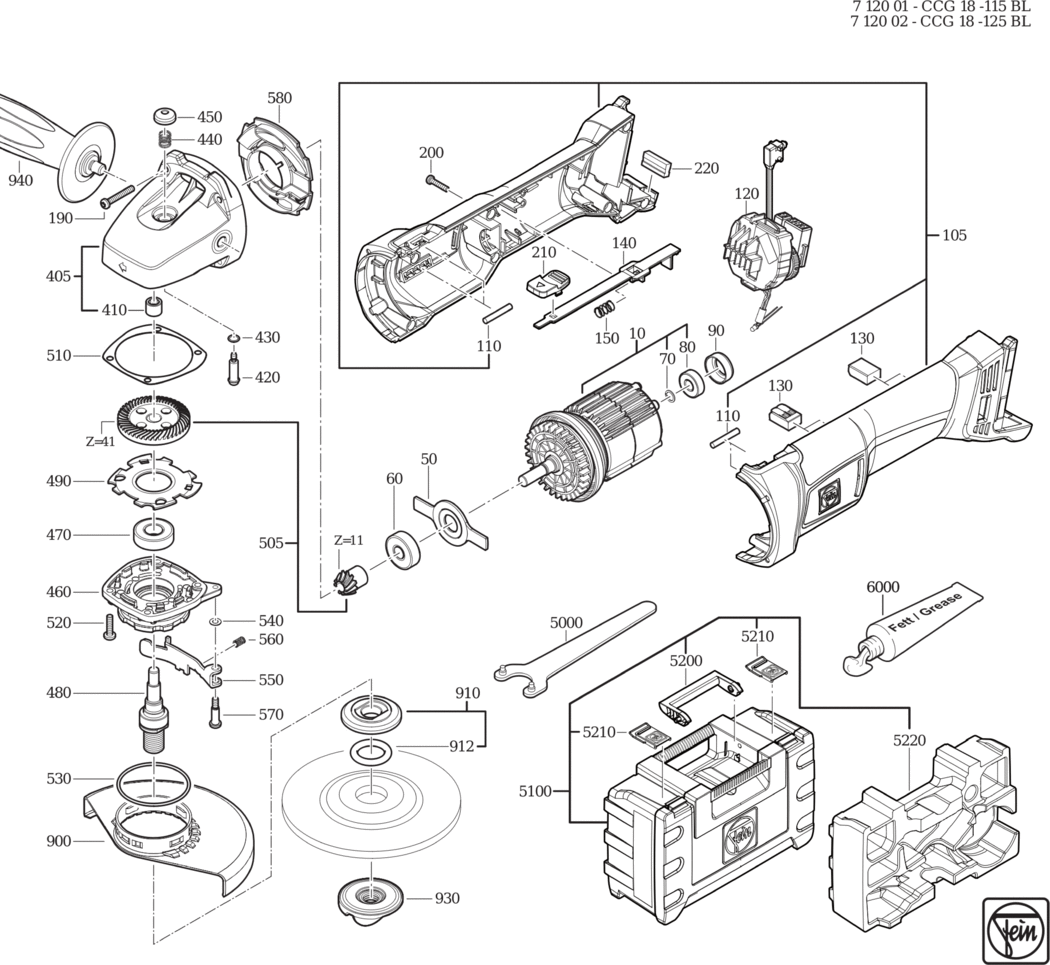

An exploded diagram and spare parts listing for the Fein CCG 18-115 BL (18V) / 71200100940

	Ex VAT	Inc VAT
10 - MOTOR ECG18 FEI-54113016800.A3 54113016800	£232.22	£278.67
50 - PLATE FEI-32416117000.A124 32416117000	£1.60	£1.92
60 - GROOVED BALL BEARING FEI-41701207260.A168 41701207260	£7.41	£8.89
70 - CIRCLIP FEI-42615090002.A22 42615090002	£1.60	£1.92
80 - GROOVED BALL BEARING FEI-41701001260.A91 41701001260	£7.11	£8.53
90 - BEARING BUSH FEI-30507236000.A64 30507236000	£3.19	£3.83
105 - MOTOR HOUSING SET FEI-31912123020.A0 31912123020	-
110 - PRESSURE PIECE FEI-31415183000.A2 31415183000	-
120 - ELECTRONICS FEI-30762587990.A1 30762587990	-
130 - TERMINAL FEI-30728445000.A21 30728445000	-
140 - CONTROL ROD FEI-32816716000.A1 32816716000	-
150 - SPRING FEI-30901416000.A0 30901416000	£1.60	£1.92
190 - SCREW FEI-43074012000.A51 43074012000	£1.60	£1.92
200 - SCREW FEI-43074010000.A88 43074010000	£1.60	£1.92
210 - SLIDE SWITCH FEI-32805306000.A73 32805306000	£4.59	£5.51
220 - PRESSURE PIECE FEI-31415171000.A6 31415171000	£1.60	£1.92
405 - GEARBOX HOUSING FEI-31206163030.A1 31206163030	-
410 - NEEDLE SLEEVE FEI-41705006006.A10 41705006006	£7.31	£8.77
420 - BOLT FEI-30217335005.A18 30217335005	£7.39	£8.87
430 - SEALING RING FEI-40612137008.A72 40612137008	£1.60	£1.92
440 - SPIRAL SPRING FEI-30901357005.A109 30901357005	£2.38	£2.86
450 - PUSHBUTTON FEI-32805200008.A91 32805200008	£2.58	£3.09
460 - BEARING PLATE FEI-32419157000.A2 32419157000	-
470 - GROOVED BALL BEARING FEI-41701010054.A195 41701010054	£8.25	£9.90
480 - SHAFT FEI-33406299001.A6 33406299001	£26.04	£31.25
490 - PLATE FEI-32416115000.A57 32416115000	-
505 - BEVEL GEAR Z=11/41 FEI-33809238020.A50 33809238020	£40.91	£49.09
510 - WASHER 0.15 FEI-32624122060.A0 32624122060	-
510 - WASHER 0.1 FEI-32624122020.A79 32624122020	£1.60	£1.92
520 - FILLISTER HEAD SCREW FEI-43064024043.A122 43064024043	-
530 - SEALING RING FEI-40612000003.A68 40612000003	£1.60	£1.92
540 - DISC FEI-32408450000.A26 32408450000	£1.60	£1.92
550 - LEVER FEI-30240331000.A19 30240331000	£7.99	£9.59
560 - SPRING FEI-30901403000.A26 30901403000	£1.60	£1.92
570 - SCREW FEI-33024077000.A46 33024077000	£1.60	£1.92
580 - AIR GUIDE RING FEI-31428180000.A44 31428180000	£4.28	£5.14
900 - WHEEL GUARD FEI-31810299000.A7 31810299000	£18.82	£22.58
910 - INNER FLANGE FEI-63801182010.A156 63801182010	£14.88	£17.86
912 - SEALING RING FEI-40612000007.A142 40612000007	£1.60	£1.92
930 - QUICK-CLAMPING NUT FEI-63802191010.A3 63802191010	£47.65	£57.18
940 - ANTI-VIBRATION HANDLE FEI-32119124010.A37 32119124010	£17.68	£21.22
5000 - BIDIRECTIONAL NUT SPANNER FEI-62910022002.A108 62910022002	£7.22	£8.67
5100 - PLASTIC TOOL CASES FEI-33901152390.A1 33901152390	-
5220 - CASE INSERT FEI-33904590000.A4 33904590000	-
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A437 32160003014	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A211 34130054061	-

Attribute Name	Value
Brand	Fein
