Fein ASM 9-9 (9.60V) / 71120300983 Spare Parts

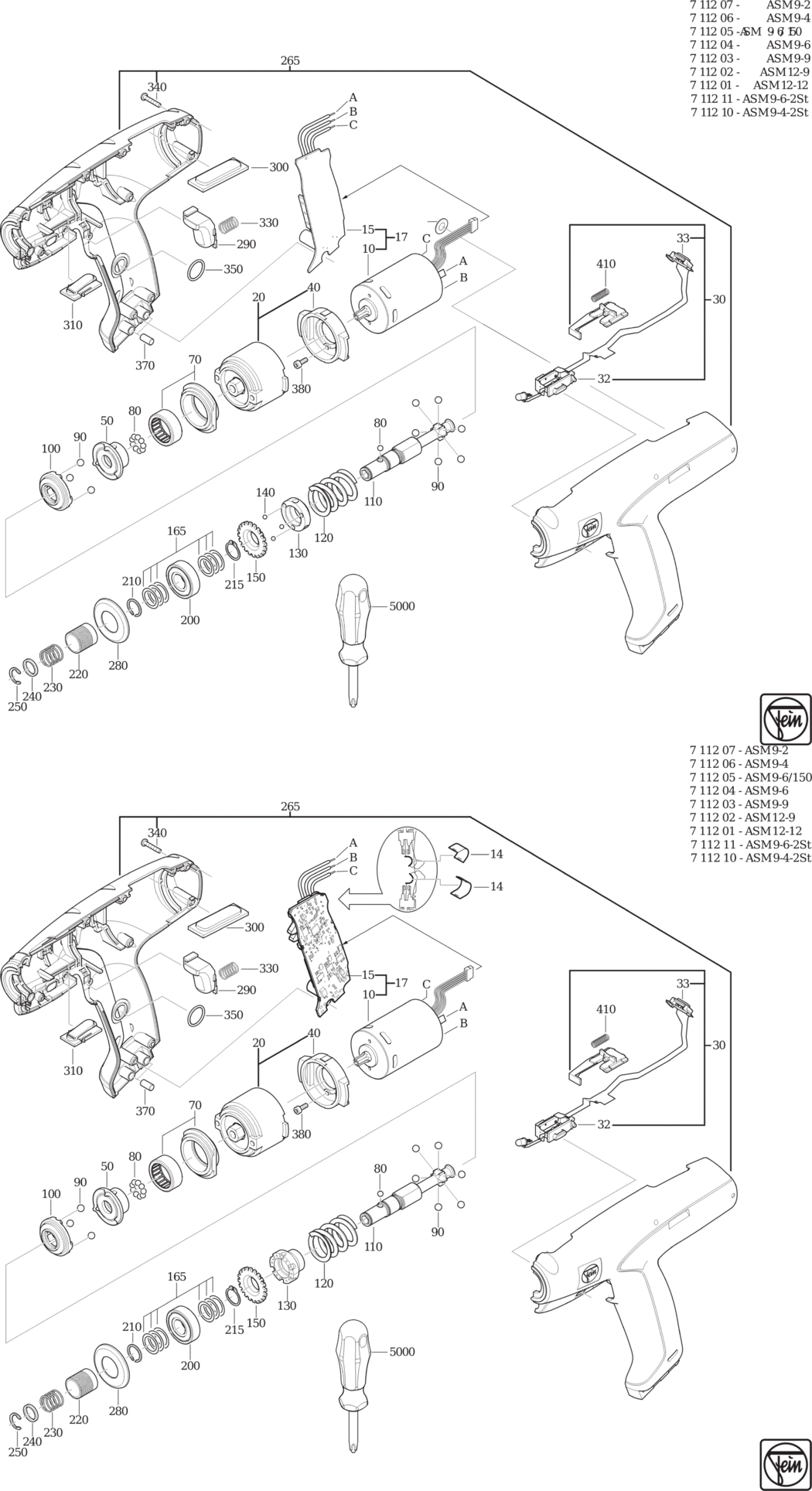

An exploded diagram and spare parts listing for the Fein ASM 9-9 (9.60V) / 71120300983

	Ex VAT	Inc VAT
10 - MOTOR FEI-54199012020.A0 54199012020	-
14 - LEAF SPRING VE10 FEI-30904046099.A0 30904046099	-
15 - ELECTRONICS FEI-30762268990.A1 30762268990	-
17 - MOTOR FEI-54199013800.A2 54199013800	-
20 - PLANETARY GEAR FEI-30109173026.A1 30109173026	-
30 - FOIL CONDUCTOR SET FEI-30762426980.A8 30762426980	-
32 - SWITCH PUSHBUTTON FEI-32805204002.A9 32805204002	-
33 - HOLDER FEI-30240264009.A2 30240264009	-
40 - FLANGE FEI-32436070001.A16 32436070001	-
50 - CLUTCH RING FEI-30103051001.A7 30103051001	-
70 - BUSH FEI-30508040010.A10 30508040010	-
80 - BALL FEI-41708017002.A62 41708017002	£1.60	£1.92
90 - BALL FEI-41708018000.A24 41708018000	£1.60	£1.92
100 - CLUTCH RING FEI-30103052000.A47 30103052000	-
110 - TOOL HOLDER FEI-30104135008.A10 30104135008	-
120 - SPIRAL SPRING FEI-30901372000.A6 30901372000	-
135 - PRESSURE PIECE SET FEI-32602092010.A32 32602092010	-
165 - DISC SET FEI-32408310990.A2 32408310990	-
200 - GROOVED BALL BEARING FEI-41701010054.A127 41701010054	£8.25	£9.90
210 - CIRCLIP FEI-42615110009.A2 42615110009	£1.60	£1.92
215 - CIRCLIP FEI-42616006007.A123 42616006007	£1.60	£1.92
220 - SLEEVE FEI-30503154000.A10 30503154000	-
230 - SPIRAL SPRING FEI-30901315002.A27 30901315002	£3.92	£4.70
240 - RING FEI-32601242005.A39 32601242005	£6.76	£8.11
250 - CIRCLIP FEI-42615081002.A41 42615081002	£1.60	£1.92
265 - MOTOR HOUSING FEI-31912070030.A0 31912070030	-
280 - SLEEVE FEI-30501345003.A0 30501345003	-
290 - SWITCH PUSHBUTTON FEI-32805203004.A17 32805203004	-
300 - HOUSING INSERT FEI-32414115000.A23 32414115000	-
310 - COVER FEI-32424025004.A7 32424025004	-
320 - SLIDE SWITCH FEI-32804002010.A35 32804002010	-
330 - SPIRAL SPRING FEI-30901357005.A6 30901357005	£2.38	£2.86
340 - SCREW FEI-43072015000.A45 43072015000	£1.60	£1.92
350 - SEALING RING FEI-40612142004.A0 40612142004	-
370 - PRESSURE PIECE FEI-31415061003.A23 31415061003	£1.60	£1.92
380 - CYLINDER HEAD SCREW FEI-43035117034.A1 43035117034	-
410 - SPIRAL SPRING FEI-30901370000.A15 30901370000	-
420 - DISC FEI-42402016990.A4 42402016990	-
