Elu PS274 Type 1 Crosscut Mitre Saw Spare Parts

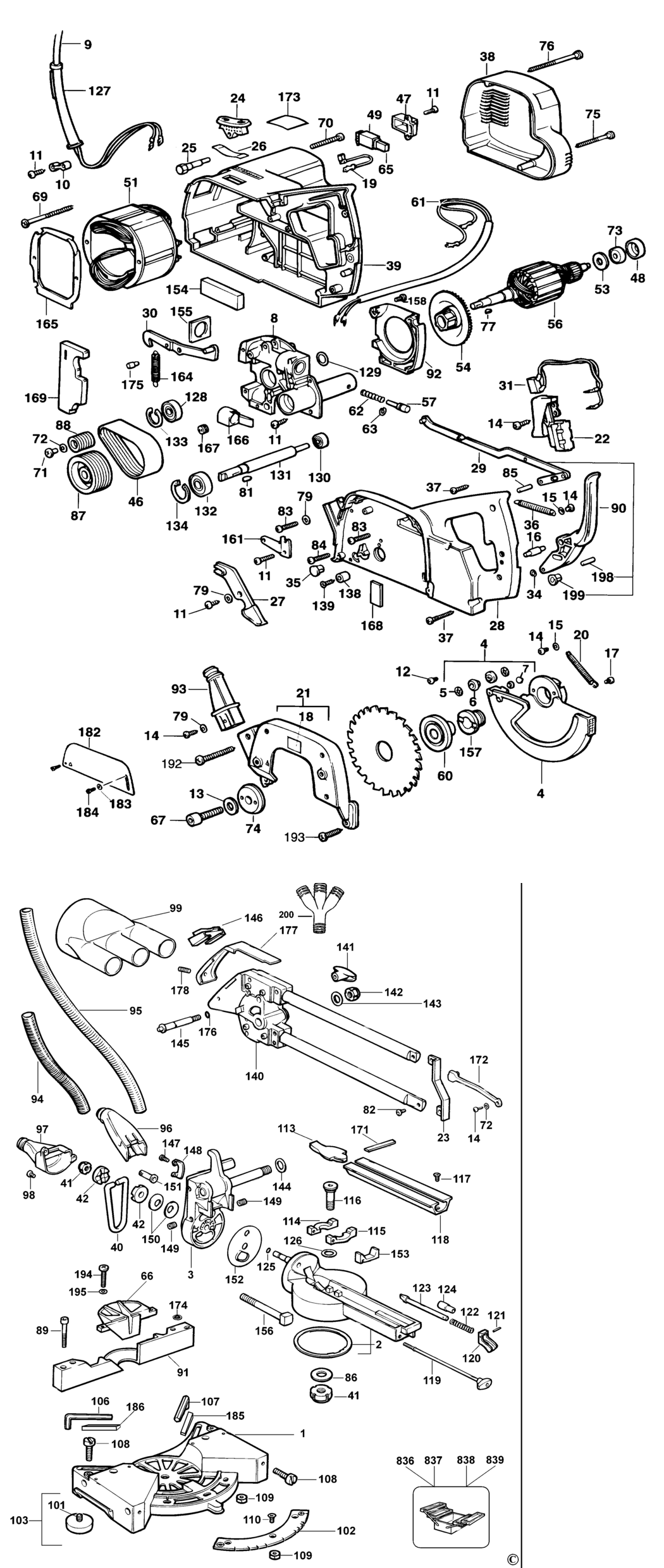

An exploded drawing and spare parts listing for the Elu PS274 Type 1 Crosscut Mitre Saw

	Ex VAT	Inc VAT
1 - TABLE SA BDE-861848-00.A5 861848-00	-
2 - ROTARY TABLE BDE-401206-00.A3 401206-00	-
3 - SEGMENT BDE-947000-00.A1 947000-00	-
4 - GUARD SA BDE-861361-01.A10 861361-01	-
5 - QUICKLOCK BDE-861366-00.A5 861366-00	£1.50	£1.80
6 - ROLLER BDE-861367-01.A12 861367-01	£1.66	£1.99
7 - INSERT BDE-760298-01.A35 760298-01	£1.66	£1.99
8 - CARRIAGE SA BDE-947645-00.A5 947645-00	£113.07	£135.68
9 - CABLE SA GB 240V BDE-947108-10.A2 947108-10	£43.02	£51.63
9 - CABLE SA GB 115V BDE-947108-11.A7 947108-11	£50.60	£60.72
10 - CLAMP BDE-720748-00.A8 720748-00	-
11 - SCREW BDE-860084-12.A9 860084-12	£1.50	£1.80
12 - SCREW BDE-949612-01.A1 949612-01	£1.82	£2.19
13 - WASHER BDE-949876-19.A9 949876-19	£1.50	£1.80
14 - SCREW BDE-860084-20.A87 860084-20	£1.50	£1.80
15 - WASHER BDE-860073-00.A147 860073-00	£1.50	£1.80
16 - PIVOT BDE-760296-01.A14 760296-01	£1.50	£1.80
17 - SCREW BDE-860084-20.A88 860084-20	£1.50	£1.80
18 - NO LONGER AVAILABLE BDE-000000-00.A21976 000000-00	-
19 - LEAD BDE-942589-00.A9 942589-00	-
20 - SPRING BDE-868512-00.A6 868512-00	-
21 - NO LONGER AVAILABLE BDE-000000-00.A21977 000000-00	-
22 - SWITCH SA BDE-947486-00.A9 947486-00	£37.35	£44.82
23 - BRACKET BDE-947613-00.A9 947613-00	£2.78	£3.34
24 - LOCK BUTTON BDE-946871-00.A6 946871-00	-
25 - ECCENTRIC BDE-947016-00.A7 947016-00	£10.57	£12.68
26 - LEAF SPRING BDE-946876-00.A6 946876-00	-
27 - LEVER BDE-946880-00.A4 946880-00	£3.80	£4.56
28 - HANDLE & COVER BDE-946999-03.A1 946999-03	-
29 - KIT SA BDE-861765-00.A4 861765-00	£16.03	£19.24
30 - LEVER BDE-947010-01.A9 947010-01	-
31 - CAPACITOR GB 240V BDE-947025-00.A10 947025-00	-
34 - CIRCLIP BDE-949728-02.A3 949728-02	-
35 - PLUG BDE-947067-00.A18 947067-00	£1.50	£1.80
36 - SPRING BDE-947019-00.A3 947019-00	£1.82	£2.19
37 - SCREW BDE-949896-10.A36 949896-10	£1.50	£1.80
38 - END CAP BDE-946877-03.A1 946877-03	£16.03	£19.24
39 - FIELDCASE BDE-946997-03.A1 946997-03	-
40 - LOCK HANDLE BDE-947063-00.A7 947063-00	-
41 - LOCK-NUT BDE-943016-01.A10 943016-01	£3.70	£4.44
42 - WASHER BDE-947062-00.A4 947062-00	-
46 - BELT BDE-760215-00.A16 760215-00	£14.57	£17.48
47 - CLAMP BDE-942569-00.A2 942569-00	-
48 - SLEEVE BDE-934409-00.A16 934409-00	-
49 - BRUSHBOX SA BDE-761202-00.A44 761202-00	£3.30	£3.96
51 - FIELD GB 115V BDE-868405-03.A6 868405-03	-
51 - FIELD GB 240V BDE-868405-00.A5 868405-00	£93.62	£112.35
53 - SPACER BDE-944975-00.A5 944975-00	-
54 - FAN BDE-946857-01.A6 946857-01	£5.72	£6.87
56 - NO LONGER AVAILABLE GB 240V BDE-000000-00.A21978 000000-00	-
57 - LOCK BUTTON BDE-947011-01.A0 947011-01	-
60 - INNER FLANGE BDE-947022-00.A8 947022-00	-
61 - LEAD SA GB 115V BDE-946954-01.A1 946954-01	£5.72	£6.87
61 - LEAD SA GB 240V BDE-946954-00.A2 946954-00	£3.22	£3.86
62 - SPRING BDE-947070-00.A8 947070-00	£1.50	£1.80
63 - CIRCLIP BDE-949728-01.A2 949728-01	£1.50	£1.80
65 - BRUSH CUT OFF GB 115V BDE-949736-02.A3 949736-02	£3.80	£4.56
65 - BRUSH CUT OFF GB 240V BDE-949736-01.A4 949736-01	£10.85	£13.02
66 - INSERT BDE-401363-00.A1 401363-00	£14.57	£17.48
66 - INSERT SA BDE-401457-00.A11 401457-00	£17.48	£20.97
67 - SCREW BDE-949886-27.A11 949886-27	-
69 - SCREW BDE-760251-00.A12 760251-00	£1.42	£1.70
70 - SCREW BDE-949894-02.A14 949894-02	£1.50	£1.80
71 - NO LONGER AVAILABLE BDE-000000-00.A21979 000000-00	-
72 - WASHER BDE-931407-00.A45 931407-00	£5.88	£7.06
73 - BEARING BDE-577745-00.A98 577745-00	£7.85	£9.42
74 - OUTER FLANGE BDE-942959-03.A4 942959-03	£10.85	£13.02
75 - NO LONGER AVAILABLE BDE-000000-00.A21980 000000-00	-
76 - SCREW BDE-930082-01.A50 930082-01	£1.50	£1.80
77 - NO LONGER AVAILABLE BDE-000000-00.A21981 000000-00	-
79 - WASHER BDE-941633-00.A3 941633-00	£1.50	£1.80
81 - KEY BDE-940441-00.A23 940441-00	£1.50	£1.80
82 - SCREW BDE-949609-01.A6 949609-01	£1.42	£1.70
83 - SCREW BDE-949894-04.A5 949894-04	£1.50	£1.80
84 - SCREW BDE-330045-05.A253 330045-05	£1.50	£1.80
85 - PIN BDE-949739-01.A0 949739-01	£1.50	£1.80
86 - WASHER BDE-860073-05.A59 860073-05	£1.50	£1.80
87 - PULLEY BDE-861356-00.A10 861356-00	£18.91	£22.69
88 - NO LONGER AVAILABLE BDE-000000-00.A21982 000000-00	-
89 - SCREW BDE-330045-26.A25 330045-26	£1.82	£2.19
90 - LEVER BDE-946869-02.A4 946869-02	£7.85	£9.42
91 - FENCE BDE-946853-03.A8 946853-03	£24.39	£29.27
92 - BAFFLE BDE-946863-00.A6 946863-00	-
93 - NO LONGER AVAILABLE BDE-000000-00.A21983 000000-00	-
94 - HOSE GB 115V BDE-947113-00.A14 947113-00	£7.18	£8.62
94 - HOSE GB 240V BDE-947113-00.A15 947113-00	£7.18	£8.62
95 - HOSE GB 115V BDE-947113-01.A0 947113-01	£10.85	£13.02
95 - HOSE GB 240V BDE-947113-01.A1 947113-01	£10.85	£13.02
96 - ADAPTOR BDE-760312-00.A9 760312-00	£2.49	£2.99
97 - ADAPTOR BDE-947620-00.A11 947620-00	£3.80	£4.56
98 - SCREW BDE-860094-03.A210 860094-03	£1.50	£1.80
101 - SCREW BDE-330045-55.A62 330045-55	£1.50	£1.80
102 - SCALE BDE-946861-01.A8 946861-01	-
103 - FOOT SA BDE-861809-00.A11 861809-00	£7.85	£9.42
106 - WRENCH 6 MM BDE-860098-04.A64 860098-04	£1.50	£1.80
107 - WRENCH 4 MM BDE-949882-01.A74 949882-01	£1.50	£1.80
108 - SCREW BDE-N409486.A16 N409486	£1.50	£1.80
109 - NUT BDE-860092-00.A140 860092-00	£1.50	£1.80
110 - SCREW.TEMP BDE-720685-00.A32 720685-00	£1.50	£1.80
113 - SEAL BDE-947020-00.A4 947020-00	-
114 - CLAMP BDE-946858-01.A9 946858-01	-
115 - CLAMP BDE-946858-00.A3 946858-00	£10.57	£12.68
116 - BOLT BDE-946848-00.A3 946848-00	£7.64	£9.17
117 - SCREW BDE-949894-06.A82 949894-06	£1.50	£1.80
118 - INSERT BDE-946856-00.A1 946856-00	£24.39	£29.27
119 - HANDLE SCREW SA BDE-947015-01.A0 947015-01	£18.91	£22.69
120 - LEVER BDE-946864-00.A2 946864-00	£5.88	£7.06
121 - PIN BDE-949734-01.A4 949734-01	-
122 - SPRING BDE-946866-00.A7 946866-00	£1.50	£1.80
123 - LEVER SA BDE-401177-01.A3 401177-01	£14.57	£17.48
124 - NO LONGER AVAILABLE BDE-000000-00.A21984 000000-00	-
125 - O RING BDE-935857-00.A13 935857-00	£1.50	£1.80
126 - WASHER BDE-949705-01.A15 949705-01	£1.50	£1.80
127 - PROTECTOR BDE-720703-00.A32 720703-00	£1.50	£1.80
128 - BEARING BDE-861721-13.A5 861721-13	£7.85	£9.42
129 - WASHER BDE-930117-00.A2 930117-00	-
130 - BEARING 608 BDE-N110358.A14 N110358	£3.32	£3.99
131 - SPINDLE BDE-947012-01.A10 947012-01	£25.70	£30.84
132 - BEARING BDE-861721-10.A5 861721-10	£7.85	£9.42
133 - CIRCLIP BDE-949729-02.A14 949729-02	£1.50	£1.80
134 - CIRCLIP BDE-949729-03.A16 949729-03	£1.50	£1.80
138 - BUMPER BDE-761306-00.A5 761306-00	£1.50	£1.80
139 - SCREW BDE-761307-00.A17 761307-00	-
140 - FSO SUPPORT SA BDE-401172-01.A5 401172-01	£187.30	£224.76
141 - KNOB BDE-941756-00.A162 941756-00	£1.50	£1.80
142 - LOCK NUT BDE-943016-00.A6 943016-00	£1.50	£1.80
143 - WASHER BDE-860226-02.A31 860226-02	£1.50	£1.80
144 - WASHER BDE-947290-01.A0 947290-01	£1.42	£1.70
145 - PIN BDE-947616-00.A3 947616-00	-
146 - CABLE CLAMP BDE-947021-00.A5 947021-00	£7.18	£8.62
147 - SCREW BDE-949894-12.A9 949894-12	£1.50	£1.80
148 - SCALE BDE-946862-01.A5 946862-01	£10.85	£13.02
149 - SCREW BDE-949743-02.A8 949743-02	£1.66	£1.99
150 - WASHER BDE-949613-01.A0 949613-01	£1.42	£1.70
151 - CHANGE LEVER SA BDE-947619-00.A2 947619-00	£5.72	£6.87
152 - PLATE BDE-947614-00.A24 947614-00	£2.08	£2.50
153 - SEAL BDE-947641-00.A1 947641-00	£1.42	£1.70
154 - BAFFLE BDE-947653-00.A3 947653-00	-
155 - SEAL BDE-947638-00.A7 947638-00	£1.50	£1.80
156 - BOLT BDE-946859-00.A2 946859-00	£10.57	£12.68
157 - FLANGE BDE-947017-00.A5 947017-00	-
158 - SCREW BDE-860094-03.A211 860094-03	£1.50	£1.80
161 - LOCKING DEVICE BDE-947617-01.A7 947617-01	-
164 - SPRING BDE-947642-00.A7 947642-00	£1.50	£1.80
165 - BAFFLE BDE-947573-00.A3 947573-00	-
166 - INSERT BDE-947018-00.A6 947018-00	£1.50	£1.80
167 - ADJUSTER BDE-946874-00.A6 946874-00	£1.66	£1.99
168 - SEAL BDE-947610-00.A7 947610-00	£1.42	£1.70
169 - SEAL BDE-401174-00.A5 401174-00	-
171 - SEAL BDE-947640-00.A8 947640-00	-
172 - SPRING BDE-947650-00.A7 947650-00	£10.85	£13.02
173 - WARNING LABEL MIN 5^ GB 115V BDE-947752-00.A6 947752-00	-
173 - WARNING LABEL MIN 5^ GB 240V BDE-947752-00.A7 947752-00	-
175 - PIN BDE-760279-00.A5 760279-00	-
176 - O RING BDE-943030-00.A16 943030-00	£1.50	£1.80
177 - COVER BDE-868689-00.A8 868689-00	-
178 - NO LONGER AVAILABLE BDE-000000-00.A21985 000000-00	-
185 - MAGNET BDE-947068-02.A2 947068-02	-
186 - MAGNET BDE-947068-02.A3 947068-02	-
192 - SCREW BDE-949896-11.A4 949896-11	£1.50	£1.80
193 - SCREW BDE-949896-12.A140 949896-12	£1.50	£1.80
194 - SCREW BDE-860090-05.A2 860090-05	£1.50	£1.80
195 - WASHER BDE-720959-00.A146 720959-00	£1.50	£1.80
198 - PIN BDE-949739-01.A1 949739-01	£1.50	£1.80
199 - BUSH BDE-861736-00.A0 861736-00	£1.82	£2.19
200 - CONNECTOR GB 240V BDE-946518-00.A3 946518-00	£9.41	£11.29
200 - CONNECTOR GB 115V BDE-946518-00.A4 946518-00	£9.41	£11.29
836 - SPANNER TOOL BDE-279663-99.A9 279663-99	£72.28	£86.73
837 - SOCKET BDE-559506-99.A4 559506-99	£47.08	£56.49
838 - SOCKET BDE-559570-99.A14 559570-99	£47.08	£56.49
839 - LOCKING SCREW BDE-559571-99.A0 559571-99	£7.18	£8.62

Attribute Name	Value
Brand	Elu
