Elu MTS24 Type 2 Chop Saw - Metal Cutting Spare Parts

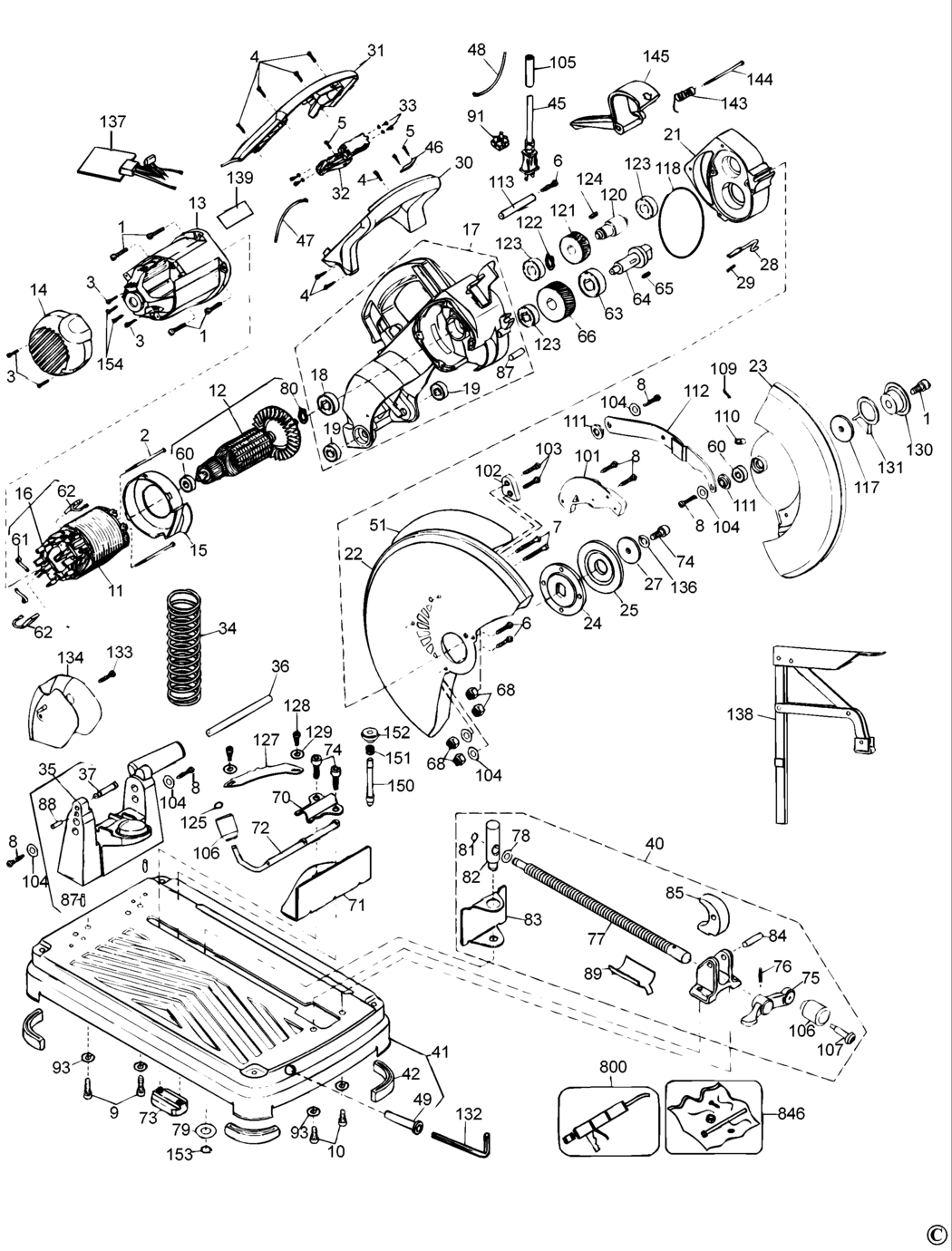

An exploded drawing and spare parts listing for the Elu MTS24 Type 2 Chop Saw - Metal Cutting

	Ex VAT	Inc VAT
1 - SCREW BDE-330045-16.A35 330045-16	£1.50	£1.80
2 - SCREW BDE-330019-33.A11 330019-33	£1.50	£1.80
3 - SCREW BDE-330019-13.A439 330019-13	£1.50	£1.80
4 - SCREW BDE-330019-14.A61 330019-14	£1.50	£1.80
5 - SCREW BDE-330019-02.A52 330019-02	£1.50	£1.80
6 - SCREW BDE-330045-50.A10 330045-50	£1.50	£1.80
7 - SCREW BDE-330045-51.A3 330045-51	£1.50	£1.80
8 - SCREW BDE-330045-49.A27 330045-49	£1.50	£1.80
9 - SCREW BDE-098123-25.A5 098123-25	£1.50	£1.80
10 - SCREW BDE-098123-16.A3 098123-16	£1.50	£1.80
11 - FIELD SA 230V BDE-624158-03.A2 624158-03	£65.52	£78.62
12 - ARMATURE SA BDE-383652-10.A2 383652-10	£104.31	£125.17
13 - NO LONGER AVAILABLE BDE-000000-00.A90722 000000-00	-
14 - END CAP BDE-392284-00.A5 392284-00	£3.80	£4.56
15 - BAFFLE FAN BDE-383167-00.A1 383167-00	£2.26	£2.71
16 - BRUSH PLATE SA BDE-383685-01.A1 383685-01	£7.18	£8.62
17 - GEARCASE SA BDE-386628-00.A4 386628-00	£104.31	£125.17
18 - BEARING BDE-868768-07.A149 868768-07	£7.85	£9.42
19 - BEARING BDE-330003-64.A57 330003-64	£4.69	£5.63
21 - GEARCASE COVER BDE-385286-01.A0 385286-01	£18.91	£22.69
22 - NO LONGER AVAILABLE BDE-000000-00.A90723 000000-00	-
23 - GUARD LOWER BDE-388432-00.A3 388432-00	£34.00	£40.80
24 - INNER FLANGE BDE-607173-00.A6 607173-00	£7.85	£9.42
25 - OUTER FLANGE BDE-395925-00.A0 395925-00	£5.88	£7.06
27 - WASHER BDE-396972-00.A1 396972-00	£1.50	£1.80
28 - LOCKING PIN BDE-387544-00.A2 387544-00	£1.50	£1.80
29 - SPRING BDE-384716-00.A2 384716-00	£1.50	£1.80
30 - NO LONGER AVAILABLE BDE-000000-00.A90724 000000-00	-
31 - NO LONGER AVAILABLE BDE-000000-00.A90725 000000-00	-
32 - NO LONGER AVAILABLE BDE-000000-00.A90726 000000-00	-
33 - SCREW BDE-387746-00.A7 387746-00	£1.50	£1.80
34 - SPRING BDE-387282-00.A3 387282-00	£7.18	£8.62
35 - PIVOT BDE-388431-00.A0 388431-00	£37.35	£44.82
36 - PIN BDE-383118-00.A3 383118-00	£1.82	£2.19
37 - LOCKING PIN BDE-383148-00.A5 383148-00	£1.50	£1.80
40 - CLAMP SA BDE-395929-00.A3 395929-00	£93.62	£112.35
41 - BASE SA BDE-606269-00.A1 606269-00	£113.07	£135.68
42 - FOOT BDE-383243-00.A3 383243-00	£1.50	£1.80
46 - CORD CLAMP BDE-386540-00.A3 386540-00	£1.50	£1.80
47 - LEAD BDE-386465-00.A4 386465-00	£1.50	£1.80
48 - LEAD BDE-386466-00.A4 386466-00	£1.50	£1.80
49 - HOLDER TOOL BDE-386765-00.A5 386765-00	£1.50	£1.80
51 - NO LONGER AVAILABLE BDE-000000-00.A90727 000000-00	-
60 - BEARING BDE-330003-17.A47 330003-17	£4.79	£5.75
61 - SPRING BDE-384612-00.A1 384612-00	£1.50	£1.80
62 - BRUSH 230V BDE-384613-01.A1 384613-01	£3.30	£3.96
63 - BEARING BDE-330003-49.A6 330003-49	£7.85	£9.42
64 - SPINDLE BDE-395842-00.A1 395842-00	£38.80	£46.56
65 - WOODRUFF KEY BDE-382675-01.A1 382675-01	£1.50	£1.80
66 - GEAR BDE-382680-00.A2 382680-00	£16.03	£19.24
68 - LOCK-NUT BDE-148641-00.A0 148641-00	£1.50	£1.80
70 - PLATE LOCK BDE-391459-00.A2 391459-00	£3.80	£4.56
71 - FENCE SA BDE-395930-01.A0 395930-01	£44.14	£52.97
72 - FENCE SA BDE-395930-01.A1 395930-01	£44.14	£52.97
73 - BLOCK BDE-383254-00.A4 383254-00	£7.18	£8.62
74 - SCREW BDE-383450-00.A8 383450-00	£1.50	£1.80
75 - HANDLE BDE-389658-00.A1 389658-00	£9.41	£11.29
76 - ROLLPIN BDE-330036-15.A1 330036-15	£1.50	£1.80
77 - SPINDLE BDE-398475-00.A0 398475-00	£24.39	£29.27
78 - WASHER BDE-384365-00.A12 384365-00	£1.50	£1.80
79 - WASHER BDE-607592-00.A1 607592-00	£1.50	£1.80
80 - CIRCLIP BDE-144803-00.A43 144803-00	£1.50	£1.80
81 - CIRCLIP BDE-383169-00.A2 383169-00	£1.50	£1.80
82 - PIN BDE-603988-00.A3 603988-00	£3.80	£4.56
83 - VICE JAW BDE-607278-00.A2 607278-00	£7.85	£9.42
84 - DOWEL BDE-386525-01.A2 386525-01	£1.50	£1.80
85 - LOCKING DEVICE BDE-398474-00.A1 398474-00	£5.88	£7.06
87 - DOWEL BDE-386525-00.A6 386525-00	£1.50	£1.80
88 - PLUG BDE-033055-00.A2 033055-00	£1.50	£1.80
89 - SADDLE BDE-383451-00.A5 383451-00	£1.50	£1.80
91 - TERMINAL BLOCK BDE-320078-00.A48 320078-00	£2.26	£2.71
93 - WASHER BDE-098197-09.A18 098197-09	£1.50	£1.80
101 - MOUNT BDE-388046-00.A3 388046-00	£5.88	£7.06
102 - PLATEN BDE-388041-00.A0 388041-00	£1.50	£1.80
103 - SCREW BDE-098013-16.A0 098013-16	£1.50	£1.80
104 - WASHER BDE-388354-00.A4 388354-00	£1.50	£1.80
105 - SLEEVE BDE-386491-00.A5 386491-00	£7.18	£8.62
106 - KNOB BDE-390567-00.A0 390567-00	£1.50	£1.80
107 - SCREW BDE-395240-00.A2 395240-00	£1.50	£1.80
109 - SPRING BDE-388056-00.A0 388056-00	£1.50	£1.80
110 - STOP RUBBER BDE-388048-00.A0 388048-00	£1.50	£1.80
111 - SLEEVE BDE-388049-00.A3 388049-00	£1.50	£1.80
112 - LINK BDE-388055-00.A3 388055-00	£9.41	£11.29
113 - SPACER BDE-388434-00.A0 388434-00	£1.50	£1.80
117 - WASHER PLASTIC BDE-383154-00.A2 383154-00	£1.50	£1.80
118 - O RING BDE-391485-00.A5 391485-00	£1.50	£1.80
120 - PINION BDE-382682-00.A1 382682-00	£7.85	£9.42
121 - GEAR BDE-386277-00.A8 386277-00	£34.00	£40.80
122 - RETAINER BDE-045012-00.A2 045012-00	£1.50	£1.80
123 - BEARING BDE-605040-20.A30 605040-20	£4.69	£5.63
124 - KEY BDE-382675-00.A3 382675-00	£1.50	£1.80
125 - CIRCLIP BDE-37653-00.A5 37653-00	£1.50	£1.80
127 - PLATE THRUST BDE-390570-00.A3 390570-00	£1.50	£1.80
128 - SCREW.TEMP BDE-330045-04.A4 330045-04	£1.50	£1.80
129 - WASHER BDE-330016-01.A73 330016-01	£1.50	£1.80
130 - RETAINING PLATE BDE-391039-00.A1 391039-00	£1.50	£1.80
131 - COVER BDE-389894-00.A1 389894-00	£1.50	£1.80
132 - WRENCH BDE-384717-00.A10 384717-00	£1.50	£1.80
133 - SCREW.SPECIAL BDE-330045-23.A2 330045-23	£1.50	£1.80
134 - DEFLECTOR BDE-390096-00.A1 390096-00	£7.18	£8.62
136 - WASHER LOCK BDE-98197-07.A1 98197-07	£1.50	£1.80
137 - MODULE BDE-N271039.A0 N271039	£37.35	£44.82
138 - CLAMP BDE-391526-00.A2 391526-00	£7.18	£8.62
139 - NO LONGER AVAILABLE BDE-000000-00.A90728 000000-00	-
143 - SPRING BDE-383171-00.A1 383171-00	£1.50	£1.80
144 - BOLT BDE-383172-00.A2 383172-00	£1.50	£1.80
145 - LEVER LOCK BDE-388051-00.A0 388051-00	£1.50	£1.80
150 - FENCE SA BDE-395930-01.A2 395930-01	£44.14	£52.97
151 - FENCE SA BDE-395930-01.A3 395930-01	£44.14	£52.97
152 - CAP BDE-395848-00.A1 395848-00	£1.42	£1.70
153 - RETAINER BDE-398605-00.A8 398605-00	£1.50	£1.80
154 - SCREW BDE-562097-10.A19 562097-10	£1.50	£1.80
800 - GREASE 50 GMS BDE-583534-00.A34 583534-00	£144.10	£172.92
846 - CLAMP BDE-395833-00.A1 395833-00	£2.26	£2.71
