Elu ETS3151 Type A1 Site Saw Spare Parts

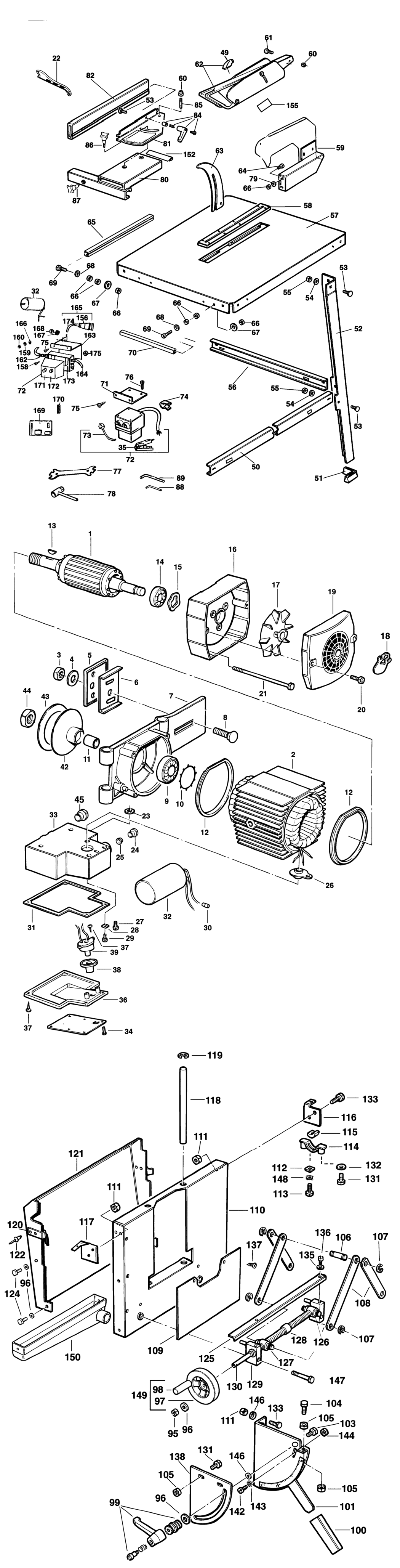

An exploded drawing and spare parts listing for the Elu ETS3151 Type A1 Site Saw

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A116746 000000-00	-
1 - ROTOR 3 PH GB BDE-868496-00.A19 868496-00	£131.95	£158.34
2 - NO LONGER AVAILABLE GB BDE-000000-00.A116747 000000-00	-
2 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A116748 000000-00	-
3 - NUT RH BDE-860083-05.A6 860083-05	£1.50	£1.80
4 - WASHER BDE-860074-04.A100 860074-04	£1.50	£1.80
5 - PLATE BDE-944360-00.A14 944360-00	-
6 - PLATE BDE-944359-00.A1 944359-00	£1.50	£1.80
7 - HOUSING BDE-868661-00.A6 868661-00	£96.55	£115.86
8 - SCREW BDE-860301-15.A14 860301-15	£1.50	£1.80
9 - BEARING BDE-868768-10.A24 868768-10	£14.57	£17.48
10 - RING BDE-860806-01.A6 860806-01	£1.42	£1.70
11 - BUSH BDE-942490-00.A4 942490-00	-
12 - SEAL BDE-860718-00.A16 860718-00	£7.18	£8.62
13 - KEY BDE-860318-00.A63 860318-00	-
14 - BEARING BDE-861721-01.A40 861721-01	£7.85	£9.42
15 - RING BDE-860080-02.A173 860080-02	£1.50	£1.80
16 - HOUSING BDE-860701-00.A25 860701-00	-
17 - FAN BDE-945841-00.A14 945841-00	£2.78	£3.34
18 - CAP BDE-863112-00.A4 863112-00	£1.50	£1.80
19 - END CAP BDE-860687-04.A5 860687-04	£7.18	£8.62
20 - SCREW BDE-860094-01.A35 860094-01	£1.50	£1.80
21 - ROD BDE-860446-00.A4 860446-00	£1.50	£1.80
22 - PUSHROD BDE-860610-01.A21 860610-01	£7.85	£9.42
23 - GROMMET BDE-944653-00.A36 944653-00	£3.30	£3.96
24 - RETAINER GB BDE-944654-00.A25 944654-00	£1.50	£1.80
24 - CAP GB 115V BDE-949747-18.A27 949747-18	£1.50	£1.80
25 - NUT BDE-944590-00.A37 944590-00	£1.50	£1.80
26 - GROMMET BDE-944652-00.A34 944652-00	£4.69	£5.63
27 - SCREW.TEMP BDE-860094-00.A108 860094-00	£1.50	£1.80
28 - WASHER SPRING BDE-944650-00.A49 944650-00	£1.50	£1.80
29 - SCREW BDE-860094-01.A36 860094-01	£1.50	£1.80
30 - NO LONGER AVAILABLE BDE-000000-00.A116749 000000-00	-
31 - GASKET BDE-860708-00.A46 860708-00	-
32 - CONDENSOR GB BDE-944455-00.A33 944455-00	-
32 - CAPACITOR GB 115V LX BDE-861329-00.A0 861329-00	-
33 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A116750 000000-00	-
33 - HOUSING GB BDE-860702-00.A40 860702-00	-
34 - RIVET BDE-860060-01.A36 860060-01	£1.42	£1.70
35 - SWITCH COVER GB BDE-N377168.A20 N377168	£14.57	£17.48
36 - COVER GB BDE-944454-00.A7 944454-00	£10.57	£12.68
36 - COVER GB 115V BDE-862220-00.A3 862220-00	£7.64	£9.17
37 - SCREW BDE-860094-03.A111 860094-03	£1.50	£1.80
38 - CAP BDE-860133-00.A39 860133-00	£1.42	£1.70
39 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A116751 000000-00	-
39 - KLIXON GB BDE-860692-00.A15 860692-00	-
42 - FLANGE BDE-945842-00.A21 945842-00	-
43 - FLANGE BDE-945843-00.A12 945843-00	£7.18	£8.62
44 - NUT BDE-944460-00.A23 944460-00	£24.39	£29.27
45 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A116752 000000-00	-
49 - SUCTION PIPE BDE-943582-01.A3 943582-01	£4.69	£5.63
50 - NO LONGER AVAILABLE BDE-000000-00.A116753 000000-00	-
51 - FEET BDE-862419-00.A1 862419-00	£9.41	£11.29
52 - NO LONGER AVAILABLE BDE-000000-00.A116754 000000-00	-
53 - SCREW BDE-860301-16.A0 860301-16	£1.50	£1.80
54 - WASHER BDE-860074-02.A124 860074-02	£1.50	£1.80
55 - NUT BDE-860083-03.A8 860083-03	£1.50	£1.80
56 - NO LONGER AVAILABLE BDE-000000-00.A116755 000000-00	-
57 - NO LONGER AVAILABLE BDE-000000-00.A116756 000000-00	-
58 - INSERT BDE-944373-01.A18 944373-01	-
59 - SUPPORT BDE-945852-00.A1 945852-00	£57.22	£68.66
60 - NUT BDE-860092-00.A17 860092-00	£1.50	£1.80
61 - SCREW BDE-860093-20.A8 860093-20	£1.50	£1.80
62 - GUARD SA BDE-945853-00.A23 945853-00	-
63 - RIVING KNIFE BDE-944365-00.A0 944365-00	-
64 - BOLT BDE-860085-03.A4 860085-03	£1.50	£1.80
65 - NO LONGER AVAILABLE BDE-000000-00.A116757 000000-00	-
66 - NUT BDE-860083-04.A478 860083-04	£1.50	£1.80
67 - WASHER BDE-941602-00.A24 941602-00	£1.50	£1.80
68 - WASHER M8 BDE-860073-03.A268 860073-03	£1.50	£1.80
69 - SCREW BDE-860093-18.A7 860093-18	-
70 - NO LONGER AVAILABLE BDE-000000-00.A116758 000000-00	-
71 - BRACKET GB BDE-944341-00.A34 944341-00	£7.18	£8.62
72 - NO LONGER AVAILABLE GB BDE-000000-00.A116759 000000-00	-
72 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A116760 000000-00	-
73 - CABLE GB BDE-861277-00.A1 861277-00	£16.03	£19.24
73 - NO LONGER AVAILABLE GB BDE-000000-00.A116761 000000-00	-
74 - CLIP BDE-945848-00.A14 945848-00	£1.50	£1.80
75 - SCREW BDE-860084-21.A43 860084-21	£1.50	£1.80
76 - SCREW BDE-930076-00.A16 930076-00	£1.50	£1.80
77 - SPANNER MULTI BDE-944463-00.A8 944463-00	£9.41	£11.29
78 - SPANNER BOX BDE-760601-00.A13 760601-00	£2.26	£2.71
79 - WASHER BDE-860074-03.A184 860074-03	£1.50	£1.80
80 - NO LONGER AVAILABLE BDE-000000-00.A116762 000000-00	-
81 - NO LONGER AVAILABLE BDE-000000-00.A116763 000000-00	-
82 - NO LONGER AVAILABLE BDE-000000-00.A116764 000000-00	-
84 - LEVER SA BDE-861840-01.A7 861840-01	£5.72	£6.87
85 - NO LONGER AVAILABLE BDE-000000-00.A116765 000000-00	-
86 - NO LONGER AVAILABLE BDE-000000-00.A116766 000000-00	-
87 - NO LONGER AVAILABLE BDE-000000-00.A116767 000000-00	-
88 - HEX KEY 5 MM BDE-930574-00.A100 930574-00	£1.50	£1.80
89 - HEX KEY 8 MM BDE-860098-05.A24 860098-05	£3.30	£3.96
95 - NUT BDE-860092-00.A16 860092-00	£1.50	£1.80
96 - WASHER BDE-860075-00.A64 860075-00	£1.50	£1.80
99 - HANDLE BDE-861840-00.A19 861840-00	£7.85	£9.42
100 - NO LONGER AVAILABLE BDE-000000-00.A116768 000000-00	-
101 - NO LONGER AVAILABLE BDE-000000-00.A116769 000000-00	-
103 - SCREW BDE-860301-16.A1 860301-16	£1.50	£1.80
104 - SCREW BDE-860085-10.A13 860085-10	£1.50	£1.80
105 - NUT BDE-860083-13.A8 860083-13	£1.50	£1.80
106 - PIN BDE-945844-00.A10 945844-00	£1.50	£1.80
107 - CIRCLIP BDE-860322-01.A0 860322-01	£1.50	£1.80
108 - ARM LINK BDE-944368-00.A7 944368-00	£1.50	£1.80
109 - PLATE BDE-944322-02.A1 944322-02	£11.87	£14.24
110 - NO LONGER AVAILABLE BDE-000000-00.A116770 000000-00	-
111 - NUT BDE-860083-04.A479 860083-04	£1.50	£1.80
112 - NO LONGER AVAILABLE BDE-000000-00.A116771 000000-00	-
113 - SCREW BDE-941518-00.A8 941518-00	£1.50	£1.80
114 - NO LONGER AVAILABLE BDE-000000-00.A116772 000000-00	-
115 - NO LONGER AVAILABLE BDE-000000-00.A116773 000000-00	-
116 - NO LONGER AVAILABLE BDE-000000-00.A116774 000000-00	-
117 - NO LONGER AVAILABLE BDE-000000-00.A116775 000000-00	-
118 - ADJUSTER HEIGHT BDE-944353-00.A1 944353-00	£3.80	£4.56
119 - CIRCLIP BDE-860322-05.A5 860322-05	£1.50	£1.80
120 - NO LONGER AVAILABLE BDE-000000-00.A116776 000000-00	-
121 - NO LONGER AVAILABLE BDE-000000-00.A116777 000000-00	-
122 - NO LONGER AVAILABLE BDE-000000-00.A116778 000000-00	-
124 - SCREW BDE-860093-03.A13 860093-03	£1.50	£1.80
125 - PLATE BDE-944437-00.A13 944437-00	£1.42	£1.70
126 - BUSH BDE-944366-00.A14 944366-00	£1.42	£1.70
127 - BUSH BDE-944366-01.A1 944366-01	£1.42	£1.70
128 - NO LONGER AVAILABLE BDE-000000-00.A116779 000000-00	-
129 - NO LONGER AVAILABLE BDE-000000-00.A116780 000000-00	-
130 - NO LONGER AVAILABLE BDE-000000-00.A116781 000000-00	-
131 - SCREW BDE-860085-15.A23 860085-15	£1.50	£1.80
132 - WASHER BDE-860074-02.A125 860074-02	£1.50	£1.80
133 - SCREW BDE-860085-04.A121 860085-04	£1.50	£1.80
135 - WASHER BDE-860073-00.A78 860073-00	£1.50	£1.80
136 - NO LONGER AVAILABLE BDE-000000-00.A116782 000000-00	-
137 - SCREW BDE-860094-03.A112 860094-03	£1.50	£1.80
138 - NO LONGER AVAILABLE BDE-000000-00.A116786 000000-00	-
142 - SCREW.TEMP BDE-760992-00.A14 760992-00	£1.50	£1.80
143 - WASHER BDE-933652-00.A17 933652-00	£1.50	£1.80
144 - NUT BDE-860083-01.A2 860083-01	£1.50	£1.80
146 - WASHER M8 BDE-860073-03.A267 860073-03	£1.50	£1.80
147 - SCREW BDE-860086-09.A1 860086-09	£1.50	£1.80
148 - WASHER BDE-933055-00.A17 933055-00	£1.50	£1.80
149 - HANDLE SA BDE-946474-00.A9 946474-00	£18.91	£22.69
150 - NO LONGER AVAILABLE BDE-000000-00.A116783 000000-00	-
150 - NO LONGER AVAILABLE AFTER CE BDE-000000-00.A116784 000000-00	-
152 - NO LONGER AVAILABLE BDE-000000-00.A116785 000000-00	-
156 - PLUG GB 115V BDE-865975-00.A1 865975-00	£10.85	£13.02
158 - SCREW GB 115V BDE-860089-18.A6 860089-18	£1.50	£1.80
159 - WASHER GB 115V BDE-941633-00.A42 941633-00	£1.50	£1.80
162 - INLET GB 115V BDE-947322-01.A16 947322-01	£3.30	£3.96
163 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A116787 000000-00	-
164 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A116788 000000-00	-
165 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A116789 000000-00	-
166 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A116790 000000-00	-
167 - WASHER GB 115V BDE-860078-02.A26 860078-02	£1.50	£1.80
168 - NUT GB 115V BDE-860083-15.A32 860083-15	£1.50	£1.80
169 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A116791 000000-00	-
170 - TERMINAL BLOCK GB 115V BDE-942508-00.A21 942508-00	£7.18	£8.62
171 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A116792 000000-00	-
173 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A116793 000000-00	-
174 - CABLE GB 115V BDE-949788-65.A0 949788-65	£25.05	£30.06
175 - NUT GB 115V BDE-947321-01.A0 947321-01	£1.50	£1.80
