Elu ETS3151 Type 2 Site Saw Spare Parts

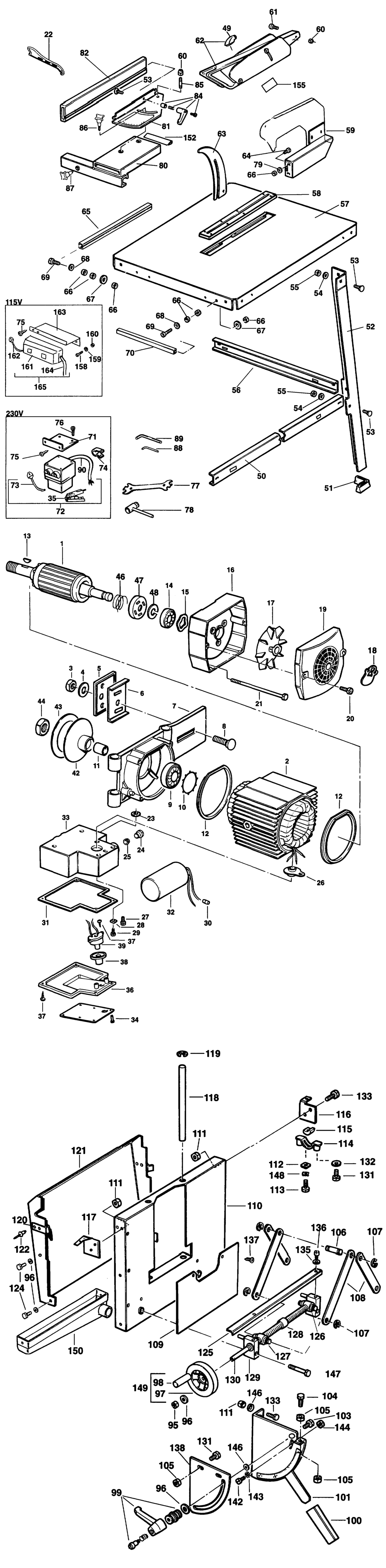

An exploded drawing and spare parts listing for the Elu ETS3151 Type 2 Site Saw

	Ex VAT	Inc VAT
1 - ROTOR SA BDE-868496-01.A0 868496-01	£140.47	£168.56
2 - STATOR SA 115V GB 115V BDE-868393-00.A2 868393-00	£226.53	£271.84
2 - NO LONGER AVAILABLE GB BDE-000000-00.A116794 000000-00	-
3 - NUT RH BDE-860083-05.A5 860083-05	£1.50	£1.80
4 - WASHER BDE-860074-04.A101 860074-04	£1.50	£1.80
5 - PLATE BDE-944360-00.A13 944360-00	£1.50	£1.80
6 - PLATE BDE-944359-00.A2 944359-00	£1.50	£1.80
7 - HOUSING BDE-868661-00.A5 868661-00	£96.55	£115.86
8 - SCREW BDE-860301-15.A13 860301-15	£1.50	£1.80
9 - BEARING BDE-868768-10.A23 868768-10	£14.57	£17.48
10 - RING BDE-860806-01.A5 860806-01	£1.42	£1.70
11 - BUSH BDE-942490-00.A5 942490-00	-
12 - SEAL BDE-860718-00.A17 860718-00	£7.18	£8.62
13 - KEY BDE-860318-00.A62 860318-00	-
14 - BEARING BDE-868768-07.A118 868768-07	£7.85	£9.42
15 - RING BDE-860080-02.A172 860080-02	£1.50	£1.80
16 - END CAP SA BDE-861863-00.A1 861863-00	£55.30	£66.36
17 - FAN BDE-945841-00.A13 945841-00	£2.78	£3.34
18 - CAP BDE-863112-00.A3 863112-00	£1.50	£1.80
19 - END CAP BDE-860687-04.A6 860687-04	£7.18	£8.62
20 - SCREW BDE-860094-01.A34 860094-01	£1.50	£1.80
21 - ROD BDE-860446-00.A5 860446-00	£1.50	£1.80
22 - PUSHROD BDE-860610-01.A20 860610-01	£7.85	£9.42
23 - GROMMET BDE-944653-00.A35 944653-00	£3.30	£3.96
24 - RETAINER BDE-944654-00.A26 944654-00	£1.50	£1.80
25 - NUT BDE-944590-00.A38 944590-00	£1.50	£1.80
26 - GROMMET BDE-944652-00.A35 944652-00	£4.69	£5.63
27 - SCREW.TEMP BDE-860094-00.A109 860094-00	£1.50	£1.80
28 - WASHER SPRING BDE-944650-00.A48 944650-00	£1.50	£1.80
29 - SCREW BDE-860094-01.A33 860094-01	£1.50	£1.80
30 - NO LONGER AVAILABLE BDE-000000-00.A116795 000000-00	-
31 - GASKET BDE-860708-00.A45 860708-00	-
32 - CONDENSOR BDE-944455-00.A32 944455-00	-
33 - HOUSING BDE-860702-00.A41 860702-00	-
34 - RIVET BDE-860060-01.A35 860060-01	£1.42	£1.70
35 - SWITCH COVER GB BDE-N377168.A19 N377168	£14.57	£17.48
36 - COVER BDE-944454-00.A8 944454-00	£10.57	£12.68
37 - SCREW BDE-860094-03.A113 860094-03	£1.50	£1.80
38 - CAP BDE-860133-00.A40 860133-00	£1.42	£1.70
39 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A116796 000000-00	-
39 - KLIXON GB BDE-860692-00.A14 860692-00	-
42 - FLANGE BDE-945842-00.A22 945842-00	-
43 - FLANGE BDE-945843-00.A11 945843-00	£7.18	£8.62
44 - NUT BDE-944460-00.A24 944460-00	£24.39	£29.27
46 - SPRING BDE-861338-05.A8 861338-05	£1.50	£1.80
47 - BRAKE ADAPTER BDE-861336-05.A7 861336-05	£10.85	£13.02
48 - CIRCLIP BDE-949727-06.A8 949727-06	£1.50	£1.80
49 - SUCTION PIPE BDE-943582-01.A2 943582-01	£4.69	£5.63
50 - NO LONGER AVAILABLE BDE-000000-00.A116797 000000-00	-
51 - FEET BDE-862419-00.A2 862419-00	£9.41	£11.29
52 - NO LONGER AVAILABLE BDE-000000-00.A116798 000000-00	-
53 - SCREW BDE-860301-16.A2 860301-16	£1.50	£1.80
54 - WASHER BDE-860074-02.A127 860074-02	£1.50	£1.80
55 - NUT BDE-860083-03.A7 860083-03	£1.50	£1.80
56 - NO LONGER AVAILABLE BDE-000000-00.A116799 000000-00	-
57 - NO LONGER AVAILABLE BDE-000000-00.A116800 000000-00	-
58 - INSERT BDE-944373-01.A19 944373-01	-
59 - SUPPORT BDE-945852-00.A2 945852-00	£57.22	£68.66
60 - NUT BDE-860092-00.A19 860092-00	£1.50	£1.80
61 - SCREW BDE-860093-20.A7 860093-20	£1.50	£1.80
62 - GUARD SA BDE-945853-00.A22 945853-00	-
63 - RIVING KNIFE BDE-944365-00.A1 944365-00	-
64 - BOLT BDE-860085-03.A5 860085-03	£1.50	£1.80
65 - NO LONGER AVAILABLE BDE-000000-00.A116801 000000-00	-
66 - NUT BDE-860083-04.A480 860083-04	£1.50	£1.80
67 - WASHER BDE-941602-00.A25 941602-00	£1.50	£1.80
68 - WASHER M8 BDE-860073-03.A266 860073-03	£1.50	£1.80
69 - SCREW BDE-860093-18.A8 860093-18	-
70 - NO LONGER AVAILABLE BDE-000000-00.A116802 000000-00	-
71 - BRACKET GB BDE-944341-00.A33 944341-00	£7.18	£8.62
72 - NO LONGER AVAILABLE GB BDE-000000-00.A116803 000000-00	-
73 - NO LONGER AVAILABLE GB BDE-000000-00.A116804 000000-00	-
74 - CLIP BDE-945848-00.A13 945848-00	£1.50	£1.80
75 - SCREW BDE-860084-21.A42 860084-21	£1.50	£1.80
76 - SCREW GB BDE-930076-00.A17 930076-00	£1.50	£1.80
77 - SPANNER MULTI BDE-944463-00.A7 944463-00	£9.41	£11.29
78 - SPANNER BOX BDE-760601-00.A12 760601-00	£2.26	£2.71
79 - WASHER BDE-860074-03.A183 860074-03	£1.50	£1.80
80 - NO LONGER AVAILABLE BDE-000000-00.A116805 000000-00	-
81 - NO LONGER AVAILABLE BDE-000000-00.A116806 000000-00	-
82 - NO LONGER AVAILABLE BDE-000000-00.A116807 000000-00	-
84 - LEVER SA BDE-861840-01.A6 861840-01	£5.72	£6.87
85 - NO LONGER AVAILABLE BDE-000000-00.A116808 000000-00	-
86 - NO LONGER AVAILABLE BDE-000000-00.A116809 000000-00	-
87 - NO LONGER AVAILABLE BDE-000000-00.A116810 000000-00	-
88 - HEX KEY 5 MM BDE-930574-00.A99 930574-00	£1.50	£1.80
89 - HEX KEY 8 MM BDE-860098-05.A23 860098-05	£3.30	£3.96
90 - NO LONGER AVAILABLE GB BDE-000000-00.A116811 000000-00	-
95 - NUT BDE-860092-00.A18 860092-00	£1.50	£1.80
96 - WASHER BDE-860075-00.A63 860075-00	£1.50	£1.80
99 - HANDLE BDE-861840-00.A20 861840-00	£7.85	£9.42
100 - NO LONGER AVAILABLE BDE-000000-00.A116812 000000-00	-
101 - NO LONGER AVAILABLE BDE-000000-00.A116813 000000-00	-
103 - SCREW BDE-860301-16.A3 860301-16	£1.50	£1.80
104 - SCREW BDE-860085-10.A14 860085-10	£1.50	£1.80
105 - NUT BDE-860083-13.A9 860083-13	£1.50	£1.80
106 - PIN BDE-945844-00.A11 945844-00	£1.50	£1.80
107 - CIRCLIP BDE-860322-01.A1 860322-01	£1.50	£1.80
108 - ARM LINK BDE-944368-00.A6 944368-00	£1.50	£1.80
109 - PLATE BDE-944322-02.A2 944322-02	£11.87	£14.24
110 - NO LONGER AVAILABLE BDE-000000-00.A116814 000000-00	-
111 - NUT BDE-860083-04.A481 860083-04	£1.50	£1.80
112 - NO LONGER AVAILABLE BDE-000000-00.A116823 000000-00	-
113 - SCREW BDE-941518-00.A7 941518-00	£1.50	£1.80
114 - NO LONGER AVAILABLE BDE-000000-00.A116815 000000-00	-
115 - NO LONGER AVAILABLE BDE-000000-00.A116816 000000-00	-
116 - NO LONGER AVAILABLE BDE-000000-00.A116817 000000-00	-
117 - NO LONGER AVAILABLE BDE-000000-00.A116818 000000-00	-
118 - ADJUSTER HEIGHT BDE-944353-00.A2 944353-00	£3.80	£4.56
119 - CIRCLIP BDE-860322-05.A4 860322-05	£1.50	£1.80
120 - NO LONGER AVAILABLE BDE-000000-00.A116819 000000-00	-
121 - NO LONGER AVAILABLE BEFORE 01-95 BDE-000000-00.A116820 000000-00	-
121 - NO LONGER AVAILABLE FROM 01-95 BDE-000000-00.A116821 000000-00	-
122 - NO LONGER AVAILABLE BDE-000000-00.A116822 000000-00	-
124 - SCREW BDE-860093-03.A12 860093-03	£1.50	£1.80
125 - PLATE BDE-944437-00.A12 944437-00	£1.42	£1.70
126 - BUSH BDE-944366-00.A13 944366-00	£1.42	£1.70
127 - BUSH BDE-944366-01.A2 944366-01	£1.42	£1.70
128 - NO LONGER AVAILABLE BDE-000000-00.A116824 000000-00	-
129 - NO LONGER AVAILABLE BDE-000000-00.A116825 000000-00	-
130 - NO LONGER AVAILABLE BDE-000000-00.A116826 000000-00	-
131 - SCREW BDE-860085-15.A22 860085-15	£1.50	£1.80
132 - WASHER BDE-860074-02.A126 860074-02	£1.50	£1.80
133 - SCREW BDE-860085-04.A120 860085-04	£1.50	£1.80
135 - WASHER BDE-860073-00.A79 860073-00	£1.50	£1.80
136 - NO LONGER AVAILABLE BDE-000000-00.A116827 000000-00	-
137 - SCREW BDE-860094-03.A114 860094-03	£1.50	£1.80
138 - NO LONGER AVAILABLE BDE-000000-00.A116828 000000-00	-
142 - SCREW.TEMP BDE-760992-00.A15 760992-00	£1.50	£1.80
143 - WASHER BDE-933652-00.A18 933652-00	£1.50	£1.80
144 - NUT BDE-860083-01.A0 860083-01	£1.50	£1.80
146 - WASHER M8 BDE-860073-03.A263 860073-03	£1.50	£1.80
147 - SCREW BDE-860086-09.A2 860086-09	£1.50	£1.80
148 - WASHER BDE-933055-00.A15 933055-00	£1.50	£1.80
149 - HANDLE SA BDE-946474-00.A7 946474-00	£18.91	£22.69
150 - NO LONGER AVAILABLE BDE-000000-00.A116829 000000-00	-
150 - NO LONGER AVAILABLE AFTER CE BDE-000000-00.A116830 000000-00	-
152 - NO LONGER AVAILABLE BDE-000000-00.A116831 000000-00	-
158 - SCREW GB 115V BDE-860089-18.A5 860089-18	£1.50	£1.80
159 - WASHER GB 115V BDE-860073-01.A176 860073-01	£1.50	£1.80
160 - NUT GB 115V BDE-860083-02.A299 860083-02	£1.50	£1.80
161 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A116832 000000-00	-
162 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A116833 000000-00	-
163 - PLATE GB 115V BDE-946023-00.A6 946023-00	£2.71	£3.25
164 - MOTOR CABLE GB 115V BDE-949788-06.A2 949788-06	-
165 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A116834 000000-00	-
