Elu EBS3601 Type 1 Bandsaw Spare Parts

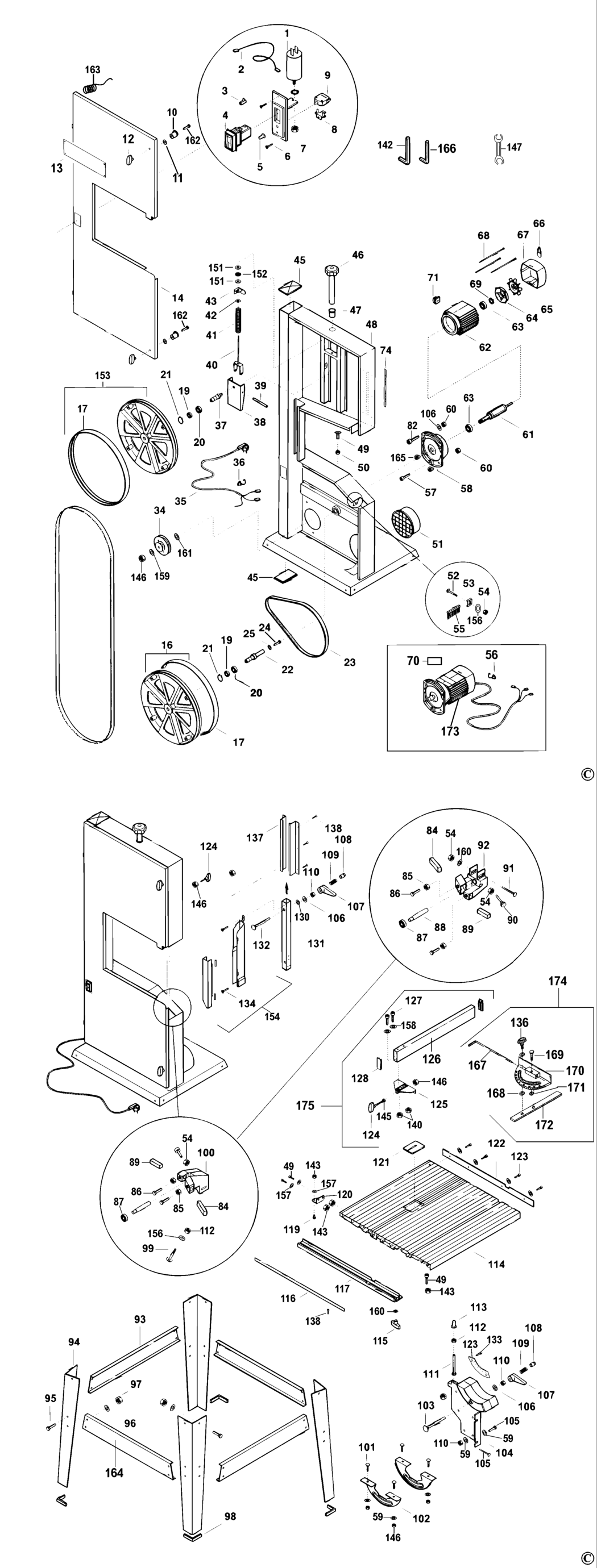

An exploded drawing and spare parts listing for the Elu EBS3601 Type 1 Bandsaw

	Ex VAT	Inc VAT
1 - CAPACITOR BDE-861429-07.A2 861429-07	£7.85	£9.42
2 - NO LONGER AVAILABLE BDE-000000-00.A21918 000000-00	-
3 - CONNECTOR BDE-861257-00.A0 861257-00	£1.50	£1.80
4 - SWITCH BDE-861385-09.A0 861385-09	-
5 - NO LONGER AVAILABLE BDE-000000-00.A21919 000000-00	-
6 - SCREW BDE-860428-06.A4 860428-06	£1.50	£1.80
7 - NO LONGER AVAILABLE BDE-000000-00.A21920 000000-00	-
8 - NO LONGER AVAILABLE BDE-000000-00.A21921 000000-00	-
9 - MICRO SWITCH BDE-863124-15.A3 863124-15	-
10 - NO LONGER AVAILABLE BDE-000000-00.A21922 000000-00	-
11 - WASHER BDE-860073-08.A27 860073-08	£1.50	£1.80
12 - NO LONGER AVAILABLE BDE-000000-00.A21923 000000-00	-
13 - NO LONGER AVAILABLE BDE-000000-00.A21924 000000-00	-
14 - NO LONGER AVAILABLE BDE-000000-00.A21925 000000-00	-
16 - WHEEL BDE-861487-90.A1 861487-90	£65.52	£78.62
17 - RUBBER STRIP BDE-861411-00.A0 861411-00	£18.91	£22.69
19 - BEARING BDE-861721-02.A11 861721-02	£4.69	£5.63
20 - BEARING BDE-861721-04.A0 861721-04	£7.85	£9.42
21 - RING BDE-861471-00.A2 861471-00	£1.50	£1.80
22 - SHAFT BDE-861470-00.A1 861470-00	£18.91	£22.69
23 - BELT BDE-N230397.A2 N230397	£24.39	£29.27
24 - SCREW BDE-860085-04.A0 860085-04	£1.50	£1.80
25 - WASHER BDE-861483-00.A6 861483-00	£1.50	£1.80
34 - PULLEY BDE-862185-02.A2 862185-02	£16.03	£19.24
35 - NO LONGER AVAILABLE GB BDE-000000-00.A21926 000000-00	-
36 - NO LONGER AVAILABLE BDE-000000-00.A21927 000000-00	-
37 - SHAFT BDE-861469-00.A2 861469-00	£4.69	£5.63
38 - BRACKET BDE-861402-00.A0 861402-00	£7.18	£8.62
39 - PIN BDE-861473-00.A1 861473-00	£1.50	£1.80
40 - TENSION BLOCK BDE-861401-00.A3 861401-00	£12.17	£14.60
41 - SPRING BDE-861474-00.A2 861474-00	£7.85	£9.42
42 - WASHER BDE-941602-00.A165 941602-00	£1.50	£1.80
43 - POINTER BDE-861403-00.A3 861403-00	£7.85	£9.42
45 - CAP BDE-861398-00.A2 861398-00	£1.82	£2.19
46 - NO LONGER AVAILABLE BDE-000000-00.A21928 000000-00	-
47 - BUSH BDE-861449-00.A3 861449-00	£3.30	£3.96
48 - NO LONGER AVAILABLE BDE-000000-00.A21929 000000-00	-
49 - SCREW.TEMP BDE-860085-09.A14 860085-09	£1.50	£1.80
50 - NUT M6 BDE-860083-12.A6 860083-12	£1.50	£1.80
51 - DUST EXTRACTOR BDE-861428-00.A3 861428-00	£2.78	£3.34
52 - SCREW BDE-860301-16.A44 860301-16	£1.50	£1.80
53 - BRACKET BDE-861427-00.A0 861427-00	£2.26	£2.71
54 - NUT M6 BDE-860083-12.A5 860083-12	£1.50	£1.80
55 - BRUSH BDE-863378-00.A1 863378-00	£1.82	£2.19
57 - SCREW BDE-860086-03.A0 860086-03	£1.50	£1.80
58 - HOUSING FRONT BDE-862211-02.A1 862211-02	£17.48	£20.97
59 - WASHER M8 BDE-860073-03.A453 860073-03	£1.50	£1.80
60 - NUT BDE-860092-01.A16 860092-01	£1.50	£1.80
61 - ROTOR BDE-868519-00.A0 868519-00	£74.15	£88.98
62 - STATOR BDE-868556-00.A1 868556-00	£218.32	£261.98
63 - BEARING BDE-861721-01.A0 861721-01	£7.85	£9.42
65 - FAN BDE-860444-00.A55 860444-00	£4.69	£5.63
66 - CAP BDE-863112-00.A48 863112-00	£1.50	£1.80
67 - COVER BDE-860445-00.A22 860445-00	£7.18	£8.62
68 - TIE ROD BDE-863015-00.A22 863015-00	£1.50	£1.80
69 - RING BDE-860080-02.A47 860080-02	£1.50	£1.80
70 - NO LONGER AVAILABLE BDE-000000-00.A21930 000000-00	-
73 - NUT BDE-860092-01.A17 860092-01	£1.50	£1.80
82 - SCREW BDE-860301-01.A5 860301-01	£1.50	£1.80
84 - BLOCK BDE-861450-01.A2 861450-01	£3.80	£4.56
85 - NUT BDE-860083-10.A39 860083-10	£1.50	£1.80
86 - SCREW BDE-860093-25.A1 860093-25	£1.50	£1.80
87 - BEARING BDE-861721-05.A3 861721-05	£7.85	£9.42
88 - PIN BDE-863795-00.A12 863795-00	£3.80	£4.56
89 - BLOCK BDE-861450-00.A0 861450-00	£1.50	£1.80
90 - SCREW WING BDE-326573-01.A39 326573-01	£1.82	£2.19
91 - SCREW BDE-931997-00.A24 931997-00	£1.50	£1.80
92 - GUIDE BLOCK BDE-861408-00.A0 861408-00	£10.85	£13.02
93 - CROSS BRACE BDE-861426-03.A3 861426-03	£16.03	£19.24
94 - LEG BDE-861425-01.A2 861425-01	£17.48	£20.97
95 - SCREW BDE-860085-07.A55 860085-07	£1.50	£1.80
96 - WASHER BDE-860075-00.A151 860075-00	£1.50	£1.80
97 - NUT M6 BDE-860083-12.A4 860083-12	£1.50	£1.80
98 - FEET BDE-862419-00.A16 862419-00	£9.41	£11.29
99 - SCREW BDE-860301-16.A43 860301-16	£1.50	£1.80
100 - GUIDE BLOCK BDE-861409-00.A3 861409-00	£10.85	£13.02
101 - SCREW.TEMP BDE-949891-01.A0 949891-01	£1.50	£1.80
102 - GUIDE SUPPORT BDE-861414-00.A0 861414-00	£17.48	£20.97
103 - SCREW BDE-861484-00.A1 861484-00	£1.50	£1.80
104 - TABLE SUPPORT BDE-861413-00.A3 861413-00	£24.39	£29.27
105 - BOLT BDE-860085-03.A96 860085-03	£1.50	£1.80
106 - WASHER M8 BDE-860073-03.A452 860073-03	£1.50	£1.80
107 - LEVER BDE-863320-00.A11 863320-00	£5.88	£7.06
108 - CAP BDE-863073-00.A20 863073-00	£4.69	£5.63
109 - SPRING BDE-760483-00.A18 760483-00	£1.50	£1.80
110 - NUT BDE-860083-14.A0 860083-14	£1.50	£1.80
111 - BOLT BDE-941959-00.A6 941959-00	£1.50	£1.80
112 - NUT M6 BDE-860083-12.A7 860083-12	£1.50	£1.80
113 - CAP BDE-860760-00.A0 860760-00	£1.50	£1.80
114 - NO LONGER AVAILABLE BDE-000000-00.A21931 000000-00	-
115 - KNOB BDE-861464-00.A0 861464-00	£1.82	£2.19
116 - SCALE BDE-861419-00.A0 861419-00	£2.26	£2.71
117 - GUIDE BDE-861417-00.A0 861417-00	£18.91	£22.69
118 - SCREW.TEMP BDE-860085-09.A13 860085-09	£1.50	£1.80
119 - BOLT BDE-861494-00.A1 861494-00	£1.50	£1.80
120 - BRACKET BDE-861420-00.A3 861420-00	£2.78	£3.34
121 - TABLE INSERT BDE-861416-01 861416-01	£3.70	£4.44
122 - PLATE BDE-861418-00.A3 861418-00	£3.80	£4.56
123 - SCALE BDE-861740-00.A2 861740-00	£1.82	£2.19
124 - KNOB BDE-861452-00.A0 861452-00	£2.78	£3.34
125 - SUPPORT BDE-861421-01.A0 861421-01	£12.17	£14.60
126 - FENCE BDE-861422-00.A4 861422-00	£24.39	£29.27
127 - SCREW BDE-949886-11.A20 949886-11	£1.50	£1.80
128 - END CAP BDE-861423-00.A15 861423-00	£3.30	£3.96
130 - WASHER BDE-861477-00.A3 861477-00	£3.30	£3.96
131 - GUIDE SUPPORT BDE-861405-00.A0 861405-00	£9.41	£11.29
132 - SCREW BDE-861478-00.A0 861478-00	£1.50	£1.80
134 - SCREW BDE-860084-05.A5 860084-05	£1.50	£1.80
136 - KNOB BDE-861452-01.A9 861452-01	£1.82	£2.19
137 - GUIDE BDE-861406-00.A3 861406-00	£2.78	£3.34
138 - SCREW BDE-860084-20.A91 860084-20	£1.50	£1.80
140 - NUT BDE-860083-13.A31 860083-13	£1.50	£1.80
142 - HEX KEY 5 MM BDE-930574-00.A0 930574-00	£1.50	£1.80
143 - NUT BDE-860083-13.A32 860083-13	£1.50	£1.80
145 - SPACER BDE-861453-00.A15 861453-00	£1.50	£1.80
146 - NUT BDE-860083-04.A243 860083-04	£1.50	£1.80
147 - SPANNER 10-13MM BDE-949751-07.A6 949751-07	£3.80	£4.56
148 - SCREW BDE-860428-04.A0 860428-04	£1.50	£1.80
151 - WASHER BDE-941602-00.A164 941602-00	£1.50	£1.80
152 - BEARING BDE-861475-00.A0 861475-00	£3.30	£3.96
153 - NO LONGER AVAILABLE BDE-000000-00.A21932 000000-00	-
154 - NO LONGER AVAILABLE BDE-000000-00.A21933 000000-00	-
156 - WASHER BDE-720959-00.A148 720959-00	£1.50	£1.80
157 - WASHER M6 BDE-860073-07.A20 860073-07	£1.50	£1.80
158 - WASHER BDE-860073-14.A61 860073-14	£1.50	£1.80
159 - WASHER BDE-860074-03.A336 860074-03	£1.50	£1.80
160 - WASHER BDE-860075-00.A150 860075-00	£1.50	£1.80
161 - WASHER BDE-860076-03.A19 860076-03	£1.50	£1.80
162 - SCREW BDE-860084-22.A13 860084-22	£1.50	£1.80
163 - SPRING BDE-861508-00.A2 861508-00	£1.78	£2.13
164 - NO LONGER AVAILABLE BDE-000000-00.A21934 000000-00	-
165 - INSERT BDE-760298-01.A33 760298-01	£1.66	£1.99
166 - KEY BDE-938539-00.A45 938539-00	£1.50	£1.80
167 - GAUGE BDE-863844-00.A7 863844-00	£10.85	£13.02
168 - WASHER BDE-949876-06.A7 949876-06	£1.50	£1.80
169 - SCREW BDE-863851-00.A1 863851-00	£3.80	£4.56
170 - PLATE BDE-862007-01.A12 862007-01	£7.85	£9.42
171 - NUT BDE-860083-03.A226 860083-03	£1.50	£1.80
172 - BAR BDE-863803-00.A7 863803-00	£17.48	£20.97
173 - MOTOR SA 1PH BDE-868572-00.A2 868572-00	£371.62	£445.95
174 - NO LONGER AVAILABLE BDE-000000-00.A21935 000000-00	-
175 - NO LONGER AVAILABLE BDE-000000-00.A21936 000000-00	-
