Elu MHB90K Type 4 Belt Sander Spare Parts

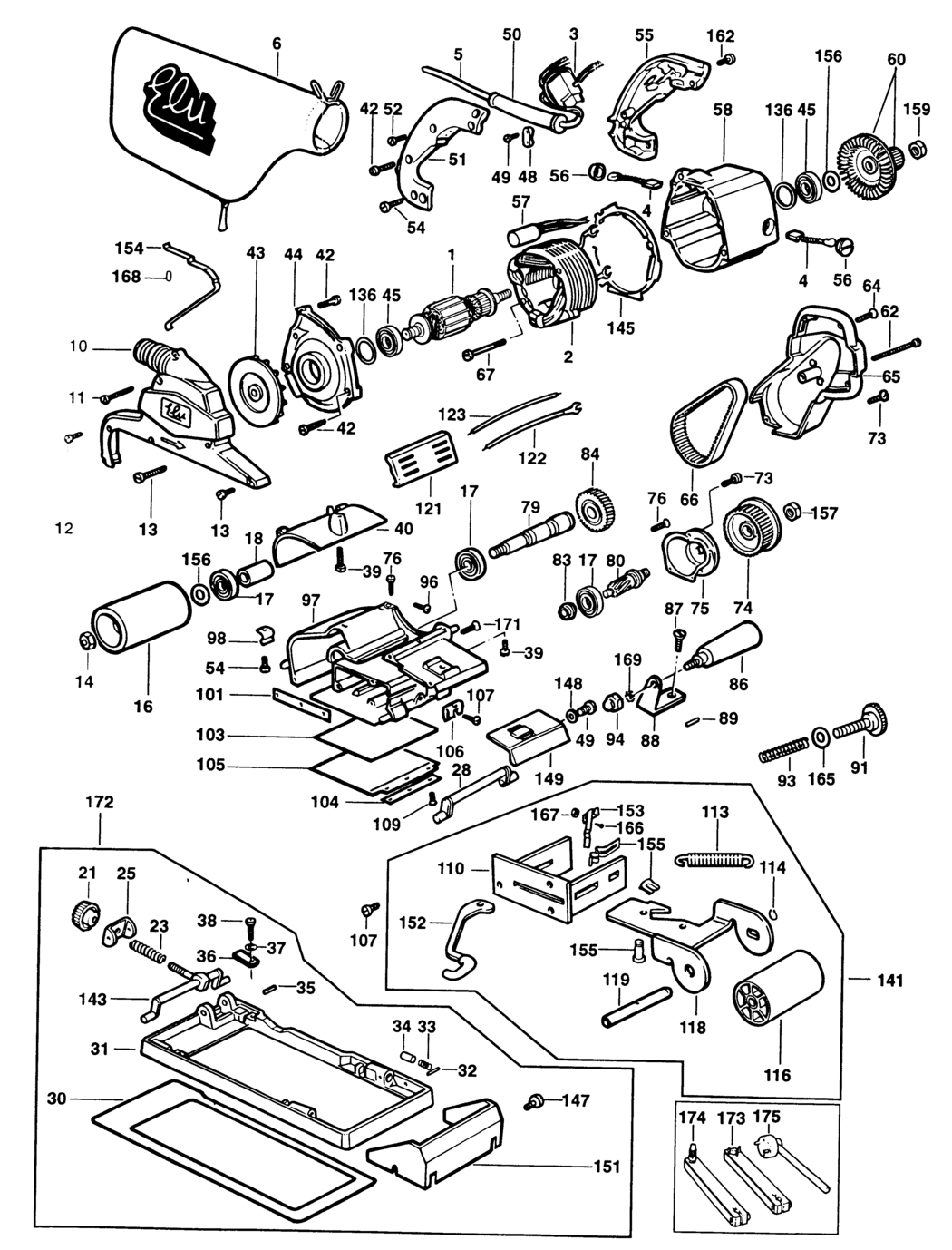

An exploded drawing and spare parts listing for the Elu MHB90K Type 4 Belt Sander

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE 230 VOLT BDE-000000-00.A121200 000000-00	-
1 - ARMATURE 120V 115 VOLT BDE-248157-00.A3 248157-00	£96.96	£116.35
2 - FIELD 220V 230 VOLT BDE-090102102.A0 090102102	£72.28	£86.73
2 - FIELD 120V 115 VOLT BDE-090102104.A9 090102104	£94.12	£112.94
3 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A121201 000000-00	-
3 - NO LONGER AVAILABLE GB 240V BDE-000000-00.A121202 000000-00	-
4 - BRUSH 110V 115 VOLT BDE-013121502.A4 013121502	£9.17	£11.00
4 - BRUSH 220V 230 VOLT BDE-013121501.A7 013121501	£4.45	£5.34
5 - CORDSET GB 240V BDE-379092.A28 379092	£19.40	£23.28
5 - CORDSET GB 115V BDE-378990.A20 378990	£9.41	£11.29
6 - NO LONGER AVAILABLE BDE-000000-00.A121203 000000-00	-
10 - FANCASE KIT BDE-247664-05.A9 247664-05	£76.16	£91.39
11 - SCREW BDE-247144-05.A12 247144-05	£1.42	£1.70
12 - SCREW BDE-249437-01.A23 249437-01	£1.42	£1.70
13 - NO LONGER AVAILABLE BDE-000000-00.A121204 000000-00	-
14 - NUT BDE-249232-40.A23 249232-40	-
16 - ROLLER SA BDE-324914-00.A3 324914-00	-
17 - BEARING 6002 2RS BDE-055830000.A18 055830000	£10.57	£12.68
18 - SPACER BDE-050152300.A9 050152300	£2.71	£3.25
21 - NO LONGER AVAILABLE BDE-000000-00.A121205 000000-00	-
23 - NO LONGER AVAILABLE BDE-000000-00.A121206 000000-00	-
25 - NO LONGER AVAILABLE BDE-000000-00.A121207 000000-00	-
28 - NO LONGER AVAILABLE BDE-000000-00.A121208 000000-00	-
30 - NO LONGER AVAILABLE BDE-000000-00.A121209 000000-00	-
31 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A121210 000000-00	-
31 - NO LONGER AVAILABLE GB 240V BDE-000000-00.A121211 000000-00	-
32 - NO LONGER AVAILABLE BDE-000000-00.A121212 000000-00	-
33 - SPRING BDE-013931037.A10 013931037	£3.70	£4.44
34 - NO LONGER AVAILABLE BDE-000000-00.A121213 000000-00	-
35 - RIVET BDE-868016-00.A5 868016-00	£1.42	£1.70
36 - NO LONGER AVAILABLE BDE-000000-00.A121214 000000-00	-
37 - WASHER BDE-725163.A95 725163	£1.50	£1.80
38 - SCREW BDE-249415-01.A0 249415-01	£1.42	£1.70
39 - SCREW BDE-249220-00.A19 249220-00	£1.50	£1.80
40 - PLATE BDE-324922-06.A1 324922-06	£2.21	£2.65
42 - SCREW BDE-760978-01.A37 760978-01	£1.50	£1.80
43 - FAN BDE-324908-00.A3 324908-00	-
44 - NO LONGER AVAILABLE BDE-000000-00.A121215 000000-00	-
45 - BEARING 6001 RSZ BDE-050830000.A11 050830000	-
48 - CABLE CLAMP BDE-910556.A64 910556	£1.42	£1.70
49 - SCREW BDE-249416-06.A99 249416-06	£1.42	£1.70
50 - CORD PROTECTOR BDE-320785.A1188 320785	£1.50	£1.80
51 - NO LONGER AVAILABLE BDE-000000-00.A121216 000000-00	-
52 - SCREW BDE-249416-03.A40 249416-03	£1.42	£1.70
55 - NO LONGER AVAILABLE BDE-000000-00.A121217 000000-00	-
56 - BRUSH CAP BDE-249007-01.A10 249007-01	£1.82	£2.19
57 - NO LONGER AVAILABLE 115 VOLT BDE-000000-00.A121221 000000-00	-
57 - CAPACITOR 230 VOLT BDE-320842-03.A35 320842-03	-
58 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A121218 000000-00	-
58 - NO LONGER AVAILABLE GB 240V BDE-000000-00.A121219 000000-00	-
60 - NO LONGER AVAILABLE BDE-000000-00.A121220 000000-00	-
62 - SCREW BDE-248090-05.A0 248090-05	£1.42	£1.70
64 - SCREW BDE-249437-02.A0 249437-02	£1.42	£1.70
65 - COVER BELT BDE-248187-06.A2 248187-06	£18.91	£22.69
66 - BELT TOOTHED BDE-324909-00.A8 324909-00	£18.91	£22.69
67 - RETAINER BDE-911442.A10 911442	£1.42	£1.70
73 - SCREW BDE-249415-01.A1 249415-01	£1.42	£1.70
74 - PULLEY BDE-324910-00.A3 324910-00	£18.91	£22.69
75 - PLATE BDE-050151901.A6 050151901	£14.19	£17.03
76 - NO LONGER AVAILABLE BDE-000000-00.A121222 000000-00	-
79 - GEAR & SPINDLE SA BDE-378189.A15 378189	£37.35	£44.82
80 - NO LONGER AVAILABLE BDE-000000-00.A121223 000000-00	-
83 - BEARING SINTER BDE-018980105.A10 018980105	£7.01	£8.41
84 - GEAR & SPINDLE SA BDE-378189.A16 378189	£37.35	£44.82
86 - KNOB BDE-140111000.A9 140111000	£14.19	£17.03
87 - SCREW BDE-248084-05.A1 248084-05	£3.70	£4.44
88 - LEVER BDE-249124-00.A3 249124-00	£11.87	£14.24
89 - PIN BDE-761065-00.A33 761065-00	£1.50	£1.80
91 - NO LONGER AVAILABLE BDE-000000-00.A121224 000000-00	-
93 - SPRING BDE-761054-00.A35 761054-00	£1.50	£1.80
94 - NO LONGER AVAILABLE BDE-000000-00.A121225 000000-00	-
96 - NO LONGER AVAILABLE BDE-000000-00.A121226 000000-00	-
97 - HOUSING REPAIR KIT BDE-248125-02.A5 248125-02	£238.94	£286.73
98 - SPRING BDE-050930703.A8 050930703	£4.58	£5.49
101 - STRIP BDE-050116300.A7 050116300	-
103 - PLATE BDE-050111700.A8 050111700	£1.42	£1.70
104 - STRIP BDE-050110000.A8 050110000	£5.72	£6.87
105 - PLATE BDE-050110001.A7 050110001	£4.58	£5.49
106 - SPRING BDE-050930700.A7 050930700	£5.72	£6.87
107 - NO LONGER AVAILABLE BDE-000000-00.A121227 000000-00	-
109 - SCREW BDE-248084-10.A11 248084-10	-
110 - NO LONGER AVAILABLE BDE-000000-00.A121228 000000-00	-
113 - SPRING BDE-050931316.A7 050931316	-
114 - CIRCLIP BDE-860079-03.A61 860079-03	£1.50	£1.80
116 - REPAIR KIT BDE-590984-00.A19 590984-00	-
118 - NO LONGER AVAILABLE BDE-000000-00.A121230 000000-00	-
119 - REPAIR KIT BDE-590984-00.A20 590984-00	-
121 - NO LONGER AVAILABLE BDE-000000-00.A121229 000000-00	-
122 - LEAD 80MM YELLOW GB 115V BDE-090164501.A1 090164501	£7.01	£8.41
122 - LEAD 80MM YELLOW GB 240V BDE-090164501.A2 090164501	£7.01	£8.41
123 - LEAD 300MM RED BDE-090164502.A8 090164502	£1.42	£1.70
136 - GASKET BDE-248113-00.A10 248113-00	£1.78	£2.13
141 - FRONT ROLLER KIT BDE-248456-05.A6 248456-05	-
143 - NO LONGER AVAILABLE BDE-000000-00.A121231 000000-00	-
145 - BAFFLE BDE-324466-00.A5 324466-00	£4.58	£5.49
152 - NO LONGER AVAILABLE BDE-000000-00.A121232 000000-00	-
153 - SPRING BDE-324923-00.A8 324923-00	£4.58	£5.49
154 - SPRING BDE-247998-00.A11 247998-00	£4.58	£5.49
155 - NO LONGER AVAILABLE BDE-000000-00.A121233 000000-00	-
156 - WASHER BDE-247869-00.A9 247869-00	£1.42	£1.70
157 - NUT BDE-003822700.A12 003822700	£3.60	£4.32
159 - NUT BDE-248077-00.A8 248077-00	£1.78	£2.13
162 - NO LONGER AVAILABLE BDE-000000-00.A121234 000000-00	-
165 - NO LONGER AVAILABLE BDE-000000-00.A121235 000000-00	-
166 - SCREW.TEMP BDE-248312-00.A10 248312-00	£1.42	£1.70
167 - NUT BDE-248313-00.A1 248313-00	£1.42	£1.70
168 - RIVET BDE-248082-00.A10 248082-00	£1.78	£2.13
169 - NO LONGER AVAILABLE BDE-000000-00.A121236 000000-00	-
171 - SCREW BDE-249424-00.A23 249424-00	£1.42	£1.70
173 - CLAMP REPAIR TOOLING BDE-559574-99.A2 559574-99	£24.39	£29.27
174 - S.T.LOCKING TOOL REPAIR TOOLING BDE-559575-99.A9 559575-99	£71.44	£85.73
175 - S.T.WRENCH REPAIR TOOLING BDE-559573-99.A9 559573-99	£71.44	£85.73
