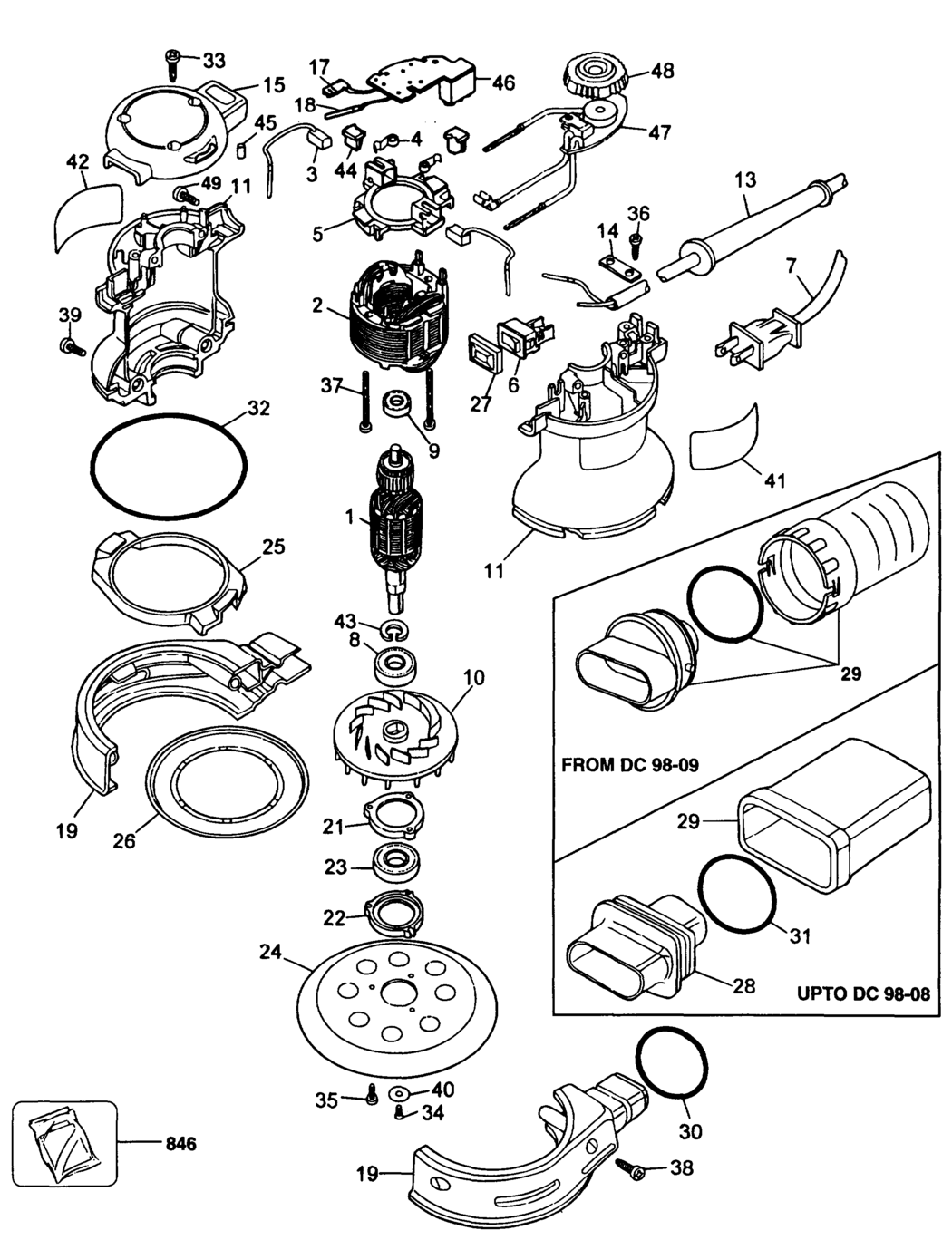

1 - ARMATURE 230V
BDE-578863-04.A3
578863-04
|
-
|
|
|
|
2 - FIELD 230V
BDE-807254-10.A3
807254-10
|
£18.42
|
£22.10
|
|
|
3 - BRUSH 230V
BDE-445861-13.A12
445861-13
|
£4.69
|
£5.63
|
|
|
4 - BRUSH SPRING
BDE-445860-00.A31
445860-00
|
£1.50
|
£1.80
|
|
|
5 - RING
BDE-449899-05.A12
449899-05
|
£9.41
|
£11.29
|
|
|
6 - SWITCH
BDE-656494-00.A3
656494-00
|
£3.80
|
£4.56
|
|
|
7 - NO LONGER AVAILABLE GB
BDE-000000-00.A50117
000000-00
|
-
|
|
|
|
8 - BEARING
BDE-330003-17.A29
330003-17
|
£3.80
|
£4.56
|
|
|
9 - BEARING
BDE-605040-05.A8
605040-05
|
£1.82
|
£2.19
|
|
|
10 - FAN
BDE-151548-01.A0
151548-01
|
-
|
|
|
|
11 - NO LONGER AVAILABLE
BDE-000000-00.A50118
000000-00
|
-
|
|
|
|
13 - CORD PROTECTOR
BDE-N542553.A90
N542553
|
£3.80
|
£4.56
|
|
|
14 - CORD CLAMP
BDE-380414-00.A39
380414-00
|
-
|
|
|
|
15 - NO LONGER AVAILABLE CAP 'B'
BDE-000000-00.A50119
000000-00
|
-
|
|
|
|
17 - TERMINAL
BDE-445964-00.A2
445964-00
|
£1.50
|
£1.80
|
|
|
18 - CONNECTOR
BDE-825209-00.A2
825209-00
|
£1.50
|
£1.80
|
|
|
19 - NO LONGER AVAILABLE
BDE-000000-00.A50120
000000-00
|
-
|
|
|
|
21 - REPAIR KIT
BDE-286181-00.A1
286181-00
|
£3.80
|
£4.56
|
|
|
22 - RETAINER
BDE-603637-00.A8
603637-00
|
£3.80
|
£4.56
|
|
|
23 - BEARING
BDE-868768-07.A16
868768-07
|
£7.85
|
£9.42
|
|
|
24 - PAD
BDE-151281-08.A8
151281-08
|
£16.03
|
£19.24
|
|
|
25 - NO LONGER AVAILABLE
BDE-000000-00.A50121
000000-00
|
-
|
|
|
|
26 - BRAKE
BDE-151553-01.A6
151553-01
|
-
|
|
|
|
27 - COVER
BDE-144983-07.A2
144983-07
|
£1.50
|
£1.80
|
|
|
28 - NO LONGER AVAILABLE UPTO DC 98-08
BDE-000000-00.A50122
000000-00
|
-
|
|
|
|
29 - NO LONGER AVAILABLE
BDE-000000-00.A50123
000000-00
|
-
|
|
|
|
30 - O RING
BDE-56194-00.A10
56194-00
|
£1.50
|
£1.80
|
|
|
31 - NO LONGER AVAILABLE UPTO DC 98-08
BDE-000000-00.A50124
000000-00
|
-
|
|
|
|
32 - O RING
BDE-700871-00.A6
700871-00
|
-
|
|
|
|
33 - SCREW.TEMP NOT CAP 'B'
BDE-330019-11.A83
330019-11
|
£1.50
|
£1.80
|
|
|
33 - SCREW CAP 'B'
BDE-330019-13.A255
330019-13
|
£1.50
|
£1.80
|
|
|
34 - SCREW
BDE-098012-11.A0
098012-11
|
£1.50
|
£1.80
|
|
|
35 - REPAIR KIT
BDE-286181-00.A0
286181-00
|
£3.80
|
£4.56
|
|
|
36 - SCREW
BDE-330019-02.A132
330019-02
|
£1.50
|
£1.80
|
|
|
37 - SCREW
BDE-330019-08.A20
330019-08
|
£1.50
|
£1.80
|
|
|
38 - SCREW
BDE-330019-03.A99
330019-03
|
£1.50
|
£1.80
|
|
|
39 - SCREW
BDE-330019-13.A256
330019-13
|
£1.50
|
£1.80
|
|
|
40 - WASHER SPECIAL
BDE-151652-00.A0
151652-00
|
£1.50
|
£1.80
|
|
|
41 - NO LONGER AVAILABLE
BDE-000000-00.A50125
000000-00
|
-
|
|
|
|
43 - CIRCLIP
BDE-151669-00.A10
151669-00
|
£1.50
|
£1.80
|
|
|
44 - NUT
BDE-144956-00.A2
144956-00
|
£1.42
|
£1.70
|
|
|
45 - PLUG
BDE-67356-00.A1
67356-00
|
£1.42
|
£1.70
|
|
|
46 - PCB
BDE-145283-03.A2
145283-03
|
£57.22
|
£68.66
|
|
|
47 - NO LONGER AVAILABLE
BDE-000000-00.A50126
000000-00
|
-
|
|
|
|
48 - NO LONGER AVAILABLE
BDE-000000-00.A50127
000000-00
|
-
|
|
|
|
846 - NO LONGER AVAILABLE
BDE-000000-00.A50128
000000-00
|
-
|
|
|
