Elu RKS1253 Type 1 Radial Arm Saw Spare Parts

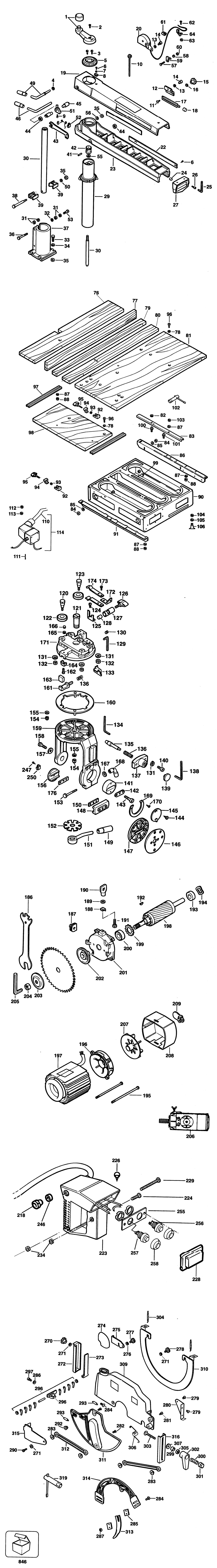

An exploded drawing and spare parts listing for the Elu RKS1253 Type 1 Radial Arm Saw

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE BDE-000000-00.A16823 000000-00	-
2 - SCREW BDE-934401-00.A42 934401-00	£1.50	£1.80
3 - SCREW BDE-860093-06.A94 860093-06	£1.50	£1.80
4 - WASHER SPACER BDE-860073-06.A28 860073-06	£1.50	£1.80
5 - CAP BDE-860784-00.A44 860784-00	£7.85	£9.42
6 - SCREW BDE-860531-00.A42 860531-00	£1.50	£1.80
7 - WASHER BDE-860073-00.A96 860073-00	£1.50	£1.80
8 - POINTER BDE-860237-00.A39 860237-00	£3.80	£4.56
9 - SCREW BDE-860085-06.A19 860085-06	£1.42	£1.70
10 - SPRING BDE-863723-00.A10 863723-00	-
11 - SCREW BDE-860301-00.A88 860301-00	£1.50	£1.80
12 - SUPPORT BDE-860787-90.A43 860787-90	£5.72	£6.87
13 - WASHER BDE-860074-03.A300 860074-03	£1.50	£1.80
14 - SCREW BDE-860093-07.A4 860093-07	£1.50	£1.80
15 - KNOB BDE-946469-01.A78 946469-01	-
16 - WASHER BDE-720959-00.A137 720959-00	£1.50	£1.80
17 - ARM BDE-860852-90.A21 860852-90	-
18 - STOP RUBBER BDE-860786-00.A16 860786-00	£1.50	£1.80
19 - NO LONGER AVAILABLE BDE-000000-00.A16824 000000-00	-
20 - FSO REPAIR KIT BDE-N152003.A6 N152003	£84.42	£101.30
23 - NO LONGER AVAILABLE BDE-000000-00.A16825 000000-00	-
24 - BUMPER BDE-860429-00.A27 860429-00	£1.50	£1.80
25 - HEX KEY 5 MM BDE-930574-00.A22 930574-00	£1.50	£1.80
26 - SCREW.TEMP BDE-860093-05.A6 860093-05	£1.50	£1.80
27 - NO LONGER AVAILABLE BDE-000000-00.A16826 000000-00	-
29 - NO LONGER AVAILABLE BDE-000000-00.A16827 000000-00	-
30 - TUBE ELEVATING SA BDE-860791-00.A11 860791-00	£93.62	£112.35
31 - NUT BDE-860083-04.A200 860083-04	£1.50	£1.80
32 - WASHER M8 BDE-860073-03.A310 860073-03	£1.50	£1.80
33 - SCREW BDE-860085-05.A51 860085-05	£1.82	£2.19
34 - WASHER BDE-860073-04.A53 860073-04	£1.50	£1.80
35 - NUT RH BDE-860083-05.A108 860083-05	£1.50	£1.80
36 - SCREW BDE-860085-02.A11 860085-02	£1.82	£2.19
37 - NO LONGER AVAILABLE BDE-000000-00.A16828 000000-00	-
38 - SCREW BDE-860086-00.A58 860086-00	£3.80	£4.56
39 - SPACER BDE-860065-00.A35 860065-00	£1.82	£2.19
41 - PIN BDE-860096-06.A23 860096-06	£1.50	£1.80
42 - PINION BDE-860831-90.A44 860831-90	£18.91	£22.69
43 - WRENCH BDE-860423-00.A0 860423-00	£4.69	£5.63
44 - NUT BDE-860232-00.A26 860232-00	£3.80	£4.56
45 - SCREW BDE-860231-00.A34 860231-00	£14.57	£17.48
46 - LEVER BDE-864723-01.A24 864723-01	£34.00	£40.80
49 - LEVER BDE-860795-00.A10 860795-00	£18.91	£22.69
50 - WASHER BDE-860074-04.A50 860074-04	£1.50	£1.80
51 - LATCH BDE-864672-01.A21 864672-01	-
52 - BRACKET BDE-860843-02.A59 860843-02	£1.50	£1.80
53 - SCREW BDE-949853-11.A12 949853-11	£37.35	£44.82
55 - WASHER BDE-860226-01.A28 860226-01	£1.50	£1.80
56 - WASHER BDE-860802-90.A37 860802-90	£1.50	£1.80
57 - SCREW BDE-860301-00.A92 860301-00	£1.50	£1.80
58 - WASHER BDE-720959-00.A136 720959-00	£1.50	£1.80
59 - CATCH BDE-860858-00.A9 860858-00	-
60 - NUT BDE-860083-03.A270 860083-03	£1.50	£1.80
61 - CLAMP BDE-860521-00.A19 860521-00	-
62 - SCREW BDE-860090-02.A38 860090-02	-
63 - NUT BDE-860083-01.A51 860083-01	£1.50	£1.80
64 - NO LONGER AVAILABLE BDE-000000-00.A16829 000000-00	-
76 - TABLE BDE-864944-00.A10 864944-00	£33.13	£39.76
77 - GUIDE BDE-864914-00.A6 864914-00	£18.42	£22.10
78 - WASHER M8 BDE-860073-03.A298 860073-03	£1.50	£1.80
80 - NO LONGER AVAILABLE BDE-000000-00.A16830 000000-00	-
81 - TABLE BDE-864943-00.A4 864943-00	£57.22	£68.66
82 - QUICKLOCK BDE-860077-02.A15 860077-02	£1.42	£1.70
83 - BAR BDE-860007-00.A0 860007-00	-
84 - NUT RH BDE-860083-05.A154 860083-05	£1.50	£1.80
85 - WASHER BDE-860074-04.A15 860074-04	£1.50	£1.80
86 - NO LONGER AVAILABLE BDE-000000-00.A49981 000000-00	-
87 - WASHER BDE-860074-03.A417 860074-03	£1.50	£1.80
88 - NUT BDE-860083-04.A93 860083-04	£1.50	£1.80
90 - NO LONGER AVAILABLE BDE-000000-00.A49982 000000-00	-
91 - NO LONGER AVAILABLE BDE-000000-00.A49983 000000-00	-
92 - SLIDER BDE-860069-00.A7 860069-00	-
93 - NUT BDE-860083-03.A381 860083-03	£1.50	£1.80
94 - NO LONGER AVAILABLE BDE-000000-00.A49984 000000-00	-
95 - KNOB BDE-863310-00.A47 863310-00	-
96 - SCREW BDE-949703-01.A24 949703-01	£1.50	£1.80
97 - SUPPORT BRACKET BDE-863130-04.A3 863130-04	£10.85	£13.02
98 - NO LONGER AVAILABLE BDE-000000-00.A49985 000000-00	-
99 - BOLT BDE-860085-00.A14 860085-00	£1.42	£1.70
100 - STUD BDE-760565-01.A14 760565-01	-
101 - NO LONGER AVAILABLE BDE-000000-00.A49986 000000-00	-
102 - SPANNER BOX BDE-869235-00.A76 869235-00	£17.48	£20.97
103 - NUT BDE-860083-15.A87 860083-15	£1.50	£1.80
104 - NUT BDE-860083-04.A94 860083-04	£1.50	£1.80
105 - WASHER M8 BDE-860073-03.A506 860073-03	£1.50	£1.80
106 - FOOT BDE-941614-00.A26 941614-00	£1.50	£1.80
111 - SCREW BDE-949701-03.A5 949701-03	£1.50	£1.80
112 - NUT BDE-860083-02.A56 860083-02	£1.50	£1.80
113 - WASHER BDE-860073-01.A66 860073-01	£1.50	£1.80
120 - SHAFT BDE-760421-00.A8 760421-00	£7.85	£9.42
121 - PIVOT SHAFT BDE-860123-00.A7 860123-00	-
122 - BEARING BDE-860154-00.A9 860154-00	£16.03	£19.24
123 - SHAFT BDE-760417-00.A55 760417-00	£10.85	£13.02
124 - SCREW BDE-949894-06.A61 949894-06	£1.50	£1.80
125 - NO LONGER AVAILABLE BDE-000000-00.A49987 000000-00	-
126 - KNOB BDE-862427-00.A5 862427-00	£1.50	£1.80
127 - CLAMP BDE-860121-00.A47 860121-00	-
128 - NO LONGER AVAILABLE BDE-000000-00.A49988 000000-00	-
129 - KEY BDE-938539-00.A84 938539-00	£1.50	£1.80
130 - SCREW BDE-860088-27.A31 860088-27	£1.50	£1.80
131 - WASHER BDE-860074-03.A419 860074-03	£1.50	£1.80
132 - NUT BDE-860083-08.A55 860083-08	£1.50	£1.80
133 - COVER BDE-860817-01.A2 860817-01	£1.42	£1.70
134 - WRENCH 4 MM BDE-949882-01.A94 949882-01	£1.50	£1.80
135 - PIN BDE-863977-00.A8 863977-00	£14.57	£17.48
136 - SPRING BDE-860112-11.A8 860112-11	£1.50	£1.80
137 - SUPPORT BDE-860835-00.A3 860835-00	£16.03	£19.24
138 - WRENCH 6 MM BDE-860098-04.A34 860098-04	£1.50	£1.80
139 - KNOB BDE-946469-01.A105 946469-01	-
140 - SCREW BDE-860093-00.A88 860093-00	£1.50	£1.80
141 - FRONT TRUNNION BDE-860119-01.A51 860119-01	£38.80	£46.56
142 - PLATE BDE-860120-00.A7 860120-00	£1.82	£2.19
143 - SCREW BDE-860093-18.A37 860093-18	-
144 - SCREW BDE-860531-00.A2 860531-00	£1.50	£1.80
145 - POINTER BDE-862721-01.A53 862721-01	£5.88	£7.06
146 - PLATE BDE-860830-00.A2 860830-00	-
147 - SHIELD BDE-860827-00.A58 860827-00	£14.57	£17.48
148 - PLATE BDE-860828-00.A0 860828-00	-
149 - KNOB BDE-860796-01.A42 860796-01	-
150 - PLATE BDE-860809-00.A0 860809-00	-
151 - NO LONGER AVAILABLE BDE-000000-00.A49989 000000-00	-
152 - NO LONGER AVAILABLE BDE-000000-00.A49990 000000-00	-
153 - SCREW BDE-860086-11.A40 860086-11	£1.50	£1.80
154 - NUT BDE-860092-00.A116 860092-00	£1.50	£1.80
155 - WASHER BDE-720959-00.A38 720959-00	£1.50	£1.80
156 - BACKPLATE BDE-860822-00.A30 860822-00	-
157 - WASHER BDE-941602-00.A123 941602-00	£1.50	£1.80
158 - SCREW BDE-860093-00.A87 860093-00	£1.50	£1.80
159 - YOKE BDE-860823-02.A0 860823-02	-
160 - RING SA BDE-860824-00.A55 860824-00	£55.30	£66.36
161 - CATCH BDE-860818-04.A26 860818-04	-
162 - SCREW BDE-860085-06.A49 860085-06	£1.42	£1.70
163 - NO LONGER AVAILABLE BDE-000000-00.A49991 000000-00	-
164 - CATCH BDE-860816-00.A55 860816-00	£1.42	£1.70
165 - WASHER BDE-860073-01.A68 860073-01	£1.50	£1.80
166 - NUT M5 BDE-860092-03.A43 860092-03	£1.50	£1.80
167 - WASHER BDE-860074-03.A416 860074-03	£1.50	£1.80
168 - CLAMP BDE-860825-00.A1 860825-00	-
169 - POINTER BDE-860829-00.A67 860829-00	£5.88	£7.06
170 - SCREW BDE-860205-06.A1 860205-06	£1.50	£1.80
171 - NO LONGER AVAILABLE BDE-000000-00.A49992 000000-00	-
172 - BRACKET BDE-863726-00.A1 863726-00	£2.26	£2.71
173 - SCREW BDE-860094-03.A263 860094-03	£1.50	£1.80
174 - SPRING BDE-860820-00.A0 860820-00	£1.82	£2.19
176 - PLATE BDE-863010-00.A9 863010-00	-
186 - NO LONGER AVAILABLE BDE-000000-00.A49993 000000-00	-
187 - BUSHING BDE-860447-00.A7 860447-00	£7.85	£9.42
188 - PLATE BDE-860807-00.A0 860807-00	£1.78	£2.13
189 - WASHER M8 BDE-860073-03.A505 860073-03	£1.50	£1.80
190 - NUT BDE-860655-01.A2 860655-01	-
191 - SCREW BDE-860085-19.A66 860085-19	£1.50	£1.80
192 - KEY BDE-860318-01.A23 860318-01	£1.50	£1.80
193 - BEARING BDE-868768-07.A15 868768-07	£7.85	£9.42
194 - RING BDE-860080-02.A27 860080-02	£1.50	£1.80
195 - ROD BDE-860446-00.A40 860446-00	£1.50	£1.80
196 - END CAP BDE-860443-00.A10 860443-00	£4.69	£5.63
197 - NO LONGER AVAILABLE BDE-000000-00.A49994 000000-00	-
198 - NO LONGER AVAILABLE BDE-000000-00.A49995 000000-00	-
199 - RING BDE-860806-00.A6 860806-00	£1.50	£1.80
200 - BEARING BDE-861721-12.A38 861721-12	£7.85	£9.42
201 - HOUSING BDE-860808-00.A33 860808-00	-
202 - INNER FLANGE BDE-863266-00.A10 863266-00	-
203 - OUTER FLANGE BDE-861241-00.A19 861241-00	-
204 - NUT BDE-860126-01.A28 860126-01	-
205 - HEX KEY 8 MM BDE-860098-05.A87 860098-05	£3.30	£3.96
206 - NO LONGER AVAILABLE BDE-000000-00.A49996 000000-00	-
207 - FAN BDE-860444-00.A61 860444-00	£4.69	£5.63
208 - COVER BDE-860445-00.A16 860445-00	£7.18	£8.62
209 - CAP BDE-863112-00.A57 863112-00	£1.50	£1.80
218 - RETAINER BDE-944654-00.A57 944654-00	£1.50	£1.80
223 - HANDLE BDE-862424-00.A0 862424-00	-
224 - SCREW BDE-949701-12.A9 949701-12	£1.50	£1.80
226 - NO LONGER AVAILABLE BDE-000000-00.A49997 000000-00	-
228 - NO LONGER AVAILABLE BDE-000000-00.A49998 000000-00	-
229 - SCREW BDE-860089-39.A36 860089-39	£1.50	£1.80
234 - NUT BDE-860083-02.A55 860083-02	£1.50	£1.80
246 - NUT BDE-944590-00.A69 944590-00	£1.50	£1.80
247 - SCREW BDE-860094-03.A264 860094-03	£1.50	£1.80
250 - BRACKET BDE-860843-02.A78 860843-02	£1.50	£1.80
255 - NO LONGER AVAILABLE BDE-000000-00.A49999 000000-00	-
256 - BUTTON STOP BDE-863124-16.A22 863124-16	-
257 - BUTTON START BDE-863124-17.A5 863124-17	-
258 - COVER BDE-942415-00.A2 942415-00	£4.58	£5.49
270 - KNOB BDE-946469-01.A104 946469-01	-
271 - WASHER BDE-860075-00.A172 860075-00	£1.50	£1.80
272 - SUPPORT BDE-863709-00.A6 863709-00	-
273 - PROTECTOR BDE-863703-00.A57 863703-00	-
274 - TUBE EXTRACTION BDE-864095-00.A54 864095-00	£7.85	£9.42
275 - SQUARE BDE-863708-00.A63 863708-00	£10.85	£13.02
276 - WASHER BDE-860073-01.A67 860073-01	£1.50	£1.80
277 - KNOB BDE-861842-01.A56 861842-01	£1.50	£1.80
279 - SCREW BDE-760273-00.A16 760273-00	£1.50	£1.80
280 - BRACKET BDE-863707-01.A6 863707-01	£9.41	£11.29
281 - SCREW BDE-760998-00.A71 760998-00	£1.50	£1.80
282 - SCREW BDE-249412-20.A103 249412-20	£1.50	£1.80
283 - WASHER BDE-864053-00.A46 864053-00	£3.80	£4.56
284 - SCREW BDE-860301-00.A43 860301-00	£1.50	£1.80
285 - SHIM BDE-864086-00.A15 864086-00	£3.70	£4.44
286 - WASHER BDE-860074-02.A32 860074-02	£1.50	£1.80
287 - NUT BDE-860083-03.A382 860083-03	£1.50	£1.80
290 - SCREW BDE-941518-00.A82 941518-00	£1.50	£1.80
292 - BUSH BDE-863705-00.A10 863705-00	£1.82	£2.19
293 - ROLLER BDE-864054-00.A28 864054-00	£1.82	£2.19
297 - SCREW BDE-760219-00.A51 760219-00	£1.50	£1.80
299 - SPACER BDE-863599-02.A22 863599-02	£1.50	£1.80
300 - SPRING BDE-760483-00.A9 760483-00	£1.50	£1.80
301 - CAP BDE-863073-00.A14 863073-00	£4.69	£5.63
302 - LEVER BDE-863320-00.A22 863320-00	£5.88	£7.06
303 - SCREW BDE-949891-03.A30 949891-03	£1.50	£1.80
304 - SPRING BDE-861221-00.A17 861221-00	£2.78	£3.34
305 - NUT BDE-860083-15.A88 860083-15	£1.50	£1.80
306 - SPRING BDE-861239-00.A18 861239-00	£5.88	£7.06
307 - WASHER M8 BDE-860073-03.A509 860073-03	£1.50	£1.80
309 - NO LONGER AVAILABLE BDE-000000-00.A50000 000000-00	-
310 - PROTECTOR BDE-863706-01.A24 863706-01	£10.85	£13.02
311 - GUARD BDE-862417-00.A5 862417-00	£10.85	£13.02
312 - LEVER BDE-862084-01.A0 862084-01	-
313 - RIVING KNIFE BDE-863269-00.A4 863269-00	-
314 - BRACKET BDE-862083-00.A29 862083-00	-
315 - BRACKET BDE-863775-01.A0 863775-01	-
316 - PROTECTOR BDE-863434-00.A15 863434-00	-
846 - GUARD SA BDE-869322-00.A16 869322-00	-

Attribute Name	Value
Brand	Elu

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Elu RKS1253 Type 1 Radial Arm Saw Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)
