Elu RAS1751 Type 2 Radial Arm Saw Spare Parts

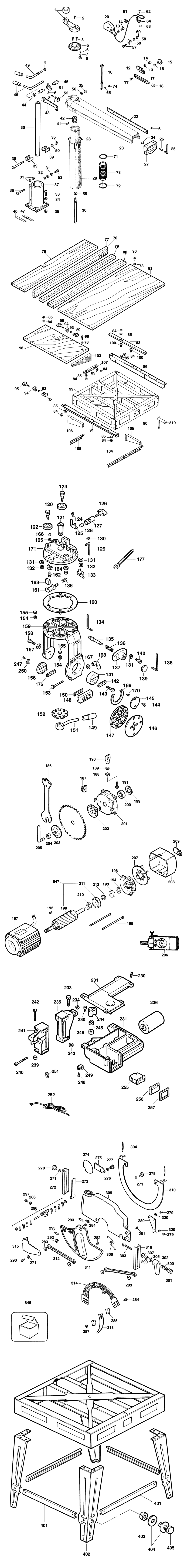

An exploded drawing and spare parts listing for the Elu RAS1751 Type 2 Radial Arm Saw

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE BDE-000000-00.A49903 000000-00	-
2 - SCREW BDE-934401-00.A48 934401-00	£1.50	£1.80
3 - SCREW BDE-860093-06.A48 860093-06	£1.50	£1.80
4 - WASHER BDE-860074-04.A21 860074-04	£1.50	£1.80
5 - CAP BDE-860784-00.A36 860784-00	£7.85	£9.42
6 - SCREW BDE-860531-00.A3 860531-00	£1.50	£1.80
7 - WASHER BDE-860073-00.A162 860073-00	£1.50	£1.80
8 - POINTER BDE-860237-00.A65 860237-00	£3.80	£4.56
9 - SCREW BDE-860085-06.A52 860085-06	£1.42	£1.70
10 - SUPPORT BDE-863912-00.A54 863912-00	£7.18	£8.62
11 - SCREW BDE-860301-00.A29 860301-00	£1.50	£1.80
12 - SUPPORT BDE-860787-90.A34 860787-90	£5.72	£6.87
13 - WASHER BDE-860074-03.A406 860074-03	£1.50	£1.80
14 - SCREW BDE-860093-14.A15 860093-14	£1.50	£1.80
15 - KNOB BDE-946469-01.A90 946469-01	-
16 - WASHER BDE-720959-00.A59 720959-00	£1.50	£1.80
17 - ARM BDE-860852-90.A27 860852-90	-
18 - STOP RUBBER BDE-860786-00.A28 860786-00	£1.50	£1.80
20 - FSO REPAIR KIT BDE-N152003.A13 N152003	£84.42	£101.30
22 - NO LONGER AVAILABLE BDE-000000-00.A49904 000000-00	-
23 - NO LONGER AVAILABLE BDE-000000-00.A49905 000000-00	-
24 - BUMPER BDE-860429-00.A15 860429-00	£1.50	£1.80
25 - HEX KEY 5 MM BDE-930574-00.A46 930574-00	£1.50	£1.80
26 - SCREW.TEMP BDE-860093-05.A39 860093-05	£1.50	£1.80
27 - NO LONGER AVAILABLE BDE-000000-00.A49906 000000-00	-
28 - NO LONGER AVAILABLE BDE-000000-00.A49907 000000-00	-
29 - NO LONGER AVAILABLE BDE-000000-00.A49908 000000-00	-
30 - TUBE ELEVATING SA BDE-860791-00.A22 860791-00	£93.62	£112.35
31 - NUT BDE-860083-04.A108 860083-04	£1.50	£1.80
32 - WASHER M8 BDE-860073-03.A518 860073-03	£1.50	£1.80
33 - SCREW BDE-860085-05.A37 860085-05	£1.82	£2.19
34 - WASHER BDE-860073-04.A18 860073-04	£1.50	£1.80
35 - NUT RH BDE-860083-05.A148 860083-05	£1.50	£1.80
36 - SCREW BDE-860085-02.A36 860085-02	£1.82	£2.19
37 - NO LONGER AVAILABLE BDE-000000-00.A49909 000000-00	-
38 - SCREW BDE-860086-00.A41 860086-00	£3.80	£4.56
39 - SPACER BDE-860065-00.A56 860065-00	£1.82	£2.19
40 - SPACER LH BDE-860273-00.A35 860273-00	£10.85	£13.02
41 - PIN BDE-860096-06.A5 860096-06	£1.50	£1.80
42 - PINION BDE-860831-90.A55 860831-90	£18.91	£22.69
43 - WRENCH BDE-860423-00.A23 860423-00	£4.69	£5.63
44 - NUT BDE-860232-00.A6 860232-00	£3.80	£4.56
45 - SCREW BDE-860231-00.A54 860231-00	£14.57	£17.48
46 - LEVER BDE-864723-01.A31 864723-01	£34.00	£40.80
47 - SPACER RH BDE-860273-02.A4 860273-02	£10.85	£13.02
49 - LEVER BDE-860795-00.A20 860795-00	£18.91	£22.69
50 - WASHER BDE-860074-04.A20 860074-04	£1.50	£1.80
51 - LATCH BDE-861240-00.A3 861240-00	£71.44	£85.73
52 - BRACKET BDE-860843-02.A72 860843-02	£1.50	£1.80
53 - SCREW BDE-949853-11.A23 949853-11	£37.35	£44.82
55 - WASHER BDE-860226-01.A42 860226-01	£1.50	£1.80
56 - WASHER BDE-860802-90.A45 860802-90	£1.50	£1.80
57 - SCREW BDE-860301-00.A28 860301-00	£1.50	£1.80
58 - WASHER BDE-720959-00.A60 720959-00	£1.50	£1.80
59 - CATCH BDE-860858-00.A3 860858-00	-
60 - NUT BDE-860083-03.A365 860083-03	£1.50	£1.80
61 - CLAMP BDE-860521-00.A30 860521-00	-
62 - SCREW BDE-860090-02.A31 860090-02	-
63 - NUT BDE-860083-01.A31 860083-01	£1.50	£1.80
64 - NO LONGER AVAILABLE BDE-000000-00.A82366 000000-00	-
65 - WASHER BDE-860074-01.A17 860074-01	£1.50	£1.80
70 - NO LONGER AVAILABLE GB BDE-000000-00.A82367 000000-00	-
71 - CLIP BDE-949700-06.A19 949700-06	£7.18	£8.62
72 - STRAP BDE-949700-07.A13 949700-07	£9.41	£11.29
73 - PROTECTOR BDE-863324-00.A4 863324-00	£25.70	£30.84
74 - SCREW BDE-860238-03.A0 860238-03	£1.50	£1.80
76 - NO LONGER AVAILABLE BDE-000000-00.A82368 000000-00	-
77 - NO LONGER AVAILABLE BDE-000000-00.A82369 000000-00	-
78 - WASHER M8 BDE-860073-03.A40 860073-03	£1.50	£1.80
79 - NO LONGER AVAILABLE BDE-000000-00.A82370 000000-00	-
80 - NO LONGER AVAILABLE BDE-000000-00.A82371 000000-00	-
81 - NO LONGER AVAILABLE BDE-000000-00.A82372 000000-00	-
83 - NO LONGER AVAILABLE BDE-000000-00.A82373 000000-00	-
84 - NUT BDE-860083-04.A328 860083-04	£1.50	£1.80
85 - WASHER BDE-860074-03.A54 860074-03	£1.50	£1.80
86 - BRACKET BDE-860221-00.A3 860221-00	-
90 - NO LONGER AVAILABLE BDE-000000-00.A82374 000000-00	-
91 - SUPPORT LH BDE-860222-00.A31 860222-00	£14.57	£17.48
92 - SLIDER BDE-860069-00.A42 860069-00	-
93 - NUT BDE-860083-03.A141 860083-03	£1.50	£1.80
94 - NO LONGER AVAILABLE BDE-000000-00.A82375 000000-00	-
95 - KNOB BDE-863310-00.A10 863310-00	-
96 - SCREW BDE-949703-01.A12 949703-01	£1.50	£1.80
98 - NO LONGER AVAILABLE BDE-000000-00.A82381 000000-00	-
99 - SCREW BDE-860085-04.A79 860085-04	£1.50	£1.80
100 - SCREW BDE-860010-00.A9 860010-00	-
103 - BRACKET LH BDE-861238-02.A20 861238-02	£16.03	£19.24
104 - NO LONGER AVAILABLE BDE-000000-00.A82376 000000-00	-
105 - NO LONGER AVAILABLE BDE-000000-00.A82377 000000-00	-
106 - NO LONGER AVAILABLE BDE-000000-00.A82378 000000-00	-
107 - NO LONGER AVAILABLE BDE-000000-00.A82379 000000-00	-
108 - NO LONGER AVAILABLE BDE-000000-00.A82380 000000-00	-
120 - SHAFT BDE-760421-00.A51 760421-00	£7.85	£9.42
121 - PIVOT SHAFT BDE-860123-00.A34 860123-00	-
122 - BEARING BDE-860154-00.A35 860154-00	£16.03	£19.24
123 - SHAFT BDE-760417-00.A12 760417-00	£10.85	£13.02
124 - SCREW BDE-949894-06.A10 949894-06	£1.50	£1.80
125 - NO LONGER AVAILABLE BDE-000000-00.A82382 000000-00	-
126 - KNOB BDE-862427-00.A42 862427-00	£1.50	£1.80
127 - CLAMP BDE-860121-00.A22 860121-00	-
128 - NO LONGER AVAILABLE BDE-000000-00.A82383 000000-00	-
129 - KEY BDE-938539-00.A32 938539-00	£1.50	£1.80
130 - SCREW BDE-860088-27.A1 860088-27	£1.50	£1.80
131 - WASHER BDE-860074-03.A55 860074-03	£1.50	£1.80
132 - NUT BDE-860083-08.A22 860083-08	£1.50	£1.80
133 - COVER BDE-860817-01.A51 860817-01	£1.42	£1.70
134 - WRENCH 4 MM BDE-949882-01.A9 949882-01	£1.50	£1.80
135 - PIN BDE-863977-00.A41 863977-00	£14.57	£17.48
136 - SPRING BDE-860112-11.A55 860112-11	£1.50	£1.80
137 - SUPPORT BDE-860835-00.A61 860835-00	£16.03	£19.24
138 - WRENCH 6 MM BDE-860098-04.A118 860098-04	£1.50	£1.80
139 - KNOB BDE-946469-01.A11 946469-01	-
140 - SCREW BDE-860093-00.A191 860093-00	£1.50	£1.80
141 - FRONT TRUNNION BDE-860119-01.A23 860119-01	£38.80	£46.56
142 - PLATE BDE-860120-00.A37 860120-00	£1.82	£2.19
143 - SCREW BDE-860093-18.A15 860093-18	-
144 - SCREW BDE-860094-03.A51 860094-03	£1.50	£1.80
145 - POINTER BDE-862721-01.A6 862721-01	£5.88	£7.06
146 - PLATE BDE-860830-00.A46 860830-00	-
147 - SHIELD BDE-860827-00.A10 860827-00	£14.57	£17.48
148 - PLATE BDE-860828-00.A26 860828-00	-
149 - KNOB BDE-860796-01.A21 860796-01	-
150 - PLATE BDE-860809-00.A28 860809-00	-
151 - NO LONGER AVAILABLE BDE-000000-00.A82384 000000-00	-
152 - NO LONGER AVAILABLE BDE-000000-00.A82385 000000-00	-
153 - SCREW BDE-860086-11.A8 860086-11	£1.50	£1.80
154 - NUT BDE-860092-00.A72 860092-00	£1.50	£1.80
155 - WASHER BDE-720959-00.A211 720959-00	£1.50	£1.80
156 - BACKPLATE BDE-860822-00.A6 860822-00	-
157 - WASHER BDE-941602-00.A72 941602-00	£1.50	£1.80
158 - SCREW BDE-860093-00.A190 860093-00	£1.50	£1.80
159 - YOKE BDE-860823-02.A32 860823-02	-
160 - RING SA BDE-860824-00.A11 860824-00	£55.30	£66.36
161 - CATCH BDE-860818-04.A2 860818-04	-
162 - SCREW BDE-860085-06.A80 860085-06	£1.42	£1.70
163 - NO LONGER AVAILABLE BDE-000000-00.A82386 000000-00	-
164 - CATCH BDE-860816-00.A3 860816-00	£1.42	£1.70
165 - WASHER BDE-860073-01.A303 860073-01	£1.50	£1.80
166 - NUT M5 BDE-860092-03.A77 860092-03	£1.50	£1.80
167 - WASHER BDE-860074-03.A53 860074-03	£1.50	£1.80
168 - CLAMP BDE-860825-00.A47 860825-00	-
169 - POINTER BDE-860829-00.A8 860829-00	£5.88	£7.06
170 - SCREW BDE-860205-06.A46 860205-06	£1.50	£1.80
171 - NO LONGER AVAILABLE BDE-000000-00.A82387 000000-00	-
176 - PLATE BDE-863010-00.A22 863010-00	-
177 - WRENCH GB BDE-949751-01.A12 949751-01	-
186 - NO LONGER AVAILABLE GB BDE-000000-00.A82388 000000-00	-
187 - BUSHING BDE-860447-00.A46 860447-00	£7.85	£9.42
188 - PLATE BDE-860807-00.A32 860807-00	£1.78	£2.13
189 - WASHER M8 BDE-860073-03.A35 860073-03	£1.50	£1.80
190 - NUT WING BDE-860143-00.A18 860143-00	-
191 - SCREW BDE-860085-19.A31 860085-19	£1.50	£1.80
192 - KEY BDE-860318-01.A14 860318-01	£1.50	£1.80
193 - BEARING BDE-868768-07.A166 868768-07	£7.85	£9.42
194 - RING BDE-860080-02.A133 860080-02	£1.50	£1.80
195 - ROD BDE-860446-00.A18 860446-00	£1.50	£1.80
196 - HOUSING SA BDE-861345-00.A19 861345-00	£17.48	£20.97
197 - STATOR BDE-868413-00.A2 868413-00	£293.97	£352.76
198 - NO LONGER AVAILABLE BDE-000000-00.A82389 000000-00	-
199 - RING BDE-860806-00.A33 860806-00	£1.50	£1.80
200 - BEARING BDE-861721-12.A10 861721-12	£7.85	£9.42
201 - HOUSING BDE-860808-00.A3 860808-00	-
202 - INNER FLANGE BDE-863266-00.A19 863266-00	-
203 - OUTER FLANGE BDE-861241-00.A4 861241-00	-
204 - NUT BDE-860126-01.A9 860126-01	-
205 - HEX KEY 8 MM BDE-860098-05.A49 860098-05	£3.30	£3.96
206 - MOTOR 1 PH BDE-868407-00.A7 868407-00	-
207 - FAN BDE-860444-00.A17 860444-00	£4.69	£5.63
208 - COVER BDE-860445-00.A66 860445-00	£7.18	£8.62
209 - CAP BDE-863112-00.A24 863112-00	£1.50	£1.80
210 - SPRING BDE-861338-00.A23 861338-00	£1.50	£1.80
211 - BRAKE AFTER WEEK X-97 BDE-861336-02.A22 861336-02	£9.41	£11.29
212 - CIRCLIP BDE-861349-00.A20 861349-00	£1.50	£1.80
230 - SCREW BDE-930076-00.A31 930076-00	£1.50	£1.80
231 - HANDLE SA BDE-868649-00.A3 868649-00	£19.90	£23.88
233 - SCREW BDE-860093-00.A192 860093-00	£1.50	£1.80
234 - NUT BDE-860083-02.A211 860083-02	£1.50	£1.80
235 - HANDLE RH BDE-863318-00.A18 863318-00	-
236 - CAPACITOR BDE-949772-28.A2 949772-28	-
239 - NUT BDE-860083-03.A139 860083-03	£1.50	£1.80
240 - SCREW BDE-949886-10.A13 949886-10	£1.78	£2.13
241 - HANDLE LH BDE-863319-00.A2 863319-00	-
242 - SCREW BDE-860093-20.A2 860093-20	£1.50	£1.80
243 - NUT BDE-860083-04.A330 860083-04	£1.50	£1.80
244 - NO LONGER AVAILABLE BDE-000000-00.A82390 000000-00	-
245 - BLOCK BDE-863111-00.A15 863111-00	-
246 - NUT BDE-944590-00.A8 944590-00	£1.50	£1.80
247 - SCREW BDE-860094-03.A50 860094-03	£1.50	£1.80
248 - SCREW BDE-860084-20.A41 860084-20	£1.50	£1.80
249 - CLAMP BDE-860843-01.A50 860843-01	£1.50	£1.80
250 - BRACKET BDE-860843-02.A10 860843-02	£1.50	£1.80
251 - NO LONGER AVAILABLE BDE-000000-00.A82391 000000-00	-
252 - CORDSET (M/PLUG) GB GB BDE-868551-01.A21 868551-01	£24.39	£29.27
255 - SWITCH SA BDE-861385-04.A16 861385-04	£80.98	£97.18
256 - PLATE BDE-863198-00.A12 863198-00	-
257 - CAP BDE-863849-00.A5 863849-00	-
270 - KNOB BDE-946469-01.A10 946469-01	-
271 - WASHER BDE-860075-00.A19 860075-00	£1.50	£1.80
272 - SUPPORT BDE-863709-00.A37 863709-00	-
273 - PROTECTOR BDE-863703-00.A28 863703-00	-
274 - TUBE EXTRACTION BDE-864095-00.A5 864095-00	£7.85	£9.42
275 - SQUARE BDE-863708-00.A30 863708-00	£10.85	£13.02
276 - WASHER BDE-860074-01.A21 860074-01	£1.50	£1.80
277 - KNOB BDE-861842-01.A25 861842-01	£1.50	£1.80
279 - SCREW BDE-760273-00.A61 760273-00	£1.50	£1.80
280 - BRACKET BDE-863707-01.A42 863707-01	£9.41	£11.29
281 - SCREW BDE-760998-00.A14 760998-00	£1.50	£1.80
282 - SCREW BDE-249412-20.A53 249412-20	£1.50	£1.80
283 - WASHER BDE-864053-00.A12 864053-00	£3.80	£4.56
284 - SCREW BDE-860301-00.A166 860301-00	£1.50	£1.80
285 - SHIM BDE-864086-00.A53 864086-00	£3.70	£4.44
286 - WASHER BDE-860074-02.A196 860074-02	£1.50	£1.80
287 - NUT BDE-860083-03.A140 860083-03	£1.50	£1.80
290 - SCREW BDE-941518-00.A42 941518-00	£1.50	£1.80
292 - BUSH BDE-863705-00.A42 863705-00	£1.82	£2.19
293 - ROLLER BDE-864054-00.A62 864054-00	£1.82	£2.19
296 - KICK BACK SA BDE-864814-01.A2 864814-01	-
297 - SCREW BDE-760219-00.A113 760219-00	£1.50	£1.80
299 - SPACER BDE-863599-02.A57 863599-02	£1.50	£1.80
300 - SPRING BDE-760483-00.A55 760483-00	£1.50	£1.80
301 - CAP BDE-863073-00.A38 863073-00	£4.69	£5.63
302 - LEVER BDE-863320-00.A48 863320-00	£5.88	£7.06
303 - SCREW BDE-949891-03.A36 949891-03	£1.50	£1.80
304 - SPRING BDE-861221-00.A38 861221-00	£2.78	£3.34
305 - NUT BDE-860083-15.A48 860083-15	£1.50	£1.80
306 - SPRING BDE-861239-00.A1 861239-00	£5.88	£7.06
307 - WASHER M8 BDE-860073-03.A38 860073-03	£1.50	£1.80
309 - NO LONGER AVAILABLE BDE-000000-00.A82392 000000-00	-
310 - PROTECTOR BDE-863706-01.A10 863706-01	£10.85	£13.02
311 - GUARD BDE-862417-00.A21 862417-00	£10.85	£13.02
312 - LEVER BDE-862084-01.A28 862084-01	-
313 - NO LONGER AVAILABLE BDE-000000-00.A82393 000000-00	-
314 - BRACKET BDE-862083-00.A1 862083-00	-
315 - BRACKET BDE-863775-01.A27 863775-01	-
316 - PROTECTOR BDE-863434-00.A1 863434-00	-
319 - SPANNER BOX BDE-869235-00.A28 869235-00	£17.48	£20.97
320 - WASHER BDE-860073-01.A301 860073-01	£1.50	£1.80
401 - CROSSBAR LONG BDE-860009-09.A25 860009-09	£25.70	£30.84
402 - LEG BDE-860008-00.A4 860008-00	£58.69	£70.43
403 - NUT BDE-860083-04.A332 860083-04	£1.50	£1.80
404 - WASHER M8 BDE-860073-03.A37 860073-03	£1.50	£1.80
405 - SCREW BDE-860085-04.A77 860085-04	£1.50	£1.80
846 - GUARD SA BDE-869322-00.A2 869322-00	-
847 - ROTOR SA BDE-868424-01.A0 868424-01	-

Attribute Name	Value
Brand	Elu

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Elu RAS1751 Type 2 Radial Arm Saw Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)
