Elu RAS1251 Type 2 CE Radial Arm Saw Spare Parts

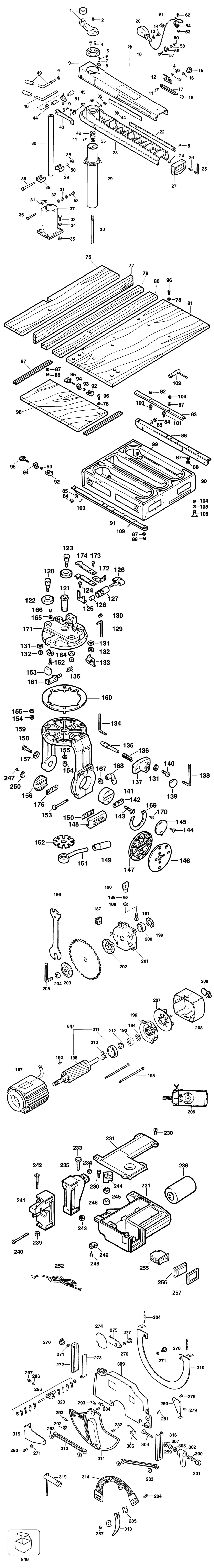

An exploded drawing and spare parts listing for the Elu RAS1251 Type 2 CE Radial Arm Saw

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE BDE-000000-00.A16593 000000-00	-
2 - SCREW BDE-934401-00.A30 934401-00	£1.50	£1.80
3 - SCREW BDE-860093-06.A86 860093-06	£1.50	£1.80
4 - WASHER SPACER BDE-860073-06.A18 860073-06	£1.50	£1.80
5 - CAP BDE-860784-00.A55 860784-00	£7.85	£9.42
6 - SCREW BDE-860531-00.A12 860531-00	£1.50	£1.80
7 - WASHER BDE-860073-00.A167 860073-00	£1.50	£1.80
8 - POINTER BDE-860237-00.A69 860237-00	£3.80	£4.56
9 - SCREW BDE-860085-06.A57 860085-06	£1.42	£1.70
10 - SPRING BDE-863723-00.A2 863723-00	-
11 - SCREW BDE-860301-00.A33 860301-00	£1.50	£1.80
12 - SUPPORT BDE-860787-90.A38 860787-90	£5.72	£6.87
13 - WASHER BDE-860074-03.A392 860074-03	£1.50	£1.80
14 - SCREW BDE-860093-07.A40 860093-07	£1.50	£1.80
15 - KNOB BDE-946469-01.A102 946469-01	-
16 - WASHER BDE-720959-00.A43 720959-00	£1.50	£1.80
17 - ARM BDE-860852-90.A29 860852-90	-
18 - STOP RUBBER BDE-860786-00.A23 860786-00	£1.50	£1.80
19 - NO LONGER AVAILABLE BDE-000000-00.A49685 000000-00	-
20 - FSO REPAIR KIT BDE-N152003.A9 N152003	£84.42	£101.30
22 - SCALE GB BDE-863273-00.A5 863273-00	-
23 - NO LONGER AVAILABLE BDE-000000-00.A49686 000000-00	-
24 - BUMPER BDE-860429-00.A21 860429-00	£1.50	£1.80
25 - HEX KEY 5 MM BDE-930574-00.A44 930574-00	£1.50	£1.80
26 - SCREW.TEMP BDE-860093-05.A41 860093-05	£1.50	£1.80
27 - NO LONGER AVAILABLE BDE-000000-00.A49687 000000-00	-
29 - NO LONGER AVAILABLE BDE-000000-00.A49688 000000-00	-
30 - TUBE ELEVATING SA BDE-860791-00.A19 860791-00	£93.62	£112.35
31 - NUT BDE-860083-04.A111 860083-04	£1.50	£1.80
32 - WASHER M8 BDE-860073-03.A538 860073-03	£1.50	£1.80
33 - SCREW BDE-860085-05.A35 860085-05	£1.82	£2.19
34 - WASHER BDE-860073-04.A15 860073-04	£1.50	£1.80
35 - NUT RH BDE-860083-05.A146 860083-05	£1.50	£1.80
36 - SCREW BDE-860085-02.A33 860085-02	£1.82	£2.19
37 - NO LONGER AVAILABLE BDE-000000-00.A49689 000000-00	-
38 - SCREW BDE-860086-00.A42 860086-00	£3.80	£4.56
39 - SPACER BDE-860065-00.A59 860065-00	£1.82	£2.19
41 - PIN BDE-860096-06.A9 860096-06	£1.50	£1.80
42 - PINION BDE-860831-90.A51 860831-90	£18.91	£22.69
43 - WRENCH BDE-860423-00.A19 860423-00	£4.69	£5.63
44 - NUT BDE-860232-00.A4 860232-00	£3.80	£4.56
45 - SCREW BDE-860231-00.A56 860231-00	£14.57	£17.48
46 - LEVER BDE-864723-01.A28 864723-01	£34.00	£40.80
49 - LEVER BDE-860795-00.A23 860795-00	£18.91	£22.69
50 - WASHER BDE-860074-04.A26 860074-04	£1.50	£1.80
51 - LATCH BDE-864672-01.A14 864672-01	-
52 - BRACKET BDE-860843-02.A68 860843-02	£1.50	£1.80
53 - SCREW BDE-949853-11.A24 949853-11	£37.35	£44.82
55 - WASHER BDE-860226-01.A44 860226-01	£1.50	£1.80
56 - WASHER BDE-860802-90.A48 860802-90	£1.50	£1.80
57 - SCREW BDE-860301-00.A34 860301-00	£1.50	£1.80
58 - WASHER BDE-720959-00.A45 720959-00	£1.50	£1.80
59 - CATCH BDE-860858-00.A1 860858-00	-
60 - NUT BDE-860083-03.A361 860083-03	£1.50	£1.80
61 - CLAMP BDE-860521-00.A26 860521-00	-
62 - SCREW BDE-860090-02.A33 860090-02	-
63 - NUT BDE-860083-01.A66 860083-01	£1.50	£1.80
64 - NO LONGER AVAILABLE BDE-000000-00.A49690 000000-00	-
76 - TABLE BDE-864944-00.A4 864944-00	£33.13	£39.76
77 - GUIDE BDE-864914-00.A0 864914-00	£18.42	£22.10
78 - WASHER M8 BDE-860073-03.A537 860073-03	£1.50	£1.80
79 - NO LONGER AVAILABLE GB BDE-000000-00.A49691 000000-00	-
80 - NO LONGER AVAILABLE BDE-000000-00.A49692 000000-00	-
81 - TABLE BDE-864943-00.A10 864943-00	£57.22	£68.66
82 - QUICKLOCK BDE-860077-02.A17 860077-02	£1.42	£1.70
83 - BAR BDE-860007-00.A2 860007-00	-
84 - NUT RH BDE-860083-05.A147 860083-05	£1.50	£1.80
85 - WASHER BDE-860074-04.A25 860074-04	£1.50	£1.80
86 - NO LONGER AVAILABLE BDE-000000-00.A49695 000000-00	-
87 - WASHER BDE-860074-03.A393 860074-03	£1.50	£1.80
88 - NUT BDE-860083-04.A109 860083-04	£1.50	£1.80
90 - NO LONGER AVAILABLE BDE-000000-00.A49693 000000-00	-
91 - NO LONGER AVAILABLE BDE-000000-00.A49694 000000-00	-
92 - SLIDER BDE-860069-00.A1 860069-00	-
93 - NUT BDE-860083-03.A362 860083-03	£1.50	£1.80
94 - NO LONGER AVAILABLE BDE-000000-00.A49696 000000-00	-
95 - KNOB BDE-863310-00.A40 863310-00	-
96 - SCREW BDE-949703-01.A28 949703-01	£1.50	£1.80
97 - SUPPORT BRACKET BDE-863130-04.A7 863130-04	£10.85	£13.02
98 - NO LONGER AVAILABLE BDE-000000-00.A49697 000000-00	-
99 - BOLT BDE-860085-00.A13 860085-00	£1.42	£1.70
100 - STUD BDE-760565-01.A13 760565-01	-
101 - NO LONGER AVAILABLE BDE-000000-00.A49698 000000-00	-
102 - SPANNER BOX BDE-869235-00.A82 869235-00	£17.48	£20.97
104 - NUT BDE-860083-04.A110 860083-04	£1.50	£1.80
105 - WASHER M8 BDE-860073-03.A536 860073-03	£1.50	£1.80
106 - FOOT BDE-941614-00.A24 941614-00	£1.50	£1.80
120 - SHAFT BDE-760421-00.A6 760421-00	£7.85	£9.42
121 - PIVOT SHAFT BDE-860123-00.A0 860123-00	-
122 - BEARING BDE-860154-00.A6 860154-00	£16.03	£19.24
123 - SHAFT BDE-760417-00.A57 760417-00	£10.85	£13.02
124 - SCREW BDE-949894-06.A55 949894-06	£1.50	£1.80
125 - NO LONGER AVAILABLE BDE-000000-00.A49699 000000-00	-
126 - KNOB BDE-862427-00.A11 862427-00	£1.50	£1.80
127 - CLAMP BDE-860121-00.A54 860121-00	-
128 - NO LONGER AVAILABLE BDE-000000-00.A49700 000000-00	-
129 - KEY BDE-938539-00.A76 938539-00	£1.50	£1.80
130 - SCREW BDE-860088-27.A30 860088-27	£1.50	£1.80
131 - WASHER BDE-860074-03.A394 860074-03	£1.50	£1.80
132 - NUT BDE-860083-08.A53 860083-08	£1.50	£1.80
133 - COVER BDE-860817-01.A7 860817-01	£1.42	£1.70
134 - WRENCH 4 MM BDE-949882-01.A86 949882-01	£1.50	£1.80
135 - PIN BDE-863977-00.A6 863977-00	£14.57	£17.48
136 - SPRING BDE-860112-11.A0 860112-11	£1.50	£1.80
137 - SUPPORT BDE-860835-00.A11 860835-00	£16.03	£19.24
138 - WRENCH 6 MM BDE-860098-04.A26 860098-04	£1.50	£1.80
139 - KNOB BDE-946469-01.A101 946469-01	-
140 - SCREW BDE-860093-00.A92 860093-00	£1.50	£1.80
141 - FRONT TRUNNION BDE-860119-01.A58 860119-01	£38.80	£46.56
142 - PLATE BDE-860120-00.A0 860120-00	£1.82	£2.19
143 - SCREW BDE-860093-18.A41 860093-18	-
144 - SCREW BDE-860531-00.A11 860531-00	£1.50	£1.80
145 - POINTER BDE-862721-01.A46 862721-01	£5.88	£7.06
146 - PLATE BDE-860830-00.A8 860830-00	-
147 - SHIELD BDE-860827-00.A51 860827-00	£14.57	£17.48
148 - PLATE BDE-860828-00.A5 860828-00	-
149 - KNOB BDE-860796-01.A36 860796-01	-
150 - PLATE BDE-860809-00.A4 860809-00	-
151 - NO LONGER AVAILABLE BDE-000000-00.A49701 000000-00	-
152 - NO LONGER AVAILABLE BDE-000000-00.A49702 000000-00	-
153 - SCREW BDE-860086-11.A34 860086-11	£1.50	£1.80
154 - NUT BDE-860092-00.A118 860092-00	£1.50	£1.80
155 - WASHER BDE-720959-00.A44 720959-00	£1.50	£1.80
156 - BACKPLATE BDE-860822-00.A25 860822-00	-
157 - WASHER BDE-941602-00.A125 941602-00	£1.50	£1.80
158 - SCREW BDE-860093-00.A91 860093-00	£1.50	£1.80
159 - YOKE BDE-860823-02.A7 860823-02	-
160 - RING SA BDE-860824-00.A48 860824-00	£55.30	£66.36
161 - CATCH BDE-860818-04.A21 860818-04	-
162 - SCREW BDE-860085-06.A58 860085-06	£1.42	£1.70
163 - NO LONGER AVAILABLE BDE-000000-00.A49703 000000-00	-
164 - CATCH BDE-860816-00.A50 860816-00	£1.42	£1.70
165 - WASHER BDE-860073-01.A48 860073-01	£1.50	£1.80
166 - NUT M5 BDE-860092-03.A41 860092-03	£1.50	£1.80
167 - WASHER BDE-860074-03.A395 860074-03	£1.50	£1.80
168 - CLAMP BDE-860825-00.A8 860825-00	-
169 - POINTER BDE-860829-00.A60 860829-00	£5.88	£7.06
170 - SCREW BDE-860205-06.A4 860205-06	£1.50	£1.80
171 - NO LONGER AVAILABLE BDE-000000-00.A49704 000000-00	-
172 - BRACKET BDE-863726-00.A3 863726-00	£2.26	£2.71
173 - SCREW BDE-860094-03.A275 860094-03	£1.50	£1.80
174 - SPRING BDE-860820-00.A2 860820-00	£1.82	£2.19
176 - PLATE BDE-863010-00.A13 863010-00	-
186 - NO LONGER AVAILABLE BDE-000000-00.A49705 000000-00	-
187 - BUSHING BDE-860447-00.A12 860447-00	£7.85	£9.42
188 - PLATE BDE-860807-00.A4 860807-00	£1.78	£2.13
189 - WASHER M8 BDE-860073-03.A535 860073-03	£1.50	£1.80
190 - NUT BDE-860655-01.A0 860655-01	-
191 - SCREW BDE-860085-19.A62 860085-19	£1.50	£1.80
192 - KEY BDE-860318-01.A22 860318-01	£1.50	£1.80
193 - BEARING BDE-868768-07.A23 868768-07	£7.85	£9.42
194 - RING BDE-860080-02.A34 860080-02	£1.50	£1.80
195 - ROD BDE-860446-00.A44 860446-00	£1.50	£1.80
196 - HOUSING SA BDE-861345-00.A11 861345-00	£17.48	£20.97
197 - STATOR BDE-868413-00.A8 868413-00	£293.97	£352.76
198 - NO LONGER AVAILABLE BDE-000000-00.A49706 000000-00	-
199 - RING BDE-860806-00.A1 860806-00	£1.50	£1.80
200 - BEARING BDE-861721-12.A44 861721-12	£7.85	£9.42
201 - HOUSING BDE-860808-00.A28 860808-00	-
202 - INNER FLANGE BDE-863266-00.A15 863266-00	-
203 - OUTER FLANGE BDE-861241-00.A18 861241-00	-
204 - NUT BDE-860126-01.A34 860126-01	-
205 - HEX KEY 8 MM BDE-860098-05.A96 860098-05	£3.30	£3.96
206 - MOTOR 1 PH BDE-868407-00.A3 868407-00	-
207 - FAN BDE-860444-00.A66 860444-00	£4.69	£5.63
208 - COVER BDE-860445-00.A11 860445-00	£7.18	£8.62
209 - CAP BDE-863112-00.A53 863112-00	£1.50	£1.80
210 - SPRING BDE-861338-00.A11 861338-00	£1.50	£1.80
211 - BRAKE AFTER WEEK 41-97 BDE-861336-02.A7 861336-02	£9.41	£11.29
212 - CIRCLIP BDE-861349-00.A11 861349-00	£1.50	£1.80
230 - SCREW BDE-930076-00.A52 930076-00	£1.50	£1.80
231 - HANDLE SA BDE-868649-00.A17 868649-00	£19.90	£23.88
233 - SCREW BDE-860093-00.A93 860093-00	£1.50	£1.80
235 - HANDLE RH BDE-863318-00.A10 863318-00	-
236 - CAPACITOR GB BDE-949772-28.A17 949772-28	-
239 - NUT BDE-860083-03.A363 860083-03	£1.50	£1.80
240 - SCREW GB BDE-949886-10.A4 949886-10	£1.78	£2.13
241 - HANDLE LH BDE-863319-00.A10 863319-00	-
242 - SCREW BDE-860093-20.A30 860093-20	£1.50	£1.80
243 - NUT BDE-860083-04.A112 860083-04	£1.50	£1.80
244 - NO LONGER AVAILABLE BDE-000000-00.A49707 000000-00	-
245 - BLOCK BDE-863111-00.A4 863111-00	-
247 - SCREW BDE-860094-03.A277 860094-03	£1.50	£1.80
248 - SCREW BDE-860084-20.A63 860084-20	£1.50	£1.80
249 - BRACKET BDE-860843-02.A66 860843-02	£1.50	£1.80
250 - BRACKET BDE-860843-02.A67 860843-02	£1.50	£1.80
252 - CORDSET (M/PLUG) GB GB BDE-868551-01.A5 868551-01	£24.39	£29.27
255 - SWITCH SA BDE-861385-04.A1 861385-04	£80.98	£97.18
256 - PLATE BDE-863198-00.A3 863198-00	-
257 - CAP BDE-863849-00.A19 863849-00	-
270 - KNOB BDE-946469-01.A97 946469-01	-
271 - WASHER BDE-860075-00.A181 860075-00	£1.50	£1.80
272 - SUPPORT BDE-863709-00.A5 863709-00	-
273 - PROTECTOR BDE-863703-00.A59 863703-00	-
274 - TUBE EXTRACTION BDE-864095-00.A48 864095-00	£7.85	£9.42
275 - SQUARE BDE-863708-00.A64 863708-00	£10.85	£13.02
276 - WASHER BDE-860073-01.A47 860073-01	£1.50	£1.80
277 - KNOB BDE-861842-01.A49 861842-01	£1.50	£1.80
279 - SCREW BDE-760273-00.A15 760273-00	£1.50	£1.80
280 - BRACKET BDE-863707-01.A5 863707-01	£9.41	£11.29
281 - SCREW BDE-760998-00.A64 760998-00	£1.50	£1.80
282 - SCREW BDE-249412-20.A106 249412-20	£1.50	£1.80
283 - WASHER BDE-864053-00.A53 864053-00	£3.80	£4.56
284 - SCREW BDE-860301-00.A37 860301-00	£1.50	£1.80
285 - SHIM BDE-864086-00.A21 864086-00	£3.70	£4.44
286 - WASHER BDE-860074-02.A38 860074-02	£1.50	£1.80
287 - NUT BDE-860083-03.A360 860083-03	£1.50	£1.80
290 - SCREW BDE-941518-00.A84 941518-00	£1.50	£1.80
292 - BUSH BDE-863705-00.A8 863705-00	£1.82	£2.19
293 - ROLLER BDE-864054-00.A21 864054-00	£1.82	£2.19
296 - KICK BACK SA BDE-864814-01.A26 864814-01	-
297 - SCREW BDE-760219-00.A52 760219-00	£1.50	£1.80
299 - SPACER BDE-863599-02.A28 863599-02	£1.50	£1.80
300 - SPRING BDE-760483-00.A10 760483-00	£1.50	£1.80
301 - CAP BDE-863073-00.A8 863073-00	£4.69	£5.63
302 - LEVER BDE-863320-00.A21 863320-00	£5.88	£7.06
303 - SCREW BDE-949891-03.A29 949891-03	£1.50	£1.80
304 - SPRING BDE-861221-00.A22 861221-00	£2.78	£3.34
305 - NUT BDE-860083-15.A80 860083-15	£1.50	£1.80
306 - SPRING BDE-861239-00.A17 861239-00	£5.88	£7.06
307 - WASHER M8 BDE-860073-03.A539 860073-03	£1.50	£1.80
309 - NO LONGER AVAILABLE BDE-000000-00.A49708 000000-00	-
310 - PROTECTOR BDE-863706-01.A25 863706-01	£10.85	£13.02
311 - GUARD BDE-862417-00.A4 862417-00	£10.85	£13.02
312 - LEVER BDE-862084-01.A1 862084-01	-
313 - RIVING KNIFE BDE-863269-00.A3 863269-00	-
314 - BRACKET BDE-862083-00.A28 862083-00	-
315 - BRACKET BDE-863775-01.A1 863775-01	-
316 - PROTECTOR BDE-863434-00.A20 863434-00	-
319 - SPANNER BOX BDE-760601-00.A0 760601-00	£2.26	£2.71
320 - BRACKET BDE-945632-90.A3 945632-90	-
846 - GUARD SA BDE-869322-00.A13 869322-00	-
847 - ROTOR SA BDE-868424-01.A4 868424-01	-

Attribute Name	Value
Brand	Elu

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Elu RAS1251 Type 2 CE Radial Arm Saw Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)
