Elu RAS1251 Type 1 CE Radial Arm Saw Spare Parts

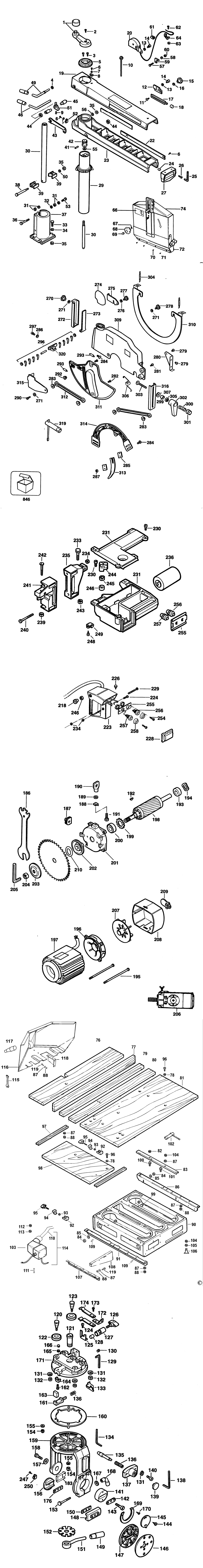

An exploded drawing and spare parts listing for the Elu RAS1251 Type 1 CE Radial Arm Saw

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE BDE-000000-00.A16562 000000-00	-
2 - SCREW BDE-934401-00.A31 934401-00	£1.50	£1.80
3 - SCREW BDE-860093-06.A84 860093-06	£1.50	£1.80
4 - WASHER SPACER BDE-860073-06.A16 860073-06	£1.50	£1.80
5 - CAP BDE-860784-00.A54 860784-00	£7.85	£9.42
6 - SCREW BDE-860531-00.A25 860531-00	£1.50	£1.80
7 - WASHER BDE-860073-00.A131 860073-00	£1.50	£1.80
8 - POINTER BDE-860237-00.A46 860237-00	£3.80	£4.56
9 - SCREW BDE-860085-06.A13 860085-06	£1.42	£1.70
10 - SPRING BDE-863723-00.A4 863723-00	-
11 - SCREW BDE-860301-00.A67 860301-00	£1.50	£1.80
12 - SUPPORT BDE-860787-90.A54 860787-90	£5.72	£6.87
13 - WASHER BDE-860074-03.A261 860074-03	£1.50	£1.80
14 - SCREW BDE-860093-07.A15 860093-07	£1.50	£1.80
15 - KNOB BDE-946469-01.A73 946469-01	-
16 - WASHER BDE-720959-00.A107 720959-00	£1.50	£1.80
17 - ARM GB BDE-860852-90.A15 860852-90	-
18 - STOP RUBBER BDE-860786-00.A2 860786-00	£1.50	£1.80
19 - NO LONGER AVAILABLE BDE-000000-00.A16563 000000-00	-
20 - FSO REPAIR KIT BDE-N152003.A2 N152003	£84.42	£101.30
22 - SCALE GB BDE-863273-00.A2 863273-00	-
23 - NO LONGER AVAILABLE BDE-000000-00.A16564 000000-00	-
24 - BUMPER BDE-860429-00.A40 860429-00	£1.50	£1.80
25 - HEX KEY 5 MM BDE-930574-00.A5 930574-00	£1.50	£1.80
26 - SCREW.TEMP BDE-860093-05.A20 860093-05	£1.50	£1.80
27 - NO LONGER AVAILABLE BDE-000000-00.A16565 000000-00	-
29 - NO LONGER AVAILABLE BDE-000000-00.A16566 000000-00	-
30 - TUBE ELEVATING SA BDE-860791-00.A2 860791-00	£93.62	£112.35
31 - NUT BDE-860083-04.A179 860083-04	£1.50	£1.80
32 - WASHER M8 BDE-860073-03.A404 860073-03	£1.50	£1.80
33 - SCREW BDE-860085-05.A54 860085-05	£1.82	£2.19
34 - WASHER BDE-860073-04.A39 860073-04	£1.50	£1.80
35 - NUT RH BDE-860083-05.A113 860083-05	£1.50	£1.80
36 - SCREW BDE-860085-02.A7 860085-02	£1.82	£2.19
37 - NO LONGER AVAILABLE BDE-000000-00.A16567 000000-00	-
38 - SCREW BDE-860086-00.A55 860086-00	£3.80	£4.56
39 - SPACER BDE-860065-00.A44 860065-00	£1.82	£2.19
41 - PIN BDE-860096-06.A20 860096-06	£1.50	£1.80
42 - PINION BDE-860831-90.A33 860831-90	£18.91	£22.69
43 - WRENCH BDE-860423-00.A7 860423-00	£4.69	£5.63
44 - NUT BDE-860232-00.A19 860232-00	£3.80	£4.56
45 - SCREW BDE-860231-00.A41 860231-00	£14.57	£17.48
46 - LEVER BDE-864723-01.A20 864723-01	£34.00	£40.80
49 - LEVER BDE-860795-00.A7 860795-00	£18.91	£22.69
50 - WASHER BDE-860074-04.A68 860074-04	£1.50	£1.80
51 - LATCH BDE-864672-01.A20 864672-01	-
52 - BRACKET BDE-860843-02.A33 860843-02	£1.50	£1.80
53 - SCREW BDE-949853-11.A8 949853-11	£37.35	£44.82
55 - WASHER BDE-860226-01.A33 860226-01	£1.50	£1.80
56 - WASHER BDE-860802-90.A33 860802-90	£1.50	£1.80
57 - SCREW BDE-860301-00.A68 860301-00	£1.50	£1.80
58 - WASHER BDE-720959-00.A106 720959-00	£1.50	£1.80
59 - CATCH BDE-860858-00.A12 860858-00	-
60 - NUT BDE-860083-03.A280 860083-03	£1.50	£1.80
61 - CLAMP BDE-860521-00.A21 860521-00	-
62 - SCREW BDE-860090-02.A43 860090-02	-
63 - NUT BDE-860083-01.A54 860083-01	£1.50	£1.80
64 - NO LONGER AVAILABLE BDE-000000-00.A16568 000000-00	-
76 - TABLE BDE-864944-00.A5 864944-00	£33.13	£39.76
77 - GUIDE GB BDE-864914-00.A1 864914-00	£18.42	£22.10
78 - WASHER M8 BDE-860073-03.A402 860073-03	£1.50	£1.80
79 - NO LONGER AVAILABLE GB BDE-000000-00.A16569 000000-00	-
80 - NO LONGER AVAILABLE GB BDE-000000-00.A16570 000000-00	-
81 - TABLE BDE-864943-00.A9 864943-00	£57.22	£68.66
81 - NO LONGER AVAILABLE BDE-000000-00.A16571 000000-00	-
82 - QUICKLOCK BDE-860077-02.A10 860077-02	£1.42	£1.70
83 - BAR BDE-860007-00.A6 860007-00	-
84 - NUT RH BDE-860083-05.A112 860083-05	£1.50	£1.80
85 - WASHER BDE-860074-04.A67 860074-04	£1.50	£1.80
86 - NO LONGER AVAILABLE BDE-000000-00.A16572 000000-00	-
87 - WASHER BDE-860074-03.A262 860074-03	£1.50	£1.80
88 - NUT BDE-860083-04.A181 860083-04	£1.50	£1.80
90 - NO LONGER AVAILABLE GB BDE-000000-00.A16573 000000-00	-
91 - NO LONGER AVAILABLE GB BDE-000000-00.A16574 000000-00	-
92 - SLIDER BDE-860069-00.A11 860069-00	-
93 - NUT BDE-860083-03.A279 860083-03	£1.50	£1.80
94 - NO LONGER AVAILABLE BDE-000000-00.A16575 000000-00	-
95 - KNOB BDE-863310-00.A58 863310-00	-
96 - SCREW BDE-949703-01.A22 949703-01	£1.50	£1.80
97 - SUPPORT BRACKET GB BDE-863130-04.A12 863130-04	£10.85	£13.02
98 - NO LONGER AVAILABLE GB BDE-000000-00.A16576 000000-00	-
99 - BOLT BDE-860085-00.A4 860085-00	£1.42	£1.70
100 - STUD BDE-760565-01.A6 760565-01	-
101 - NO LONGER AVAILABLE BDE-000000-00.A16577 000000-00	-
102 - SPANNER BOX BDE-869235-00.A50 869235-00	£17.48	£20.97
103 - NO LONGER AVAILABLE BDE-000000-00.A16578 000000-00	-
104 - NUT BDE-860083-04.A180 860083-04	£1.50	£1.80
105 - WASHER M8 BDE-860073-03.A401 860073-03	£1.50	£1.80
106 - FOOT BDE-941614-00.A48 941614-00	£1.50	£1.80
110 - CORDSET (M/PLUG) GB GB BDE-868551-01.A14 868551-01	£24.39	£29.27
111 - SCREW BDE-949701-03.A8 949701-03	£1.50	£1.80
112 - NUT BDE-860083-02.A105 860083-02	£1.50	£1.80
113 - WASHER BDE-860073-01.A116 860073-01	£1.50	£1.80
114 - NO LONGER AVAILABLE GB BDE-000000-00.A16579 000000-00	-
120 - SHAFT BDE-760421-00.A18 760421-00	£7.85	£9.42
121 - PIVOT SHAFT BDE-860123-00.A19 860123-00	-
122 - BEARING BDE-860154-00.A21 860154-00	£16.03	£19.24
123 - SHAFT BDE-760417-00.A45 760417-00	£10.85	£13.02
124 - SCREW GB BDE-949894-06.A75 949894-06	£1.50	£1.80
125 - NO LONGER AVAILABLE GB BDE-000000-00.A16580 000000-00	-
126 - KNOB BDE-862427-00.A29 862427-00	£1.50	£1.80
127 - CLAMP BDE-860121-00.A37 860121-00	-
128 - NO LONGER AVAILABLE BDE-000000-00.A16581 000000-00	-
129 - KEY BDE-938539-00.A54 938539-00	£1.50	£1.80
130 - SCREW GB BDE-860088-27.A47 860088-27	£1.50	£1.80
131 - WASHER BDE-860074-03.A263 860074-03	£1.50	£1.80
132 - NUT BDE-860083-08.A38 860083-08	£1.50	£1.80
133 - COVER BDE-860817-01.A24 860817-01	£1.42	£1.70
134 - WRENCH 4 MM BDE-949882-01.A72 949882-01	£1.50	£1.80
135 - PIN BDE-863977-00.A29 863977-00	£14.57	£17.48
136 - SPRING BDE-860112-11.A30 860112-11	£1.50	£1.80
137 - SUPPORT BDE-860835-00.A34 860835-00	£16.03	£19.24
138 - WRENCH 6 MM BDE-860098-04.A81 860098-04	£1.50	£1.80
139 - KNOB BDE-946469-01.A72 946469-01	-
140 - SCREW BDE-860093-00.A22 860093-00	£1.50	£1.80
141 - FRONT TRUNNION BDE-860119-01.A40 860119-01	£38.80	£46.56
142 - PLATE BDE-860120-00.A20 860120-00	£1.82	£2.19
143 - SCREW BDE-860093-18.A27 860093-18	-
144 - SCREW BDE-860531-00.A26 860531-00	£1.50	£1.80
145 - POINTER BDE-862721-01.A33 862721-01	£5.88	£7.06
146 - PLATE BDE-860830-00.A25 860830-00	-
147 - SHIELD BDE-860827-00.A33 860827-00	£14.57	£17.48
148 - PLATE BDE-860828-00.A15 860828-00	-
149 - KNOB BDE-860796-01.A53 860796-01	-
150 - PLATE BDE-860809-00.A16 860809-00	-
151 - NO LONGER AVAILABLE BDE-000000-00.A16582 000000-00	-
152 - NO LONGER AVAILABLE BDE-000000-00.A16583 000000-00	-
153 - SCREW BDE-860086-11.A47 860086-11	£1.50	£1.80
154 - NUT BDE-860092-00.A160 860092-00	£1.50	£1.80
155 - WASHER BDE-720959-00.A109 720959-00	£1.50	£1.80
156 - BACKPLATE BDE-860822-00.A13 860822-00	-
157 - WASHER BDE-941602-00.A193 941602-00	£1.50	£1.80
158 - SCREW BDE-860093-00.A24 860093-00	£1.50	£1.80
159 - YOKE BDE-860823-02.A22 860823-02	-
160 - RING SA BDE-860824-00.A30 860824-00	£55.30	£66.36
161 - CATCH GB BDE-860818-04.A14 860818-04	-
162 - SCREW BDE-860085-06.A17 860085-06	£1.42	£1.70
163 - NO LONGER AVAILABLE BDE-000000-00.A16584 000000-00	-
164 - CATCH BDE-860816-00.A30 860816-00	£1.42	£1.70
165 - WASHER BDE-860073-01.A115 860073-01	£1.50	£1.80
166 - NUT M5 BDE-860092-03.A13 860092-03	£1.50	£1.80
167 - WASHER BDE-860074-03.A266 860074-03	£1.50	£1.80
168 - CLAMP BDE-860825-00.A28 860825-00	-
169 - POINTER BDE-860829-00.A35 860829-00	£5.88	£7.06
170 - SCREW BDE-860205-06.A36 860205-06	£1.50	£1.80
171 - NO LONGER AVAILABLE BDE-000000-00.A16585 000000-00	-
172 - BRACKET GB BDE-863726-00.A7 863726-00	£2.26	£2.71
173 - SCREW BDE-860094-03.A206 860094-03	£1.50	£1.80
174 - SPRING BDE-860820-00.A8 860820-00	£1.82	£2.19
176 - PLATE GB BDE-863010-00.A3 863010-00	-
186 - NO LONGER AVAILABLE BDE-000000-00.A16586 000000-00	-
187 - BUSHING BDE-860447-00.A21 860447-00	£7.85	£9.42
188 - PLATE BDE-860807-00.A17 860807-00	£1.78	£2.13
189 - WASHER M8 BDE-860073-03.A405 860073-03	£1.50	£1.80
190 - NUT BDE-860655-01.A5 860655-01	-
191 - SCREW BDE-860085-19.A89 860085-19	£1.50	£1.80
192 - KEY BDE-860318-01.A40 860318-01	£1.50	£1.80
193 - BEARING BDE-868768-07.A65 868768-07	£7.85	£9.42
194 - RING BDE-860080-02.A74 860080-02	£1.50	£1.80
195 - ROD BDE-860446-00.A28 860446-00	£1.50	£1.80
196 - END CAP BDE-860443-00.A33 860443-00	£4.69	£5.63
197 - NO LONGER AVAILABLE BDE-000000-00.A16587 000000-00	-
198 - NO LONGER AVAILABLE BDE-000000-00.A16588 000000-00	-
199 - RING BDE-860806-00.A16 860806-00	£1.50	£1.80
200 - BEARING BDE-861721-12.A64 861721-12	£7.85	£9.42
201 - HOUSING BDE-860808-00.A16 860808-00	-
202 - INNER FLANGE GB BDE-863266-00.A4 863266-00	-
203 - OUTER FLANGE BDE-861241-00.A24 861241-00	-
204 - NUT BDE-860126-01.A18 860126-01	-
205 - HEX KEY 8 MM BDE-860098-05.A66 860098-05	£3.30	£3.96
206 - NO LONGER AVAILABLE BDE-000000-00.A16589 000000-00	-
207 - FAN BDE-860444-00.A34 860444-00	£4.69	£5.63
208 - COVER BDE-860445-00.A45 860445-00	£7.18	£8.62
209 - CAP BDE-863112-00.A45 863112-00	£1.50	£1.80
230 - SCREW GB BDE-930076-00.A72 930076-00	£1.50	£1.80
231 - HANDLE SA GB BDE-868649-00.A11 868649-00	£19.90	£23.88
233 - SCREW GB BDE-860093-00.A25 860093-00	£1.50	£1.80
234 - NUT BDE-860083-02.A107 860083-02	£1.50	£1.80
235 - HANDLE RH GB BDE-863318-00.A3 863318-00	-
236 - CAPACITOR GB BDE-949772-28.A11 949772-28	-
239 - NUT GB BDE-860083-03.A272 860083-03	£1.50	£1.80
240 - SCREW GB BDE-949886-10.A9 949886-10	£1.78	£2.13
241 - HANDLE LH GB BDE-863319-00.A17 863319-00	-
242 - SCREW GB BDE-860093-20.A20 860093-20	£1.50	£1.80
243 - NUT GB BDE-860083-04.A187 860083-04	£1.50	£1.80
244 - NO LONGER AVAILABLE GB BDE-000000-00.A16590 000000-00	-
245 - BLOCK GB BDE-863111-00.A7 863111-00	-
246 - NUT BDE-944590-00.A88 944590-00	£1.50	£1.80
247 - SCREW BDE-860094-03.A208 860094-03	£1.50	£1.80
248 - SCREW BDE-860084-20.A110 860084-20	£1.50	£1.80
249 - CLAMP BDE-860843-01.A26 860843-01	£1.50	£1.80
250 - BRACKET BDE-860843-02.A34 860843-02	£1.50	£1.80
255 - NO LONGER AVAILABLE GB BDE-000000-00.A16591 000000-00	-
256 - BUTTON STOP BDE-863124-16.A14 863124-16	-
257 - BUTTON START BDE-863124-17.A13 863124-17	-
270 - KNOB GB BDE-946469-01.A67 946469-01	-
271 - WASHER GB BDE-860075-00.A129 860075-00	£1.50	£1.80
272 - SUPPORT GB BDE-863709-00.A17 863709-00	-
273 - PROTECTOR GB BDE-863703-00.A47 863703-00	-
274 - TUBE EXTRACTION GB BDE-864095-00.A71 864095-00	£7.85	£9.42
275 - SQUARE GB BDE-863708-00.A50 863708-00	£10.85	£13.02
276 - WASHER GB BDE-860073-01.A114 860073-01	£1.50	£1.80
277 - KNOB GB BDE-861842-01.A37 861842-01	£1.50	£1.80
279 - SCREW GB BDE-760273-00.A29 760273-00	£1.50	£1.80
280 - BRACKET GB BDE-863707-01.A21 863707-01	£9.41	£11.29
281 - SCREW GB BDE-760998-00.A126 760998-00	£1.50	£1.80
282 - SCREW GB BDE-249412-20.A75 249412-20	£1.50	£1.80
283 - WASHER GB BDE-864053-00.A60 864053-00	£3.80	£4.56
284 - SCREW GB BDE-860301-00.A66 860301-00	£1.50	£1.80
285 - SHIM GB BDE-864086-00.A2 864086-00	£3.70	£4.44
286 - WASHER GB BDE-860074-02.A102 860074-02	£1.50	£1.80
287 - NUT GB BDE-860083-03.A273 860083-03	£1.50	£1.80
290 - SCREW GB BDE-941518-00.A64 941518-00	£1.50	£1.80
292 - BUSH GB BDE-863705-00.A22 863705-00	£1.82	£2.19
293 - ROLLER GB BDE-864054-00.A14 864054-00	£1.82	£2.19
296 - KICK BACK SA BDE-864814-01.A15 864814-01	-
297 - SCREW GB BDE-760219-00.A24 760219-00	£1.50	£1.80
299 - SPACER GB BDE-863599-02.A6 863599-02	£1.50	£1.80
300 - SPRING GB BDE-760483-00.A30 760483-00	£1.50	£1.80
301 - CAP GB BDE-863073-00.A29 863073-00	£4.69	£5.63
302 - LEVER GB BDE-863320-00.A4 863320-00	£5.88	£7.06
303 - SCREW GB BDE-949891-03.A7 949891-03	£1.50	£1.80
304 - SPRING GB BDE-861221-00.A6 861221-00	£2.78	£3.34
305 - NUT GB BDE-860083-15.A105 860083-15	£1.50	£1.80
306 - SPRING GB BDE-861239-00.A27 861239-00	£5.88	£7.06
307 - WASHER M8 GB BDE-860073-03.A406 860073-03	£1.50	£1.80
309 - NO LONGER AVAILABLE GB BDE-000000-00.A16592 000000-00	-
310 - PROTECTOR GB BDE-863706-01.A18 863706-01	£10.85	£13.02
311 - GUARD GB BDE-862417-00.A12 862417-00	£10.85	£13.02
312 - LEVER BDE-862084-01.A13 862084-01	-
313 - RIVING KNIFE GB BDE-863269-00.A6 863269-00	-
314 - BRACKET GB BDE-862083-00.A16 862083-00	-
315 - BRACKET GB BDE-863775-01.A10 863775-01	-
316 - PROTECTOR GB BDE-863434-00.A11 863434-00	-
320 - BRACKET GB BDE-945632-90.A8 945632-90	-
846 - GUARD SA BDE-869322-00.A12 869322-00	-

Attribute Name	Value
Brand	Elu

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Elu RAS1251 Type 1 CE Radial Arm Saw Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)
