Elu EPT1163 Type 2 Planer Thicknesser Spare Parts

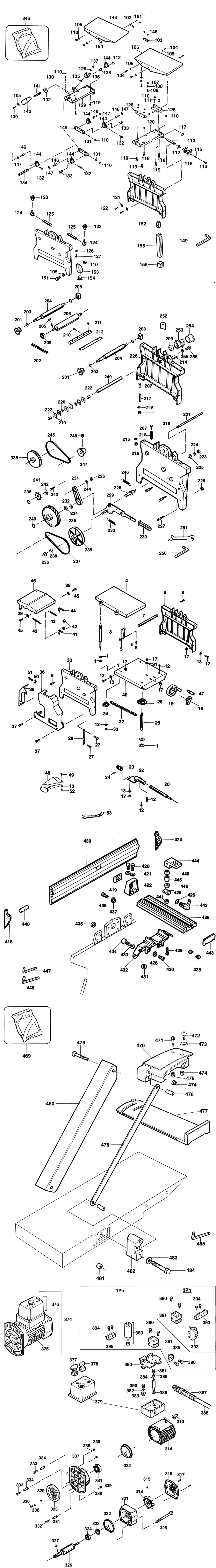

An exploded drawing and spare parts listing for the Elu EPT1163 Type 2 Planer Thicknesser

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE BDE-000000-00.A54455 000000-00	-
3 - NO LONGER AVAILABLE BDE-000000-00.A54456 000000-00	-
4 - NO LONGER AVAILABLE BDE-000000-00.A54457 000000-00	-
5 - NO LONGER AVAILABLE BDE-000000-00.A54458 000000-00	-
6 - SCREW BDE-860238-04.A2 860238-04	£1.50	£1.80
7 - NO LONGER AVAILABLE BDE-000000-00.A54459 000000-00	-
8 - SCREW BDE-860093-06.A72 860093-06	£1.50	£1.80
9 - NO LONGER AVAILABLE BDE-000000-00.A54460 000000-00	-
12 - SCREW BDE-860085-04.A35 860085-04	£1.50	£1.80
13 - WASHER M8 BDE-860073-03.A620 860073-03	£1.50	£1.80
17 - NUT BDE-860083-04.A6 860083-04	£1.50	£1.80
18 - NO LONGER AVAILABLE BDE-000000-00.A54461 000000-00	-
19 - HANDLE SA BDE-946474-00.A18 946474-00	£18.91	£22.69
20 - NO LONGER AVAILABLE BDE-000000-00.A54462 000000-00	-
22 - NO LONGER AVAILABLE BDE-000000-00.A54463 000000-00	-
23 - NO LONGER AVAILABLE BDE-000000-00.A54464 000000-00	-
24 - PIN BDE-760233-00.A33 760233-00	£1.50	£1.80
25 - NO LONGER AVAILABLE BDE-000000-00.A54465 000000-00	-
26 - GEAR BDE-860585-00.A1 860585-00	-
27 - SCREW BDE-860094-02.A19 860094-02	£1.50	£1.80
28 - WASHER BDE-860073-00.A190 860073-00	£1.50	£1.80
29 - NO LONGER AVAILABLE BDE-000000-00.A54466 000000-00	-
30 - NO LONGER AVAILABLE BDE-000000-00.A54467 000000-00	-
31 - NO LONGER AVAILABLE BDE-000000-00.A54468 000000-00	-
32 - NO LONGER AVAILABLE BDE-000000-00.A54469 000000-00	-
33 - NUT BDE-860092-01.A37 860092-01	£1.50	£1.80
34 - NO LONGER AVAILABLE BDE-000000-00.A54470 000000-00	-
36 - NO LONGER AVAILABLE BDE-000000-00.A54471 000000-00	-
37 - SCREW BDE-760998-00.A89 760998-00	£1.50	£1.80
38 - CASING BDE-123216-00.A10 123216-00	-
40 - NO LONGER AVAILABLE BDE-000000-00.A54472 000000-00	-
41 - NO LONGER AVAILABLE BDE-000000-00.A54473 000000-00	-
42 - NUT BDE-860083-01.A79 860083-01	£1.50	£1.80
43 - NO LONGER AVAILABLE BDE-000000-00.A54477 000000-00	-
44 - NO LONGER AVAILABLE BDE-000000-00.A54478 000000-00	-
45 - SCREW BDE-860089-25.A42 860089-25	£1.50	£1.80
46 - NO LONGER AVAILABLE BDE-000000-00.A54474 000000-00	-
47 - NO LONGER AVAILABLE BDE-000000-00.A54475 000000-00	-
48 - NO LONGER AVAILABLE BDE-000000-00.A54476 000000-00	-
49 - KNOB BDE-946469-01.A111 946469-01	-
50 - FASTENER BDE-865410-00.A20 865410-00	£1.50	£1.80
51 - SCREW BDE-860084-21.A23 860084-21	£1.50	£1.80
52 - SCREW BDE-860301-00.A3 860301-00	£1.50	£1.80
53 - PUSHROD BDE-860610-01.A69 860610-01	£7.85	£9.42
101 - SCREW BDE-860094-02.A18 860094-02	£1.50	£1.80
102 - NO LONGER AVAILABLE BDE-000000-00.A54479 000000-00	-
103 - SCALE BDE-32357.A15 32357	£1.42	£1.70
104 - SCREW BDE-860085-19.A67 860085-19	£1.50	£1.80
105 - WASHER M8 BDE-860073-03.A621 860073-03	£1.50	£1.80
106 - NO LONGER AVAILABLE BDE-000000-00.A54480 000000-00	-
107 - NUT M5 BDE-860083-18.A18 860083-18	£1.50	£1.80
108 - NUT BDE-860083-02.A5 860083-02	£1.50	£1.80
109 - SCREW BDE-860085-06.A41 860085-06	£1.42	£1.70
110 - NUT BDE-860083-04.A5 860083-04	£1.50	£1.80
111 - WASHER BDE-860074-03.A445 860074-03	£1.50	£1.80
112 - RETAINER BDE-860079-04.A26 860079-04	-
113 - NO LONGER AVAILABLE BDE-000000-00.A54481 000000-00	-
114 - SCREW BDE-860093-11.A0 860093-11	£1.50	£1.80
115 - SPRING BDE-123255-00.A12 123255-00	£1.78	£2.13
116 - LOCK BDE-863414-00.A4 863414-00	-
117 - WASHER BDE-863971-00.A29 863971-00	£1.50	£1.80
118 - SCREW BDE-860093-07.A21 860093-07	£1.50	£1.80
119 - SCREW BDE-860093-02.A40 860093-02	£1.50	£1.80
120 - NO LONGER AVAILABLE BDE-000000-00.A54482 000000-00	-
121 - WASHER BDE-860074-02.A16 860074-02	£1.50	£1.80
122 - SCREW BDE-860093-06.A74 860093-06	£1.50	£1.80
123 - KNOB BDE-865405-01.A1 865405-01	-
124 - NO LONGER AVAILABLE BDE-000000-00.A54483 000000-00	-
125 - NO LONGER AVAILABLE BDE-000000-00.A54484 000000-00	-
126 - WASHER BDE-720959-00.A18 720959-00	£1.50	£1.80
127 - SCREW BDE-860093-15.A35 860093-15	£1.50	£1.80
128 - BRACKET BDE-123296-01.A9 123296-01	£3.70	£4.44
129 - TABLE SUPPORT BDE-123312-03.A6 123312-03	-
130 - NO LONGER AVAILABLE BDE-000000-00.A54485 000000-00	-
131 - NO LONGER AVAILABLE BDE-000000-00.A54486 000000-00	-
132 - SCREW BDE-949886-11.A33 949886-11	£1.50	£1.80
133 - NO LONGER AVAILABLE BDE-000000-00.A54487 000000-00	-
134 - NO LONGER AVAILABLE BDE-000000-00.A54488 000000-00	-
135 - WASHER SPRING BDE-942049-00.A11 942049-00	-
136 - NO LONGER AVAILABLE BDE-000000-00.A54489 000000-00	-
137 - NUT BDE-860092-00.A99 860092-00	£1.50	£1.80
138 - NO LONGER AVAILABLE BDE-000000-00.A54490 000000-00	-
139 - SCREW BDE-949886-16.A1 949886-16	£1.50	£1.80
140 - NO LONGER AVAILABLE BDE-000000-00.A54491 000000-00	-
141 - KNOB BDE-863660-00.A13 863660-00	-
142 - LOCK-NUT BDE-123227-00.A11 123227-00	-
143 - NO LONGER AVAILABLE BDE-000000-00.A54492 000000-00	-
144 - NO LONGER AVAILABLE BDE-000000-00.A54493 000000-00	-
145 - NO LONGER AVAILABLE BDE-000000-00.A54494 000000-00	-
146 - PIN BDE-863218-00.A1 863218-00	-
147 - SPACER BDE-863702-00.A0 863702-00	-
148 - RIVET BDE-860060-01.A12 860060-01	£1.42	£1.70
149 - WRENCH 6 MM BDE-860098-04.A11 860098-04	£1.50	£1.80
151 - SCREW BDE-860093-00.A69 860093-00	£1.50	£1.80
152 - NO LONGER AVAILABLE BDE-000000-00.A54495 000000-00	-
153 - NO LONGER AVAILABLE BDE-000000-00.A54496 000000-00	-
154 - NO LONGER AVAILABLE BDE-000000-00.A54497 000000-00	-
155 - NO LONGER AVAILABLE BDE-000000-00.A54498 000000-00	-
156 - NO LONGER AVAILABLE BDE-000000-00.A54499 000000-00	-
201 - NO LONGER AVAILABLE BDE-000000-00.A54500 000000-00	-
202 - NO LONGER AVAILABLE BDE-000000-00.A54501 000000-00	-
203 - WASHER BDE-860226-02.A2 860226-02	£1.50	£1.80
204 - ROLLER BDE-123281-02.A7 123281-02	£38.80	£46.56
205 - KEY BDE-860318-00.A17 860318-00	-
206 - NO LONGER AVAILABLE BDE-000000-00.A54502 000000-00	-
207 - SCREW BDE-942043-00.A58 942043-00	£1.50	£1.80
208 - BLOCK BDE-863658-00.A5 863658-00	£4.69	£5.63
209 - BEARING BDE-868768-10.A65 868768-10	£14.57	£17.48
210 - SCREW BDE-863644-00.A6 863644-00	£3.30	£3.96
211 - NO LONGER AVAILABLE BDE-000000-00.A54503 000000-00	-
212 - BLOCKING WEDGE BDE-123266-00.A10 123266-00	-
214 - SCREW BDE-860093-06.A73 860093-06	£1.50	£1.80
215 - WASHER BDE-860074-03.A446 860074-03	£1.50	£1.80
216 - NUT BDE-941563-00.A25 941563-00	£1.50	£1.80
217 - SPRING BDE-123232-00.A5 123232-00	£1.50	£1.80
218 - SPRING BDE-123233-00.A13 123233-00	£1.50	£1.80
219 - NO LONGER AVAILABLE BDE-000000-00.A54504 000000-00	-
220 - WASHER BDE-860073-04.A1 860073-04	£1.50	£1.80
221 - NO LONGER AVAILABLE BDE-000000-00.A54505 000000-00	-
222 - NO LONGER AVAILABLE BDE-000000-00.A54506 000000-00	-
223 - NUT RH BDE-860083-05.A181 860083-05	£1.50	£1.80
224 - WASHER BDE-860074-04.A3 860074-04	£1.50	£1.80
225 - WASHER BDE-860074-05.A46 860074-05	£1.50	£1.80
226 - NUT BDE-860083-03.A465 860083-03	£1.50	£1.80
227 - NO LONGER AVAILABLE BDE-000000-00.A54507 000000-00	-
228 - NO LONGER AVAILABLE BDE-000000-00.A54508 000000-00	-
229 - NO LONGER AVAILABLE BDE-000000-00.A54509 000000-00	-
230 - NO LONGER AVAILABLE BDE-000000-00.A54510 000000-00	-
231 - NO LONGER AVAILABLE BDE-000000-00.A54511 000000-00	-
232 - PLATE BDE-863807-00.A10 863807-00	-
233 - SPRING BDE-860331-00.A6 860331-00	-
234 - NO LONGER AVAILABLE BDE-000000-00.A54512 000000-00	-
235 - NO LONGER AVAILABLE BDE-000000-00.A54513 000000-00	-
236 - CIRCLIP BDE-860079-02.A49 860079-02	£1.50	£1.80
237 - BELT TOOTHED BDE-123246-00.A5 123246-00	-
238 - BUSH BDE-123219-00.A5 123219-00	£3.80	£4.56
239 - PULLEY BDE-123316-00.A3 123316-00	-
240 - RETAINER BDE-860079-04.A25 860079-04	-
241 - NO LONGER AVAILABLE BDE-000000-00.A54514 000000-00	-
242 - SPACER BDE-863702-00.A1 863702-00	-
243 - NO LONGER AVAILABLE BDE-000000-00.A54515 000000-00	-
244 - WASHER BDE-860073-14.A89 860073-14	£1.50	£1.80
245 - NO LONGER AVAILABLE BDE-000000-00.A54516 000000-00	-
246 - NO LONGER AVAILABLE BDE-000000-00.A54517 000000-00	-
247 - NO LONGER AVAILABLE BDE-000000-00.A54518 000000-00	-
248 - SCREW BDE-941880-00.A55 941880-00	£1.50	£1.80
249 - NO LONGER AVAILABLE BDE-000000-00.A54519 000000-00	-
250 - HEX KEY 2.5 MM BDE-943271-00.A21 943271-00	£1.50	£1.80
251 - SPANNER 10-13MM BDE-949751-07.A21 949751-07	£3.80	£4.56
252 - GAUGE BDE-863648-00.A8 863648-00	£4.69	£5.63
253 - NO LONGER AVAILABLE BDE-000000-00.A54520 000000-00	-
254 - NO LONGER AVAILABLE BDE-000000-00.A54521 000000-00	-
255 - SCREW BDE-860085-10.A68 860085-10	£1.50	£1.80
256 - WASHER BDE-860074-02.A13 860074-02	£1.50	£1.80
313 - GROMMET BDE-944652-00.A67 944652-00	£4.69	£5.63
314 - NO LONGER AVAILABLE GB BDE-000000-00.A54522 000000-00	-
314 - NO LONGER AVAILABLE DE 380V BDE-000000-00.A54523 000000-00	-
315 - SCREW DE 380V BDE-860088-25.A15 860088-25	£1.50	£1.80
316 - END CAP GB BDE-860687-04.A23 860687-04	£7.18	£8.62
316 - END CAP DE 380V BDE-860687-03.A5 860687-03	-
317 - SCREW DE 380V BDE-860094-05.A15 860094-05	£1.50	£1.80
317 - SCREW GB BDE-860094-01.A70 860094-01	£1.50	£1.80
318 - FAN DE 380V BDE-860688-00.A4 860688-00	£10.57	£12.68
318 - FAN GB BDE-945841-00.A43 945841-00	£2.78	£3.34
321 - NO LONGER AVAILABLE BDE-000000-00.A54524 000000-00	-
322 - SEAL BDE-860718-00.A38 860718-00	£7.18	£8.62
323 - RING BDE-860080-02.A5 860080-02	£1.50	£1.80
324 - BEARING BDE-868768-08.A5 868768-08	£7.85	£9.42
325 - BOLT DE 380V BDE-860446-02.A3 860446-02	£1.50	£1.80
325 - BOLT GB BDE-860446-01.A2 860446-01	£1.50	£1.80
326 - NO LONGER AVAILABLE DE 380V BDE-000000-00.A54525 000000-00	-
326 - NO LONGER AVAILABLE GB BDE-000000-00.A54526 000000-00	-
327 - KEY BDE-860539-01.A19 860539-01	£1.82	£2.19
329 - WASHER BDE-860073-14.A90 860073-14	£1.50	£1.80
330 - SCREW BDE-860093-15.A36 860093-15	£1.50	£1.80
331 - NO LONGER AVAILABLE BDE-000000-00.A54527 000000-00	-
332 - SCREW BDE-942043-00.A59 942043-00	£1.50	£1.80
333 - SCREW BDE-949702-19.A17 949702-19	£1.50	£1.80
334 - NO LONGER AVAILABLE BDE-000000-00.A54528 000000-00	-
335 - PULLEY BDE-867441-00.A3 867441-00	-
336 - WASHER BDE-860074-02.A15 860074-02	£1.50	£1.80
337 - NO LONGER AVAILABLE BDE-000000-00.A54529 000000-00	-
338 - WASHER M8 BDE-860073-03.A618 860073-03	£1.50	£1.80
339 - NUT BDE-860083-04.A9 860083-04	£1.50	£1.80
341 - BEARING BDE-868768-10.A64 868768-10	£14.57	£17.48
374 - NO LONGER AVAILABLE DE 380V BDE-000000-00.A54530 000000-00	-
374 - NO LONGER AVAILABLE GB BDE-000000-00.A54531 000000-00	-
375 - NO LONGER AVAILABLE DE 380V BDE-000000-00.A54532 000000-00	-
375 - NO LONGER AVAILABLE GB BDE-000000-00.A54533 000000-00	-
376 - NO LONGER AVAILABLE DE 380V BDE-000000-00.A54534 000000-00	-
376 - NO LONGER AVAILABLE GB BDE-000000-00.A54535 000000-00	-
377 - NO LONGER AVAILABLE BDE-000000-00.A54536 000000-00	-
378 - NO LONGER AVAILABLE BDE-000000-00.A54537 000000-00	-
379 - CASING UPPER BDE-869070-00.A3 869070-00	-
380 - NO LONGER AVAILABLE BDE-000000-00.A54538 000000-00	-
381 - SCREW BDE-860090-02.A26 860090-02	-
382 - WASHER BDE-941633-00.A23 941633-00	£1.50	£1.80
383 - NO LONGER AVAILABLE BDE-000000-00.A54544 000000-00	-
384 - NO LONGER AVAILABLE BDE-000000-00.A54545 000000-00	-
386 - WASHER BDE-933652-00.A68 933652-00	£1.50	£1.80
387 - NO LONGER AVAILABLE BDE-000000-00.A54539 000000-00	-
388 - NO LONGER AVAILABLE GB BDE-000000-00.A54540 000000-00	-
388 - NO LONGER AVAILABLE DE 380V BDE-000000-00.A54541 000000-00	-
390 - SCREW BDE-860094-05.A16 860094-05	£1.50	£1.80
391 - NO LONGER AVAILABLE BDE-000000-00.A54542 000000-00	-
392 - NO LONGER AVAILABLE BDE-000000-00.A54543 000000-00	-
393 - TERMINAL BLOCK BDE-942508-00.A13 942508-00	£7.18	£8.62
394 - SCREW BDE-943022-01.A0 943022-01	£1.50	£1.80
418 - NO LONGER AVAILABLE BDE-000000-00.A54546 000000-00	-
419 - NO LONGER AVAILABLE BDE-000000-00.A54547 000000-00	-
420 - SCREW BDE-860085-07.A47 860085-07	£1.50	£1.80
421 - WASHER BDE-860074-02.A14 860074-02	£1.50	£1.80
422 - NO LONGER AVAILABLE BDE-000000-00.A54548 000000-00	-
424 - NO LONGER AVAILABLE BDE-000000-00.A54549 000000-00	-
425 - PLATE BDE-860373-00.A8 860373-00	-
426 - WASHER BDE-860074-03.A447 860074-03	£1.50	£1.80
428 - NO LONGER AVAILABLE BDE-000000-00.A54550 000000-00	-
429 - NO LONGER AVAILABLE BDE-000000-00.A54551 000000-00	-
430 - SCREW BDE-860093-00.A68 860093-00	£1.50	£1.80
431 - NUT BDE-860083-02.A6 860083-02	£1.50	£1.80
432 - NO LONGER AVAILABLE BDE-000000-00.A54552 000000-00	-
433 - WASHER BDE-860073-01.A15 860073-01	£1.50	£1.80
434 - SCREW BDE-860089-18.A63 860089-18	£1.50	£1.80
435 - NUT BDE-860083-04.A8 860083-04	£1.50	£1.80
436 - NO LONGER AVAILABLE BDE-000000-00.A54553 000000-00	-
437 - NO LONGER AVAILABLE BDE-000000-00.A54554 000000-00	-
438 - SCREW BDE-860085-06.A42 860085-06	£1.42	£1.70
439 - NO LONGER AVAILABLE BDE-000000-00.A54555 000000-00	-
440 - NO LONGER AVAILABLE BDE-000000-00.A54556 000000-00	-
441 - NUT BDE-860083-03.A463 860083-03	£1.50	£1.80
442 - LEVER BDE-861841-00.A2 861841-00	£7.01	£8.41
443 - NO LONGER AVAILABLE BDE-000000-00.A54557 000000-00	-
444 - NO LONGER AVAILABLE BDE-000000-00.A54558 000000-00	-
445 - SPRING BDE-860394-00.A8 860394-00	-
446 - CAP BDE-860365-00.A3 860365-00	-
447 - HEX KEY 5 MM BDE-930574-00.A68 930574-00	£1.50	£1.80
448 - KEY BDE-938539-00.A73 938539-00	£1.50	£1.80
469 - NO LONGER AVAILABLE BDE-000000-00.A54559 000000-00	-
470 - SUPPORT BDE-865910-00.A2 865910-00	£96.55	£115.86
471 - SCREW BDE-860093-08.A17 860093-08	£1.50	£1.80
472 - KNOB BDE-863310-00.A31 863310-00	-
473 - WASHER BDE-720959-00.A20 720959-00	£1.50	£1.80
474 - NUT BDE-860092-00.A98 860092-00	£1.50	£1.80
475 - NUT M5 BDE-860092-03.A56 860092-03	£1.50	£1.80
476 - PIN BDE-949867-10.A9 949867-10	£1.50	£1.80
477 - GUARD BDE-865909-00.A13 865909-00	£17.48	£20.97
478 - NO LONGER AVAILABLE BDE-000000-00.A54560 000000-00	-
479 - NO LONGER AVAILABLE BDE-000000-00.A54561 000000-00	-
480 - NO LONGER AVAILABLE BDE-000000-00.A54562 000000-00	-
481 - NUT BDE-860092-05.A27 860092-05	£1.50	£1.80
482 - BRACKET BDE-944877-01.A11 944877-01	-
483 - WASHER M8 BDE-860073-03.A619 860073-03	£1.50	£1.80
484 - NO LONGER AVAILABLE BDE-000000-00.A54563 000000-00	-
485 - WRENCH 4 MM BDE-949882-01.A104 949882-01	£1.50	£1.80
846 - NO LONGER AVAILABLE BDE-000000-00.A54564 000000-00	-
847 - NO LONGER AVAILABLE BDE-000000-00.A54565 000000-00	-

Attribute Name	Value
Brand	Elu

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Elu EPT1163 Type 2 Planer Thicknesser Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)
