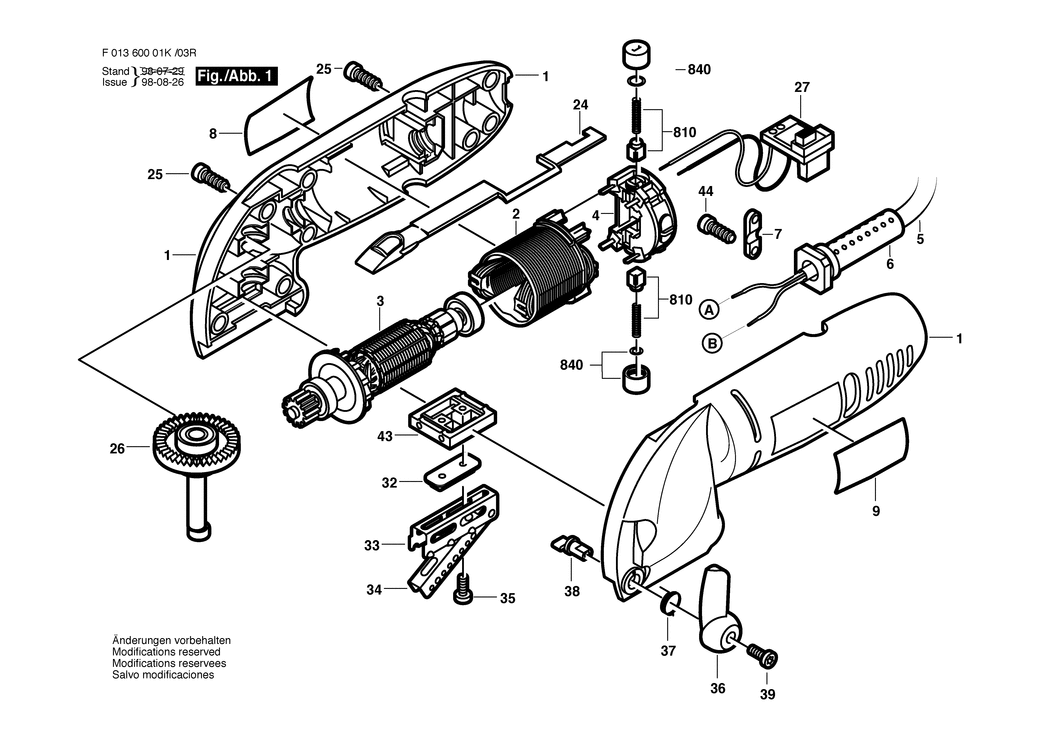

1 - MOTOR HOUSING
BSD-2615302169.A0
2615302169
|
-
|
|
|
|
2 - FIELD 230V
BSD-2615298792.A13
2615298792
|
£16.41
|
£19.69
|
|
|
3 - ARMATURE WITH FAN 230V
BSD-2615302198.A1
2615302198
|
£36.63
|
£43.96
|
|
|
4 - SWITCH
BSD-2615302167.A2
2615302167
|
£16.74
|
£20.09
|
|
|
5 - POWER SUPPLY CORD
BSD-2615302168.A1
2615302168
|
-
|
|
|
|
6 - GROMMET
BSD-2610360176.A448
2610360176
|
-
|
|
|
|
7 - CABLE CLIP
BSD-2615650007.A16
2615650007
|
£2.33
|
£2.80
|
|
|
8 - HOUSING SECTION
BSD-2615302090.A0
2615302090
|
-
|
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2615302175.A2
2615302175
|
-
|
|
|
|
24 - ON-OFF SWITCH
BSD-2610992135.A2
2610992135
|
-
|
|
|
|
25 - CROSS RECESSED-HEAD SCREW
BSD-2615294035.A38
2615294035
|
£1.66
|
£1.99
|
|
|
26 - GEAR SHAFT
BSD-2615299112.A2
2615299112
|
£31.64
|
£37.97
|
|
|
27 - PRINTED CIRCUIT BOARD
BSD-2615302152.A1
2615302152
|
-
|
|
|
|
32 - SUPPORT CLAMP
BSD-2615299106.A1
2615299106
|
£2.80
|
£3.36
|
|
|
33 - CARRIER
BSD-2615299062.A3
2615299062
|
£2.80
|
£3.36
|
|
|
34 - HOLDER
BSD-2615299063.A0
2615299063
|
£1.95
|
£2.34
|
|
|
35 - TAPPING SCREW
BSD-2615299056.A0
2615299056
|
£1.66
|
£1.99
|
|
|
36 - ADJUSTING LEVER
BSD-2615299109.A3
2615299109
|
£1.95
|
£2.34
|
|
|
37 - COILED SPRING
BSD-2615299066.A2
2615299066
|
£1.66
|
£1.99
|
|
|
38 - CLAMPING LEVER
BSD-2615299064.A3
2615299064
|
£4.26
|
£5.11
|
|
|
39 - HEX SOCKET HEAD CAP SCREW
BSD-2615299065.A0
2615299065
|
£1.66
|
£1.99
|
|
|
43 - CARRIER PLATE
BSD-2610992129.A2
2610992129
|
£13.12
|
£15.75
|
|
|
44 - CROSS RECESSED-HEAD SCREW
BSD-2615294035.A43
2615294035
|
£1.66
|
£1.99
|
|
|
810 - CARBON-BRUSH SET
BSD-2615298790.A7
2615298790
|
£7.36
|
£8.83
|
|
|
840 - PARTS SET
BSD-2610992125.A1
2610992125
|
£13.41
|
£16.09
|
|
