Dremel 285 / F013028565 / EU 230 Volt Spare Parts

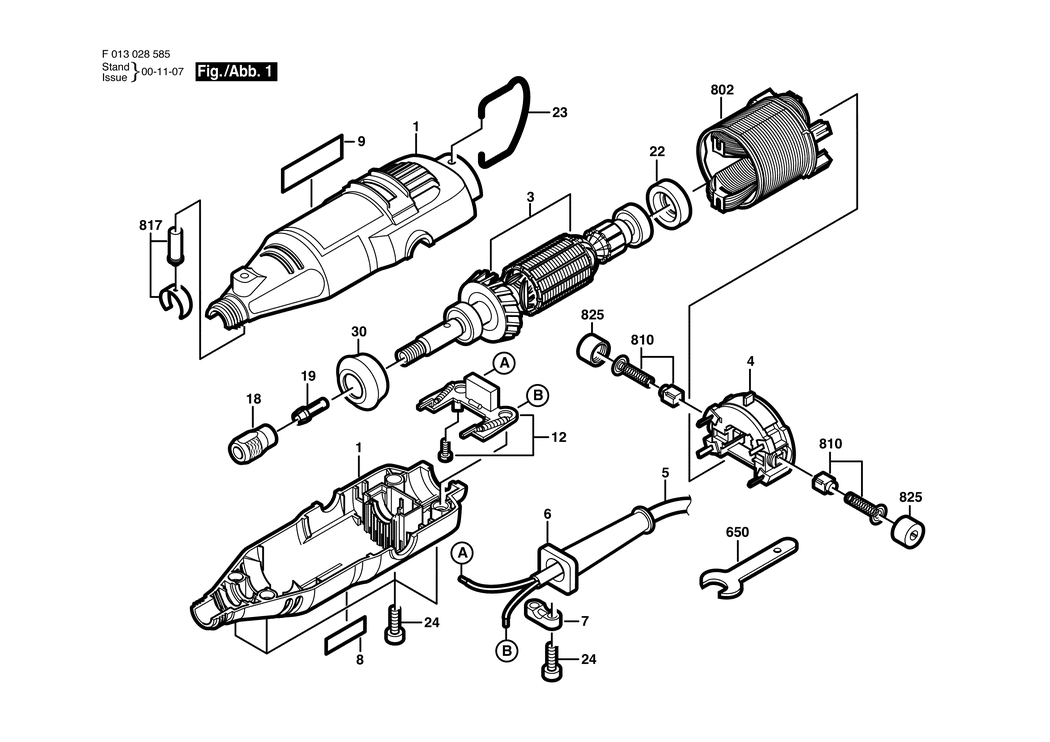

An exploded drawing and listing for the Dremel 285 / F013028565 / EU 230 Volt

	Ex VAT	Inc VAT
1 - HOUSING SET BSD-2610925248.A12 2610925248	£13.12	£15.75
3 - ARMATURE 230V BSD-2610941201.A5 2610941201	£31.64	£37.97
4 - ON-OFF SWITCH BSD-2610999100.A1 2610999100	-
5 - POWER SUPPLY CORD EU 230V 2m 2 x 0.75mm H05 VV-F BSD-2615302694.A5 2615302694	£14.91	£17.89
6 - GROMMET BSD-2610360176.A466 2610360176	-
7 - CABLE CLIP BSD-2615650007.A28 2615650007	£2.61	£3.13
8 - MARKING PLATE BSD-2615298810.A0 2615298810	-
9 - NAMEPLATE BSD-2615298811.A0 2615298811	-
12 - CONDENSER BSD-2615302683.A4 2615302683	£4.26	£5.11
18 - NUT BSD-2610014582.A38 2610014582	£2.49	£2.99
19 - CONTOUR SLEEVE 1/8 BSD-2615110480.A44 2615110480	£3.72	£4.47
22 - INSULATOR BSD-2615297373.A16 2615297373	£1.75	£2.10
23 - PICKUP CLIP BSD-2615294043.A18 2615294043	£3.72	£4.47
24 - CROSS RECESSED-HEAD SCREW BSD-2615294035.A1 2615294035	£1.75	£2.10
30 - RETAINING SNAP RING BSD-2610925247.A8 2610925247	£2.16	£2.59
650 - CHUCK WRENCH BSD-2610930692.A33 2610930692	£2.61	£3.13
802 - FIELD 230V BSD-2615298792.A4 2615298792	£16.41	£19.69
810 - CARBON-BRUSH SET BSD-2615298790.A13 2615298790	£7.36	£8.83
817 - PARTS SET BSD-2615297356.A2 2615297356	£3.54	£4.25
825 - SEALING CAP BSD-2615302217.A6 2615302217	£4.26	£5.11

Attribute Name	Value
Brand	Dremel
