Dremel ---- / 2615023132 / --- Spare Parts

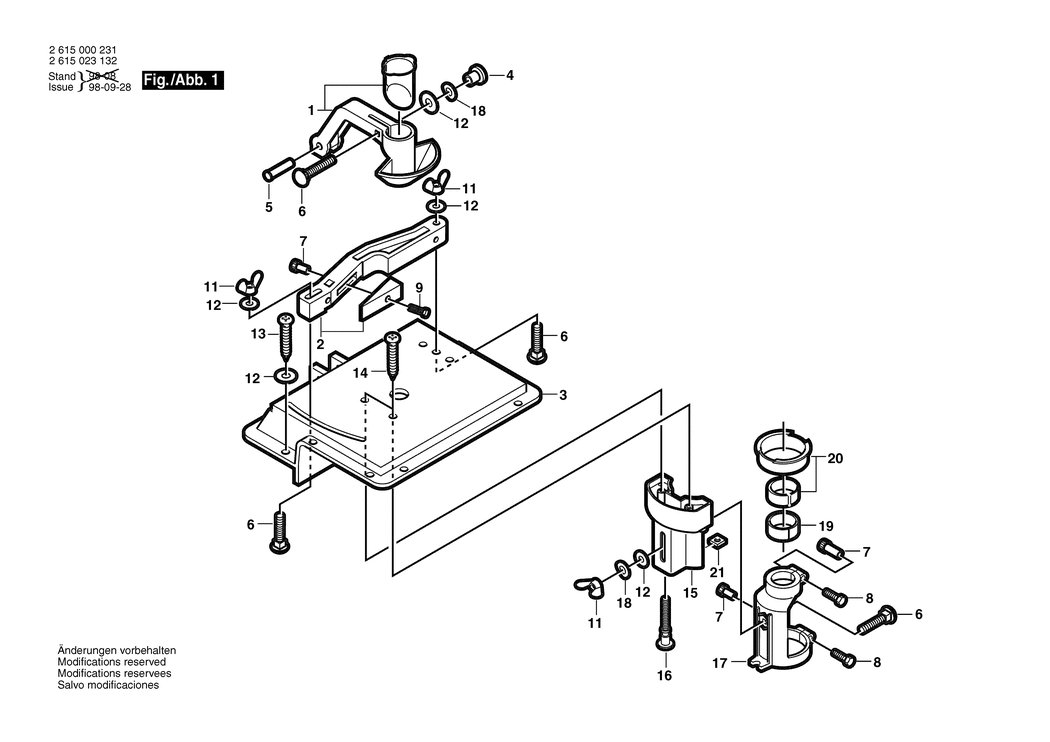

An exploded drawing and listing for the Dremel ---- / 2615023132 / ---

	Ex VAT	Inc VAT
1 - SAFETY DEVICE BSD-2615296101.A0 2615296101	£12.04	£14.45
2 - GUIDE BSD-2615296100.A1 2615296100	-
3 - BASE PLATE BSD-2615294998.A1 2615294998	-
4 - ROUND NUT BSD-2615297202.A1 2615297202	£2.16	£2.59
5 - RETAINING PIN BSD-2615294999.A0 2615294999	£2.61	£3.13
6 - PAN HEAD SCREW BSD-2615294956.A3 2615294956	£2.61	£3.13
7 - NUT BSD-2615294223.A5 2615294223	£3.72	£4.47
8 - SCREW BSD-2615294205.A6 2615294205	£2.33	£2.80
9 - HEX SCREW BSD-2615296105.A1 2615296105	£1.75	£2.10
11 - SCREW BSD-2615294959.A0 2615294959	-
12 - WASHER BSD-2615294227.A6 2615294227	£2.16	£2.59
13 - SCREW BSD-2615296106.A0 2615296106	£10.82	£12.99
14 - CROSS RECESSED-HEAD SCREW BSD-2615294960.A1 2615294960	£5.30	£6.36
15 - SUPPORTING DEVICE BSD-2615294951.A3 2615294951	£16.41	£19.69
16 - ADJUSTING SCREW BSD-2615294953.A3 2615294953	£10.10	£12.12
17 - DRIVE-MACHINE HOLDER BSD-2615294952.A3 2615294952	£7.36	£8.83
18 - SPRING WASHER BSD-2615294958.A3 2615294958	-
19 - BUSHING BSD-2615297216.A5 2615297216	£2.52	£3.02
20 - BUSHING BSD-2615294962.A1 2615294962	-
21 - SQUARE NUT BSD-2615294964.A1 2615294964	£1.75	£2.10
