Dewalt DW615 Type 5 Router Spare Parts

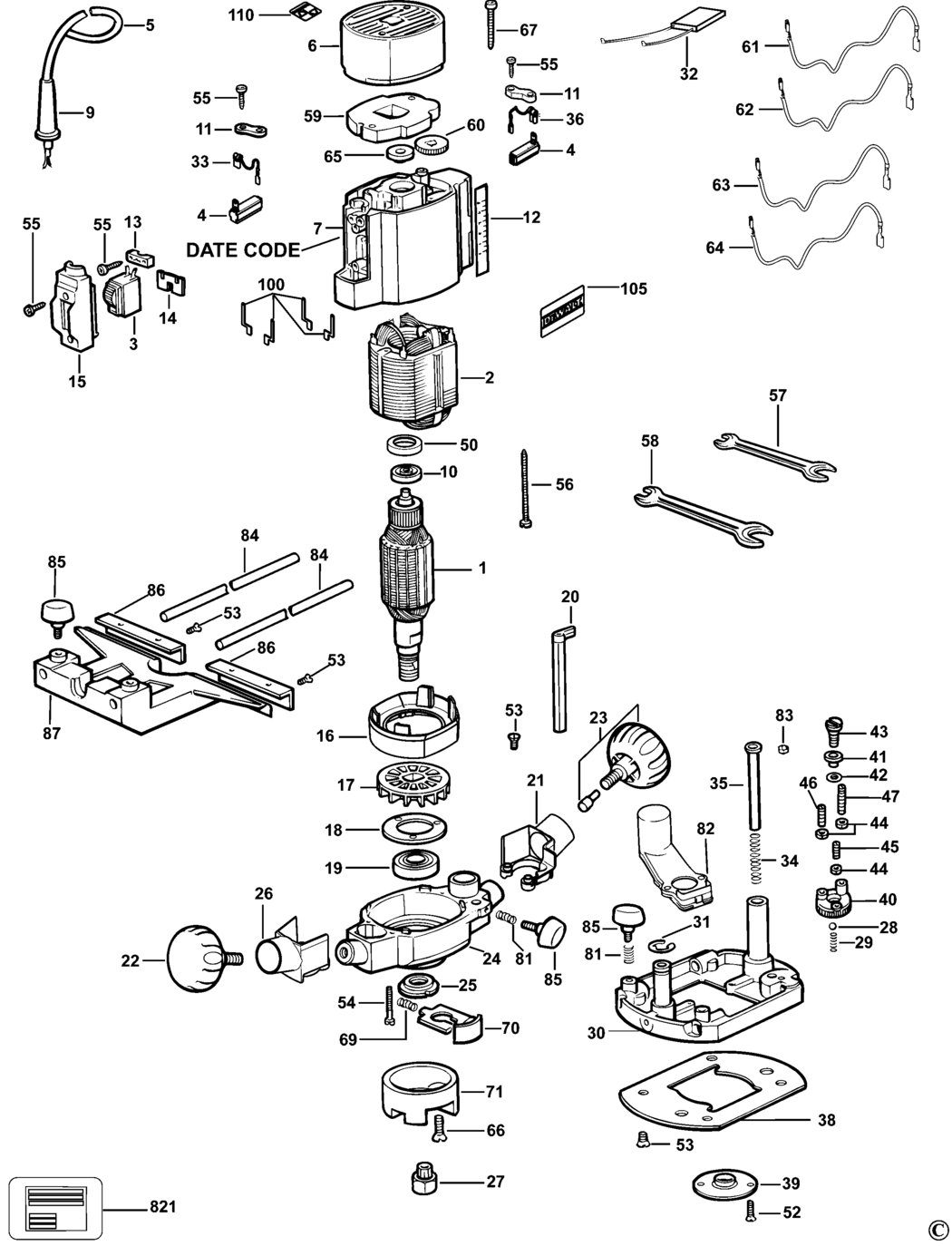

An exploded drawing and spare parts listing for the Dewalt DW615 Type 5 Router

	Ex VAT	Inc VAT
1 - ARMATURE & FAN GB BDE-N096929 N096929	£51.90	£62.28
1 - ARMATURE 115V LX BDE-N096930 N096930	£51.90	£62.28
2 - FIELD 115V LX BDE-N096928 N096928	£51.90	£62.28
2 - FIELD 230V GB BDE-N096927 N096927	£51.90	£62.28
3 - SWITCH BDE-N566709.A4 N566709	£30.08	£36.10
4 - BRUSH & HOLDER 230V GB BDE-247533-11.A21 247533-11	£10.85	£13.02
4 - BRUSH & HOLDER SA LX BDE-248447-11.A4 248447-11	£12.17	£14.60
5 - CORDSET (M/PLUG) LX BDE-248488-12.A0 248488-12	£24.39	£29.27
5 - CORDSET GB BDE-324438-73.A38 324438-73	-
6 - COVER BRUSH BDE-247699-00.A0 247699-00	£7.18	£8.62
7 - FIELD CASE GB BDE-663773-00.A0 663773-00	£18.91	£22.69
7 - FIELD CASE LX BDE-663773-00.A1 663773-00	£18.91	£22.69
9 - CORD PROTECTOR BDE-868520-00.A26 868520-00	£1.82	£2.19
10 - BEARING BDE-868768-14.A4 868768-14	£7.85	£9.42
11 - CLAMP BDE-868069-00.A21 868069-00	£1.50	£1.80
12 - SCALE BDE-249278-01.A3 249278-01	£5.88	£7.06
13 - CORD CLAMP BDE-576118-00.A2 576118-00	£1.50	£1.80
14 - GUIDE BDE-868521-00.A2 868521-00	£1.50	£1.80
15 - COVER BDE-247700-01.A5 247700-01	£2.26	£2.71
16 - BAFFLE FAN BDE-663770-00 663770-00	£5.88	£7.06
17 - FAN BDE-943054-00.A7 943054-00	£3.80	£4.56
18 - PLATE BDE-868047-00.A43 868047-00	£7.85	£9.42
19 - BEARING BDE-868768-16.A0 868768-16	£7.85	£9.42
20 - DEPTH STOP BDE-868523-01.A7 868523-01	£10.85	£13.02
21 - HANDLE COVER BDE-N054225 N054225	£3.30	£3.96
22 - HANDLE SA BDE-869284-05.A13 869284-05	£7.18	£8.62
23 - KNOB SA BDE-869284-23.A8 869284-23	£10.85	£13.02
24 - HOUSING LOWER BDE-248954-00.A8 248954-00	£60.94	£73.13
25 - NUT BDE-868052-00.A22 868052-00	£10.85	£13.02
26 - HANDLE COVER BDE-N054224 N054224	£3.30	£3.96
27 - COLLET & NUT SA LX BDE-326286-01.A58 326286-01	£24.39	£29.27
27 - COLLET & NUT SA GB BDE-326286-01.A59 326286-01	£24.39	£29.27
28 - BALL BDE-720664-00.A0 720664-00	£1.50	£1.80
29 - SPRING BDE-868082-00.A203 868082-00	£1.50	£1.80
30 - BASE SA BDE-N106387 N106387	£71.44	£85.73
31 - CIRCLIP BDE-943032-00.A9 943032-00	£1.50	£1.80
32 - CAPACITOR LX BDE-N086717.A0 N086717	£3.30	£3.96
32 - CAPACITOR GB BDE-N086717.A1 N086717	£3.30	£3.96
33 - BRUSH LEAD BDE-868530-10 868530-10	£1.50	£1.80
34 - SPRING BDE-248953-00.A1 248953-00	£1.50	£1.80
35 - ROD BDE-868566-00.A15 868566-00	£1.50	£1.80
36 - BRUSH LEAD BDE-868530-11 868530-11	£1.50	£1.80
38 - BASE BDE-943042-00.A4 943042-00	£10.85	£13.02
39 - BUSH BDE-249014-01.A10 249014-01	£10.85	£13.02
40 - TURRET BDE-N547463.A21 N547463	£4.69	£5.63
41 - BUSH BDE-329836-00.A2 329836-00	£1.50	£1.80
42 - WASHER SPRING BDE-327012-00.A30 327012-00	£1.50	£1.80
43 - SCREW BDE-330045-05.A284 330045-05	£1.50	£1.80
44 - NUT BDE-860083-02.A223 860083-02	£1.50	£1.80
45 - SCREW.TEMP BDE-942931-02.A54 942931-02	£1.50	£1.80
46 - SCREW BDE-942931-01.A0 942931-01	£1.50	£1.80
47 - SCREW BDE-942931-00.A20 942931-00	£1.50	£1.80
50 - HOLDER BEARING BDE-N062947 N062947	£1.50	£1.80
52 - SCREW BDE-249412-22.A8 249412-22	£1.50	£1.80
53 - SCREW BDE-860205-04.A26 860205-04	£1.50	£1.80
54 - SCREW BDE-N082350 N082350	£1.50	£1.80
55 - SCREW BDE-949896-12.A47 949896-12	£1.50	£1.80
56 - SCREW BDE-930082-01.A33 930082-01	£1.50	£1.80
57 - SPANNER BDE-868148-00.A10 868148-00	£3.80	£4.56
58 - SPANNER 13-17MM BDE-941580-00.A42 941580-00	£7.85	£9.42
59 - SPEED REGULATOR LX BDE-868529-03.A0 868529-03	-
59 - SPEED REGULATOR GB BDE-868529-04.A4 868529-04	£55.30	£66.36
60 - WHEEL BDE-249067-01.A10 249067-01	£4.69	£5.63
61 - LEAD BROWN BDE-868530-08 868530-08	£1.50	£1.80
62 - LEAD 100MM RED BDE-N087038 N087038	£1.50	£1.80
63 - LEAD BROWN BDE-N087037 N087037	£1.50	£1.80
64 - LEAD BLUE BDE-868530-09 868530-09	£1.50	£1.80
65 - POLE PIECE BDE-868141-00.A7 868141-00	£7.85	£9.42
66 - SCREW BDE-249413-03.A12 249413-03	£1.50	£1.80
67 - SCREW BDE-949896-11.A43 949896-11	£1.50	£1.80
69 - SPRING COMPRESSION BDE-N406641.A33 N406641	£1.50	£1.80
70 - LOCK BUTTON BDE-943114-00.A7 943114-00	£9.41	£11.29
71 - COVER BDE-943057-00.A5 943057-00	£7.18	£8.62
81 - SPRING BDE-868082-00.A204 868082-00	£1.50	£1.80
82 - DUST EXTRACTOR BDE-945304-01.A3 945304-01	£5.88	£7.06
83 - NUT M5 BDE-249232-10.A45 249232-10	£1.50	£1.80
84 - ROD BDE-868080-00.A0 868080-00	£2.78	£3.34
85 - SCREW WING BDE-326573-01.A116 326573-01	£1.82	£2.19
86 - GUIDE BDE-249090-00.A29 249090-00	£1.82	£2.19
87 - FENCE SA BDE-948651-00.A10 948651-00	£41.24	£49.49
87 - FENCE BDE-868079-00 868079-00	£18.91	£22.69
100 - CONTACT BAR BDE-N106097 N106097	£7.85	£9.42
105 - BRAND LABEL LX BDE-248343-00.A0 248343-00	£1.50	£1.80
105 - BRAND LABEL GB BDE-248343-00.A1 248343-00	£1.50	£1.80
110 - LABEL ELECTRONIC BDE-248341-00 248341-00	£1.50	£1.80
821 - RATING PLATE LX BDE-N209834 N209834	£2.78	£3.34
821 - RATING PLATE GB BDE-N209833 N209833	£2.78	£3.34

Attribute Name	Value
Brand	Dewalt
