Dewalt D26200K Type 1 Router Spare Parts

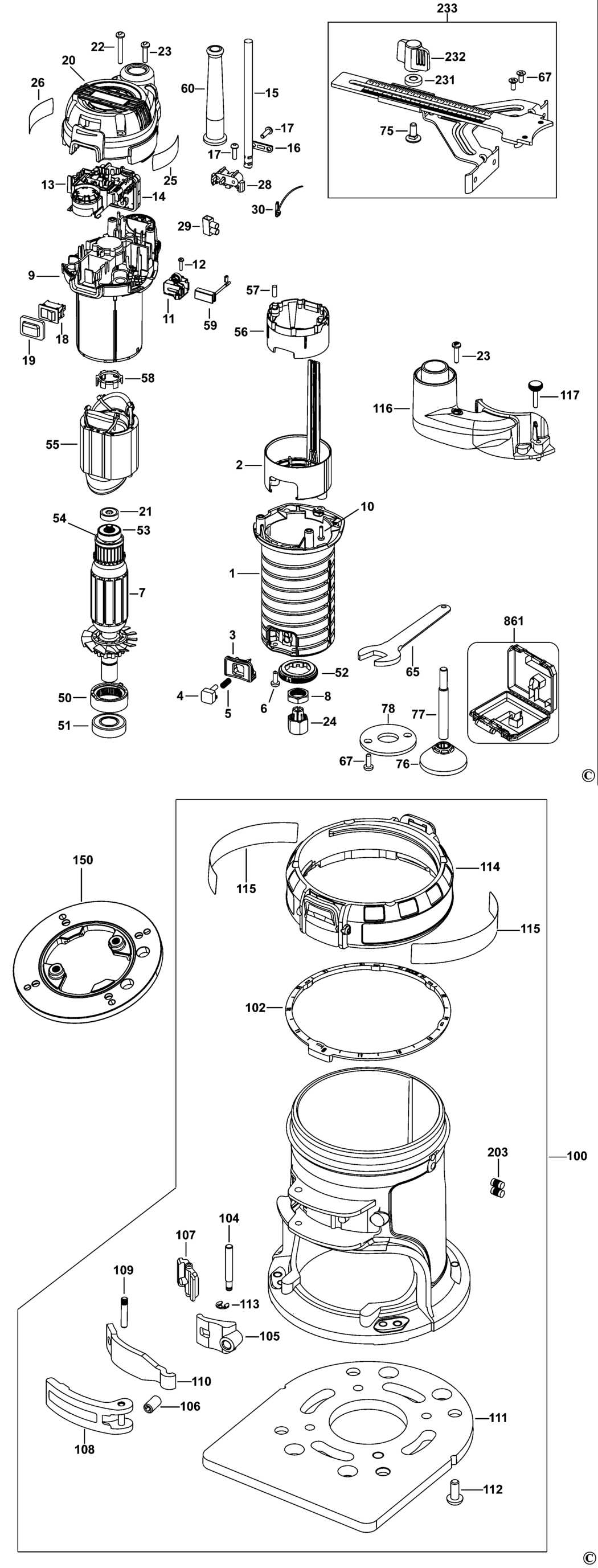

An exploded drawing and spare parts listing for the Dewalt D26200K Type 1 Router

	Ex VAT	Inc VAT
1 - MOTOR HOUSING SA BDE-A26126SV.A1 A26126SV	£60.94	£73.13
2 - LED LIGHT BDE-N074107.A1 N074107	£45.14	£54.17
3 - INSERT BDE-A26131.A1 A26131	£1.50	£1.80
4 - LOCK BUTTON BDE-N038183.A2 N038183	£1.50	£1.80
5 - SPRING BDE-A23489.A0 A23489	£1.50	£1.80
6 - SCREW BDE-330065-06.A162 330065-06	£1.50	£1.80
7 - ARMATURE 120V INCL 5354 LX BDE-A26132.A1 A26132	£135.36	£162.43
7 - ARMATURE 230V INC 5354 GB BDE-A28455SV.A2 A28455SV	£157.18	£188.61
8 - NUT BDE-A25248.A1 A25248	£3.80	£4.56
9 - FIELDCASE BDE-A28680.A1 A28680	£17.48	£20.97
10 - SCREW BDE-330065-07.A65 330065-07	£1.50	£1.80
11 - BRUSH HOLDER 120V LX BDE-A27345.A2 A27345	£12.17	£14.60
11 - BRUSH HOLDER SA INCL 59 GB BDE-A28458.A0 A28458	£12.17	£14.60
12 - SCREW.TEMP BDE-330019-01.A45 330019-01	£1.50	£1.80
13 - CONTROL MODULE SA GB BDE-N074135.A1 N074135	£71.44	£85.73
13 - CONTROL MODULE SA LX BDE-N074136.A1 N074136	£71.44	£85.73
14 - MODULE LX BDE-N074104.A1 N074104	£96.55	£115.86
14 - CONTROL MODULE SA GB BDE-N074109.A1 N074109	£71.44	£85.73
15 - CORDSET GB BDE-A28691.A1 A28691	£30.08	£36.10
15 - CORDSET LX BDE-A28692.A1 A28692	£41.24	£49.49
16 - CORD CLAMP BDE-329301-00.A237 329301-00	£1.50	£1.80
17 - SCREW BDE-330019-02.A93 330019-02	£1.50	£1.80
18 - SWITCH BDE-887453.A1 887453	£3.30	£3.96
19 - SWITCH COVER BDE-A29360.A0 A29360	£1.50	£1.80
20 - END CAP BDE-A28679.A1 A28679	£14.57	£17.48
21 - MAGNET BDE-A27330.A0 A27330	£5.88	£7.06
22 - SCREW BDE-330045-09.A11 330045-09	£1.50	£1.80
23 - SCREW BDE-330065-08.A169 330065-08	£1.50	£1.80
24 - COLLET & NUT SA GB BDE-326286-01.A13 326286-01	£24.39	£29.27
24 - COLLET & NUT SA LX BDE-326286-01.A14 326286-01	£24.39	£29.27
25 - RATING PLATE LX BDE-A29356 A29356	£5.88	£7.06
25 - RATING PLATE GB BDE-A29351 A29351	£5.88	£7.06
26 - WARNING LABEL BDE-A28464.A1 A28464	£1.50	£1.80
28 - MOUNT BDE-A28476.A2 A28476	£1.50	£1.80
29 - TERMINAL BLOCK BDE-398100-00.A6 398100-00	£1.50	£1.80
30 - LEAD SA BDE-A29361.A2 A29361	£1.82	£2.19
50 - INSERT BDE-A26125.A1 A26125	£1.82	£2.19
51 - BEARING BDE-A27537.A2 A27537	£4.69	£5.63
52 - NUT LH BDE-A25250.A1 A25250	£1.50	£1.80
53 - BEARING BDE-330003-60.A11 330003-60	£2.78	£3.34
54 - INSULATOR BDE-A25585.A1 A25585	£1.50	£1.80
55 - FIELD 230V GB BDE-N278879.A1 N278879	£58.69	£70.43
55 - FIELD SA 115V LX BDE-A21119.A1 A21119	£38.80	£46.56
56 - BAFFLE BDE-A23504.A1 A23504	£2.78	£3.34
57 - DAMPER BDE-949638-02.A205 949638-02	£1.50	£1.80
58 - WASHER BDE-A27937.A2 A27937	£1.50	£1.80
59 - BRUSH 120V LX BDE-A27343.A0 A27343	£9.41	£11.29
59 - BRUSH GB BDE-A28459.A1 A28459	£7.85	£9.42
60 - CORD PROTECTOR BDE-N542553.A117 N542553	£3.80	£4.56
65 - WRENCH SPECIAL BDE-A27895.A0 A27895	£5.88	£7.06
67 - SCREW.TEMP BDE-945121-00.A30 945121-00	£1.50	£1.80
75 - SCREW BDE-931405-00.A5 931405-00	£1.50	£1.80
76 - CONE BDE-A27315.A0 A27315	£1.50	£1.80
77 - PIN BDE-A27316.A2 A27316	£3.80	£4.56
78 - BUSH BDE-249014-01.A4 249014-01	£10.85	£13.02
100 - BASE SA BDE-N032769SV.A1 N032769SV	£192.14	£230.57
102 - SCALE BDE-A28391.A1 A28391	£4.69	£5.63
104 - PIN BDE-A24452.A1 A24452	£1.50	£1.80
105 - ADJUSTER BDE-A24764.A2 A24764	£4.69	£5.63
106 - SCREW BDE-330022-18.A4 330022-18	£12.17	£14.60
107 - PAD BDE-A24767.A1 A24767	£2.26	£2.71
108 - CLAMPING BAR BDE-A24771.A1 A24771	£5.88	£7.06
109 - PIN BDE-A24770.A2 A24770	£1.50	£1.80
110 - SPRING BDE-A27362.A0 A27362	£2.78	£3.34
111 - BASEPLATE BDE-A27941.A0 A27941	£7.18	£8.62
112 - SCREW BDE-N029178.A3 N029178	£1.50	£1.80
113 - RETAINER BDE-N028373.A3 N028373	£1.50	£1.80
114 - ADJUSTER DEPTH BDE-N693104.A1 N693104	£24.39	£29.27
115 - IDENTITY LABEL BDE-A28466.A1 A28466	£1.50	£1.80
116 - ADAPTOR INCL 23117 BDE-A28678SV.A1 A28678SV	£37.35	£44.82
117 - THUMBSCREW BDE-A27335.A2 A27335	£1.50	£1.80
150 - BASE SA BDE-N092764.A0 N092764	£7.85	£9.42
203 - PIN BDE-N042079.A3 N042079	£1.50	£1.80
231 - WASHER BDE-N028927.A0 N028927	£1.50	£1.80
232 - KNOB BDE-147107-00.A20 147107-00	£1.82	£2.19
233 - GUIDE SA BDE-N026733.A3 N026733	£17.48	£20.97
861 - KITBOX BDE-A28470.A1 A28470	£55.30	£66.36

Attribute Name	Value
Brand	Dewalt
