Dewalt DW125-----C Type 1 Radial Arm Saw Spare Parts

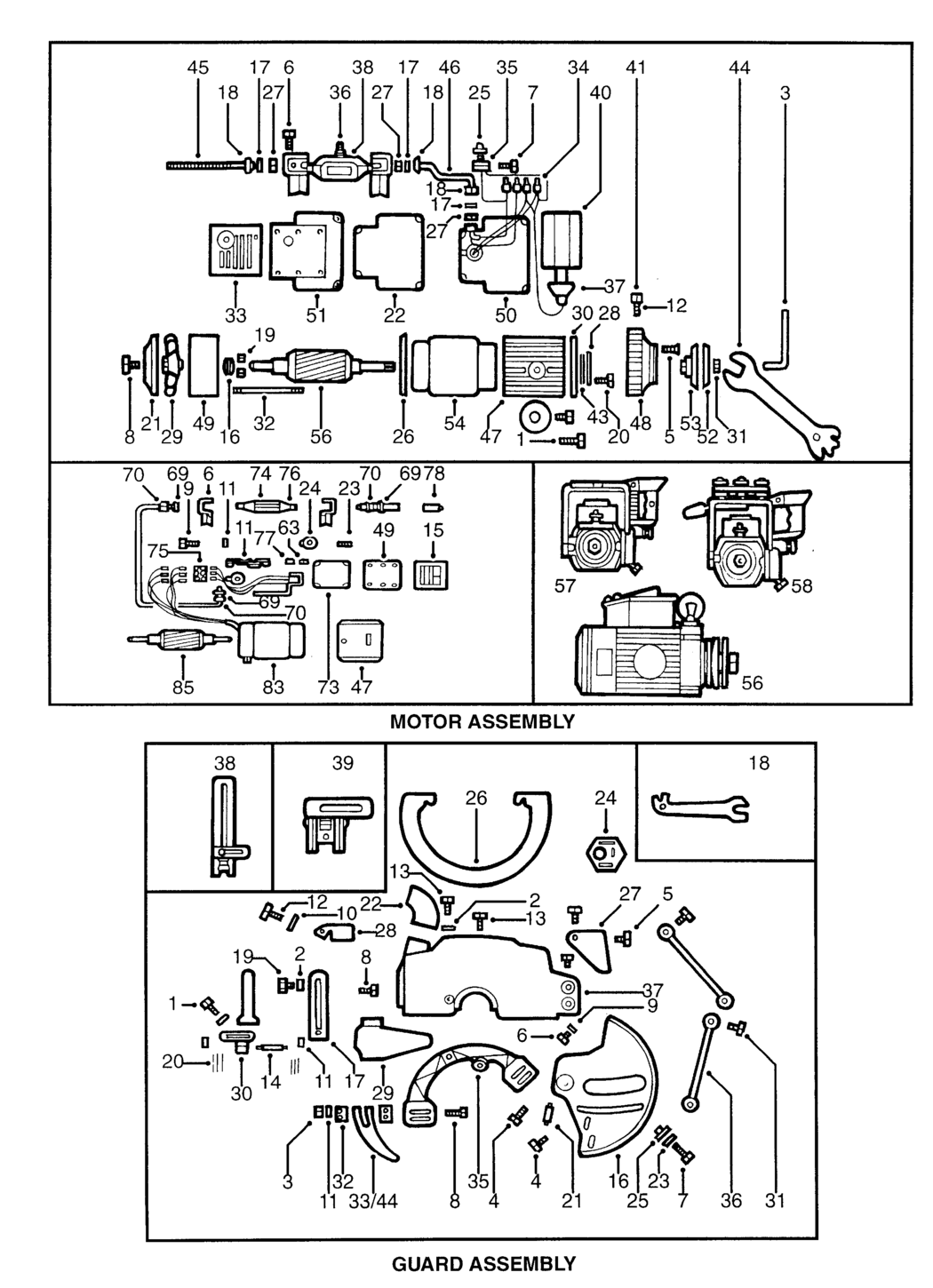

An exploded drawing and spare parts listing for the Dewalt DW125-----C Type 1 Radial Arm Saw

	Ex VAT	Inc VAT
1 - SCREW BLADE GUARD BDE-760219-00.A42 760219-00	£1.66	£1.99
1 - SCREW Motor Assy BDE-860093-02.A38 860093-02	£1.66	£1.99
2 - SCREW Motor Assy BDE-860088-25.A7 860088-25	£1.66	£1.99
2 - WASHER BLADE GUARD BDE-720959-00.A75 720959-00	£1.66	£1.99
3 - NUT BLADE GUARD BDE-860083-03.A398 860083-03	£1.66	£1.99
3 - HEX KEY 8 MM Motor Assy BDE-860098-05.A84 860098-05	£3.30	£3.96
4 - SCREW BLADE GUARD BDE-249412-20.A124 249412-20	£1.66	£1.99
4 - NUT Motor Assy BDE-860083-02.A38 860083-02	£1.66	£1.99
5 - SCREW BLADE GUARD BDE-760273-00.A7 760273-00	£1.66	£1.99
5 - SCREW Motor Assy BDE-860538-00.A31 860538-00	£1.66	£1.99
6 - SCREW BLADE GUARD BDE-760998-00.A80 760998-00	£1.66	£1.99
6 - NO LONGER AVAILABLE Motor Assy BDE-000000-00.A47413 000000-00	-
7 - SCREW Motor Assy BDE-860089-25.A30 860089-25	£1.66	£1.99
7 - SCREW BLADE GUARD BDE-941518-00.A91 941518-00	£1.66	£1.99
8 - SCREW Motor Assy BDE-760998-00.A81 760998-00	£1.66	£1.99
8 - SCREW BLADE GUARD BDE-860301-00.A17 860301-00	£1.66	£1.99
9 - WASHER BLADE GUARD BDE-860073-01.A80 860073-01	£1.66	£1.99
9 - SCREW Motor Assy BDE-860089-18.A51 860089-18	£1.66	£1.99
10 - WASHER BLADE GUARD BDE-860074-01.A130 860074-01	£1.66	£1.99
11 - WASHER Motor Assy BDE-860073-01.A79 860073-01	£1.66	£1.99
11 - WASHER BLADE GUARD BDE-860074-02.A56 860074-02	£1.66	£1.99
12 - WASHER M8 Motor Assy BDE-860073-03.A484 860073-03	£1.66	£1.99
12 - KNOB BLADE GUARD BDE-861842-01.A46 861842-01	£1.66	£1.99
13 - WASHER SPRING Motor Assy BDE-860074-00.A7 860074-00	£1.66	£1.99
14 - WASHER Motor Assy BDE-860074-01.A129 860074-01	£1.66	£1.99
15 - RIVET Motor Assy BDE-860060-01.A7 860060-01	£1.66	£1.99
15 - PROTECTOR BLADE GUARD BDE-863703-00.A51 863703-00	-
16 - GUARD BLADE GUARD BDE-862417-00.A8 862417-00	£10.85	£13.02
16 - RING Motor Assy BDE-860080-02.A21 860080-02	£1.66	£1.99
17 - NO LONGER AVAILABLE Motor Assy BDE-000000-00.A47414 000000-00	-
17 - SUPPORT BLADE GUARD BDE-863709-00.A13 863709-00	-
18 - GLAND Motor Assy BDE-949747-07.A25 949747-07	£1.66	£1.99
19 - BEARING Motor Assy BDE-868768-07.A6 868768-07	£7.85	£9.42
19 - KNOB BLADE GUARD BDE-946469-00.A27 946469-00	£1.66	£1.99
20 - NO LONGER AVAILABLE BLADE GUARD BDE-000000-00.A47415 000000-00	-
20 - BEARING Motor Assy BDE-868768-10.A76 868768-10	£14.57	£17.48
21 - END CAP Motor Assy BDE-860687-03.A0 860687-03	-
21 - ROLLER BLADE GUARD BDE-864054-00.A34 864054-00	£1.82	£2.19
22 - GASKET Motor Assy BDE-860708-00.A23 860708-00	-
22 - TUBE EXTRACTION BLADE GUARD BDE-864095-00.A42 864095-00	£7.85	£9.42
23 - GROMMET Motor Assy BDE-944653-00.A9 944653-00	£3.30	£3.96
23 - WASHER BLADE GUARD BDE-860075-00.A194 860075-00	£1.66	£1.99
24 - NO LONGER AVAILABLE BLADE GUARD BDE-000000-00.A47416 000000-00	-
24 - GROMMET Motor Assy BDE-944652-00.A59 944652-00	£4.69	£5.63
25 - BUSH BLADE GUARD BDE-863705-00.A15 863705-00	£1.82	£2.19
25 - CAP Motor Assy BDE-860133-00.A6 860133-00	£1.66	£1.99
26 - PROTECTOR BLADE GUARD BDE-863706-01.A20 863706-01	-
26 - SEAL Motor Assy BDE-860718-00.A47 860718-00	£7.18	£8.62
27 - BRACKET BLADE GUARD BDE-863707-01.A13 863707-01	£9.41	£11.29
27 - NO LONGER AVAILABLE Motor Assy BDE-000000-00.A47417 000000-00	-
28 - GASKET Motor Assy BDE-863878-00.A30 863878-00	£3.30	£3.96
28 - SQUARE BLADE GUARD BDE-863708-00.A56 863708-00	£10.85	£13.02
29 - FAN Motor Assy BDE-860688-00.A3 860688-00	£10.57	£12.68
29 - BRACKET BLADE GUARD BDE-863775-01.A8 863775-01	-
30 - SCREW Motor Assy BDE-864058-00.A20 864058-00	£5.88	£7.06
30 - BRACKET BLADE GUARD BDE-945632-90.A1 945632-90	-
31 - WASHER BLADE GUARD BDE-864053-00.A40 864053-00	£3.80	£4.56
31 - NUT Motor Assy BDE-860126-01.A24 860126-01	-
32 - NO LONGER AVAILABLE Motor Assy BDE-000000-00.A47418 000000-00	-
32 - SHIM BLADE GUARD BDE-864086-00.A25 864086-00	£3.70	£4.44
33 - NO LONGER AVAILABLE T.C.T BLADE BDE-000000-00.A47419 000000-00	-
33 - NO LONGER AVAILABLE Motor Assy BDE-000000-00.A47420 000000-00	-
34 - NO LONGER AVAILABLE BLADE GUARD BDE-000000-00.A47421 000000-00	-
34 - NO LONGER AVAILABLE Motor Assy BDE-000000-00.A47422 000000-00	-
35 - BRACKET BLADE GUARD BDE-862083-00.A23 862083-00	-
35 - NO LONGER AVAILABLE Motor Assy BDE-000000-00.A47423 000000-00	-
36 - LEVER BDE-862084-01.A12 862084-01	-
36 - NO LONGER AVAILABLE Motor Assy BDE-000000-00.A14428 000000-00	-
37 - GUARD BLADE GUARD BDE-862235-04.A6 862235-04	-
38 - SWITCH 1 PH Motor Assy BDE-860706-00.A9 860706-00	-
38 - NO LONGER AVAILABLE BLADE GUARD BDE-000000-00.A14429 000000-00	-
39 - KICK BACK SA BLADE GUARD BDE-864814-01.A13 864814-01	-
39 - WASHER SPRING Motor Assy BDE-944650-00.A29 944650-00	£1.66	£1.99
40 - GUARD SA PARTS NOT DRAWN BDE-869322-00.A9 869322-00	-
40 - NO LONGER AVAILABLE Motor Assy BDE-000000-00.A14430 000000-00	-
41 - NUT WING BDE-860143-00.A33 860143-00	-
42 - NO LONGER AVAILABLE BDE-000000-00.A14444 000000-00	-
43 - CAP BDE-123302-01.A4 123302-01	£3.80	£4.56
44 - NO LONGER AVAILABLE BDE-000000-00.A14431 000000-00	-
45 - NO LONGER AVAILABLE BDE-000000-00.A14432 000000-00	-
46 - NO LONGER AVAILABLE BDE-000000-00.A14433 000000-00	-
47 - NO LONGER AVAILABLE BDE-000000-00.A14434 000000-00	-
48 - HOUSING BDE-862162-00.A23 862162-00	£24.39	£29.27
49 - HOUSING BDE-860701-00.A6 860701-00	-
50 - NO LONGER AVAILABLE BDE-000000-00.A14435 000000-00	-
51 - NO LONGER AVAILABLE BDE-000000-00.A14436 000000-00	-
52 - NO LONGER AVAILABLE BDE-000000-00.A14437 000000-00	-
53 - NO LONGER AVAILABLE BDE-000000-00.A14438 000000-00	-
54 - NO LONGER AVAILABLE BDE-000000-00.A14439 000000-00	-
56 - NO LONGER AVAILABLE BDE-000000-00.A14440 000000-00	-
57 - NO LONGER AVAILABLE BDE-000000-00.A14441 000000-00	-
58 - NO LONGER AVAILABLE BDE-000000-00.A14442 000000-00	-
59 - NO LONGER AVAILABLE 3PH MOTOR BDE-000000-00.A14443 000000-00	-
60 - SCREW 3PH MOTOR BDE-860238-04.A29 860238-04	£1.66	£1.99
61 - SCREW 3PH MOTOR BDE-860089-25.A66 860089-25	£1.66	£1.99
62 - SCREW 3PH MOTOR BDE-860089-18.A77 860089-18	£1.66	£1.99
64 - WASHER 3PH MOTOR BDE-860073-01.A128 860073-01	£1.66	£1.99
65 - WASHER SPRING 3PH MOTOR BDE-860074-00.A11 860074-00	£1.66	£1.99
66 - RIVET 3PH MOTOR BDE-860060-01.A19 860060-01	£1.66	£1.99
67 - NO LONGER AVAILABLE 3PH MOTOR BDE-000000-00.A14445 000000-00	-
68 - RETAINER 3PH MOTOR BDE-944654-00.A41 944654-00	£1.66	£1.99
69 - NO LONGER AVAILABLE 3PH MOTOR BDE-000000-00.A14446 000000-00	-
70 - NUT 3PH MOTOR BDE-944590-00.A94 944590-00	£1.66	£1.99
71 - GROMMET 3PH MOTOR BDE-944653-00.A20 944653-00	£3.30	£3.96
72 - GROMMET 3PH MOTOR BDE-944652-00.A46 944652-00	£4.69	£5.63
73 - GASKET 3PH MOTOR BDE-860708-00.A10 860708-00	-
74 - NO LONGER AVAILABLE 3PH MOTOR BDE-000000-00.A14447 000000-00	-
75 - CONNECTOR 3PH MOTOR BDE-946085-00.A21 946085-00	£1.82	£2.19
76 - NO LONGER AVAILABLE 3PH MOTOR BDE-000000-00.A14456 000000-00	-
77 - WASHER SPRING 3PH MOTOR BDE-944650-00.A28 944650-00	£1.66	£1.99
78 - NO LONGER AVAILABLE 3PH MOTOR BDE-000000-00.A14448 000000-00	-
79 - NO LONGER AVAILABLE 3PH MOTOR BDE-000000-00.A14449 000000-00	-
80 - NO LONGER AVAILABLE 3PH MOTOR BDE-000000-00.A14450 000000-00	-
81 - NO LONGER AVAILABLE 3PH MOTOR BDE-000000-00.A14451 000000-00	-
82 - NO LONGER AVAILABLE 3PH MOTOR BDE-000000-00.A14452 000000-00	-
83 - NO LONGER AVAILABLE 3PH MOTOR BDE-000000-00.A14453 000000-00	-
84 - NO LONGER AVAILABLE 3PH MOTOR BDE-000000-00.A14454 000000-00	-
85 - NO LONGER AVAILABLE 3PH MOTOR BDE-000000-00.A14455 000000-00	-
