Dewalt DW678E Type 4 Planer Spare Parts

Home Details Reviews Delivery

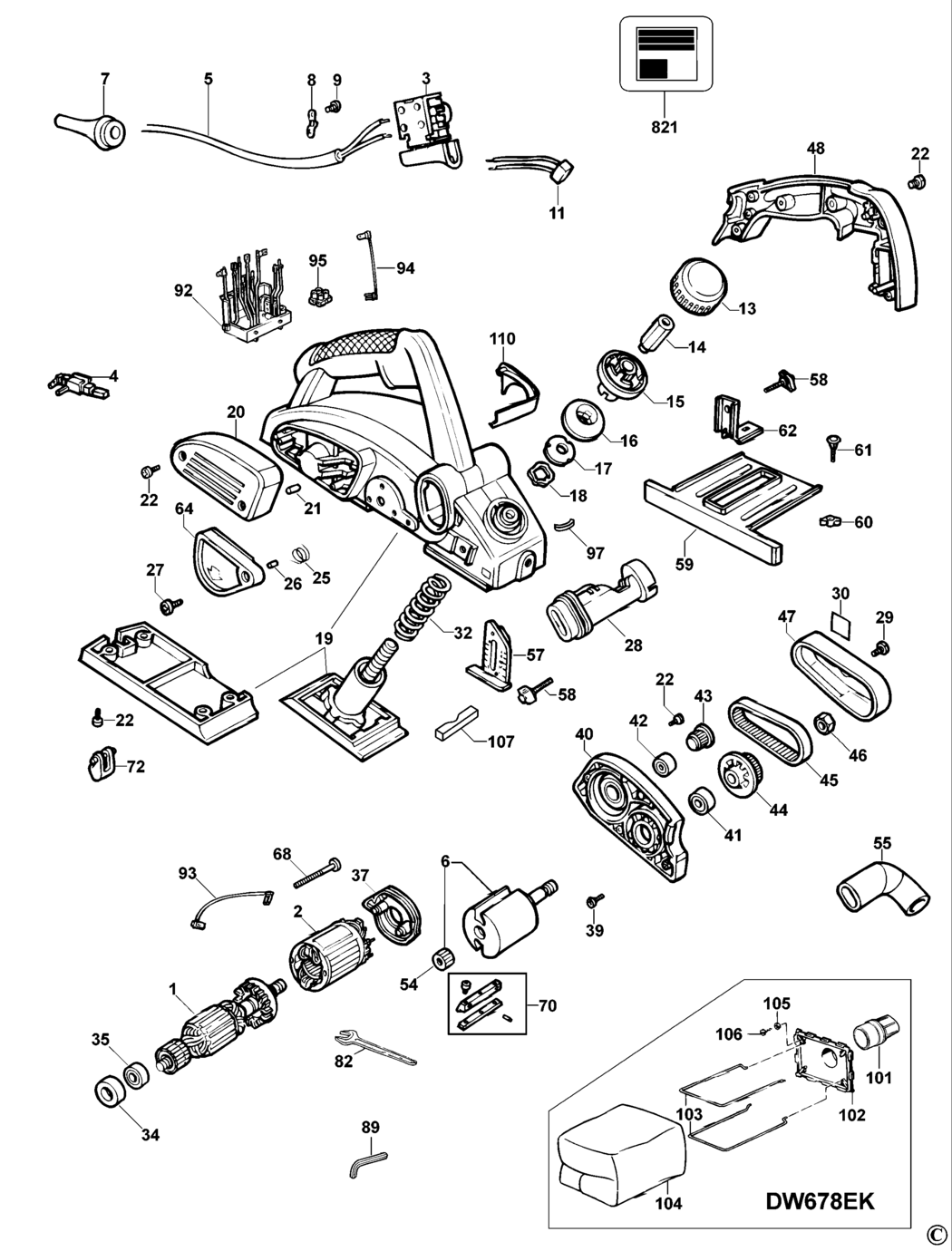

An exploded drawing and spare parts listing for the Dewalt DW678E Type 4 Planer

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE BDE-000000-00.A125409 000000-00	-
2 - NO LONGER AVAILABLE BDE-000000-00.A125410 000000-00	-
3 - SWITCH BDE-328251-01.A0 328251-01	£7.85	£9.42
4 - BRUSH PAIR 230V BDE-575963-03.A6 575963-03	£18.42	£22.10
5 - CORD GB BDE-330060-78.A0 330060-78	-
6 - BLADEDRUM SA BDE-574232-01.A9 574232-01	£62.77	£75.32
7 - CORD PROTECTOR BDE-320785.A1151 320785	£1.66	£1.99
8 - CORD CLAMP BDE-329301-00.A2 329301-00	£1.66	£1.99
9 - SCREW BDE-330065-06.A345 330065-06	£1.66	£1.99
11 - CAPACITOR BDE-321384.A61 321384	£1.66	£1.99
13 - CAP BDE-326592-00.A12 326592-00	£4.83	£5.80
14 - NUT BDE-328772-00.A11 328772-00	£1.66	£1.99
15 - BASE BDE-326590-01.A11 326590-01	£1.66	£1.99
16 - SCALE BDE-326589-02.A10 326589-02	£2.32	£2.78
17 - RATCHET BDE-326381-00.A14 326381-00	£1.66	£1.99
18 - WASHER SPRING BDE-327341-00.A13 327341-00	£1.66	£1.99
19 - NO LONGER AVAILABLE C/Note 9455 BDE-000000-00.A25711 000000-00	-
20 - NO LONGER AVAILABLE BDE-000000-00.A25712 000000-00	-
21 - POST BDE-326636-00.A4 326636-00	£1.66	£1.99
22 - SCREW BDE-330065-08.A31 330065-08	£1.66	£1.99
25 - SPRING BDE-323722-00.A0 323722-00	£1.66	£1.99
26 - BUSH BDE-326823-01.A16 326823-01	£1.66	£1.99
27 - SCREW BDE-324006-00.A40 324006-00	£1.66	£1.99
28 - EJECTOR BDE-327387-00.A12 327387-00	-
29 - SCREW BDE-324006-11.A13 324006-11	£1.66	£1.99
30 - BRAND LABEL BDE-578758-00.A12 578758-00	£1.66	£1.99
32 - SPRING BDE-572255-00.A0 572255-00	£1.66	£1.99
34 - CAP BDE-323481-00.A47 323481-00	£1.66	£1.99
35 - BEARING BDE-605040-63.A8 605040-63	£3.39	£4.07
37 - NO LONGER AVAILABLE BDE-000000-00.A25713 000000-00	-
39 - NO LONGER AVAILABLE BDE-000000-00.A25714 000000-00	-
40 - NO LONGER AVAILABLE BDE-000000-00.A25715 000000-00	-
41 - BEARING BDE-330003-11.A0 330003-11	£11.18	£13.41
42 - BEARING BDE-N542566.A1 N542566	£12.53	£15.04
43 - PULLEY BDE-324105-00.A20 324105-00	£2.87	£3.44
44 - PINION BDE-327065-00.A13 327065-00	£3.39	£4.07
45 - BELT TOOTHED BDE-325106-00.A2 325106-00	£16.52	£19.82
46 - NUT BDE-761225-02.A1 761225-02	£1.66	£1.99
47 - NO LONGER AVAILABLE BDE-000000-00.A25716 000000-00	-
48 - NO LONGER AVAILABLE BDE-000000-00.A25717 000000-00	-
54 - BEARING NEEDLE BDE-330004-31.A15 330004-31	£3.92	£4.70
55 - NO LONGER AVAILABLE BDE-000000-00.A25718 000000-00	-
57 - GUIDE BDE-327393-00.A1 327393-00	£3.39	£4.07
58 - SCREW WING BDE-326573-01.A35 326573-01	£1.88	£2.26
59 - GUIDE FENCE BDE-327391-00.A12 327391-00	£9.69	£11.63
60 - NUT WING BDE-328834-00.A13 328834-00	£1.66	£1.99
61 - BOLT BDE-911111.A14 911111	£1.66	£1.99
62 - BRACKET BDE-328175-00.A1 328175-00	£3.39	£4.07
64 - GUARD BDE-326637-00.A13 326637-00	£1.88	£2.26
68 - SCREW BDE-330065-10.A0 330065-10	£1.66	£1.99
70 - CLAMP SA BDE-N542564.A2 N542564	£16.52	£19.82
72 - STAND BDE-N381124.A0 N381124	£9.69	£11.63
82 - SPANNER BDE-868148-00.A39 868148-00	£3.92	£4.70
89 - HEX KEY 2.5 MM BDE-574541-00.A4 574541-00	£1.66	£1.99
92 - NO LONGER AVAILABLE BDE-000000-00.A25719 000000-00	-
93 - NO LONGER AVAILABLE BDE-000000-00.A25720 000000-00	-
94 - NO LONGER AVAILABLE BDE-000000-00.A25721 000000-00	-
95 - TERMINAL BLOCK BDE-326057-00.A29 326057-00	£1.66	£1.99
97 - CLIP BDE-329145-00.A13 329145-00	£1.66	£1.99
101 - ADAPTOR BDE-327390-00.A0 327390-00	-
102 - NO LONGER AVAILABLE BDE-000000-00.A25722 000000-00	-
103 - NO LONGER AVAILABLE BDE-000000-00.A25723 000000-00	-
104 - NO LONGER AVAILABLE BDE-000000-00.A25724 000000-00	-
105 - WASHER BDE-249233-00.A79 249233-00	£1.66	£1.99
106 - SCREW BDE-249416-06.A49 249416-06	£1.66	£1.99
107 - NO LONGER AVAILABLE BDE-000000-00.A25727 000000-00	-
110 - NO LONGER AVAILABLE BDE-000000-00.A25728 000000-00	-
821 - RATING PLATE BDE-569037-00.A10 569037-00	£3.92	£4.70

Attribute Name	Value
Brand	Dewalt
