Dewalt DW678 Type 1 Planer Spare Parts

Home Details Reviews Delivery

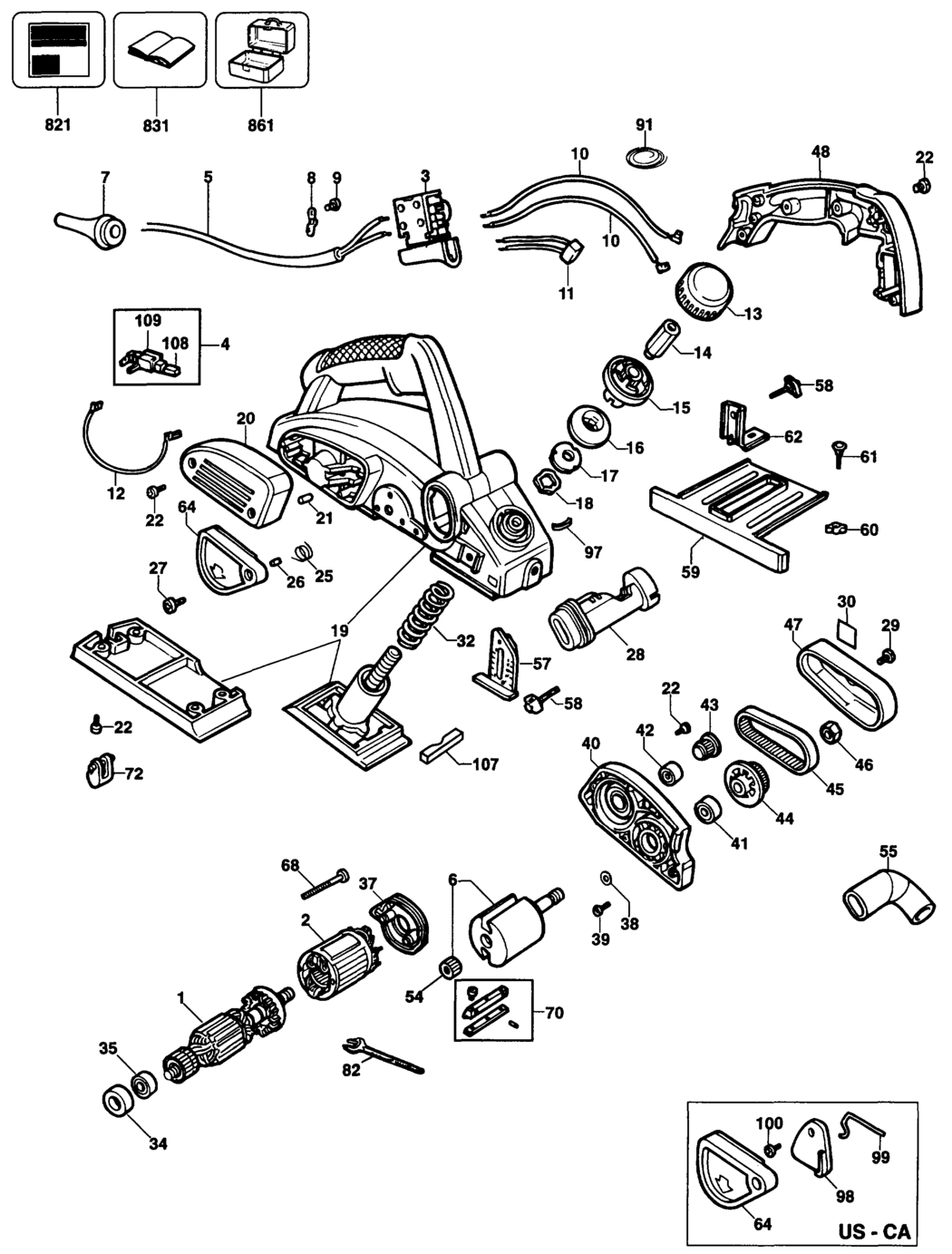

An exploded drawing and spare parts listing for the Dewalt DW678 Type 1 Planer

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE GB 230V BDE-000000-00.A79639 000000-00	-
1 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A79640 000000-00	-
2 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A79641 000000-00	-
2 - NO LONGER AVAILABLE GB 230V BDE-000000-00.A79642 000000-00	-
3 - SWITCH SA GB 230V BDE-327383-03.A0 327383-03	£8.08	£9.70
3 - SWITCH 115V XW BDE-327383-01 327383-01	-
4 - BRUSH PAIR 230V GB 230V BDE-575963-00.A2 575963-00	£20.50	£24.60
4 - BRUSH PAIR 115V XW BDE-575963-04.A5 575963-04	£19.48	£23.37
5 - CORD GB 230V GB BDE-330060-78.A11 330060-78	-
5 - CORDSET (M/PLUG) GB 115V LX BDE-330061-04.A87 330061-04	£12.53	£15.04
6 - BLADEDRUM SA BDE-574232-01.A12 574232-01	£62.77	£75.32
7 - CORD PROTECTOR GB 115V BDE-320785.A1224 320785	£1.66	£1.99
7 - CORD PROTECTOR GB 230V BDE-320785.A1226 320785	£1.66	£1.99
8 - CORD CLAMP BDE-329301-00.A90 329301-00	£1.66	£1.99
9 - SCREW BDE-330065-06.A176 330065-06	£1.66	£1.99
10 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A79643 000000-00	-
10 - NO LONGER AVAILABLE GB 230V BDE-000000-00.A79644 000000-00	-
11 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A79645 000000-00	-
11 - CAPACITOR GB 230V BDE-321384.A11 321384	£1.66	£1.99
12 - NO LONGER AVAILABLE GB 230V BDE-000000-00.A79646 000000-00	-
12 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A79647 000000-00	-
13 - CAP BDE-326592-00.A5 326592-00	£4.83	£5.80
14 - NUT BDE-328772-00.A14 328772-00	£1.66	£1.99
15 - BASE BDE-326590-01.A18 326590-01	£1.66	£1.99
16 - SCALE GB 115V BDE-326589-02.A0 326589-02	£2.32	£2.78
16 - SCALE GB 230V BDE-326589-02.A1 326589-02	£2.32	£2.78
17 - RATCHET BDE-326381-00.A0 326381-00	£1.66	£1.99
18 - WASHER SPRING BDE-327341-00.A0 327341-00	£1.66	£1.99
19 - NO LONGER AVAILABLE BDE-000000-00.A79648 000000-00	-
20 - NO LONGER AVAILABLE BDE-000000-00.A79649 000000-00	-
21 - POST BDE-326636-00.A9 326636-00	£1.66	£1.99
22 - SCREW BDE-330065-08.A214 330065-08	£1.66	£1.99
25 - SPRING BDE-323722-00.A8 323722-00	£1.66	£1.99
26 - BUSH BDE-326823-01.A13 326823-01	£1.66	£1.99
27 - SCREW BDE-324006-00.A133 324006-00	£1.66	£1.99
28 - EJECTOR BDE-327387-00.A9 327387-00	-
29 - SCREW BDE-324006-11.A1 324006-11	£1.66	£1.99
30 - BRAND LABEL BDE-578758-00.A7 578758-00	£1.66	£1.99
32 - SPRING BDE-572255-00.A23 572255-00	£1.66	£1.99
34 - CAP BDE-323481-00.A34 323481-00	£1.66	£1.99
35 - BEARING BDE-605040-63.A75 605040-63	£3.39	£4.07
37 - NO LONGER AVAILABLE BDE-000000-00.A79652 000000-00	-
38 - WASHER BDE-330016-01.A57 330016-01	£1.66	£1.99
39 - NO LONGER AVAILABLE BDE-000000-00.A79650 000000-00	-
40 - NO LONGER AVAILABLE BDE-000000-00.A79651 000000-00	-
41 - BEARING BDE-330003-11.A20 330003-11	£11.18	£13.41
42 - BEARING BDE-N542566.A5 N542566	£12.53	£15.04
43 - PULLEY BDE-324105-00.A11 324105-00	£2.87	£3.44
44 - PINION BDE-327065-00.A0 327065-00	£3.39	£4.07
45 - BELT TOOTHED BDE-325106-00.A21 325106-00	£16.52	£19.82
46 - NUT BDE-761225-02.A36 761225-02	£1.66	£1.99
47 - NO LONGER AVAILABLE BDE-000000-00.A79653 000000-00	-
48 - NO LONGER AVAILABLE BDE-000000-00.A79654 000000-00	-
54 - BEARING NEEDLE BDE-330004-31.A10 330004-31	£3.92	£4.70
55 - NO LONGER AVAILABLE BDE-000000-00.A79655 000000-00	-
57 - GUIDE BDE-327393-00.A3 327393-00	£3.39	£4.07
58 - SCREW WING BDE-326573-01.A115 326573-01	£1.88	£2.26
59 - GUIDE FENCE BDE-327391-00.A11 327391-00	£9.69	£11.63
60 - NUT WING BDE-328834-00.A1 328834-00	£1.66	£1.99
61 - BOLT BDE-911111.A0 911111	£1.66	£1.99
62 - BRACKET BDE-328175-00.A3 328175-00	£3.39	£4.07
64 - GUARD BDE-326637-00.A11 326637-00	£1.88	£2.26
68 - SCREW BDE-330065-10.A41 330065-10	£1.66	£1.99
70 - CLAMP SA BDE-N542564.A24 N542564	£16.52	£19.82
72 - STAND BDE-N381124.A11 N381124	£9.69	£11.63
82 - SPANNER BDE-868148-00.A5 868148-00	£3.92	£4.70
91 - CABLE TIE BDE-941486-00.A5 941486-00	-
97 - CLIP BDE-329145-00.A0 329145-00	£1.66	£1.99
107 - NO LONGER AVAILABLE BDE-000000-00.A79656 000000-00	-
108 - NO LONGER AVAILABLE 115 / 120V BDE-000000-00.A79657 000000-00	-
108 - BRUSH PAIR 230V 230V BDE-575963-00.A3 575963-00	£20.50	£24.60
109 - BRUSH HOLDER PAIR BDE-329780-49.A6 329780-49	£10.57	£12.68

Attribute Name	Value
Brand	Dewalt
