Dewalt DPN9033 Type 1 Nailer Spare Parts

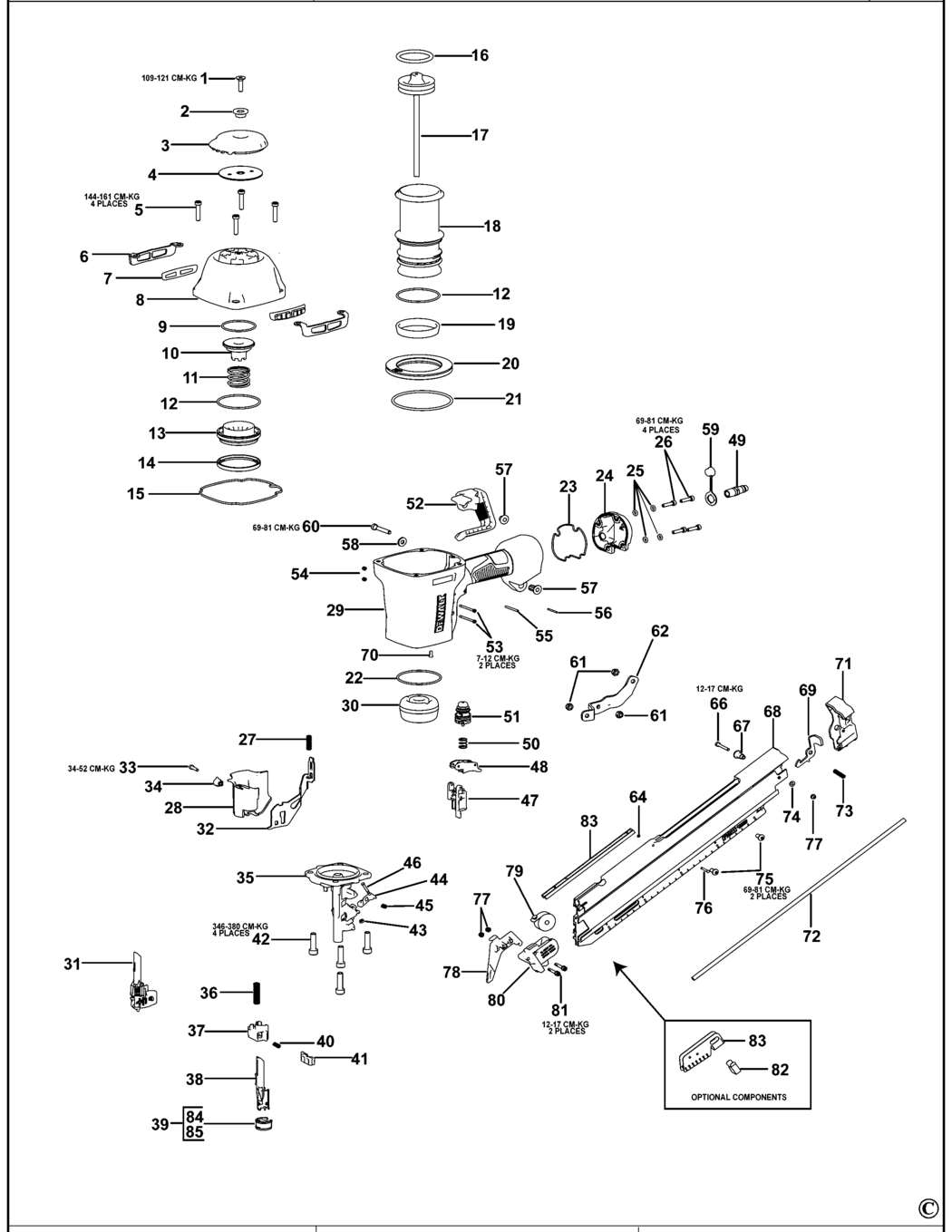

An exploded drawing and spare parts listing for the Dewalt DPN9033 Type 1 Nailer

	Ex VAT	Inc VAT
1 - SCREW BDE-MSF6100-25.A9 MSF6100-25	£1.50	£1.80
2 - BUSHING BDE-163859.A5 163859	£2.78	£3.34
3 - EXHAUST BDE-163818.A0 163818	£3.30	£3.96
4 - PLATE BDE-163830.A6 163830	£1.50	£1.80
5 - SCREW BDE-MSC6100-30.A48 MSC6100-30	£1.50	£1.80
6 - PLATE BDE-163827.A1 163827	£1.82	£2.19
7 - GUIDE BDE-149819.A6 149819	£1.50	£1.80
8 - CAP BDE-9R207477.A4 9R207477	£41.24	£49.49
9 - O RING BDE-105814.A5 105814	£10.85	£13.02
10 - BUMPER BDE-163820.A13 163820	£2.26	£2.71
11 - SPRING BDE-163844.A5 163844	£1.50	£1.80
12 - O RING BDE-163822.A13 163822	£3.80	£4.56
13 - VALVE BODY BDE-163821.A1 163821	£1.50	£1.80
14 - SEAL BDE-163823.A1 163823	£1.50	£1.80
15 - SEAL BDE-163845.A9 163845	£1.50	£1.80
16 - O RING BDE-851606-S.A14 851606-S	£1.50	£1.80
17 - PISTON KIT BDE-163922.A2 163922	£51.90	£62.28
18 - SLEEVE BDE-163824.A13 163824	£30.08	£36.10
19 - SEAL BDE-175520.A9 175520	£1.50	£1.80
20 - RING BDE-163855.A8 163855	£2.78	£3.34
21 - O RING BDE-108718.A19 108718	£1.50	£1.80
22 - O RING BDE-89673.A9 89673	£2.26	£2.71
23 - SEAL BDE-163856.A6 163856	£1.50	£1.80
24 - END CAP BDE-163843.A8 163843	£10.85	£13.02
25 - WASHER BDE-T50118.A12 T50118	£1.50	£1.80
26 - SCREW BDE-MSC5080-20.A41 MSC5080-20	£1.50	£1.80
27 - SPRING BDE-166781.A9 166781	£1.50	£1.80
28 - COVER BDE-171338.A8 171338	£2.26	£2.71
29 - FRAME BDE-9R207410.A2 9R207410	£104.31	£125.17
30 - BUMPER BDE-107231.A13 107231	£14.57	£17.48
31 - CONNECTOR BDE-188676 188676	£34.00	£40.80
32 - ARM BDE-163900.A3 163900	£1.82	£2.19
33 - SCREW BDE-MSC4070-16.A27 MSC4070-16	£1.50	£1.80
34 - BUSHING BDE-163903.A7 163903	£2.26	£2.71
35 - NOSE BDE-163924-.A2 163924-	£104.31	£125.17
36 - SPRING BDE-166772.A10 166772	£1.50	£1.80
37 - HOUSING BDE-108224.A9 108224	£7.85	£9.42
38 - CONTACT BDE-142941.A3 142941	£10.85	£13.02
39 - FOOT SA BDE-121072.A7 121072	£1.50	£1.80
40 - SPRING BDE-115230.A13 115230	£1.50	£1.80
41 - CASTING BDE-166777.A6 166777	£4.69	£5.63
42 - SCREW BDE-MSC8125-30.A17 MSC8125-30	£1.50	£1.80
43 - WASHER BDE-854004.A16 854004	£1.50	£1.80
44 - PAWL BDE-173875.A1 173875	£5.88	£7.06
45 - SPRING BDE-163878.A3 163878	£1.50	£1.80
46 - PIN BDE-149882.A7 149882	£1.50	£1.80
47 - GUIDE BDE-163883.A4 163883	£1.50	£1.80
48 - TRIGGER BDE-166759.A4 166759	£3.30	£3.96
49 - ADAPTOR BDE-159977.A6 159977	£1.50	£1.80
50 - SPRING BDE-100387.A0 100387	£1.50	£1.80
51 - TRIGGER BDE-102039.A1 102039	£16.03	£19.24
52 - HOOK BDE-171354.A13 171354	£12.17	£14.60
53 - SCREW BDE-108562.A14 108562	£1.50	£1.80
54 - NUT BDE-MHE3050-100.A27 MHE3050-100	£1.50	£1.80
55 - PIN BDE-100298.A40 100298	£1.50	£1.80
56 - PIN BDE-MPP030020.A54 MPP030020	£1.50	£1.80
57 - BUSHING BDE-123859.A13 123859	£1.50	£1.80
58 - WASHER BDE-MPW6.2.A31 MPW6.2	£1.50	£1.80
59 - COVER BDE-9R195380.A3 9R195380	£1.50	£1.80
60 - SCREW BDE-173767.A0 173767	£1.50	£1.80
61 - NUT BDE-MHE6100-100.A49 MHE6100-100	£1.50	£1.80
62 - BRACKET BDE-166776.A0 166776	£14.57	£17.48
64 - O RING BDE-166797.A12 166797	£1.50	£1.80
66 - SCREW BDE-100261.A11 100261	£1.50	£1.80
67 - SPACER BDE-121472.A5 121472	£1.50	£1.80
69 - LATCH BDE-166778.A3 166778	£1.50	£1.80
70 - PLUG BDE-163858.A8 163858	£1.50	£1.80
71 - END CAP BDE-163912.A7 163912	£4.69	£5.63
72 - GUIDE ROD BDE-163866.A1 163866	£1.50	£1.80
73 - SPRING BDE-120878.A6 120878	£1.50	£1.80
74 - WASHER BDE-MPW4.A10 MPW4	£1.50	£1.80
75 - BOLT BDE-MSB6100-12.A23 MSB6100-12	£1.50	£1.80
76 - PIN BDE-121407.A8 121407	£1.50	£1.80
77 - NUT M4 BDE-MHE4070-100.A45 MHE4070-100	£1.50	£1.80
78 - PUSHER BDE-188674.A4 188674	£10.85	£13.02
79 - SPRING BDE-115143.A10 115143	£7.18	£8.62
80 - HANDLE BDE-163902.A2 163902	£1.82	£2.19
81 - SCREW BDE-121052.A14 121052	£1.50	£1.80
82 - SHIELD BDE-112630.A15 112630	£2.26	£2.71
83 - SPRING BDE-112631.A0 112631	£1.50	£1.80
84 - CLIP BDE-121071.A7 121071	£1.50	£1.80
85 - FOOT BDE-121070.A5 121070	£1.50	£1.80

Attribute Name	Value
Brand	Dewalt
