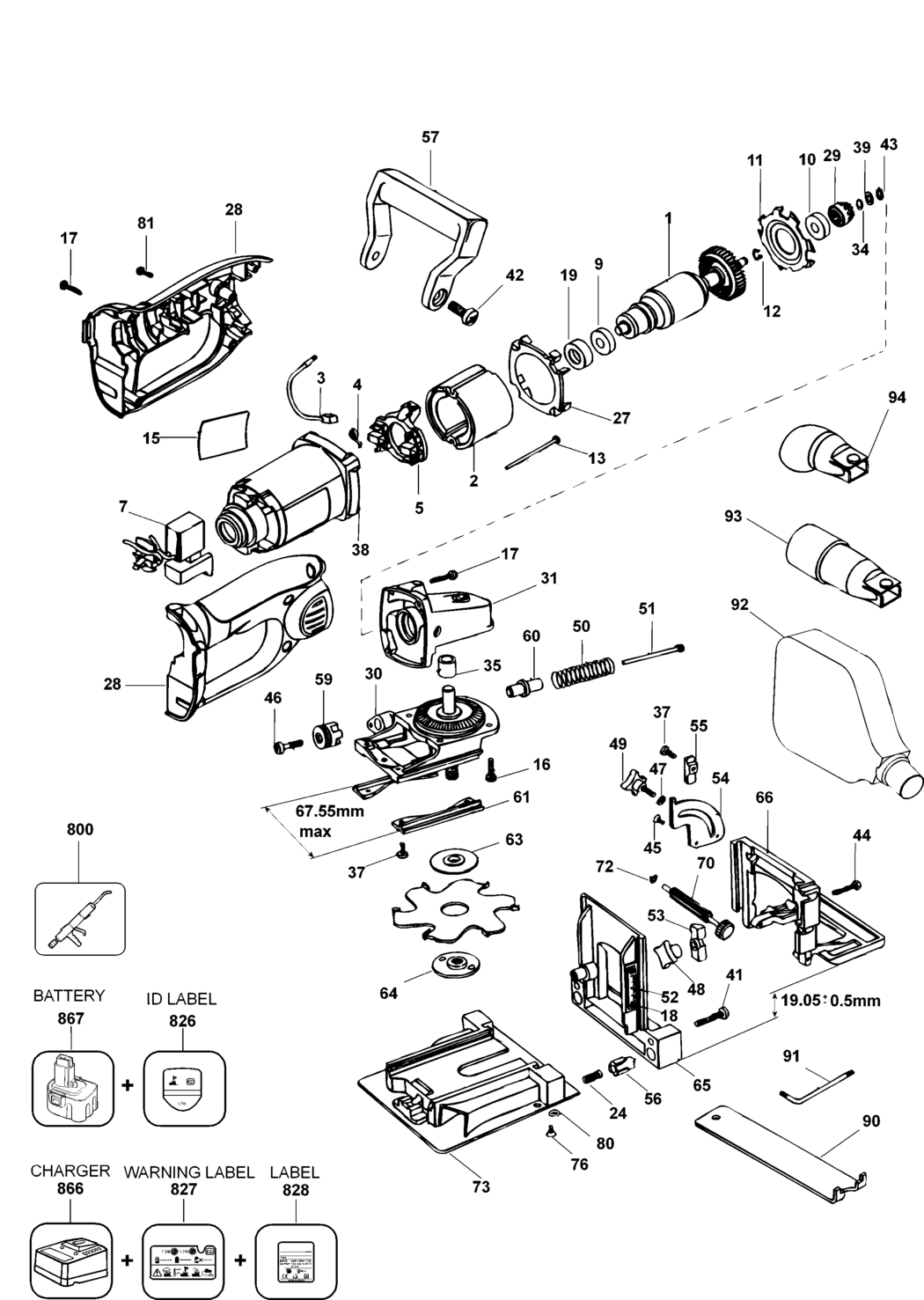

1 - ARMATURE & FAN
BDE-389823-01SV.A0
389823-01SV
|
-
|
|
|
|
2 - MAGNET
BDE-388232-01SV.A0
388232-01SV
|
-
|
|
|
|
3 - BRUSH & LEAD
BDE-387558-01.A9
387558-01
|
£5.88
|
£7.06
|
|
|
4 - BRUSH SPRING
BDE-445860-00.A0
445860-00
|
£1.50
|
£1.80
|
|
|
5 - BRUSH FRAME
BDE-382178-01.A26
382178-01
|
-
|
|
|
|
7 - NO LONGER AVAILABLE
BDE-000000-00.A18814
000000-00
|
-
|
|
|
|
9 - BEARING
BDE-605040-06.A353
605040-06
|
£3.80
|
£4.56
|
|
|
10 - BEARING
BDE-605040-15.A9
605040-15
|
£4.69
|
£5.63
|
|
|
11 - RETAINER
BDE-150057-00.A6
150057-00
|
£1.50
|
£1.80
|
|
|
12 - CIRCLIP
BDE-444793-00.A83
444793-00
|
£1.50
|
£1.80
|
|
|
13 - SCREW
BDE-448269-00.A9
448269-00
|
£1.42
|
£1.70
|
|
|
15 - NO LONGER AVAILABLE
BDE-000000-00.A18815
000000-00
|
-
|
|
|
|
16 - SCREW
BDE-146929-00.A0
146929-00
|
£1.50
|
£1.80
|
|
|
17 - SCREW
BDE-330019-13.A29
330019-13
|
£1.50
|
£1.80
|
|
|
18 - SCREW
BDE-330045-43.A0
330045-43
|
£1.50
|
£1.80
|
|
|
19 - SLEEVE
BDE-445217-02.A19
445217-02
|
£1.50
|
£1.80
|
|
|
24 - SPRING
BDE-147809-00.A0
147809-00
|
£1.50
|
£1.80
|
|
|
27 - NO LONGER AVAILABLE
BDE-000000-00.A18816
000000-00
|
-
|
|
|
|
28 - NO LONGER AVAILABLE
BDE-000000-00.A18817
000000-00
|
-
|
|
|
|
29 - PINION
BDE-152487-01.A3
152487-01
|
£3.80
|
£4.56
|
|
|
30 - GEARCASE COVER
BDE-NA065769.A5
NA065769
|
£55.30
|
£66.36
|
|
|
31 - GEARCASE COVER
BDE-N835822.A3
N835822
|
£24.39
|
£29.27
|
|
|
34 - RING
BDE-050050-00.A52
050050-00
|
£1.50
|
£1.80
|
|
|
35 - SLEEVE BEARING
BDE-36826-00.A3
36826-00
|
£1.50
|
£1.80
|
|
|
37 - SCREW
BDE-330045-05.A101
330045-05
|
£1.50
|
£1.80
|
|
|
38 - FIELDCASE
BDE-445857-08.A3
445857-08
|
£7.85
|
£9.42
|
|
|
39 - WASHER
BDE-449559-00.A8
449559-00
|
£1.50
|
£1.80
|
|
|
41 - SCREW
BDE-330045-16.A16
330045-16
|
£1.50
|
£1.80
|
|
|
42 - SCREW
BDE-330045-32.A37
330045-32
|
£1.50
|
£1.80
|
|
|
43 - RING
BDE-38751-00.A5
38751-00
|
£1.50
|
£1.80
|
|
|
44 - SCREW
BDE-098022-25.A7
098022-25
|
£1.50
|
£1.80
|
|
|
45 - SCREW.TEMP
BDE-98102-10.A5
98102-10
|
£1.50
|
£1.80
|
|
|
46 - SCREW
BDE-147791-00.A8
147791-00
|
£1.50
|
£1.80
|
|
|
47 - WASHER
BDE-330016-07.A2
330016-07
|
£1.50
|
£1.80
|
|
|
48 - KNOB
BDE-396991-00.A3
396991-00
|
£1.50
|
£1.80
|
|
|
49 - KNOB
BDE-396992-00.A2
396992-00
|
£1.50
|
£1.80
|
|
|
50 - NO LONGER AVAILABLE
BDE-000000-00.A18818
000000-00
|
-
|
|
|
|
51 - SHAFT
BDE-147759-00.A2
147759-00
|
£1.50
|
£1.80
|
|
|
52 - NO LONGER AVAILABLE
BDE-000000-00.A18819
000000-00
|
-
|
|
|
|
53 - CLAMP
BDE-147749-00.A5
147749-00
|
£1.50
|
£1.80
|
|
|
54 - QUADRANT
BDE-147795-00.A5
147795-00
|
£7.85
|
£9.42
|
|
|
55 - STOP
BDE-147786-00.A5
147786-00
|
£1.50
|
£1.80
|
|
|
56 - PIN
BDE-147753-00.A0
147753-00
|
£1.50
|
£1.80
|
|
|
57 - HANDLE
BDE-147793-00.A5
147793-00
|
£9.41
|
£11.29
|
|
|
59 - STOP
BDE-147760-00.A3
147760-00
|
£3.30
|
£3.96
|
|
|
60 - NO LONGER AVAILABLE
BDE-000000-00.A18820
000000-00
|
-
|
|
|
|
61 - PAD
BDE-147736-01.A5
147736-01
|
£1.50
|
£1.80
|
|
|
63 - WASHER
BDE-147725-00.A5
147725-00
|
£7.18
|
£8.62
|
|
|
64 - NUT
BDE-151001-00.A2
151001-00
|
£7.85
|
£9.42
|
|
|
65 - SUPPORT
BDE-147741-00.A5
147741-00
|
£34.00
|
£40.80
|
|
|
66 - NO LONGER AVAILABLE
BDE-000000-00.A18821
000000-00
|
-
|
|
|
|
70 - PINION
BDE-147745-00SV.A0
147745-00SV
|
£30.08
|
£36.10
|
|
|
72 - O RING
BDE-147799-00.A5
147799-00
|
£1.50
|
£1.80
|
|
|
73 - BASEPLATE SA
BDE-385914-00.A2
385914-00
|
£60.94
|
£73.13
|
|
|
76 - SCREW
BDE-385915-01.A16
385915-01
|
£1.50
|
£1.80
|
|
|
80 - WASHER SPRING
BDE-385946-00.A4
385946-00
|
£1.50
|
£1.80
|
|
|
81 - SCREW
BDE-682211-00.A154
682211-00
|
£1.50
|
£1.80
|
|
|
90 - SPANNER
BDE-445871-00.A0
445871-00
|
£3.80
|
£4.56
|
|
|
91 - KEY
BDE-152693-00.A5
152693-00
|
£1.82
|
£2.19
|
|
|
92 - DUSTBAG
BDE-147734-06.A0
147734-06
|
£16.03
|
£19.24
|
|
|
93 - ADAPTOR
BDE-147794-00.A0
147794-00
|
£3.80
|
£4.56
|
|
|
94 - DUST DEFLECTOR
BDE-151002-00.A3
151002-00
|
£7.18
|
£8.62
|
|
|
800 - GREASE 90 GMS
BDE-870889-02.A136
870889-02
|
£7.85
|
£9.42
|
|
|
826 - IDENTITY LABEL
BDE-578763-00.A4
578763-00
|
£1.42
|
£1.70
|
|
|
827 - NO LONGER AVAILABLE
BDE-000000-00.A18822
000000-00
|
-
|
|
|
|
828 - NO LONGER AVAILABLE
BDE-000000-00.A18823
000000-00
|
-
|
|
|
|
866 - CHARGER 7.2V - 18V GB
BDE-572576-00.A14
572576-00
|
£110.62
|
£132.74
|
|
|
867 - BATTERY 18V - 2.4AH GB
BDE-582627-00.A13
582627-00
|
-
|
|
|
