Dewalt DW682K Type 3 Jointer Groover Spare Parts

Home Details Reviews Delivery

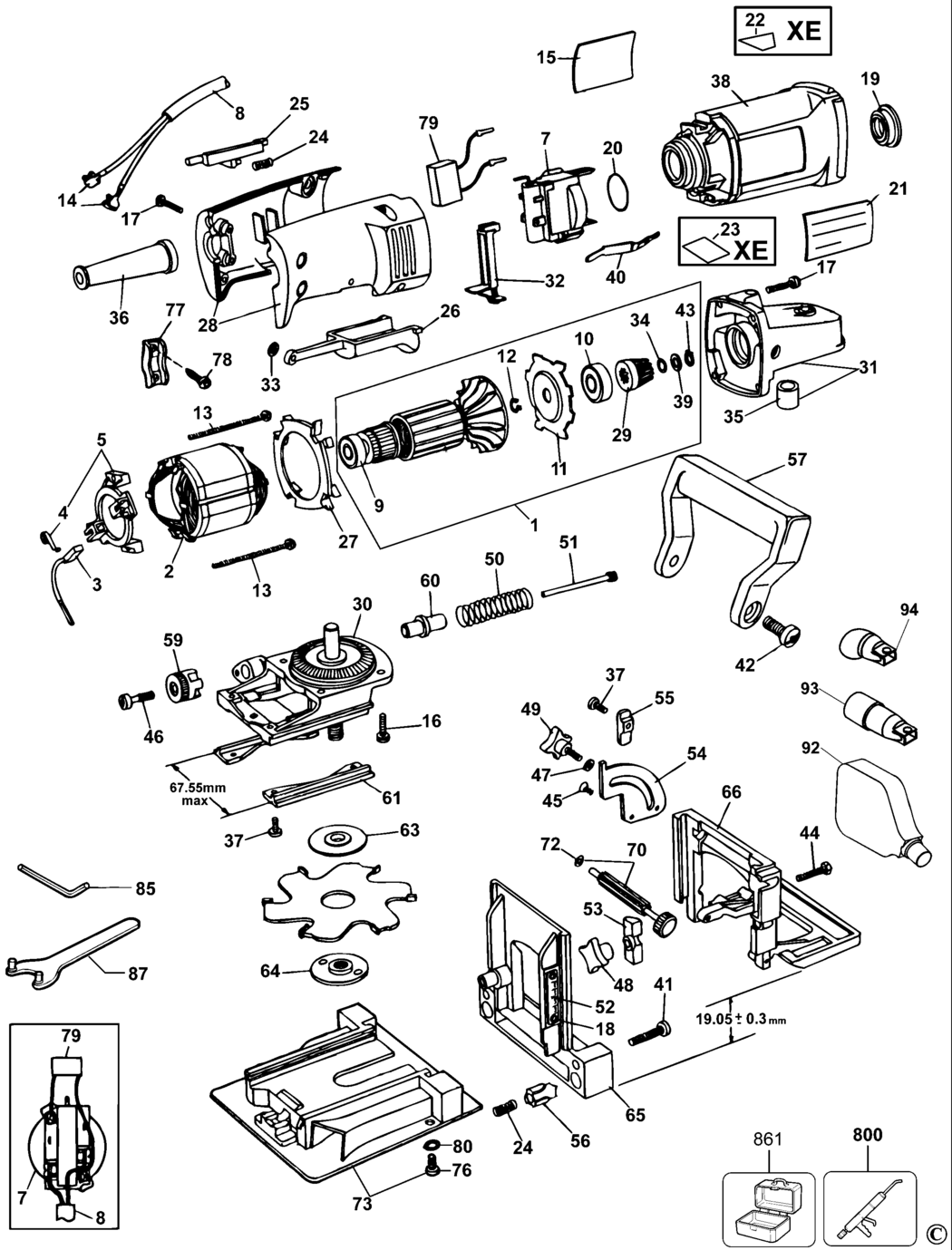

An exploded drawing and spare parts listing for the Dewalt DW682K Type 3 Jointer Groover

	Ex VAT	Inc VAT
1 - ARMATURE & FAN LX BDE-618066-01.A0 618066-01	£53.46	£64.15
1 - ARMATURE & FAN GB BDE-618066-03SV.A1 618066-03SV	£56.97	£68.36
2 - FIELD GB BDE-616325-01SV.A1 616325-01SV	£19.48	£23.37
2 - FIELD LX BDE-616325-00.A0 616325-00	£15.01	£18.01
3 - BRUSH 220V GB BDE-445861-30.A2 445861-30	£3.39	£4.07
3 - BRUSH 120V LX BDE-445861-34.A3 445861-34	£5.88	£7.06
4 - BRUSH SPRING BDE-445860-00.A69 445860-00	£1.66	£1.99
5 - RING Inc Item 4 BDE-449899-05.A36 449899-05	£9.69	£11.63
7 - SWITCH BDE-147789-01.A3 147789-01	-
8 - NO LONGER AVAILABLE Inc Items 14 - 36 GB BDE-000000-00.A126316 000000-00	-
8 - NO LONGER AVAILABLE Inc Items 14 - 36 LX BDE-000000-00.A126317 000000-00	-
9 - BEARING BDE-605040-06.A264 605040-06	£3.92	£4.70
10 - BEARING BDE-605040-15.A28 605040-15	£4.83	£5.80
11 - RETAINER BDE-150057-00.A2 150057-00	£1.66	£1.99
12 - CIRCLIP BDE-444793-00.A54 444793-00	£1.66	£1.99
13 - SCREW BDE-445880-00.A10 445880-00	£1.66	£1.99
14 - TERMINAL BDE-151169-00.A3 151169-00	-
15 - BRAND LABEL BDE-395047-00.A55 395047-00	£1.66	£1.99
16 - SCREW BDE-146929-00.A10 146929-00	£1.66	£1.99
17 - SCREW BDE-330019-13.A536 330019-13	£1.66	£1.99
18 - SCREW BDE-330045-43.A30 330045-43	£1.66	£1.99
19 - SLEEVE BDE-445217-02.A107 445217-02	£1.66	£1.99
20 - SEAL BDE-700248-00.A7 700248-00	£1.66	£1.99
21 - NO LONGER AVAILABLE GB BDE-000000-00.A126318 000000-00	-
21 - NO LONGER AVAILABLE LX BDE-000000-00.A126319 000000-00	-
24 - SPRING BDE-147809-00.A5 147809-00	£1.66	£1.99
25 - BUTTON BDE-147722-00.A0 147722-00	-
26 - TRIGGER BDE-147723-01.A2 147723-01	-
27 - BAFFLE BDE-445876-00.A9 445876-00	£1.66	£1.99
28 - HANDLE & COVER BDE-147727-03.A1 147727-03	-
29 - PINION BDE-152487-01.A2 152487-01	£3.92	£4.70
30 - GEARCASE COVER BDE-NA065769.A0 NA065769	£56.97	£68.36
31 - GEARCASE COVER BDE-N835822.A6 N835822	£25.12	£30.15
32 - ACTUATOR BDE-151144-01.A0 151144-01	-
33 - RING BDE-701901-00.A9 701901-00	£1.66	£1.99
34 - RING BDE-050050-00.A10 050050-00	£1.66	£1.99
35 - SLEEVE BEARING BDE-36826-00.A2 36826-00	£1.66	£1.99
36 - CORD PROTECTOR BDE-N542553.A231 N542553	£3.92	£4.70
37 - SCREW BDE-330045-05.A130 330045-05	£1.66	£1.99
38 - FIELDCASE BDE-445886-11.A1 445886-11	£15.01	£18.01
39 - WASHER BDE-449559-00.A0 449559-00	£1.66	£1.99
40 - CONTACT BDE-445882-00.A2 445882-00	£1.66	£1.99
41 - SCREW BDE-330045-16.A19 330045-16	£1.66	£1.99
42 - SCREW BDE-330045-32.A18 330045-32	£1.66	£1.99
43 - RING BDE-38751-00.A0 38751-00	£1.66	£1.99
44 - SCREW BDE-098022-25.A1 098022-25	£1.66	£1.99
45 - SCREW.TEMP BDE-98102-10.A14 98102-10	£1.66	£1.99
46 - SCREW BDE-147791-00.A0 147791-00	£1.66	£1.99
47 - WASHER BDE-330016-07.A52 330016-07	£1.66	£1.99
48 - KNOB BDE-396991-00.A0 396991-00	£1.66	£1.99
49 - KNOB BDE-396992-00.A6 396992-00	£1.66	£1.99
50 - SPRING BDE-147758-00.A0 147758-00	£1.66	£1.99
51 - SHAFT BDE-147759-00.A5 147759-00	£1.66	£1.99
52 - SCALE BDE-147797-01.A4 147797-01	£2.87	£3.44
53 - CLAMP BDE-147749-00.A0 147749-00	£1.66	£1.99
54 - QUADRANT BDE-147795-00.A0 147795-00	£8.08	£9.70
55 - STOP BDE-147786-00.A0 147786-00	£1.66	£1.99
56 - PIN BDE-147753-00.A5 147753-00	£1.66	£1.99
57 - HANDLE BDE-147793-00.A0 147793-00	£9.69	£11.63
59 - STOP BDE-147760-00.A0 147760-00	£3.39	£4.07
60 - GUIDE BDE-147785-00.A4 147785-00	£1.66	£1.99
61 - PAD BDE-147736-01.A0 147736-01	£1.66	£1.99
63 - WASHER BDE-147725-00.A0 147725-00	£7.40	£8.88
64 - NUT BDE-151001-00.A3 151001-00	£8.08	£9.70
65 - SUPPORT BDE-147741-00.A0 147741-00	£35.02	£42.02
66 - FENCE BDE-N835821.A1 N835821	£67.48	£80.98
70 - PINION Inc Item 72 BDE-147745-00SV.A5 147745-00SV	£30.98	£37.18
72 - O RING BDE-147799-00.A0 147799-00	£1.66	£1.99
73 - BASEPLATE SA Inc Item 76 BDE-385914-00.A3 385914-00	£62.77	£75.32
76 - SCREW BDE-385915-01.A29 385915-01	£1.66	£1.99
77 - CORD CLAMP BDE-450877-00.A22 450877-00	£1.66	£1.99
78 - SCREW BDE-330019-02.A30 330019-02	£1.66	£1.99
79 - CAPACITOR BDE-147792-00.A3 147792-00	-
80 - WASHER SPRING BDE-385946-00.A1 385946-00	£1.66	£1.99
85 - KEY BDE-152693-00.A0 152693-00	£1.88	£2.26
87 - SPANNER BDE-445871-00.A3 445871-00	£3.92	£4.70
92 - DUSTBAG BDE-147734-06.A27 147734-06	£16.52	£19.82
93 - ADAPTOR BDE-147794-00.A5 147794-00	£3.92	£4.70
94 - DUST DEFLECTOR BDE-151002-00.A2 151002-00	£7.40	£8.88
800 - GREASE 90 GMS BDE-870889-02.A619 870889-02	£8.08	£9.70
861 - KITBOX BDE-621119-00.A0 621119-00	£42.48	£50.98

Attribute Name	Value
Brand	Dewalt
