Dewalt DWE315 Type 1 Multitool Spare Parts

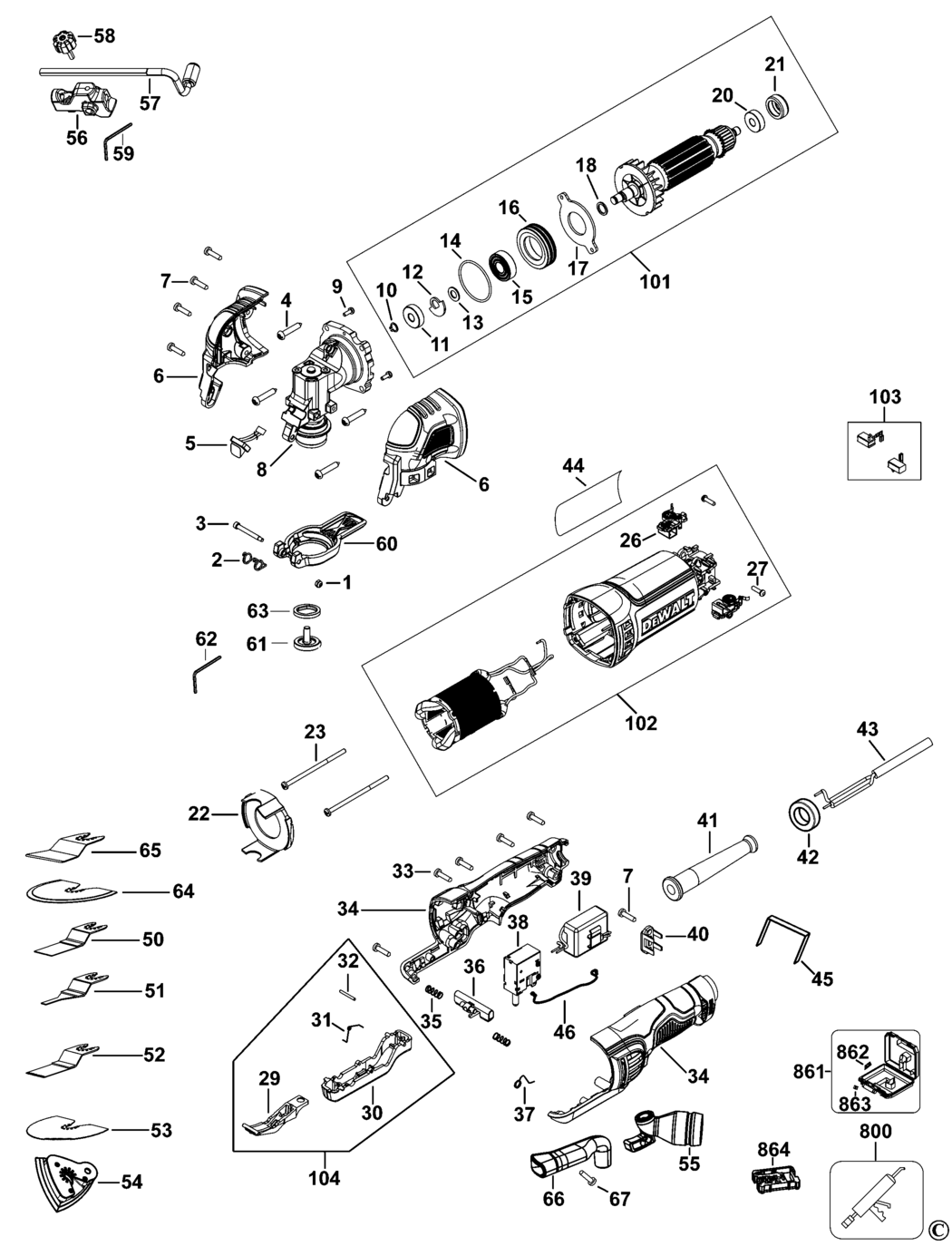

An exploded drawing and spare parts listing for the Dewalt DWE315 Type 1 Multitool

	Ex VAT	Inc VAT
1 - NUT BDE-N243985.A2 N243985	£1.50	£1.80
2 - SPRING BDE-N140357.A0 N140357	£1.50	£1.80
3 - SCREW BDE-N175484.A0 N175484	£1.50	£1.80
4 - SCREW BDE-330065-09.A39 330065-09	£1.50	£1.80
5 - LED BDE-N174364.A0 N174364	£7.85	£9.42
6 - CLAMSHELL SET BDE-N160878 N160878	-
6 - CLAMSHELL SA GB BDE-N244602.A1 N244602	£7.85	£9.42
6 - CLAMSHELL SA LX BDE-N244602.A2 N244602	£7.85	£9.42
7 - SCREW BDE-330019-03.A200 330019-03	£1.50	£1.80
8 - HEAD SA BDE-N341719.A2 N341719	£96.55	£115.86
9 - SCREW BDE-330045-43.A22 330045-43	£1.50	£1.80
10 - CLIP BDE-N146423.A1 N146423	£1.50	£1.80
11 - BEARING BDE-N140406.A0 N140406	£4.69	£5.63
12 - BALANCE WEIGHT BDE-N146420.A1 N146420	£1.50	£1.80
13 - WASHER BDE-N146421.A0 N146421	£1.50	£1.80
14 - O RING BDE-N150641.A1 N150641	£1.50	£1.80
15 - BEARING BALL BDE-N129813-03.A1 N129813-03	£2.78	£3.34
16 - BOOT BDE-N140388.A1 N140388	£3.80	£4.56
17 - PLATE BDE-N146419.A0 N146419	£1.50	£1.80
18 - CIRCLIP BDE-444793-00.A20 444793-00	£1.50	£1.80
20 - BEARING BDE-605040-02.A115 605040-02	£2.26	£2.71
21 - SLEEVE BDE-641823-00.A113 641823-00	£1.50	£1.80
22 - BAFFLE FAN BDE-N156660.A0 N156660	£1.50	£1.80
23 - SCREW BDE-330065-29.A2 330065-29	£1.50	£1.80
26 - BRUSH HOLDER SA BDE-N174542.A0 N174542	£2.78	£3.34
27 - SCREW BDE-593478-00.A47 593478-00	£1.50	£1.80
28 - TRIGGER BDE-N213752.A2 N213752	£2.26	£2.71
29 - TRIGGER BDE-N158999.A1 N158999	£1.50	£1.80
30 - TRIGGER BDE-N213752.A4 N213752	£2.26	£2.71
31 - SPRING BDE-N230817.A0 N230817	£1.50	£1.80
32 - PIN BDE-N230818.A1 N230818	£1.50	£1.80
33 - SCREW BDE-90611830.A12 90611830	£1.50	£1.80
34 - HOUSING HANDLE BDE-N184603 N184603	-
34 - HOUSING HANDLE GB BDE-N244599.A0 N244599	£10.85	£13.02
34 - HOUSING HANDLE LX BDE-N244599.A1 N244599	£10.85	£13.02
35 - SPRING BDE-N157740.A1 N157740	£9.41	£11.29
36 - LOCK BUTTON BDE-N157511.A1 N157511	£1.50	£1.80
37 - SPRING BDE-N230816.A1 N230816	£1.50	£1.80
38 - SWITCH SA LX BDE-N059506 N059506	£19.90	£23.88
38 - SWITCH VARIABLE GB BDE-N059508.A0 N059508	£25.70	£30.84
39 - PCB SA LX BDE-N175102.A0 N175102	£30.08	£36.10
39 - PCB SA GB BDE-N175102.A1 N175102	£30.08	£36.10
39 - PCB SA BDE-N175102.A2 N175102	£30.08	£36.10
40 - CORD CLAMP BDE-652147-00.A1 652147-00	-
41 - CORD PROTECTOR BDE-N542553.A520 N542553	£3.80	£4.56
42 - RING BDE-N399814 N399814	£2.71	£3.25
42 - RING BDE-N292620.A1 N292620	£3.80	£4.56
43 - CORDSET (M/PLUG) GB GB BDE-N235921.A1 N235921	£24.39	£29.27
43 - CORDSET LX BDE-N361389 N361389	£37.35	£44.82
44 - RATING PLATE LX BDE-N377762 N377762	£1.50	£1.80
44 - RATING PLATE GB BDE-N247780 N247780	£1.50	£1.80
45 - SHIELD BDE-N363619.A0 N363619	£1.50	£1.80
46 - LEADWIRE GB BDE-N225478.A0 N225478	£1.50	£1.80
50 - BLADE BDE-N333599.A0 N333599	£17.48	£20.97
51 - BLADE BDE-N333619.A1 N333619	£14.57	£17.48
52 - BLADE BDE-N275319.A0 N275319	£14.57	£17.48
53 - BLADE BDE-N446932.A0 N446932	£16.03	£19.24
53 - BLADE BDE-N251926.A0 N251926	£16.03	£19.24
54 - PLATEN BDE-N271240.A2 N271240	£14.57	£17.48
55 - DUST PORT BDE-N277679.A0 N277679	£3.30	£3.96
56 - BLOCK SA BDE-N275350.A0 N275350	£10.85	£13.02
57 - DEPTH STOP BDE-N275341.A1 N275341	£5.88	£7.06
58 - KNOB SA BDE-N278801.A0 N278801	£1.50	£1.80
59 - HEX KEY BDE-N285879.A1 N285879	£1.50	£1.80
60 - LEVER LOCK BDE-N159295.A0 N159295	£5.88	£7.06
61 - OUTER FLANGE BDE-90584484.A1 90584484	£2.78	£3.34
61 - OUTER FLANGE BDE-N544197.A2 N544197	£9.41	£11.29
62 - WRENCH SPECIAL BDE-90584745.A1 90584745	£1.50	£1.80
63 - FLANGE BDE-N440293.A10 N440293	£2.78	£3.34
64 - BLADE - CARBIDE BDE-N342939.A1 N342939	£24.39	£29.27
64 - BLADE - CARBIDE BDE-N446935.A0 N446935	£17.48	£20.97
65 - BLADE - RIGID SCRAPER BDE-N251931.A2 N251931	£3.80	£4.56
65 - BLADE - RIGID SCRAPER BDE-N446933.A1 N446933	£3.30	£3.96
66 - DUST PORT BDE-N278060.A0 N278060	£1.50	£1.80
67 - SCREW BDE-N291362.A1 N291362	£1.50	£1.80
101 - ARMATURE SA GB BDE-N342740.A1 N342740	£87.82	£105.39
101 - ARMATURE SA LX BDE-N384387 N384387	£51.90	£62.28
102 - FIELDCASE SA LX BDE-N384381 N384381	£41.24	£49.49
102 - FIELDCASE SA GB BDE-N342739.A0 N342739	£93.62	£112.35
103 - BRUSH PAIR 230V GB BDE-N343600.A0 N343600	£4.69	£5.63
103 - BRUSH PAIR 120V LX BDE-N384379 N384379	£3.80	£4.56
104 - TRIGGER BDE-N213752.A3 N213752	£2.26	£2.71
800 - GREASE BDE-585381-00.A0 585381-00	£45.14	£54.17
800 - GREASE BDE-870889-03.A103 870889-03	£7.85	£9.42
861 - KITBOX BDE-N279261.A26 N279261	£44.14	£52.97
862 - INSERT BDE-N278059.A1 N278059	£34.00	£40.80
862 - LATCH BDE-N409477.A89 N409477	£1.66	£1.99
863 - LATCH BDE-P910190.A70 P910190	£9.41	£11.29
864 - INSERT BDE-N278059.A2 N278059	£34.00	£40.80

Attribute Name	Value
Brand	Dewalt
